2016 Lexus ES350 parking brake

6
ES350_QG_OM33B82U_(U)
Remote Touch screen∗
Navigation system∗
Lexus Display Audio system
∗
P.48
P.52
P.69
Clock*
Trunk opener main switch
P.102
Audio system P.63, 74
Air conditioning system
P.78
Emergency flasher switch*
See P.9 Engine (ignition) switch
P.22
Parking brake*
∗
: If equipped
*: Refer to “OWNER’S MANU-
Tilt and telescopic steering control switch∗*

22
ES350_QG_OM33B82U_(U)
Engine (Ignition) Switch
nStarting the engine
Check that the parking brake is set.
Check that the shift lever is set in P.
Firmly depress the brake pedal.
will be displayed on the
multi-information display. If it is
not displayed, the engine cannot
be started.
Press the engine switch. The engine will crank until it
starts or for up to 30 seconds,
whichever is less.
Continue depressing the brake
pedal until the engine is com-
pletely started.
The engine can be started from
any engine switch mode.
Performing the following operations wh en carrying the electronic key on your
person starts the engine or changes engine switch modes.
1
2
3
4

23
ES350_QG_OM33B82U_(U)
nStopping the engine
Stop the vehicle.
Shift the shift lever to P.
Set the parking brake.
Press the engine switch.
Release the brake pedal and check that “POWER ON” on the multi-information
display is off.
n Changing engine switch modes
Modes can be changed by pressing the engi ne switch with the brake pedal released.
(The mode changes each time the switch is pressed.)
Off
*
The emergency flashers can be used.
ACCESSORY mode Some electrical components such as
the audio system can be used.
“POWER ON” will be displayed on
the multi-information display.
IGNITION ON mode All electrical components can be
used.
“POWER ON” will be displayed on
the multi-information display.
*: If the shift lever is in a position other
than P when turning off the engine,
the engine switch will be turned to
ACCESSORY mode, not to off.
1
2
3
4
5

25
ES350_QG_OM33B82U_(U)
Automatic Transmission
nShifting the shift lever
While the engine switch is in IGNITI ON ON mode, move the shift lever with
the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
n Shift position purpose
*1: Shifting to the D position allows the system to select a gear suitable for the driv-
ing conditions.
Setting the shift lever to the D position is recommended for normal driving.
*2: Selecting shift ranges using S mode restricts the upper limit of the possible gear ranges, controls engine braking for ce, and prevents unnecessary upshifting.
Shift positionObjective or function
PParking the vehicle/starting the engine
RReversing
NNeutral
DNormal driving*1
SS mode driving*2

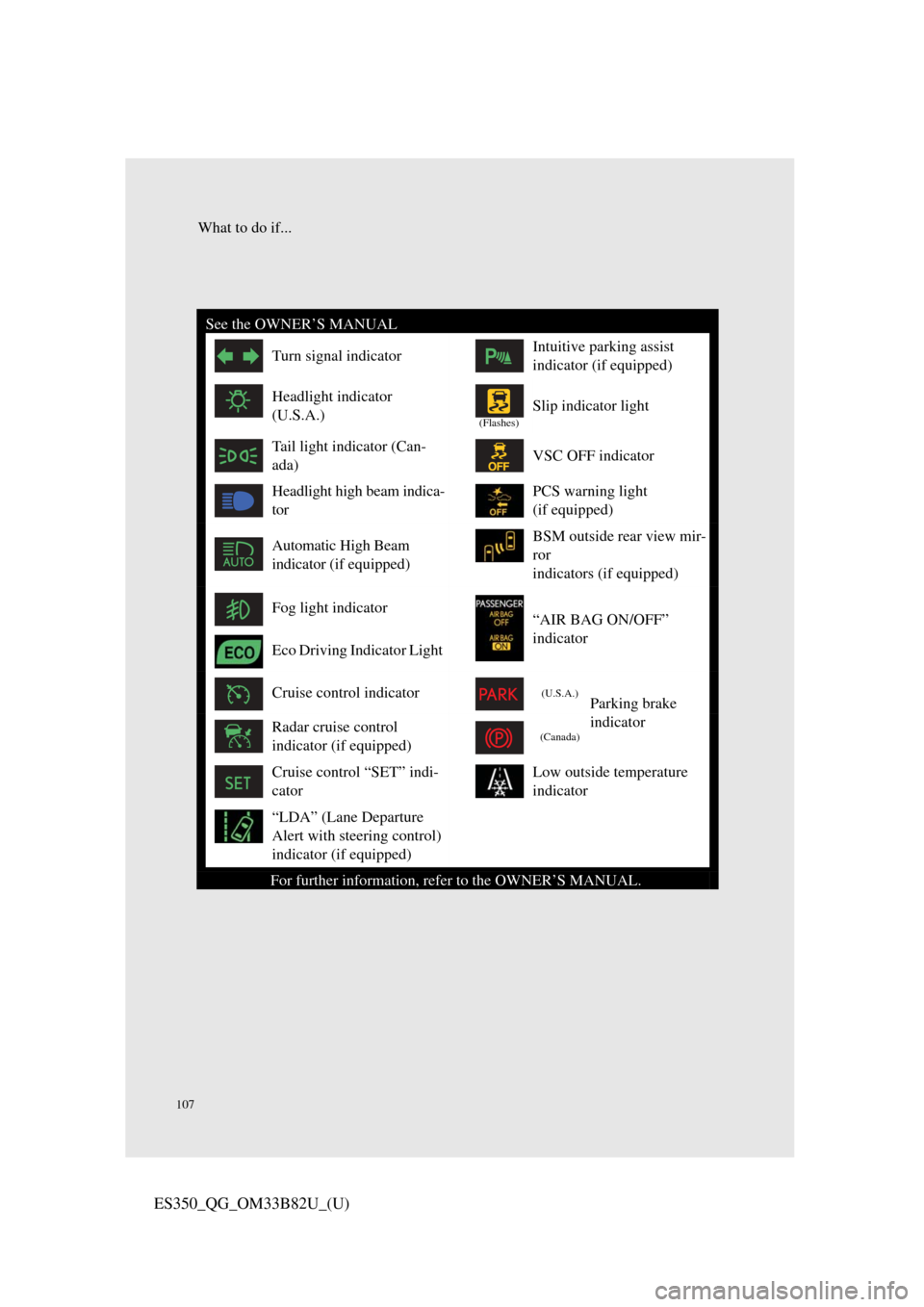

What to do if...
107
ES350_QG_OM33B82U_(U)
See the OWNER’S MANUAL
Turn signal indicatorIntuitive parking assist
indicator (if equipped)
Headlight indicator
(U.S.A.)
(Flashes)
Slip indicator light
Tail light indicator (Can-
ada)VSC OFF indicator
Headlight high beam indica-
torPCS warning light
(if equipped)
Automatic High Beam
indicator (if equipped)BSM outside rear view mir-
ror
indicators (if equipped)
Fog light indicator“AIR BAG ON/OFF”
indicator
Eco Driving Indicator Light
Cruise control indicator(U.S.A.)Parking brake
indicator
Radar cruise control
indicator (if equipped)(Canada)
Cruise control “SET” indi-
catorLow outside temperature
indicator
“LDA” (Lane Departure
Alert with steering control)
indicator (if equipped)
For further information, refer to the OWNER’S MANUAL.
