2016 Lexus ES300h Owner's Manual Quick Guide (OM33B89U)

105
ES300h_QG_OM33B89U_(U)
Tr u n k
■Opening the trunk
● From inside the vehicle
Press the opener switch.If the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully
Turn the main switch in the glove box off to
disable the trunk opener. On
Off
The trunk lid cannot be opened even with
the wireless remote control or the trunk
release button.
● From outside the vehicle
• Smart access system with push-button start
While carrying the electronic key, press the
button on the trunk lid.When all the doors are unlocked with
the power door lock system, the trunk
can be opened without carrying the
electronic key.
If the vehicle is equipped with power
trunk opener and closer, the trunk lid
automatically opens fully.
• Wireless remote control Press and hold the switchIf the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully.
1
2

106
ES300h_QG_OM33B89U_(U)
■Trunk easy closer (vehicles with power trunk opener and closer)
In the event that the trunk lid is left slightly open, the trunk easy closer will automatically
close it to the fully closed position.
■Trunk closer switch (vehicles with power trunk opener and closer)
Pressing the switch closes the trunk lid
automatically. (A buzzer sounds.)
Pressing the switch while the trunk lid is
closing opens the trunk lid again.

What to do if...
107
ES300h_QG_OM33B89U_(U)

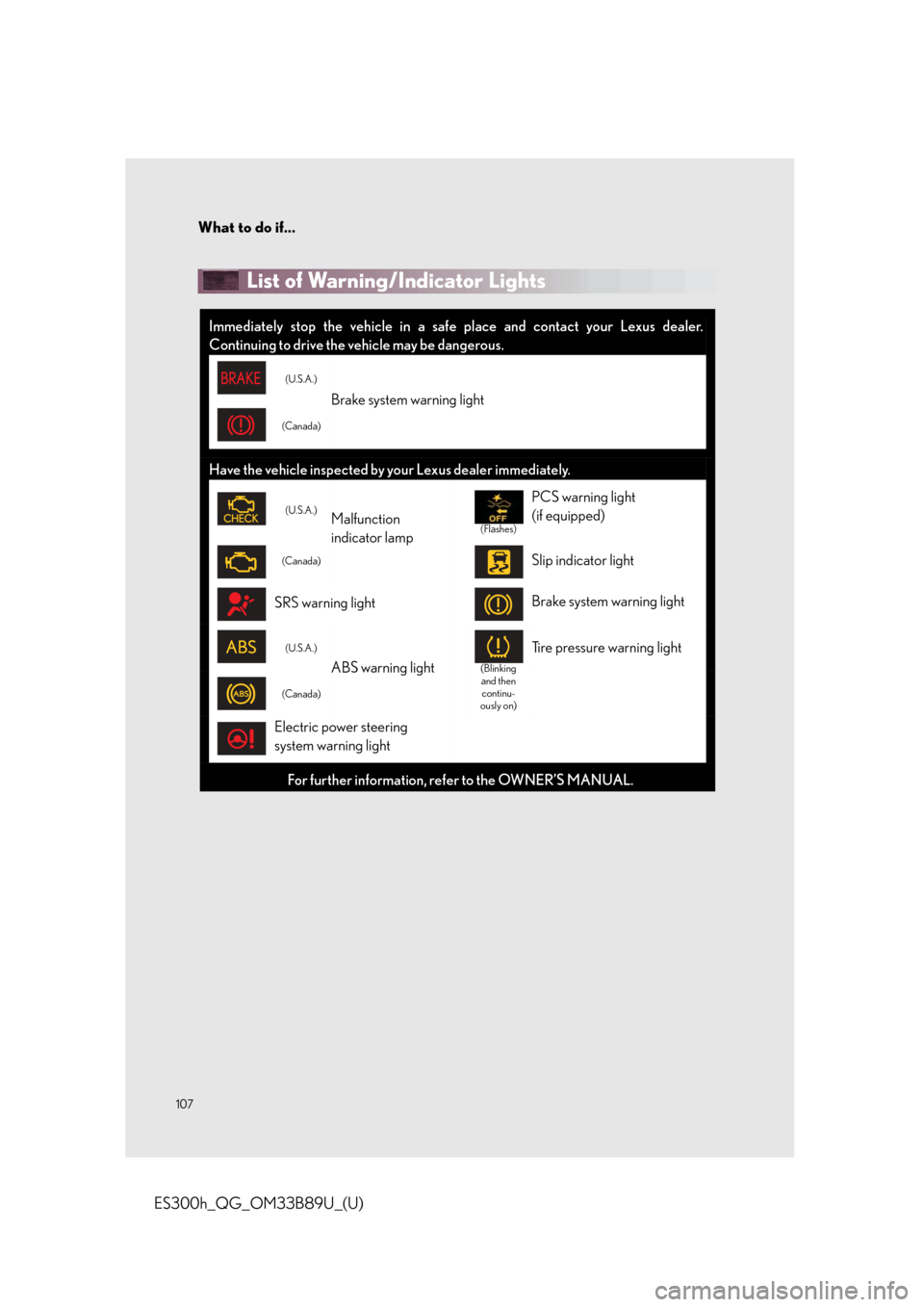

List of Warning/Indicator Lights
Immediately stop the vehicle in a safe place and contact your Lexus dealer.
Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Canada)
Have the vehicle inspected by your Lexus dealer immediately.
(U.S.A.)Malfunction
indicator lamp(Flashes)
PCS warning light
(if equipped)
(Canada)Slip indicator light
SRS warning lightBrake system warning light
(U.S.A.)
ABS warning light(Blinking and then continu-
ously on)
Tire pressure warning light
(Canada)
Electric power steering
system warning light
For further information, refer to the OWNER’S MANUAL.

108
What to do if...
ES300h_QG_OM33B89U_(U)
*: It also comes on due to natural causes such as natural air leaks and tire inflation pressure changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have th e system checked by your Lexus dealer.

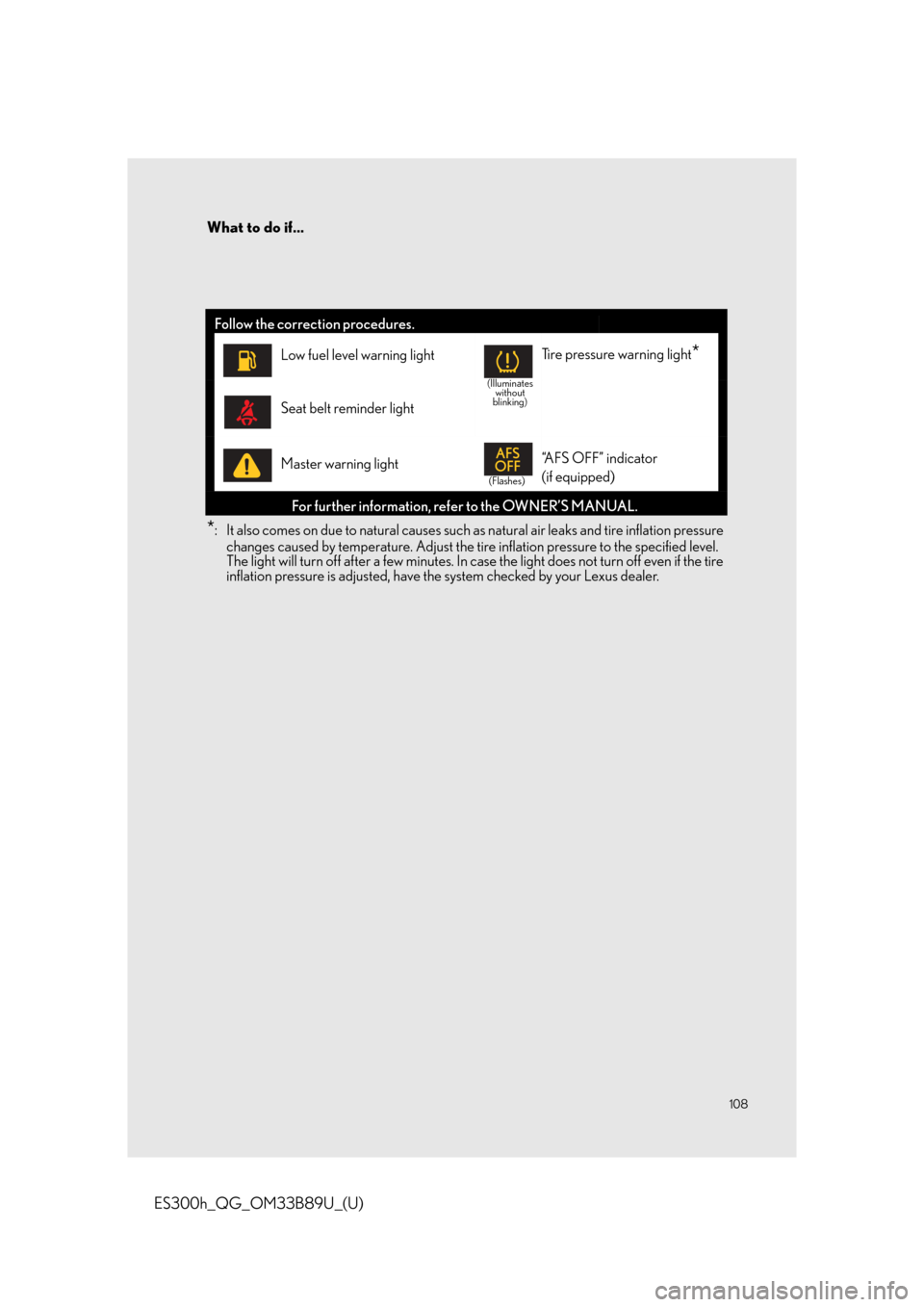

Follow the correction procedures.
Low fuel level warning light
(Illuminates
without
blinking)
Tire pressure warning light*
Seat belt reminder light
Master warning light
(Flashes)
“AFS OFF” indicator
(if equipped)
For further information, re fer to the OWNER’S MANUAL.

What to do if...
109
ES300h_QG_OM33B89U_(U)
See the OWNER’S MANUAL
Turn signal indicator
“LDA” (Lane Departure Alert
with steering control)
indicator (if equipped)
Headlight indicator (U.S.A.)Intuitive parking assist
indicator (if equipped)
Tail light indicator (Canada)
(Flashes)
Slip indicator light
Headlight high beam indicatorVSC OFF indicator
Automatic High Beam
indicator (if equipped)PCS warning light
(if equipped)
Fog light indicatorBSM outside rear view mirror
indicators (if equipped)
“READY” indicator “AIR BAG ON/OFF”
indicator
EV indicator
Cruise control indicator(U.S.A.)Parking brake
indicator
Radar cruise control
indicator (if equipped)(Canada)
Cruise control “SET” indicatorLow outside temperature
indicator
For further information, refer to the OWNER’S MANUAL.

110
What to do if...
ES300h_QG_OM33B89U_(U)
If the electronic key does not operate properly
■Unlocking and locking the doors
Use the mechanical key ( P.1 8 ) i n o r d e r t o
perform the following operations:
Locks all the doors
Closes the windows and moon roof
*
(turn and hold)
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other doors.
Opens the windows and moon roof
*
(turn and hold)
*: This setting must be customized at yourLexus dealer.
■ Unlocking the trunk
Turn the mechanical key clockwise to open.
1
2
3
4

What to do if...
111
ES300h_QG_OM33B89U_(U)
■Starting the hybrid system
Ensure that the shift lever is in P and
depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the power switch.
The power switch will turn to ON
mode.
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the power switch
will turn to ACCESSORY mode.
Firmly depress the brake pedal and
check that is shown on the
multi-information display.
Press the power switch.
In the event that the hybrid system still can not be started, contact your Lexus dealer.
If the hybrid system doesn’t start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the
hybrid system. (P. 2 6 )
1
2
3
4
If the electronic key battery becomes depleted, replace it with a new battery. For instruc-
tions on replacing the battery, refer to th e OWNER’S MANUAL. If you need further assis-
tance, contact your Lexus dealer.
Brake pedal
If the hybrid system still do es not start, see the OWNER’S MANUAL for more information
or contact your Lexus dealer.

112
