Page 10 of 92
7
You can view the previous or next
image by flicking left/right on an
image on the USB Image screen.
Flick left/right on the frequency bar
in the radio player to look up the pre-
vious/next frequency available.
Press and Hold
Pressing the and
buttons in the music or video player
will fast forward/rewind the music or
video.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y

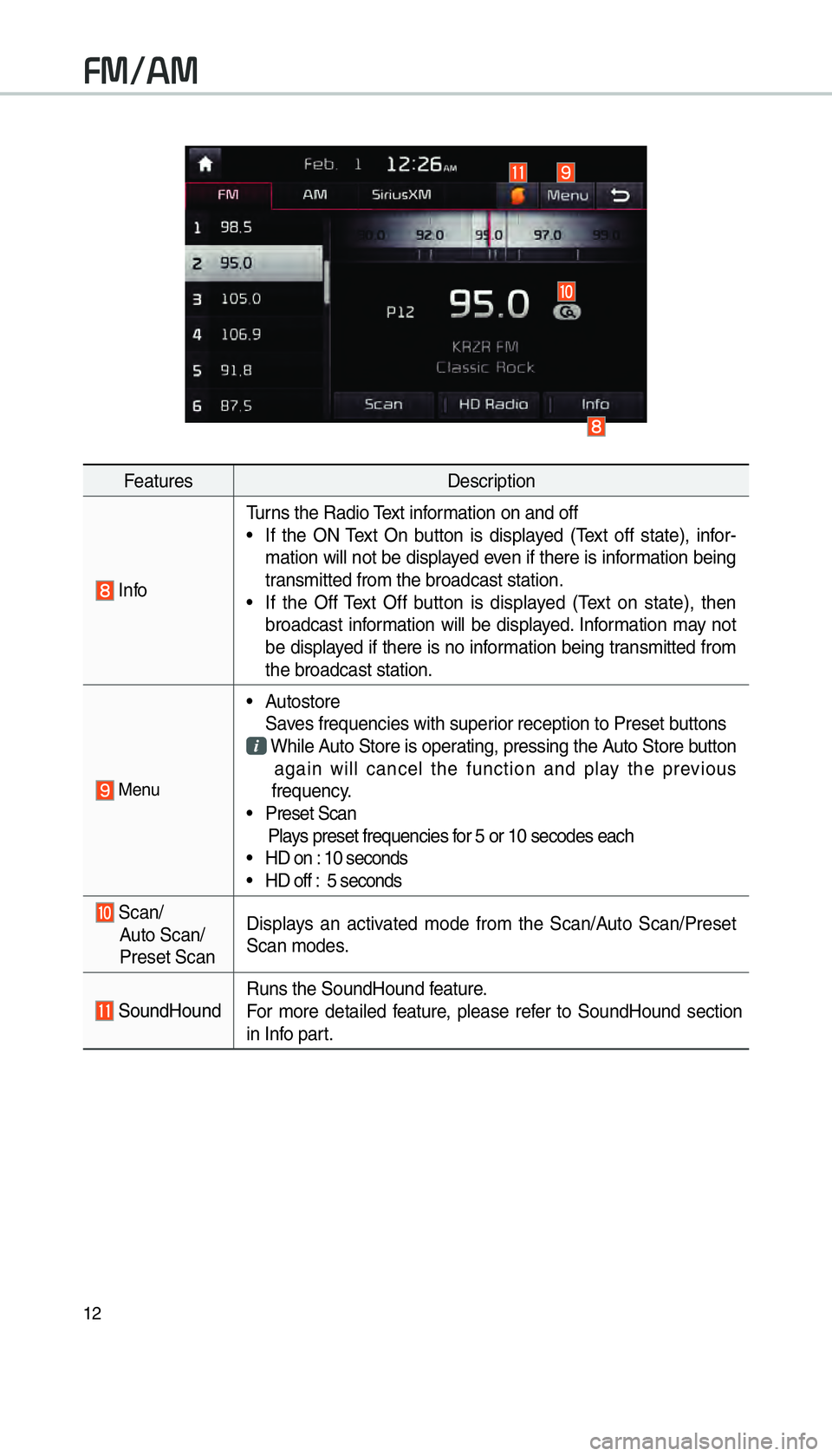

Page 15 of 92
12
FeaturesDescription
InfoTurns the Radio Text information on and off
If the ON Text On button is displayed (Text off state), infor-
mation will not be displayed even if there is information being
transmitted from the broadcast station.
If the Off Text Off button is displayed (Text on state), then
broadcast information will be displayed. Information may not
be displayed if there is no information being transmitted from
the broadcast station.
Menu
Autostore
Saves frequencies with superior reception to Preset buttons
While Auto Store is operating, pressing the Auto Store button
again will cancel the function and play the previous
frequency.
Preset Scan
Plays preset frequencies for 5 or 10 secodes each
HD on : 10 seconds
HD off : 5 seconds
Scan/
Auto Scan/
Preset Scan Displays an activated mode from the Scan/Auto Scan/Preset
Scan modes.
SoundHound
Runs the SoundHound feature.
F
or more detailed feature, please refer to SoundHound section
in Info part.
FM/AM
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 17 of 92
14
Basic Mode Screen (HD Radio™ reception ON)
NameDescription
HDRadio™
Reception
&Channel buttons Displays main HD Radio™ channels and used to
directly select the currently available channels
As HD Radio™ reception is included within
Radio mode, the methods of moving between
channels, saving presets, searching, or methods of
searching frequencies are identical. However, while
the HD Radio™ related icon display will only become
active when within regions where an HD Radio™
signal can be received.
HD Channel Number
HD Channel number saved in preset
Broadcast Info Displays detailed information about the current broad-
cast
HD RadioUsed to set whether to turn HD Radio™ reception
On/Off.
About HD Radio™ Technology
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E
< & / > " 7 / 2 3 ( J O E E ß
y
Page 19 of 92
16
SiriusXM™ Mode Display Controls
FeaturesDescription
Mode DisplayDisplays currently operating mode.
Tap to select desired mode, it will change to selected mode in
Radio.
PresetShows saved presets for user selection After selecting fre-
quency press and hold (over 0.8 seconds) the preset button.
A ‘beep’ will sound and the frequency is saved to the selected
preset button.
A total of 18 frequencies for SiriusXM™ modes can be saved.
Channel Logo
Displays the current channel logo.
Channel Info Displays the current channel number and name.
Contents InfoDisplays the artist, title and other information about the current
playing song.
Category Info
Displays the current playing category.
ScanPlays all receivable channels for 10 seconds each.
Direct TuneUsed to search for channels by entering channel numbers.
CategoryIf you press Category, when search channels through SEEK,
Tune and Scan, search it in the current category.
Category
Selection
Buttons
Used to select the previous/next category.
Play Live It will change to listening live broadcast mode.
Skip
Backward Repeats the previously broadcasted program.
Holding for less than 0.8 seconds : Moves to the previous
segment
Holding for longer than 0.8 seconds: Moves to the previous
5 seconds
SiriusXM™ Mode
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 54 of 92
51
With Download Center, you can
install paid/free applications or check
for related information. Only UVO
center verified applications can be
installed.
You can use Download Center after
agreeing to the User Agreement and
Privacy Policy. (Only 1 time for initial
launch)
Apps List
Select Home-screen ▶
All Menus or
My Menu ▶
Apps ▶
and then select
Download Center
Download Center
Name Description
Application
Download
and Run
buttons Button state changes
according to the appli-
cation state.
DownloadDownloads free appli-
cations.
PurchaseDownloads paid appli-
cations.
Re-downloadDownloads deleted
applications after pre-
viously installing them.
Retry
Downloads the appli-
cations that failed to
download due to net-
work or system errors.
RunRuns installed applica-
tions.
CancelCancels any downloads
and updates.
Menu
Updates and refreshes
the menu.
Update
After installation, it
shows applications
requiring updates.
The update screen
shows the
Update All
button to update all
applications that need
updates.
RefreshRefreshes the app list
status.
Detailed
Information When the application
list area is pressed, it
moves to the Detailed
Information screen.
Preview
Displays application
images.
InformationDisplays application
information.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E
< & / > " 7 / 2 3 ( J O E E ß
y
Page 73 of 92
70
Select the desired destination
among the searched items.
Emergency
Search emergency facilities.
Press the
NAVI head unit key. ▶
Select the
Destination tab. ▶
Select the
Emergency
Check the current location informa-
tion and select the desired item in
the sub menu (ex. Police Station)
Select the desired destination
among the searched items.
Address Book
Search the destination with the
address book.
Press the
NAVI head unit key. ▶
Select the
Destination tab. ▶
Select
the
AddressBook
Select the desired group.
Save in the Favorite Places, then
route can be set easily by using
3 buttons such as
Go Home and
Office on the button of the menu.
Navigation
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 76 of 92
73
Coordinates
Press the NAVI head unit key.▶
Select the
Coordinates to search by
coordinates.
There are two ways to search by
coordinates (D.M.S or Decimal
degrees). After typing coordinates,
press the
Done button to search.
Press the Set as Destination button to
start guidance.
Favorite Places
Set the route using your favorite
places.
Press the
NAVI head unit key. ▶
Select the
Destination tab. ▶
Select
from our favorite places
On the button where locations are
not registered, the
icon is dis-
played. When a location is regis-
tered, the
button disappears and
the buttons 1 to 3 are displayed as
the registered place names.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 77 of 92
74
Press the Go Home button and then
popup appears. Press the
Yes but-
ton for setting.
Register Go Home in various
searching methods. By using the
same methods, possible to register
Office, Special 1, Special 2, and
Special 3.
Route guidance starts by pressing
one of favorite place buttons.
Route Setting
After searching the destination, pos-
sible to set a route.
While the destination is set, the
buttons
Change Destination and
Add Waypoint appear. Press each
button to change a destination or
add a waypoint.
Destination Setting(Change)
After searching the destination,
press the
Set as Destination button to
set the location as a destination and
search a route.
Navigation
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
