2016 KIA Sedona Owner's Manual

325
Safety features of your vehicle

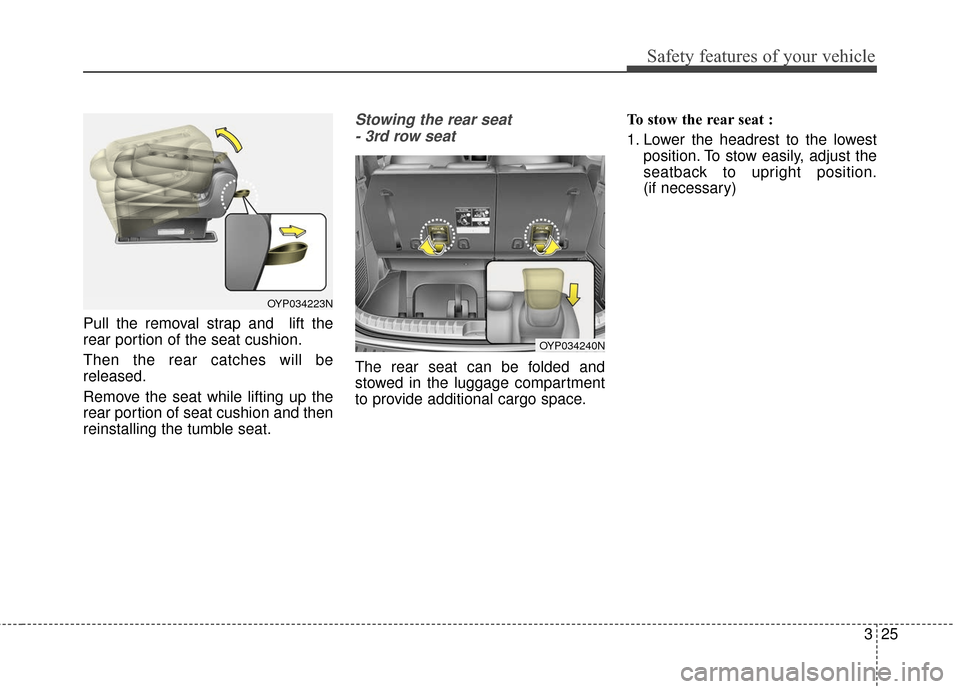

Pull the removal strap and lift the
rear portion of the seat cushion.
Then the rear catches will be
released.
Remove the seat while lifting up the
rear portion of seat cushion and then
reinstalling the tumble seat.
Stowing the rear seat - 3rd row seat
The rear seat can be folded and
stowed in the luggage compartment
to provide additional cargo space. To stow the rear seat :
1. Lower the headrest to the lowest
position. To stow easily, adjust the
seatback to upright position.
(if necessary)
OYP034223N
OYP034240N

Safety features of your vehicle
26
3

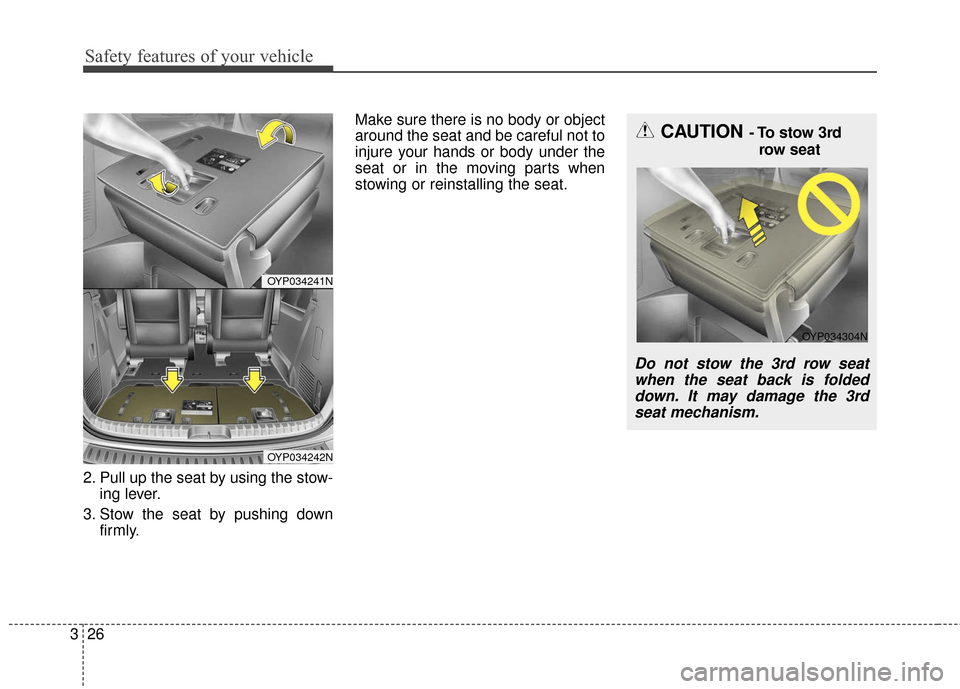

2. Pull up the seat by using the stow-
ing lever.
3. Stow the seat by pushing down firmly. Make sure there is no body or object
around the seat and be careful not to
injure your hands or body under the
seat or in the moving parts when
stowing or reinstalling the seat.
OYP034241N
OYP034242N
CAUTION- To stow 3rd
row seat
Do not stow the 3rd row seatwhen the seat back is foldeddown. It may damage the 3rdseat mechanism.
OYP034304N

327
Safety features of your vehicle

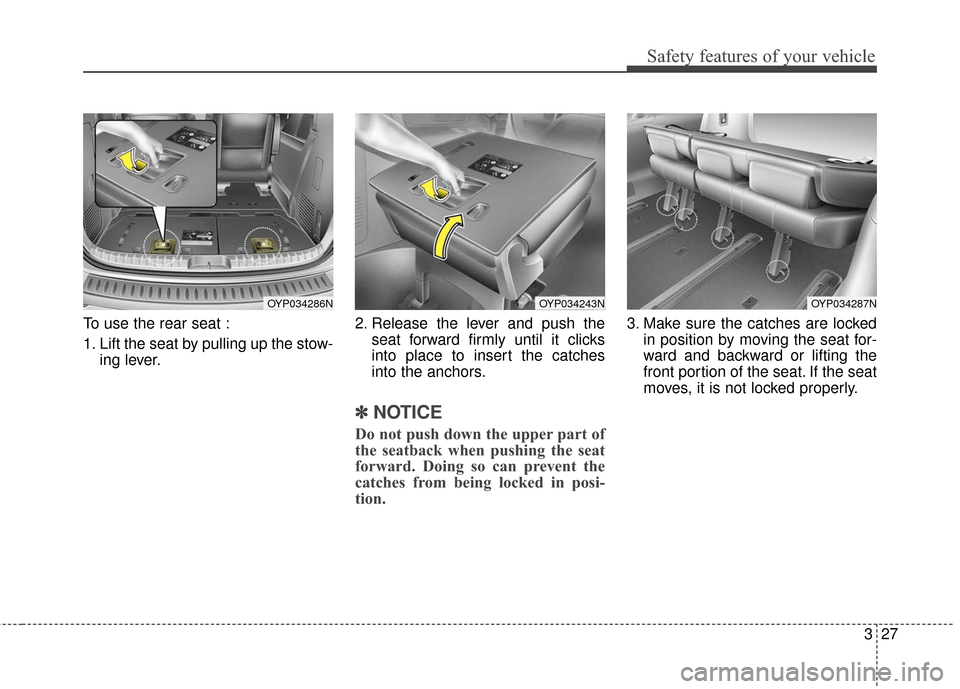

To use the rear seat :
1. Lift the seat by pulling up the stow-ing lever. 2. Release the lever and push the
seat forward firmly until it clicks
into place to insert the catches
into the anchors.
✽ ✽NOTICE
Do not push down the upper part of
the seatback when pushing the seat
forward. Doing so can prevent the
catches from being locked in posi-
tion.
3. Make sure the catches are locked
in position by moving the seat for-
ward and backward or lifting the
front portion of the seat. If the seat
moves, it is not locked properly.
OYP034243NOYP034286NOYP034287N

Safety features of your vehicle
28
3
4. Pull out and hold the folding strap.
5. Hold the seat back when you
adjust the seat back angle until it
clicks into place and then release
the folding strap.
Make sure the seatback is locked
in place.
6. Return the rear seat belt to the proper position. When you fold the rear (2nd and/or
3rd row) seatback, insert the buckle
in the pocket between the rear seat-
back and cushion. Doing so can pre-
vent the buckle from being damaged
by the rear seatback.
When returning the rear (2nd and/or
3rd row) seatbacks to the upright
position, remember to return the rear
shoulder belts to their proper posi-
tion. Routing the seat belt webbing
through the rear seat belt guides will
help keep the belts from being
trapped behind or under the seats.
Make sure the engine is off, the
automatic transaxle is in P (Park)
and the parking brake is securely
applied whenever loading or unload-
ing cargo. Failure to take these steps
may allow the vehicle to move if the
shift lever is inadvertently moved to
another position.
WARNING- Cargo
Do not place heavy objects in
the rear seats, since they can-
not be properly secured and
may hit vehicle occupants in a
frontal collision.
OYP034305N

329
Safety features of your vehicle
Armrest (2nd row seat)
The 2nd row seats have the armrest
located on the side of seatback.Type A
To use the armrest, swing down the
armrest to the lowest position.
Type B
To use the armrest, press the
release button
(1) on the armrest and adjust the
angle to the desired position. And
then release the button (1).
OUN026140
WARNING - 3rd row seat
3rd row occupants should always
remain in the center of the seat
cushion so the occupants head
is protected by the headrest.
If not, the tailgate may hit the
occupant's head, which could
cause injury.
OYP034254N
OYP034300N/Q
■ Type A
■ Type B (for SXL package)

Safety features of your vehicle
30
3

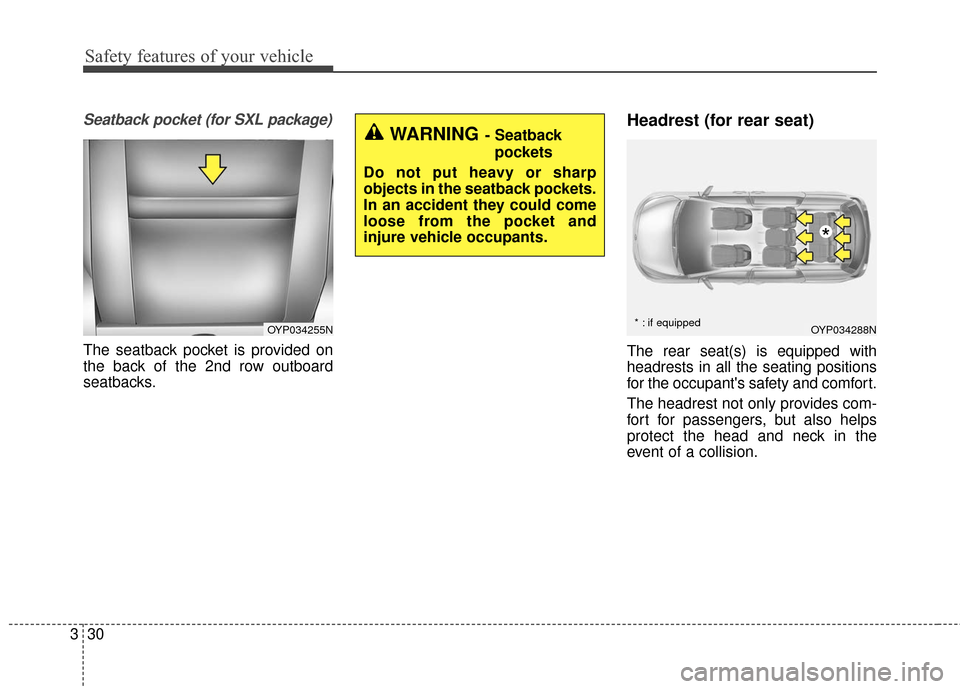

Seatback pocket (for SXL package)
The seatback pocket is provided on
the back of the 2nd row outboard
seatbacks.
Headrest (for rear seat)
The rear seat(s) is equipped with
headrests in all the seating positions
for the occupant's safety and comfort.
The headrest not only provides com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision.
OYP034288N
* : if equipped
*
OYP034255N
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.

331
Safety features of your vehicle
For maximum effectiveness in case of
an accident, the headrest should be
adjusted so the middle of the head-
rest is at the same height as the cen-
ter of gravity of an occupant's head.
Generally, the center of gravity of
most people's head is similar with
the height of the top of their eyes.
Also adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
Adjusting the height up and down
ODM032054
OYP034301N
OYP034302N
■2nd row outboard
OYP034298N
OYP034303N
■2nd row for SXL package
■3rd row
■2nd row center (if equipped)

Safety features of your vehicle
32
3

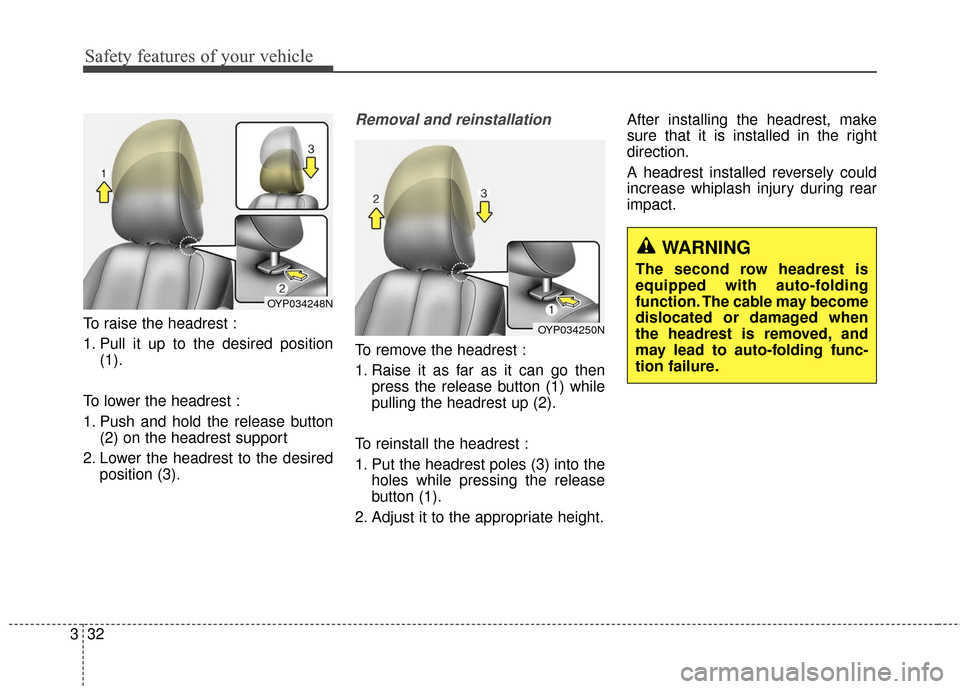

To raise the headrest :
1. Pull it up to the desired position
(1).
To lower the headrest :
1. Push and hold the release button (2) on the headrest support
2. Lower the headrest to the desired position (3).
Removal and reinstallation
To remove the headrest :
1. Raise it as far as it can go thenpress the release button (1) while
pulling the headrest up (2).
To reinstall the headrest :
1. Put the headrest poles (3) into the holes while pressing the release
button (1).
2. Adjust it to the appropriate height. After installing the headrest, make
sure that it is installed in the right
direction.
A headrest installed reversely could
increase whiplash injury during rear
impact.
OYP034248N
OYP034250N
WARNING
The second row headrest is
equipped with auto-folding
function. The cable may become
dislocated or damaged when
the headrest is removed, and
may lead to auto-folding func-
tion failure.
