Page 15 of 92
12
FeaturesDescription
InfoTurns the Radio Text information on and off
!Ÿ
If the ON Text On button is displayed (Text off state), infor-
mation will not be displayed even if there is information being
transmitted from the broadcast station.
!Ÿ
If the Off Text Off button is displayed (Text on state), then
broadcast information will be displayed. Information may not
be displayed if there is no information being transmitted from
the broadcast station.
Menu
!Ÿ
Autostore - Saves frequencies with superior reception to
Preset buttons
While Auto Store is operating, pressing the Auto Store button
again will cancel the function and play the previous
frequency.
!Ÿ
Preset Scan - Plays preset frequencies for 5 or 10 secodes each
!Ÿ
HD on : 10 seconds
!Ÿ
HD off : 5 seconds
Scan/
Auto Scan/
Preset Scan Displays an activated mode from the Scan/Auto Scan/Preset
Scan modes.
SEEK/
TRA CK
!Ÿ
Pressing this button briefly (less than 0.8 seconds) : Seeks
the previous/next frequency.
!Ÿ
Pressing and holding this button (longer than 0.8 seconds)
: Moves quickly through all of the frequencies. From the
moment that you release the button, the system will seek the
next available frequency.
TUNE
Turn the
TUNE
knob to manually seek available frequencies.
!Ÿ
FM : Increment/decrement by 200 kHz
!Ÿ
AM : Increment/decrement by 10 kHz
FM/AM
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 16 of 92
13
Basic Mode Screen (HD Radio™ reception ON)
NameDescription
HDRadio™
Reception
&Channel buttons Displays main HD Radio™ channels and used to
directly select the currently available channels
As HD Radio™ reception is included within
Radio mode, the methods of moving between
channels, saving presets, searching, or methods of
searching frequencies are identical. However, while
the HD Radio™ related icon display will become
active when within regions where an HD Radio™
signal can be received.
HD Channel Number
HD Channel number saved in preset
Broadcast Info Displays detailed information about the current broad-
cast
HD RadioUsed to set whether to turn HD Radio™ reception
On/Off.
About HD Radio™ Technology
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E
< 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 18 of 92
15
SiriusXM™ Mode Display Controls
FeaturesDescription
Mode DisplayDisplays currently operating mode.
If select wanted mode tap, it will change to selected mode in Radio.
PresetShows saved presets for user selection
After selecting frequency
→
press and hold (over 0.8 seconds)
the preset button. A 'beep' will sound and the frequency is
saved to the selected preset button.
A total of 18 frequencies for SiriusXM™ modes can be saved.
Channel Logo
Displays the current channel logo
Channel Info Displays the current channel number and name
Contents InfoDisplays the artist, title and other informationabout the current
playing song
Category Info
Displays the current playing category
ScanPlays all receivable channels for 10 seconds each
Direct TuneUsed to search for channels by entering channel numbers
CategoryIf you press Category, when search channels through SEEK,
Tune and Scan, search it in the current category.
Category
Selection
Buttons
Used to select the previous/next category
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 19 of 92
16
SiriusXM™ Mode
FeaturesDescription
Play Live
It will change to listening live broadcast mode.
Skip
Backward Repeats the previously broadcasted program.
!Ÿ
Holding for less than 0.8 seconds : Moves to the previous
segment
!Ÿ
Holding for longer than 0.8 seconds: Moves to the previous 5
seconds
Play Pause Pauses/plays the currently broadcasting program.
Skip ForwardMoves to the next segment.
ListDisplays SiriusXM™ Radio Categories/Channel Lists
MenuWhat’s on My Preset?
The program schedule saved in my preset. (For more details,
see Section 2.5. Viewing Menu.)
!Ÿ
Featured Favorite
Theme channels recommended by SiriusXM™. (For more
details, see Section 2.5. Viewing Menu.)
!Ÿ
Preset Scan
Plays preset frequencies for 5 seconds each.
SEEK/
TRACK When key is pressed shortly.(under 0.8 seconds) Plays
the previ-
ous/next channelWhen key is pressed and held.(over 0.8 seconds) Continuously changes
the channel until the key is released and plays the current channel
TUNE Changes the channel
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 20 of 92
17
Basic Mode Screen
NameDescription
Mode
Displays currently operating mode
Track IndexShows the current track/total tracks
Repeat/
Shuffle/
Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time
Play InfoDisplays track/artist/title/album information
Previous
Tr a c k
!Ÿ
When the play time is under 3 seconds the previous track
!Ÿ
When the play time is over 3 seconds current song from the
beginning
Play/Pause Plays/pauses the current track
Next Track Moves to the next track
RepeatRepeats the current track
Press the Repeat button to switch between repeating the current
track ª
and turning repeat off
Shuffle Plays disc tracks in random order
Press the Shuffle button to switch between shuffle all
ª
and turning shuffle off
Scan Scans the beginning parts of disc tracks (approx. 10 seconds
per track)
Press the Scan button to switch between scan all
ª
and turning scan off
List Moves to the track list screen
CD Mode
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 21 of 92
18
NameDescription
SEEK/TRACK
!Ÿ
If press button short (less than 0.8 seconds) moves to previ-
ous or next track
!Ÿ
If press button long (over than 0.8 seconds) it rewinds or
fast-forward the track When pressed for 5 seconds, it will rewind or fast-forward
the track at 4x speed. After that, it will rewind or fast-forward
at 20x speed. Once released, the track will begin playing at
normal speed.
TUNE
Turn the TUNE knob and search a desired track. When the
track name is displayed, press the
TUNE knob to play the
track.
If the
TUNE knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
CD Mode
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 22 of 92
19
Basic Mode Screen
Using MP3 Mode
NameDescription
Mode
Displays currently operating mode
File IndexShows the current MP3 file/total number of MP3 files
Repeat/
Shuffle/
Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time
Song InfoDisplays folder/file/artist/title/album info for current song
ListMoves to the list screen
Previous File
!Ÿ
If play time is less than 3 secs, moves to previous file
!Ÿ
If play time is over than 3 secs, play the current file from the
beginning
Play/PausePlays/pauses the current track
Next FileMoves to the next song
Repeat
Repeats the current song or all songs in the folder
Press the Repeat button to switch between repeating 1 song
ª repeating folder ª
and turning repeat off Repeat 1 song: Repeats the current song
Repeat Folder: Repeats songs in the folder
Shuffle
Plays files in the folder or in the disc in random order
Press the Shuffle button to switch between shuffle folder
ª shuffle all ª
and turning shuffle off Shuffle folder : Plays songs in the folder in ran dom order
Shuffle All : Plays songs in the disc in random order.
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1

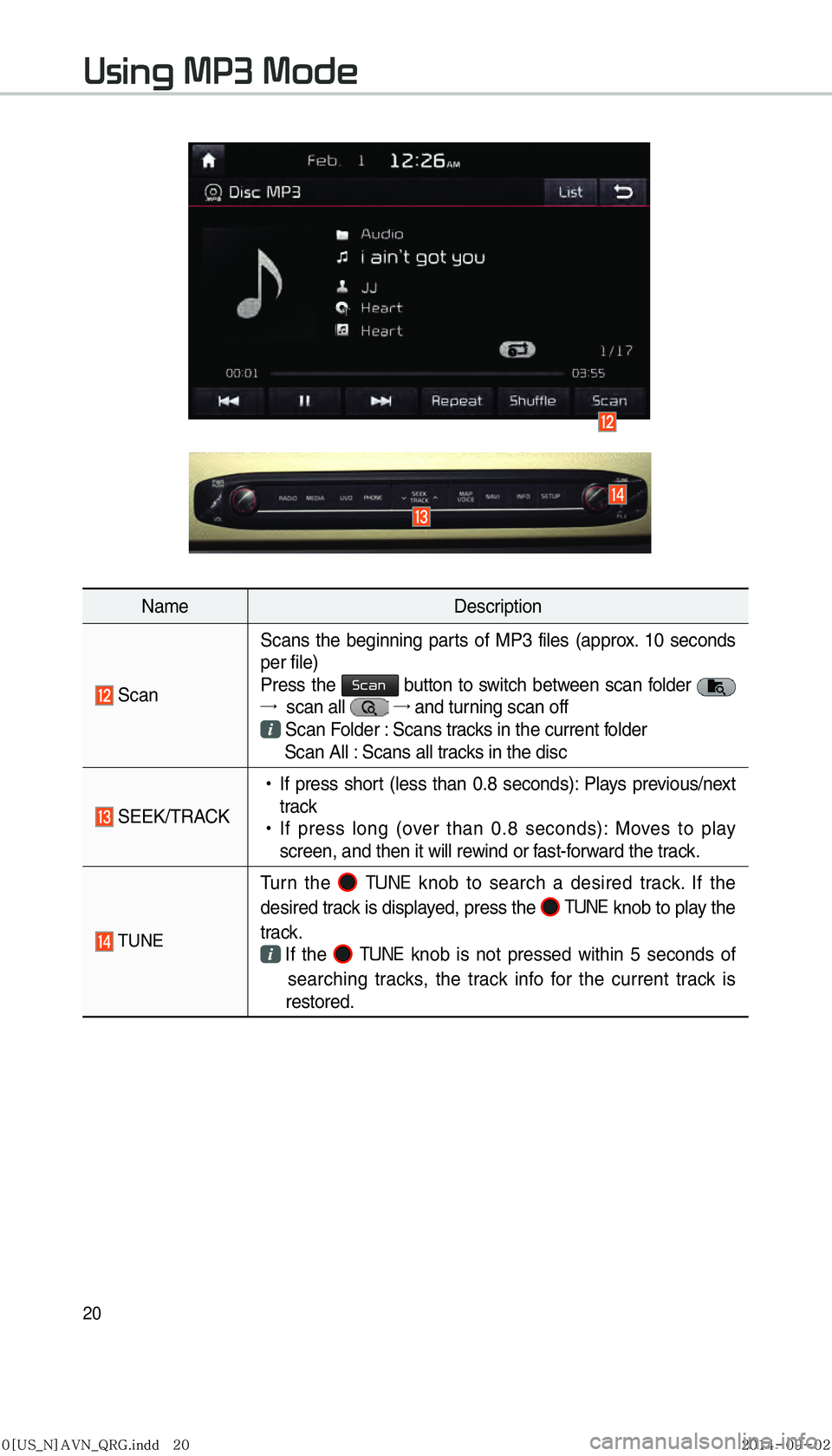

Page 23 of 92
20
NameDescription
Scan Scans the beginning parts of MP3 files (approx. 10 seconds
per file)
Press the Scan button to switch between scan folder
ª scan all ª
and turning scan off
Scan Folder : Scans tracks in the current folder
Scan All : Scans all tracks in the disc
SEEK/TRACK
!Ÿ
If press short (less than 0.8 seconds): Plays previous/next
track
!Ÿ
If press long (over than 0.8 seconds): Moves to play
screen, and then it will rewind or fast-forward the track.
TUNE
Turn the TUNE knob to search a desired track. If the
desired track is displayed, press the
TUNE knob to play the
track.
If the
TUNE knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
Using MP3 Mode
