Page 2 of 92
Thank you for purchasing this multimedia system.
This user’s manual explains how to use the Kia Motor multimedia system.
Before using the product, read the contents of this user’s manual carefully
and use this product safely.
• The screens shown in this manual may differ with the actual screens of the product.
• The design and specification of this product may change without prior notification for
product improvement.
• When transferring the vehicle to another individual, include this user’s manual so
that the next driver can continue its use.
Precaution for safe usage
• Driving while distracted can result in a loss of vehicle control, that may lead to an acci-
dent, severe personal injury, and death. The driver’s primary responsibility is in the safe
and legal operation of a vehicle, and use of any handheld devices, other equipment, or
vehicle systems which take the driver’s eyes, attention and focus away from the safe
operation of a vehicle or which are not permissible by law should never be used during
operation of the vehicle.
• Do not operate the multimedia system while driving.
• Do not disassemble, assemble, or modify the multimedia system.
• Do not watch the screen for prolonged periods of time while driving.
•
Set the volume to a level which allows the driver to be aware of external conditions.
•
Do not operate the multimedia system for prolonged periods of time with the vehicle igni-
tion in ACC. Such operations may lead to battery discharge.
• Be cautious not to spill water or introduce foreign objects into the device.
• Do not cause severe shock to the device. Direct pressure onto the front side of the moni-
tor may cause damage to the LCD or touch panel.
• In case of product malfunction, please contact your place of purchase or service center.
• When cleaning the touch screen, make sure to turn off the device and use a dry and
smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia,
benzene, thinners, etc.) as such materials may damage the device panel or cause color
and quality deterioration.
• SiriusXM service requires a subscription, sold separately, after 3-month trial
included with vehicle purchase. If you decide to continue your SiriusXM service at
the end of your trial subscription, the plan you choose will automatically renew and
bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See
our Customer Agreement for complete terms at www.siriusxm.com. Programming
subject to change. Sirius satellite service is available only to those at least 18 and
older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic
information not available in all markets. See siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio Inc.
WARNING
• Driving while distracted can result in a loss of vehicle control that may lead to
an accident, severe personal injury, and death. The driver’s primary responsi-
bility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle or which are not
permissible by law should never be used during operation of the vehicle.
• Infinity is a trademark of Harman International Industries, Inc.
• At launch, the Apple iPhone® will be the only UVO eServices compatible device. iPhone®
is a registered trademark of Apple Inc. Apple iOS6 compatibility expected early 2013.
Additional compatible devices expected late 2013.
• App Store is a service mark of Apple Inc. No charge for the UVO eServices app. App
runs on your smartphone cellular data service. Normal data rates will apply.
• HD Radio™ and the HD Radio™ logo are proprietary trademarks of iBiquity Digital
Corporation.
• 24-hour Roadside Assistance is a service plan provided by Kia Motors America,
Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and
Consumer Information Manual. For access to Enhanced Roadside Assistance, a con-
nected mobile phone via Bluetooth within the cellular service coverage area is required.
• Vehicle Diagnostics do not take the place of regularly scheduled maintenance. Feature
checks powertrain, chassis, and airbag systems only. For factory-recommended mainte-
nance schedule, see the Maintenance Feature of UVO eServices or the Owner’s Manual.
• 911 Connect activates after an airbag deployment. Feature requires a connected mobile
phone via Bluetooth. Dependant on cellular service coverage.
• The rear-camera display is not a substitute for proper and safe backing-up procedures. The
rear-camera display may not display every object behind the vehicle. Always drive safely and
use caution when backing up.
All Map Database cannot be copied without permission.
Important Notice: This is protected by U.S. copyright laws. All rights
not expressly granted are reserved.
You may not otherwise reproduce, modify, and distribute the content
without HYUNDAI MnSoft, Inc's prior written consent.
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( @ $ 0 7 & 3 J O E E , @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( @ $ 0 7 & 3 J O E E
Page 3 of 92
Thank you for purchasing this multimedia system.
This user’s manual explains how to use the Kia Motor multimedia system.
Before using the product, read the contents of this user’s manual carefully
and use this product safely.
• The screens shown in this manual may differ with the actual screens of the product.
• The design and specification of this product may change without prior notification for
product improvement.
• When transferring the vehicle to another individual, include this user’s manual so
that the next driver can continue its use.
Precaution for safe usage
• Driving while distracted can result in a loss of vehicle control, that may lead to an acci-
dent, severe personal injury, and death. The driver’s primary responsibility is in the safe
and legal operation of a vehicle, and use of any handheld devices, other equipment, or
vehicle systems which take the driver’s eyes, attention and focus away from the safe
operation of a vehicle or which are not permissible by law should never be used during
operation of the vehicle.
• Do not operate the multimedia system while driving.
• Do not disassemble, assemble, or modify the multimedia system.
• Do not watch the screen for prolonged periods of time while driving.
•
Set the volume to a level which allows the driver to be aware of external conditions.
•
Do not operate the multimedia system for prolonged periods of time with the vehicle igni-
tion in ACC. Such operations may lead to battery discharge.
• Be cautious not to spill water or introduce foreign objects into the device.
• Do not cause severe shock to the device. Direct pressure onto the front side of the moni-
tor may cause damage to the LCD or touch panel.
• In case of product malfunction, please contact your place of purchase or service center.
• When cleaning the touch screen, make sure to turn off the device and use a dry and
smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia,
benzene, thinners, etc.) as such materials may damage the device panel or cause color
and quality deterioration.
• SiriusXM service requires a subscription, sold separately, after 3-month trial
included with vehicle purchase. If you decide to continue your SiriusXM service at
the end of your trial subscription, the plan you choose will automatically renew and
bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See
our Customer Agreement for complete terms at www.siriusxm.com. Programming
subject to change. Sirius satellite service is available only to those at least 18 and
older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic
information not available in all markets. See siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio Inc.
WARNING
• Driving while distracted can result in a loss of vehicle control that may lead to
an accident, severe personal injury, and death. The driver’s primary responsi-
bility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle or which are not
permissible by law should never be used during operation of the vehicle.
• Infinity is a trademark of Harman International Industries, Inc.
• At launch, the Apple iPhone® will be the only UVO eServices compatible device. iPhone®
is a registered trademark of Apple Inc. Apple iOS6 compatibility expected early 2013.
Additional compatible devices expected late 2013.
• App Store is a service mark of Apple Inc. No charge for the UVO eServices app. App
runs on your smartphone cellular data service. Normal data rates will apply.
• HD Radio™ and the HD Radio™ logo are proprietary trademarks of iBiquity Digital
Corporation.
• 24-hour Roadside Assistance is a service plan provided by Kia Motors America,
Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and
Consumer Information Manual. For access to Enhanced Roadside Assistance, a con-
nected mobile phone via Bluetooth within the cellular service coverage area is required.
• Vehicle Diagnostics do not take the place of regularly scheduled maintenance. Feature
checks powertrain, chassis, and airbag systems only. For factory-recommended mainte-
nance schedule, see the Maintenance Feature of UVO eServices or the Owner’s Manual.
• 911 Connect activates after an airbag deployment. Feature requires a connected mobile
phone via Bluetooth. Dependant on cellular service coverage.
• The rear-camera display is not a substitute for proper and safe backing-up procedures. The
rear-camera display may not display every object behind the vehicle. Always drive safely and
use caution when backing up.
All Map Database cannot be copied without permission.
Important Notice: This is protected by U.S. copyright laws. All rights
not expressly granted are reserved.
You may not otherwise reproduce, modify, and distribute the content
without HYUNDAI MnSoft, Inc's prior written consent.
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( @ $ 0 7 & 3 J O E E , @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( @ $ 0 7 & 3 J O E E
Page 4 of 92
1

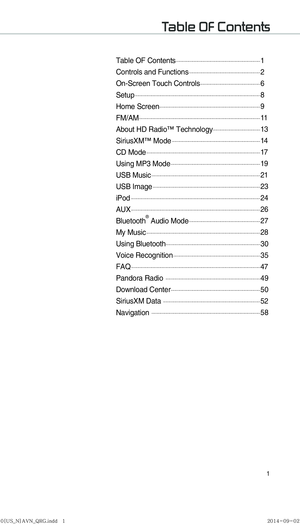

Table OF Contents
Table OF Contents 1
Controls and Functions 2
On-Screen Touch Controls 6
Setup 8
Home Screen 9
FM/AM 11
About HD Radio™ Technology 13
SiriusXM™ Mode 14
CD Mode 17
Using MP3 Mode 19
USB Music 21
USB Image 23
iPod 24
AUX 26
Bluetooth® Audio Mode 27
My Music 28
Using Bluetooth 30
Voice Recognition 35
FAQ 47
Pandora Radio 49
Download Center 50
SiriusXM Data 52
Navigation 58
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 5 of 92
2
Controls and Functions
Head Unit
NameDescription
RADIOConverts to FM/AM/SiriusXM™ mode
•
Each time the key is pressed, the mode is changed in order of
FM →
AM →
SiriusXM™ →
FM
MEDIA
Converts to MEDIA mode
•
If the media is not connected or the CD player is not available
for Model, MEDIA mode will not be activated.
•
Press this key to move to the last mode that you accessed in
MEDIA Mode. Press it once again to display the screen where
you can select a MEDIA mode.
UVODisplays the UVO mode
When key is pressed shortly. (under 0.8 seconds)
•
FM/AM mode : plays previous/next frequency
•
SiriusXM™ mode : plays the previous/next channel
•
MEDIA ( Disc/USB/iPod/My Music) mode : changes the track, file
or chapter (e
xcept USB Image and AUX)
When key is pressed and held. (over 0.8 seconds)
•
FM/AM mode :
continuously changes the frequency until the key
is released
•
SiriusXM™ mode : continuously changes the channel until the
key is released and plays the current channel
•
MEDIA (Disc/USB/iPod/My Music) mode : rewinds or fastforwards
the track or file (except USB Image, Bluetooth Audio and AUX)
MAP
VOICEDisplays the map for the current position
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 6 of 92
3
NameDescription
NAVITakes you to the menu screen where you can find your destina-
tion and set the route.
PHONETakes user to phone screen
INFODisplays the information mode
SETUPDisplays the Setup mode
POWER/
VOL
•
When power is off, press to turn power on
•
When power is on, press and hold (over 0.8 seconds) to turn
power off
•
When power is on, press shortly (under 0.8 seconds) to turn
Audio off
•
Turn left/right to control volume
TUNE
•
FM/AM mode :
changes the frequency
•
SiriusXM™ mode : changes the channel
•
MEDIA (Disc/USB/iPod/My Music) mode : changes the track,
file or title (except USB Image, Bluetooth Audio and AUX)
RESET Resets the system settings. (Preset radio channels and other
data will not be deleted.)
SD Card insert slot
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E
< 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 7 of 92
4
Steering Wheel Remote Controller
Controls and Functions
NameDescription
When pressed shortly. (under 0.8 seconds)
!Ÿ

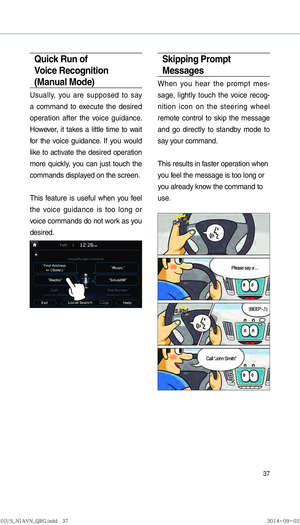

Activates voice recognition
When pressed and held. (over 0.8 seconds)
!Ÿ
Ends voice recognition
!Ÿ
Activates Siri Eyes Free
MODE
!Ÿ
Each time this key is pressed, mode is changed in order of FM
ª AM ª
SiriusXM™ ª
Disc ª
USB Music or iPod ª
AUX ª
Bluetooth Audio ª
My Music
!Ÿ
If the media is not connected, corresponding modes will be dis-
abled
!Ÿ
Press and hold the key (over 0.8 seconds) to turn the Audio
system on/off
!Ÿ
When power is off, press the key to turn power back on
VOL+
VOL-Controls the volume
When keys are pressed shortly. (under 0.8 seconds)
!Ÿ
FM/AM mode : searches broadcast frequencies saved to
Presets
!Ÿ
SiriusXM™ mode : searches broadcast channels saved to
Presets
!Ÿ
MEDIA(Disc/USB/iPod/My Music) mode : changes the track, file
or chapter (except USB Image, AUX)
When keys are pressed and held. (over 0.8 seconds)
!Ÿ
FM/AM Mode : Automatically searches broadcast frequencies
!Ÿ
SiriusXM™ mode : automatically searches broadcast channels
!Ÿ
MEDIA mode : Quickly looks up songs (excluding USB images,
AUX, and Bluetooth audio files)
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 8 of 92
5
NameDescription
When pressed shortly. (under 1.2 seconds)
!Ÿ
When pressed in the dial screen, makes a call
!Ÿ
When pressed in the incoming call screen, answers the call
!Ÿ
When pressed during call waiting, switches to waiting call (Call
Waiting)
When pressed and held. (over 1.2 seconds)
!Ÿ
When pressed in the Bluetooth
® Handsfree, redials the last call
!Ÿ
When pressed during a Bluetooth® Handsfree call, switches call
back to mobile phone (Private)
!Ÿ
When pressed while calling on the mobile phone, switches call
back to Bluetooth
® Handsfree (Operates only when Bluetooth®
Handsfree is connected)
!Ÿ
When pressed during a call, ends the phone call
!Ÿ
When pressed in the incoming call screen, rejects the call
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
