Maintenance
Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn into the surge
tank through the purge control sole-
noid valve.
Purge Control Solenoid Valve(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust emission control system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
Engine exhaust gas precautions
(carbon monoxide)
Carbon monoxide can be present with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately.
WARNING - Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.

Maintenance
100
7
Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for catalyt-
ic converters (if equipped)
Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed: Use only UNLEADED FUEL for
gasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with a extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter.
Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
WARNING- Fire
Do not park, idle or drive the vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Also, do not remove the heat sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.
WARNING- Catalytic converter
Keep away from the catalytic
converter and exhaust system
while the vehicle is running or
immediately thereafter. The
exhaust and catalytic systems
are very hot and may burn you.

7101
Maintenance
CALIFORNIA PERCHLORATE NOTICE
Perchlorate Material-special han-
dling may apply, See
www.dtsc.ca.gov/hazardouswaste/p
erchlorate.
Notice to California Vehicle
Dismantlers:
Perchlorate containing materials,
such as air bag inflators, seatbelt
pretensioners and keyless remote
entry batteries, must be disposed of
according to Title 22 California Code
of Regulations Section 67384.10 (a).

Specifications, Consumer information and Reporting safety defects
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Weight and volume . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Air conditioning system. . . . . . . . . . . . . . . . . . . . . . 8-6
Recommended lubricants and capacities . . . . . . . 8-7
• Recommended SAE viscosity number. . . . . . . . . . . . 8-8
Vehicle identification number (VIN) . . . . . . . . . . . 8-9
Vehicle certification label . . . . . . . . . . . . . . . . . . . . 8-9
Tire specification and pressure label . . . . . . . . . . . 8-10
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Consumer assistance . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Electrical equipment . . . . . . . . . . . . . . . . . . . . . . . . 8-13
Reporting safety defects . . . . . . . . . . . . . . . . . . . . . 8-14
Online factory authorized manuals . . . . . . . . . . . . 8-15
8

Specifications, Consumer information, Reporting safety defects
28
ENGINE
DIMENSIONS
ItemGasoline 1.6
Displacement [cu.in(cc)] 97.09
(1,591)
Bore x Stroke [in(mm)] 3.03 x 3.36
(77 x 85.44)
Firing order 1-3-4-2
No. of cylinders 4, In-line
Itemin (mm)
Overall length 4 door 172 (4370)
5 door 159.4 (4050)
Overall width
67.7 (1720)
Overall height57.2 (1455)
Front tread185/65R1559.8 (1520)
205/45R1759.3 (1507)
Rear tread185/65R15 60 (1525)
205/45R1759.4 (1511)
Wheelbase 101.1 (2570)

83
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
Light BulbWattageBulb type
Front
Head lamp Low55WH11B
High55WH1
Position lamp5W or LEDP21/5W or LED
Turn signal lamp21WPY21W
Front fog lamp*55W9006
Side marker light5WW5W
Rear
Tail lampInside5W or LEDW5W or LED
Outside8W or LEDP28/8W or LED
Stop lampInsideLEDLED
Outside28W or LEDP28/8W or LED
Turn signal lamp21WPY21W
Back up lamp16WW16W
High mounted stop lampLEDLED
License plate lamp5W X 2EAW5W
Side marker light*as tail bulb
LEDLED*
Interior
Map lamps*10W X 2EAW10W
Room lamps10WFESTON
Luggage lamp5WFESTON
Glove box lamp5WFESTON
Vanity mirror lamps*5WFESTON
* : if equipped■
■
5 door

Specifications, Consumer information, Reporting safety defects
48
Light BulbWattageBulb type
Front
Head lamp Low55WHB2
High60WHB2
Position lamp5W or LEDW5W or LED
Turn signal lamp28WPY28/8W
Front fog lamp*55W9006
Side marker light5WW5W
Rear
Tail lampInside8W or LEDP27/8W or LED
Outside8W or LEDP27/8W or LED
Stop lampInsideLEDLED
Outside27W or LEDP27/8W or LED
Turn signal lamp21WPY21W
Back up lamp16WW16W
High mounted stop lamp16WW16W
License plate lamp5W X 2EAW5W
Side marker light*as tail bulb
LEDLED*
Interior
Map lamps*10W X 2EAW10W
Room lamps10WFESTON
Luggage lamp5WFESTON
Glove box lamp5WFESTON
Vanity mirror lamps*5WFESTON
* : if equipped■
■
4 door

85
Specifications, Consumer information, Reporting safety defects

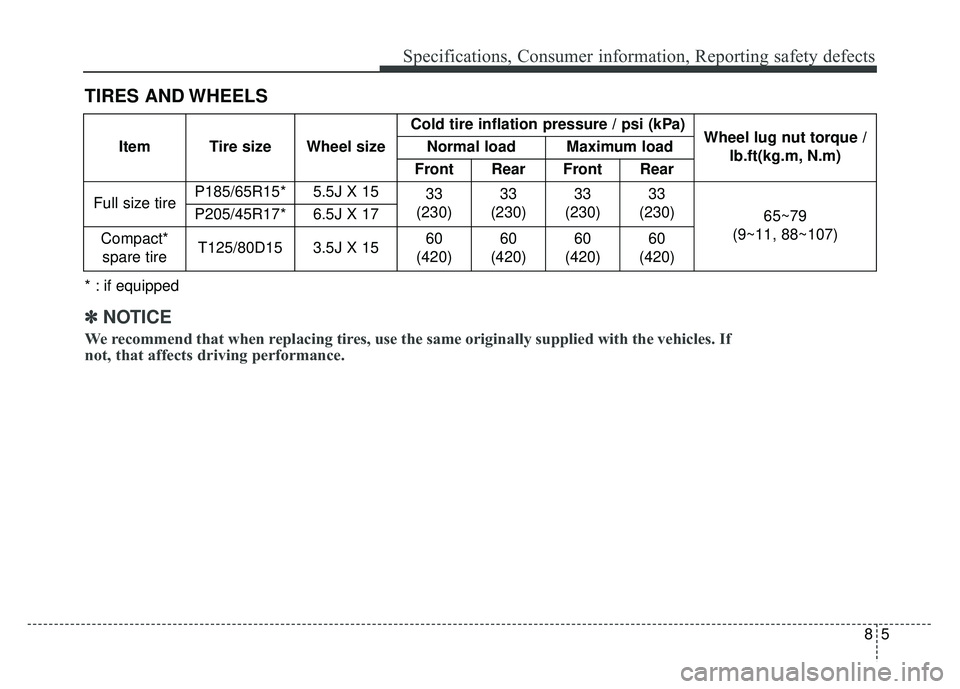

TIRES AND WHEELS
Item Tire size Wheel sizeCold tire inflation pressure / psi (kPa)
Wheel lug nut torque /
lb.ft(kg.m, N.m)
Normal load Maximum load
Front Rear Front Rear
Full size tire
P185/65R15* 5.5J X 15 33
(230) 33
(230) 33
(230) 33
(230) 65~79
(9~11, 88~107)
P205/45R17* 6.5J X 17
Compact* spare tire
T125/80D15 3.5J X 15 60
(420) 60
(420) 60
(420) 60
(420)
* : if equipped
✽
✽

NOTICE
We recommend that when replacing tires, use the same originally supplied with the vehicles. If
not, that affects driving performance.
