VEHICLE BREAK-IN PROCESS
16
Introduction
No special break-in period is needed.
By following a few simple precautions
for the first 1,000 km (600 miles) you
may add to the performance, econo-
my and life of your vehicle.
Do not race the engine.
While driving, keep your enginespeed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
Do not maintain a single speed for long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
Avoid hard stops, except in emer- gencies, to allow the brakes to seat
properly.

Your vehicle at a glance
4
2
INTERIOR OVERVIEW
1. Inside door handle ...................................4-16
2. Front power seat adjust switch ..................3-5
3. Outside rearview mirror folding ...............4-52
4. Outside rearview mirror control ...............4-51
5. Power window lock switch .......................4-35
6. Central door lock switch ..........................4-17
7. Power window switch...............................4-32
8. BSD On/OFF button ................................5-91
9. HUD On/OFF button..............................4-104
10. Parking assist system On/Off button...4-106
11. ESC Off button ......................................5-44
12. Trunk lid open button .............................4-20
13. Trunk lid close button .............................4-22
14. Trunk lid open / close button .................4-22
15. Instrument panel illumination control lever
...............................................................4-55
16. Electric parking brake switch .................5-32
17. Fuel filler lid open switch .......................4-38
18. Hood release lever.................................4-36
19. Steering wheel .......................................4-46
20. Tilt and telescopic steering control lever ...4-46
21. Brake pedal............................................5-29
22. Accelerator pedal ....................................5-8
OKH013003K
❈The actual shape may differ from the illustration.

25

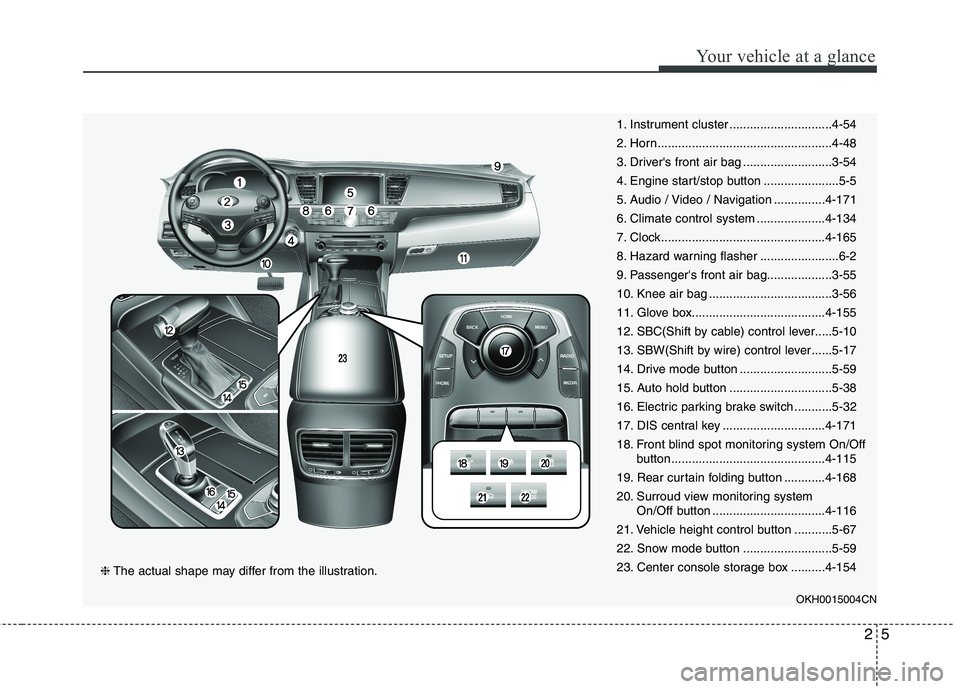

Your vehicle at a glance
1. Instrument cluster ..............................4-54
2. Horn...................................................4-48
3. Driver's front air bag ..........................3-54
4. Engine start/stop button ......................5-5
5. Audio / Video / Navigation ...............4-171
6. Climate control system ....................4-134
7. Clock................................................4-165
8. Hazard warning flasher .......................6-2
9. Passenger's front air bag...................3-55
10. Knee air bag ....................................3-56
11. Glove box.......................................4-155
12. SBC(Shift by cable) control lever.....5-10
13. SBW(Shift by wire) control lever......5-17
14. Drive mode button ...........................5-59
15. Auto hold button ..............................5-38
16. Electric parking brake switch ...........5-32
17. DIS central key ..............................4-171
18. Front blind spot monitoring system On/Offbutton.............................................4-115
19. Rear curtain folding button ............4-168
20. Surroud view monitoring system On/Off button .................................4-116
21. Vehicle height control button ...........5-67
22. Snow mode button ..........................5-59
23. Center console storage box ..........4-154
OKH0015004CN
❈The actual shape may differ from the illustration.

27
Your vehicle at a glance
ENGINE COMPARTMENT
1. Engine oil dipstick .............................7-25
2. Engine oil filler cap ...........................7-26
3. Engine coolant reservoir ...................7-28
4. Radiator cap .....................................7-29
5. Brake fluid reservoir ..........................7-30
6. Power steering fluid reservoir ...........7-31
7. Windshield washer fluid reservoir .....7-32
8. Air cleaner.........................................7-33
9. Fuse box ...........................................7-56
10. Jumper terminal ................................6-5 ❈The actual engine compartment in the vehicle
may differ from the illustration.
❈ The battery is in the trunk.
OKH012007/OKH012006
■■Gasoline Engine (Lambda II 3.8L) - MPI
■■Gasoline Engine (Lambda II 3.8L) - GDI

Your vehicle at a glance
8
2
1. Engine oil dipstick .............................7-25
2. Engine oil filler cap ...........................7-26
3. Engine coolant reservoir ...................7-28
4. Radiator cap .....................................7-29
5. Brake fluid reservoir ..........................7-30
6. Power steering fluid reservoir ...........7-31
7. Windshield washer fluid reservoir .....7-32
8. Air cleaner.........................................7-33
9. Fuse box ...........................................7-56
10. Jumper terminal ................................6-5
OKH015006K
❈The actual engine compartment in the vehicle may differ from the illustration.
❈ The battery is in the trunk.
■
■
Gasoline Engine (Tau 5.0)

367
Safety features of your vehicle
Just before impact, drivers oftenbrake heavily. Such heavy braking
lowers the front portion of the vehi-
cle causing it to “ride” under a vehi-
cle with a higher ground clearance.
Air bags may not inflate in this
"under-ride" situation because
deceleration forces that are detect-
ed by sensors may be significantly
reduced by such “under-ride” colli-
sions. Front air bags may not inflate in
rollover accidents because front air
bag deployment would not provideadditional occupant protection.
✽✽ NOTICE - with rollover sensor
However, the side and curtain air
bags may inflate in a rollover, when
it is detected by ACU (Airbag
Control Unit).
✽
✽ NOTICE - without rollover sensor
However, side and curtain air bags
may inflate when the vehicle is rolled
over by a side impact collision.
Air bags may not inflate if the vehi- cle collides with objects such as util-
ity poles or trees, where the point of
impact is concentrated to one area
and the full force of the impact is not
delivered to the sensors.
OKH032086OKH033120OKH035069K

Features of your vehicle
18
4
Door lock/unlock features
Impact sensing door unlock sys-
tem
All doors will automatically unlock when an impact causes the air bags
to deploy.
Speed sensing door lock system
All doors will automatically lock after
the vehicle speed exceeds 15 km/h.
WARNING - Unlocked
vehicles
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always press the
engine start/stop button to the
OFF position, engage the park-
ing brake, close all windows
and lock all doors when leaving
your vehicle unattended.
WARNING - Unattended
children
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil-dren or animals who cannot
escape the vehicle. Furthermore,
children might operate features
of the vehicle that could injure
them, or they could encounter
other harm, possibly from some-
one gaining entry to the vehicle.
Never leave children or animals
unattended in your vehicle.
WARNING - Doors
The doors should always be fully closed and locked while
the vehicle is in motion to pre-vent accidental opening of the
door. Locked doors will also
discourage potential intruders
when the vehicle stops or
slows.
Be careful when opening doors and watch for vehicles,
motorcycles, bicycles or
pedestrians approaching the
vehicle in the path of the door.Opening a door when some-
thing is approaching can
cause damage or injury.

Features of your vehicle
36
4
Opening the hood
1. Pull the release lever to unlatch
the hood. The hood should pop
open slightly. 2. Go to the front of the vehicle, raise
the hood slightly, push the second-
ary latch (1) inside of the hoodcenter and lift the hood (2).
3. Raise the hood. It will raise com- pletely by itself after it has been
raised about halfway. Closing the hood
1. Before closing the hood, check the
following:
ment must be correctly installed.
bustible material must be
removed from the engine com-
partment.
2. Lower the hood halfway and push down to securely lock in place.
HOOD
OKH042028
OKH045029K
WARNING
Before closing the hood, ensure that all obstructions
are removed from the hood
opening. Closing the hoodwith an obstruction present in
the hood opening may result
in property damage or severe
personal injury.
Do not leave gloves, rags or any other combustible materi-
al in the engine compartment.
Doing so may cause a heat-
induced fire.
WARNING
Open the hood after turning off
the engine on a flat surface,
shifting the shift lever to the
P(Park) position and setting the
parking brake.
