2016 KIA QUORIS Owners Manual

Specifications & Consumer information
6
8
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil * 1
*2
(drain and refill) Recommends 3.8LMPI *
3
5.7 l(6.02 US qt.) API Service SM or above,
ILSAC GF-4 or aboveACEA A5 (or above)
GDI * 4
5.7 l(6.02 US qt.)
ACEA A5 (or above)
5.0L * 4
7.2 l(7.61 US qt.)
ACEA A5 (or above)
Engine oil consumption Normal driving
condition MAX. 1L / 1,500 km -
Severe driving condition MAX. 1L / 1,000 km -
Automatic
transaxle fluid 3.8L
MPI
9.6
l(10.14 US qt.)
GS ATF SP-IV-RR,
Kia genuine ATF SP-IV-RR
GDI
9.6
l(10.14 US qt.)
5.0L 9.6
l(10.14 US qt.)
Power steering fluid With EHPS 0.9
l(0.95 US qt.)
Pentosin CHF 202
Coolant 3.8LMPI
8.6
l(9.1 US qt.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
GDI
8.6
l(9.1 US qt.)
5.0L 10.8
l(11.4 US qt.)

87
Specifications & Consumer information
*1
: Refer to the recommended SAE viscosity numbers on the next page.
* 2
: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ -
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
* 3
: If the API service SM, ILSAC GF-4, ACEA A5 engine oil is not available in your country, you are able to use API service SL,
ILSAC GF-3, ACEA A3.
* 4
: If the ACEA A5 engine oil is not available in your country, you are able to use API service SL, ILSAC GF-3, ACEA A3. Lubricant Volume Classification
Brake fluid 0.7~0.8
l
(0.74~0.85 US qt.) FMVSS116 DOT-3 or DOT-4
Rear differential oil 1.4
l(1.48 US qt.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL HD AXLE OIL 75W/90 Equivalent)
Fuel 75
l(19.81 US gal.)
Refer to “Fuel requirements” in section 1

Specifications & Consumer information
8
8
Recommended SAE viscosity
number Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.Using oils of any viscosity other thanthose recommended could result in
engine damage. When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
* 1
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20 (API SM / ILSAC GF-4). However, if the engine oil is not available in your country,
select the proper engine oil using the engine oil viscosity chart.
* 2
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
* 3
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-30 (ACEA A5). However, if the engine oil is not available in your country, select the prop-
er engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil * 1
(MPI) °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
20W-50
10W-30
15W-40
5W-20 * 2
, 5W-30
Gasoline
Engine Oil * 3
(GDI)20W-50
10W-30
15W-40
5W-30, 5W-40

89
Specifications & Consumer information
VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily beseen through the windshield from
outside.
The vehicle certification label
attached on the driver’s (or front pas-
senger’s) side center pillar gives the
vehicle identification number (VIN).
OKH083001LOKH083004L
VIN label (if equipped)Frame number
OKH082002
VEHICLE CERTIFICATION LABEL

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your car.The engine number is stamped on
the engine block as shown in the
drawing.A compressor label informs you the
type of compressor your vehicle isequipped with such as model, suppli-
er part number, production number,
and refrigerant oil (1).
TIRE SPECIFICATION AND PRESSURE LABEL
OKH073078L
ENGINE NUMBER AIR CONDITIONER
COMPRESSOR LABELOKH085005
810
Specifications & Consumer information
OKH083003L
OKH083005
■Lambda Engine
■Tau Engine

811
Specifications & Consumer information

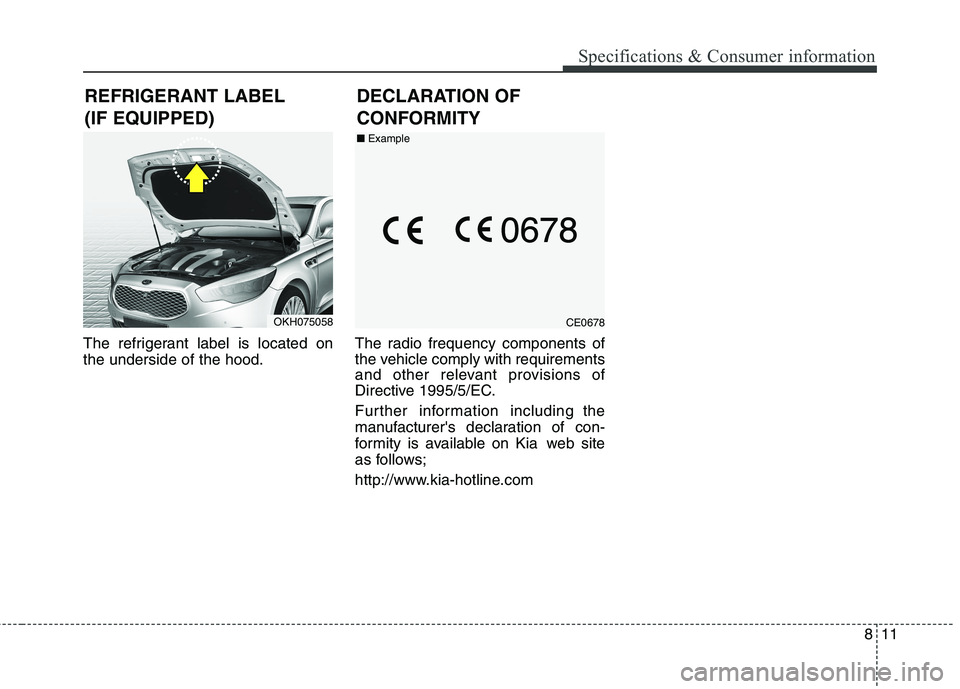

The refrigerant label is located on the underside of the hood.The radio frequency components of
the vehicle comply with requirements
and other relevant provisions of
Directive 1995/5/EC.
Further information including the
manufacturer's declaration of con-
formity is available on Kia web site
as follows;
http://www.kia-hotline.com
OKH075058DECLARATION OF CONFORMITYCE0678
■
Example
REFRIGERANT LABEL
(IF EQUIPPED)

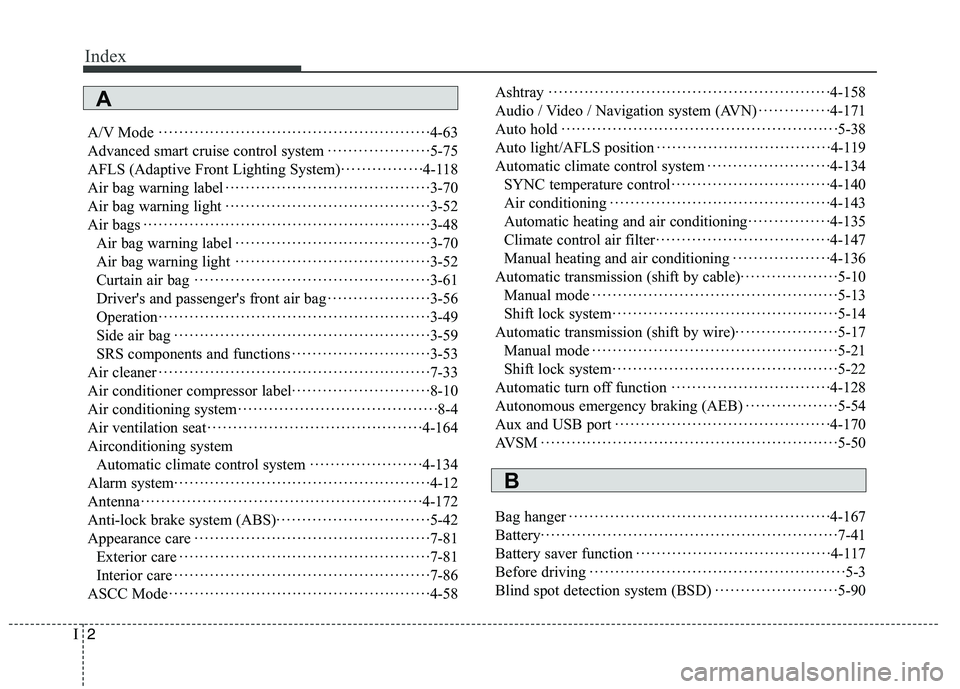

Index
