Trip Computer / Tripmeter
The Trip Computer is a driver information
system that displays information related
to driving on the display when the ENGINE
START/STOP button is in the ON position
To cycle through the LCD Instrument
Cluster modes, press the Mode/Select
button
A
When in the Trip Computer mode
,
press the Move/Reset button B to cycle
through the screens When displaying
TRIP A or TRIP B screens, press and hold
the Move/Reset button
B to reset the
Tripmeter to zero
REMINDERS:

• Appearance of Tripmeter display may differ
as equipped

• All stored driving information (except Odometer
and Range) is reset if the battery is disconnected
(Type B Cluster)
025
50: NextHold : Reset
AVGRANGE
444
44.4
mi.
MPG
ODO1 2 3
4 5
6 mi.
- 3 2 °F
FUEL ECONOMY
• R ANGE
• Average MPG
• Instant MPG
TRIP A
• Tripmeter A
• Average MPH
• Elapsed Time (E / T )
TRIP B
• Tripmeter B
• Average MPH
• Elapsed Time (E / T )
LCD Instrument Cluster Modes*
Press Mode/Select button A to scroll through different LCD Instrument
Cluster Modes:
(Buttons located
on Steering Wheel)
Ty p e A Ty p e B
Trip Computer Mode: Displays driving information
for tripmeter, fuel economy, etc
Advanced Smart Cruise Control (ASCC) / Lane
Departure Warning System (LDWS)*: Displays the
state of the ASCC and LDWS
A/V Mode: Displays the state of the A / V System
Turn-by-Turn Mode*: Displays the state of the
Navigation system
Information Modes: Informs on service intervals and
pressure status of each tire
User Settings Mode: Change settings of the doors,
lamps and other features
A
B
Your vehicle’s steering wheel buttons may differ from those in the illustrations.
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
INSTRUMENT CLUSTER

7
User Settings
To enter the User Settings
mode in the LCD Instrument
Cluster Modes, press the
Mode/Select button
A when
the vehicle is at a standstill
and with the ENGINE START/
STOP button in the ON
position and select User
Settings

You can navigate the selections on the display by pressing the
Move/Reset button
B, and then selecting the item by pressing
the Mode/Select button A
Door:
• Auto Door Lock
& Unlock
• Two Press Unlock
• Lock /Unlock Sound
• Horn Feedback

Lamp:
• One-Touch Turn
Lamp
• Headlamp Delay
• Welcome Light* Settings:
•
Temperature Unit
• Speed Unit ( Type B Cluster)*
• Speedometer Size ( Type
B Cluster)*
• AVG Fuel Economy Reset
• Easy Seat Access*
• Easy Steering Access*
• Welcome Sound
• Steering Position

Service Interval:
• ON/OFF
• Set mileage/months
Service Mode
To enter Service Mode, press the Mode/Select
button A, scroll to Service Mode by pressing Move/
Reset button B Then press the Mode/Select button A to
enter System will display number of miles remaining until
next service is due, and type of service
When service is required, the following will be displayed:
Service Required
To reset the Service Mode system, press and hold the
Move/Reset button
B for more than 1 second
To turn Service In OFF, go to User Settings
Service Interval Setting
To set the service interval when in
User Settings mode:
• Press the Move/Reset button
B and scroll to Service
Interval Press the Mode/Select
button
A to enter
• Press the Move/Reset button
B and toggle to ON, then
press the Move/Select button
A Then press the Move/Reset
button B to scroll and select
the desired miles or months for
your next service
• Press the Mode/Select button
A to enter


To view these videos on
your mobile device, snap
these QR Codes or visit the
listed websites
Refer to page 2 for more
information
LCD Display Video


LCD Display:
Maintenance VideoQR CODES
www. KuTechVideo s.c om/vg13/2016
www. KuTechVideo s.c om/vg13/2016ODO 123 456 miHold : Reset
Service in
or 15000 mi.
90 days
ODO 123 456 mi
Service in
OFF
ODO 123 456 miHold : Reset
Service required
or 0 mi.
0 days
ODO 123 456 miHold : Reset
Service in
or 15000 mi.
90 days
ODO 123 456 mi
Service in
OFF
ODO 123 456 miHold : Reset
Service required
or 0 mi.
0 days
ODO 123 456 miHold : Reset
Service in
or 15000 mi.
90 days
ODO 123 456 mi
Service in
OFF
ODO 123 456 miHold : Reset
Service required
or 0 mi.
0 days
(Type B cluster)
(Buttons located on right side of
steering wheel)
A
B
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
INSTRUMENT CLUSTER

11
Power Windows, Window Lock & Central Door Lock
A Pull/Press to operate Driver’s Window Auto Up/Down*
B Press to Unlock /Lock All Doors
C Press to disable Rear Passenger Windows
Power Folding Outside Mirrors*
Toggle middle switch D left or right to select mirror Then press arrows to
adjust Power Folding Outside Mirror position
Toggle button
E left /right to unfold/fold the outside rearview mirrors
Toggle button
E to center to automatically fold/unfold mirrors when:
• The Smart Key Lock /Unlock buttons are pressed
• The door outside handle button is pressed
REMINDERS:

• To automatically fold mirrors when exiting vehicle, press the LOCK button twice on the Smart Key

•To lock position of mirrors, toggle switch to the neutral (center) position
Heated Outside Mirrors
Mirror heaters are controlled with Rear Defroster
Automatic Door Lock/Unlock
Auto Door Lock /Unlock will engage when the gear shift is moved in to or
out of the P (Park) position Refer to the User Settings on how to turn Auto
Door Lock/Unlock ON/OFF
(Buttons panel located on Driver's Door )


The mirrors will automatically unfold when the Smart Key* is within close proximity
to the vehicle QUICK TIP
A
BC
D
E
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
DRIVER'S PANEL

12
Fuel Door and Trunk Release Buttons
Press the C button to release the fuel door
Press the
D button to open the trunk

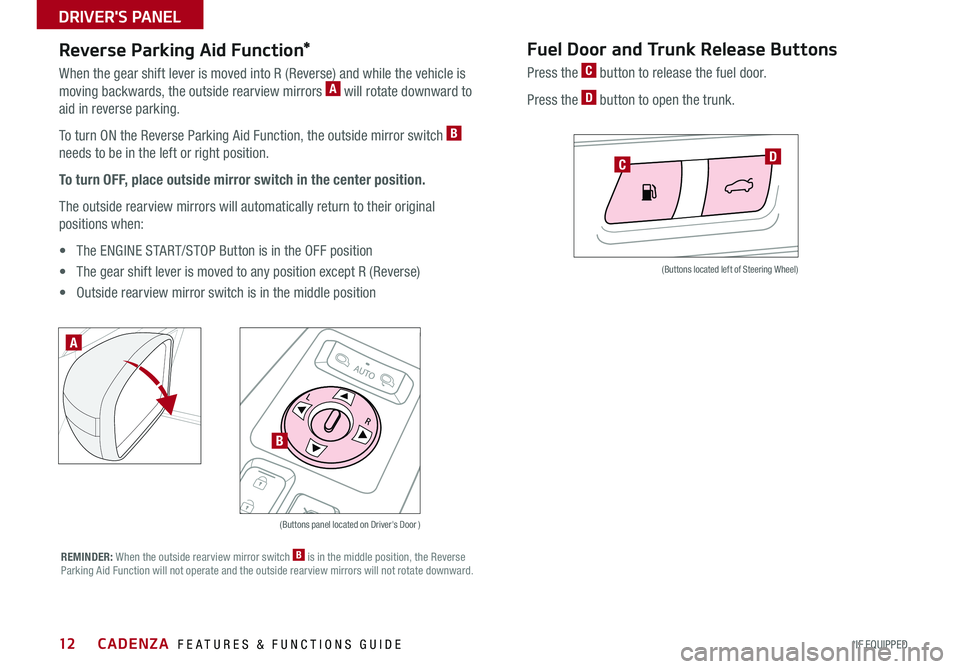

Reverse Parking Aid Function*
When the gear shift lever is moved into R (Reverse) and while the vehicle is
moving backwards, the outside rearview mirrors A will rotate downward to
aid in reverse parking
To turn ON the Reverse Parking Aid Function, the outside mirror switch
B
needs to be in the left or right position
To turn OFF, place outside mirror switch in the center position.
The outside rearview mirrors will automatically return to their original
positions when:
• The ENGINE START/STOP Button is in the OFF position
• The gear shift lever is moved to any position except R (Reverse)
• Outside rearview mirror switch is in the middle position
REMINDER: When the outside rearview mirror switch B is in the middle position, the Reverse
Parking Aid Function will not operate and the outside rearview mirrors will not rotate downward
(Buttons panel located on Driver's Door ) (Buttons located left of Steering Wheel)
A
B
CD
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
DRIVER'S PANEL

18
Bluetooth® Wireless Technology
For more information on the audio systems, if equipped, refer to the Owner’s Manual or Car Multimedia System User's Manual. For Bluetooth® Wireless Technology FAQs, go to www.kia.com, Owners
section, or call Consumer Information for Bluetooth® Technology at (800) 333-4KIA. Refer to your Owner’s Manual for more specific Bluetooth® Wireless Technology phone pairing and operation instructions.
D Receive/Place Call button: Press to receive/place/transfer calls Press
to place a call using voice command prompts from the system, or to
answer an incoming call
E End Call button: Press to end a call or cancel a function
A Volume buttons: Press up/down to raise/lower speaker volume
B MUTE button: Press to mute the microphone during a call
C Talk button: Press to activate voice recognition/bring up menus/place
calls with minimal voice command prompts from the system
Your vehicle’s steering wheel buttons may differ from those in the illustrations. See your
Owner’s Manual for more details.
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive
to driving and always exercise caution when using the steering-wheel-mounted controls
while driving
CANCEL CRUISE
RES
SET
VOL
VOL
MUTEMODE


When using the voice command feature, wait for the system BEEP before speaking
the command QUICK TIP


• Phonebook transfer upload time varies by phone model and with number of
phonebook entries

•Because of differences in phone quality, service providers and Bluetooth®
Wireless Technology chip programming, functionality may differ from one phone
to another

•Changing language setting may delete paired phones
QUICK TIPS
A
B
D
E
C
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
STEERING WHEEL CONTROLS

20
CANCELCRUISE
RES
SET
VOL
VOL
MUTE
MODE
CANCELCRUISE
RES
SET
VOL
VOL
MUTE
MODE
CANCELCRUISE
RES
SET
VOL
VOL
MUTEMODE
CANCELCRUISE
RES
SET
VOL
VOL
MUTEMODE
Advanced Smart Cruise Control (ASCC)*
The Advanced Smart Cruise Control (ASCC)* system allows you to set the
vehicle to maintain a speed so long as it is not limited by traffic When traffic is
encountered, the vehicle will be slowed to maintain a set distance behind traffic
without depressing the accelerator or brake pedal
To set/adjust the ASCC speed:
• Push the CRUISE button
A to turn system ON The CRUISE indicator will
illuminate on the instrument cluster
• Accelerate/decelerate to the desired speed
• Move the ASCC lever
B to set or adjust speed
To set the vehicle-to-vehicle distance, press the ASCC button
C on the
steering wheel The images on the LCD screen D and the Instrument
Cluster E will change when scrolling through the
settings Each time the button C is pressed, the
vehicle-to-vehicle distance changes
To turn system OFF, press the CRUISE button
A The CRUISE indicator on the
instrument cluster will turn OFF and the LCD screen ASCC image will show
cancelled
F
REMINDERS:

•Cruise Control button must be ON in order to turn ASCC ON/OFF

• ASCC system is activated when ignition is turned on Speed will need to be reset when
ignition is cycled on

• The distance settings are approximations and may vary depending on factory settings at the
time See owner’s manual for more information
SET 27MPH
(Buttons located on right side of Steering Wheel)


Advanced Smart Cruise
Control Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODE
www. KuTechVideo s.c om/vg13/2016


To change the Cruise Control mode from ASCC to standard Cruise Control, press and
hold button
C Repeat to switch modes again ( The ASCC system must not be activated
to change modes)
For the ASCC System to operate:

•When no vehicle is in front, you must be travelling at a minimum speed of 19 mph
•When following a vehicle, there is no minimum speed requirement
When following a vehicle, the system will automatically adjust your cruise speed based
on the vehicle in front It will even bring the vehicle to a complete stop if necessary
QUICK TIPS
A
B
C
E
DF
17 2 f t13 0 f t
82ft 98ft
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
STEERING WHEEL CONTROLS

21
Your vehicle’s steering wheel buttons may differ from those in the illustrations. See your Owner’s
Manual for more details.
Audio Controls* Cruise Control*
E CRUISE Control ON/OFF button: Press to turn the Cruise Control
ON/OFF
F Resume Cruising Speed button: Press to resume or increase
cruising speed
G Set Cruising Speed button: Press to set or decrease Cruising Speed
H Cruise Control CANCEL button: To cancel Cruise Control setting, do
one of the following:

• Press the brake pedal

• Press the CANCEL button
A Audio Mode button: Press to cycle through FM 1-2/AM/Sirius® 1-3 /
USB/iPod®/Aux / Bluetooth® Audio Streaming/My Music modes
B Seek/Preset button:
FM/AM/Sirius® Modes: Press to advance through Preset Stations
Press and hold to auto seek

Media Modes: Press to move Track Up/Down Press and hold to Fast
Forward / Rewind
C Volume button: Press up/down to raise/lower volume
D MUTE button: Press to mute all audio
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to
driving and always exercise caution when using the steering-wheel-mounted controls while driving.
CANCELCRUISE
RES
SET
VOL
VOL
MUTEMODE
CANCELCRUISE
RES
SET
VOL
VOL
MUTEMODE
CANCELCRUISERES
SETVOLVOL
MUTEMODE
CANCELCRUISERES
SETVOLVOL
MUTEMODE
CANCELCRUISERES
SET
VOL
VOL
MUTEMODE
CANCELCRUISERES
SET
VOL
VOL
MUTEMODE
CANCELCRUISERES
SETVOLVOL
MUTEMODE
CANCELCRUISERES
SET
VOL
VOL
MUTEMODE
CANCELCRUISERES
SET
VOL
VOL
MUTEMODE
CANCELCRUISERES
SETVOLVOL
MUTEMODE


Pressing the Audio Mode button for more than 1 second will turn Audio Mode ON/OFF QUICK TIP

•Cruise Control is designed to function above 25 mph
•The Cruise Control system will not activate until the brake pedal has been
depressed at least once after ignition ON or engine start
QUICK TIPS
AD
CB
E
H
F
G
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
STEERING WHEEL CONTROLS
