2016 JEEP WRANGLER seat adjustment

▫Delete/Erase “All” Uconnect Phonebook
Entries ............................ .124
▫ List All Names in the Uconnect Phonebook . . .124
▫ Phone Call Features ...................125
▫ Uconnect Phone Features ................128
▫ Advanced Phone Connectivity ............133
▫ Things You Should Know About Your Uconnect
Phone ............................. .135
▫ General Information ...................146
 VOICE COMMAND — IF EQUIPPED ........146
▫ Voice Command System Operation .........146
▫ Commands ........................ .148
▫ Voice Training ...................... .152
 SEATS ............................. .152▫
Front Seat Adjustment ..................153
▫ Manual Seat Height Adjustment — If
Equipped .......................... .154
▫ Front Seatback Recline .................154
▫ Front Passenger Easy Entry Seat — Two-Door
Models ........................... .155
▫ Tip n’ Slide Seats — Two-Door Models ......156
▫ Heated Seats — If Equipped .............159
▫ Head Restraints ..................... .160
▫ Removing the Rear Seat — Two-Door
Models ........................... .163
▫ Replacing The Rear Seat — Two-Door
Models ........................... .165
▫ 60/40 Split Folding Rear Seat — Four-Door
Models ........................... .165
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!(Continued)
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas are
more likely to be seriously injured or killed.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Front Seat Adjustment
The seat can be adjusted forward or rearward by using a
bar located by the front of the seat cushion, near the floor.
While sitting in the seat, lift up on the bar located under
the seat cushion and move the seat forward or rearward.
Release the bar once you have reached the desired
position. Then, using body pressure, move forward and
rearward on the seat to be sure that the seat adjusters
have latched.
Adjusting Bar Location
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153

WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
Manual Seat Height Adjustment — If Equipped
The driver’s seat height can be raised or lowered by using
the ratcheting handle, located on the outboard side of the
seat. Pull upward on the handle to raise the seat, push
downward on the handle to lower the seat.Front Seatback Recline
Lean forward before lifting the handle, then lean back to
the desired position and release the handle. Lift the
handle to return the seatback to an upright position.
Seat Height Adjustment
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!(Continued)
when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
• Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting
in a seat that has been overheated could cause
serious burns due to the increased surface tempera-
ture of the seat.
Head Restraints
Head restraints are designed to reduce the risk of injury
by restricting head movement in the event of a rear
impact. Head restraints should be adjusted so that the top
of the head restraint is located above the top of your ear.
WARNING!
The head restraints for all occupants must be prop-
erly installed and adjusted prior to operating the
vehicle or occupying a seat. Head restraints should
never be adjusted while the vehicle is in motion.
Driving a vehicle with the head restraints improperly
adjusted or removed could cause serious injury or
death in the event of a collision.
Front Head Restraints
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjust-
ment button located on the base of the head restraint, and
push downward on the head restraint.
To remove the head restraint, raise it as far as it can go
then push the adjustment button and the release button
at the base of each post while pulling the head restraint
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

up. To reinstall the head restraint, put the head restraint
posts into the holes and push downward. Then adjust it
to the appropriate height.WARNING!
•A loose head restraint thrown forward in a colli-
sion or hard stop could cause serious injury or
death to occupants of the vehicle. Always securely
stow removed head restraints in a location outside
the occupant compartment.
• ALL the head restraints MUST be reinstalled in the
vehicle to properly protect the occupants. Follow
the re-installation instructions above prior to oper-
ating the vehicle or occupying a seat.
NOTE: Do not reposition the head restraint 180 degrees
to the incorrect position in an attempt to gain additional
clearance to the back of the head.
Rear Head Restraints — 2 Door Model
The rear seat head restraints are not adjustable. They can
be removed to make it easier to take out the rear seat. To
remove the head restraint, push the button on each of the
1 — Release Button
2 — Adjustment Button
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161

Automatic Temperature Control (ATC) — If
Equipped
Automatic Operation
The Automatic Temperature Control system automati-
cally maintains the climate in the cabin of the vehicle at
the comfort levels desired by the driver and passenger.
Operation of the system is quite simple.Turn the Mode Control knob (on the right) and the
Blower Control knob (on the left) to AUTO.
NOTE:
The AUTO position performs best for front seat
occupants only.
Temperature Control
Dial in the temperature you would
like the system to maintain by rotating
the Temperature Control knob. Once
the comfort level is selected, the sys-
tem will maintain that level automati-
cally using the heating system. Should
the desired comfort level require air
conditioning, the system will automatically make the
adjustment.
Automatic Temperature Controls
4
UNDERSTANDING YOUR INSTRUMENT PANEL 419

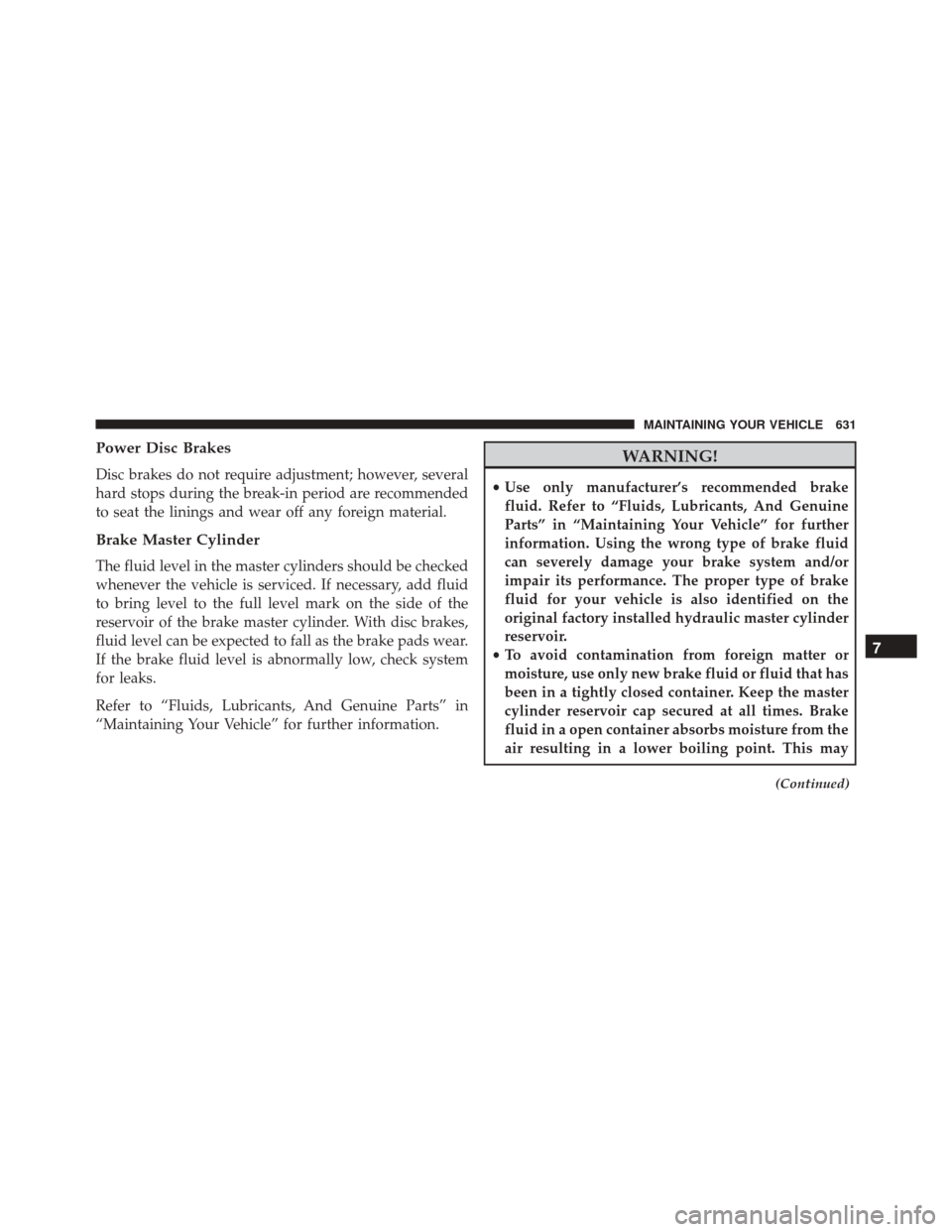

Power Disc Brakes
Disc brakes do not require adjustment; however, several
hard stops during the break-in period are recommended
to seat the linings and wear off any foreign material.
Brake Master Cylinder
The fluid level in the master cylinders should be checked
whenever the vehicle is serviced. If necessary, add fluid
to bring level to the full level mark on the side of the
reservoir of the brake master cylinder. With disc brakes,
fluid level can be expected to fall as the brake pads wear.
If the brake fluid level is abnormally low, check system
for leaks.
Refer to “Fluids, Lubricants, And Genuine Parts” in
“Maintaining Your Vehicle” for further information.
WARNING!
•Use only manufacturer’s recommended brake
fluid. Refer to “Fluids, Lubricants, And Genuine
Parts” in “Maintaining Your Vehicle” for further
information. Using the wrong type of brake fluid
can severely damage your brake system and/or
impair its performance. The proper type of brake
fluid for your vehicle is also identified on the
original factory installed hydraulic master cylinder
reservoir.
• To avoid contamination from foreign matter or
moisture, use only new brake fluid or fluid that has
been in a tightly closed container. Keep the master
cylinder reservoir cap secured at all times. Brake
fluid in a open container absorbs moisture from the
air resulting in a lower boiling point. This may
(Continued)
7
MAINTAINING YOUR VEHICLE 631

Front Seat....................... .49, 51, 54
Inspection ........................... .101
Operating Instructions ....................54
Pregnant Women ........................59
Pretensioners ...........................59
Rear Seat ..............................51
Reminder ............................ .316
Untwisting Procedure .....................56
Seats ................................. .152
Adjustment .......................... .153
Easy Entry ........................... .155
Fold And Tumble Rear ...................163
Heated .............................. .159
Height Adjustment ..................... .154
Rear Folding ......................... .165
Removal ............................ .165
Seatback Release ....................... .154
Tilting .............................. .154
Security Alarm ........................ .20, 322Security System
...........................20
Selection Of Coolant (Antifreeze) ..............660
Sentry Key (Immobilizer) ....................16
Sentry Key Programming ....................18
Sentry Key Replacement .....................17
Service Assistance ........................ .673
Service Contract ......................... .675
Service Manuals ......................... .678
Settings, Personal ........................ .354
Setting The Clock ...................359, 368, 385
Shifting ............................... .442
Automatic Transmission ..................442
Manual Transmission ....................438
Transfer Case, Shifting Into Transfer Case
Neutral (N) .......................... .565
Transfer Case, Shifting Out Of Transfer Case
Neutral (N) .......................... .567
Shift Lever Override ...................... .587
Shoulder Belts ............................51
696 INDEX
