2016 JEEP WRANGLER engine coolant

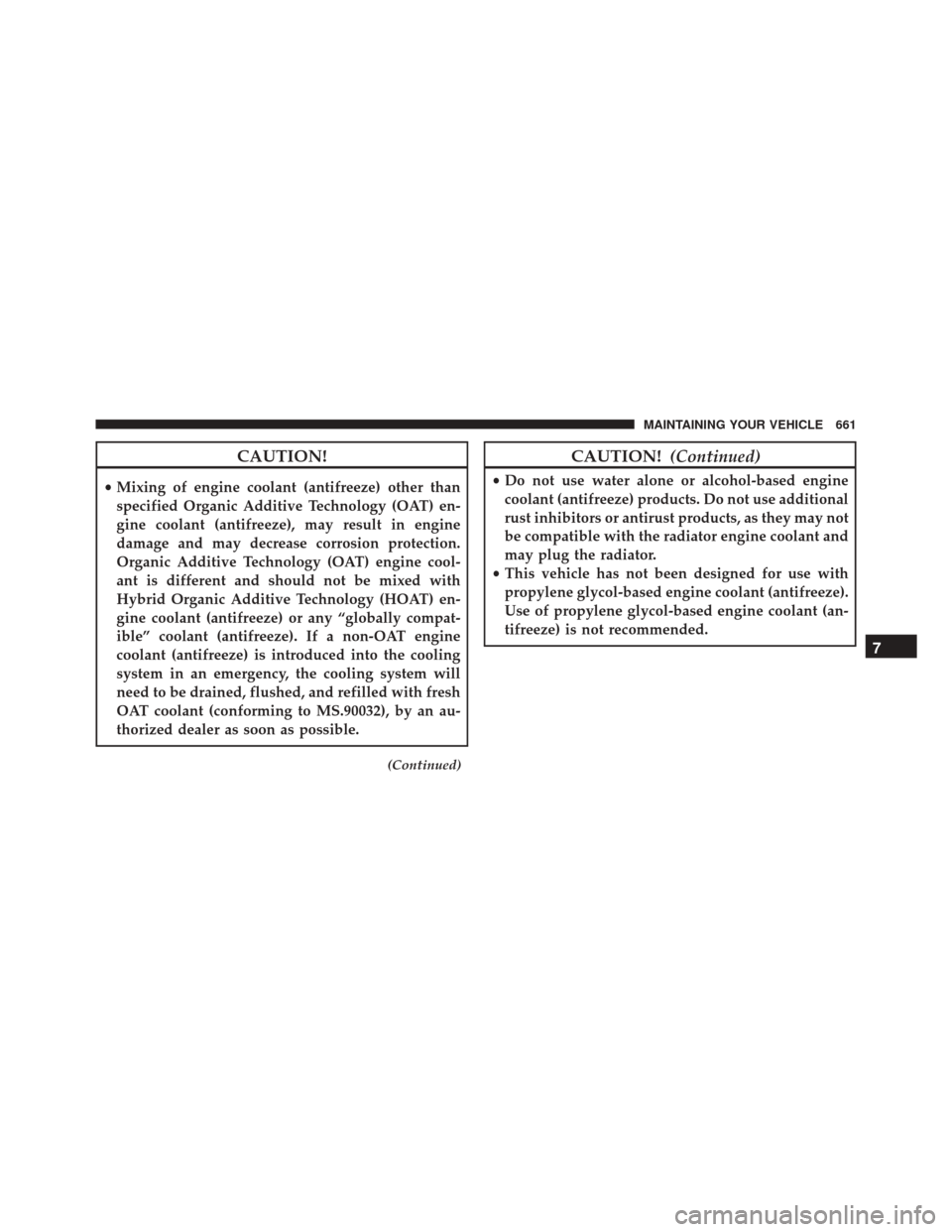

CAUTION!
•Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine
damage and may decrease corrosion protection.
Organic Additive Technology (OAT) engine cool-
ant is different and should not be mixed with
Hybrid Organic Additive Technology (HOAT) en-
gine coolant (antifreeze) or any “globally compat-
ible” coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into the cooling
system in an emergency, the cooling system will
need to be drained, flushed, and refilled with fresh
OAT coolant (conforming to MS.90032), by an au-
thorized dealer as soon as possible.
(Continued)
CAUTION! (Continued)
•Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.
• This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (an-
tifreeze) is not recommended.
7
MAINTAINING YOUR VEHICLE 661

NOTE:Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km), twelve months or
350 hours of engine run time, whichever comes first. The
350 hours of engine run or idle time is generally only a
concern for fleet customers.
Severe Duty All Models
Change Engine Oil at 4,000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment or is
operated predominately at idle or only very low engine
RPM’s. This type of vehicle use is considered Severe
Duty. Once A Month Or Before A Long Trip:
•
Check engine oil level
• Check windshield washer fluid level
• Check the tire inflation pressures and look for unusual
wear or damage
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering and automatic trans-
mission, and fill as needed
• Check function of all interior and exterior lights
8
MAINTENANCE SCHEDULES 665

Mileage or time passed (whichevercomes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Replace air conditioning/cabin air filter. X X X X XXX
Replace spark plugs ** X
Flush and replace the engine coolant at
10 years or 150,000 miles (240,000 km)
whichever comes first. XX
Change automatic transmission fluid
and filter if using your vehicle for any of
the following: police, taxi, fleet, or fre-
quent trailer towing. XX
Change the automatic transmission fluid
and filter. X
668 MAINTENANCE SCHEDULES

About Your Brakes....................... .480
Adding Engine Coolant (Antifreeze) ............626
Adding Fuel ............................ .539
Additives, Fuel .......................... .537
AirBag.................................63 Advance Front Air Bag ....................65
Air Bag Operation .......................66
Air Bag Warning Light ....................71
Enhanced Accident Response ................71
Event Data Recorder (EDR) .................74
FrontAirBag...........................63
If A Deployment Occurs ...................69
Knee Impact Bolsters .....................67
Maintaining Your Air Bag System ............73
Air Bag Deployment ........................63
Air Bag Light ..................... .71, 101, 320
Air Bag Maintenance .......................73
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .603
Air Conditioner Maintenance .................610Air Conditioning
......................... .415
Air Conditioning Controls ...................415
Air Conditioning Filter ..................427, 612
Air Conditioning, Operating Tips ...........425, 428
Air Conditioning Refrigerant ..............610, 611
Air Conditioning System .............415, 419, 610
Air Pressure, Tires ........................ .510
Alarm (Security Alarm) ..................20, 322
Alterations/Modifications, Vehicle ...............9
Antenna, Satellite Radio .................380, 401
Antifreeze (Engine Coolant) ...............625, 659
Disposal ............................. .628
Anti-Lock Brake System (ABS) ................482
Anti-Lock Warning Light ....................325
Appearance Care ........................ .638
Arming System (Security Alarm) ...............20
Assistance Towing ........................ .129
Assist, Hill Start ......................... .484
Auto Down Power Windows ..................44
682 INDEX

Caps, FillerFuel ................................ .539
Power Steering ........................ .477
Radiator (Coolant Pressure) ................628
Carbon Monoxide Warning ...............100, 538
Cargo Light ............................ .174
Car Washes ............................ .639
Cellular Phone ...........................115
Center High Mounted Stop Light ..............658
Certification Label ........................ .541
Chains, Tire ............................ .521
Changing A Flat Tire ...................... .573
Chart, Tire Sizing ........................ .500
Check Engine Light (Malfunction Indicator Light) . .597
Checking Your Vehicle For Safety ...............99
Checks, Safety ............................99
Child Restraint ............................75
Child Restraints Booster Seats ...........................79 Child Restraints
.........................75
Child Seat Installation .....................94
How To Stow An Unused ALR Seat Belt ........90
Infants And Child Restraints ................77
Install A LATCH-Compatible Child Restraint ....89
Installing Child Restraints Using The Vehicle Seat
Belt ..................................91
Locating The LATCH Anchorages ............86
Lower Anchors And Tethers For Children .......82
Older Children And Child Restraints ..........78
Seating Positions ........................81
Child Safety Locks .........................42
Clean Air Gasoline ....................... .535
Cleaning Wheels .............................. .641
Climate Control ......................... .415
Clock .......................... .359, 368, 385
Cold Weather Operation ....................435
Compact Disc (CD) Maintenance ..............412
684 INDEX

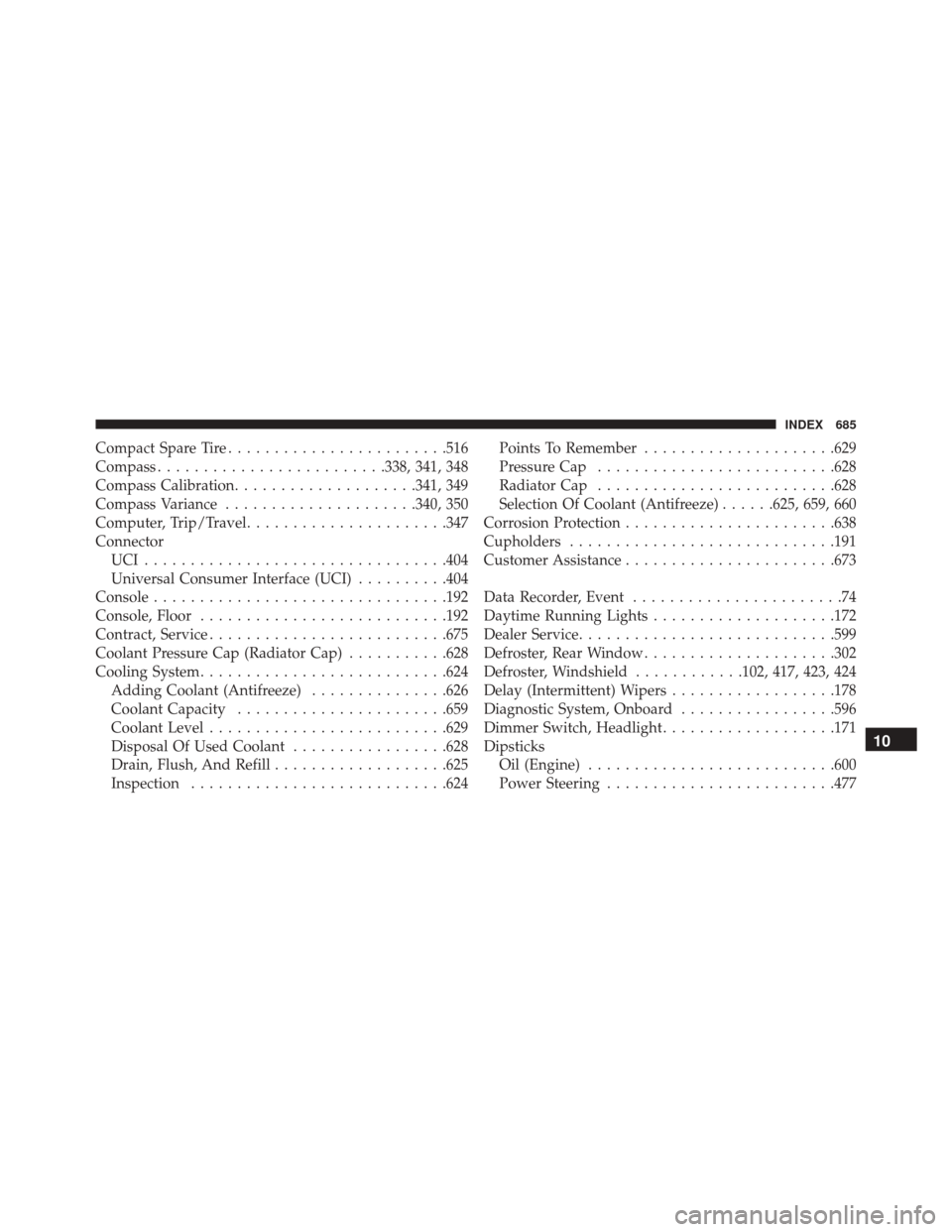

Compact Spare Tire....................... .516
Compass ........................ .338, 341, 348
Compass Calibration ....................341, 349
Compass Variance .....................340, 350
Computer, Trip/Travel ..................... .347
Connector UCI................................ .404
Universal Consumer Interface (UCI) ..........404
Console ............................... .192
Console, Floor .......................... .192
Contract, Service ......................... .675
Coolant Pressure Cap (Radiator Cap) ...........628
Cooling System .......................... .624
Adding Coolant (Antifreeze) ...............626
Coolant Capacity ...................... .659
Coolant Level ......................... .629
Disposal Of Used Coolant .................628
Drain, Flush, And Refill ...................625
Inspection ........................... .624Points To Remember
.....................629
Pressure Cap ......................... .628
Radiator Cap ......................... .628
Selection Of Coolant (Antifreeze) ......625, 659, 660
Corrosion Protection ...................... .638
Cupholders ............................ .191
Customer Assistance ...................... .673
Data Recorder, Event .......................74
Daytime Running Lights ....................172
Dealer Service ........................... .599
Defroster, Rear Window .....................302
Defroster, Windshield ............102, 417, 423, 424
Delay (Intermittent) Wipers ..................178
Diagnostic System, Onboard .................596
Dimmer Switch, Headlight ...................171
Dipsticks Oil (Engine) .......................... .600
Power

Steering ........................ .477
10
INDEX 685

Disabled Vehicle Towing....................589
Disarming, Security System ...................21
Disposal Antifreeze (Engine Coolant) ................628
Door Locks ..............................38
Child-Protection Door Lock — Rear Doors ......42
Door Locks ............................38
KeyFob...............................38
Remote ...............................38
Remote Keyless Entry (RKE) ................38
Door Locks, Automatic ......................41
Doors ..................................32
Driver’s Seat Back Tilt ..................... .154
Driving ............................... .462
Dual Top ........................... .194, 198
Electrical Outlet, Auxiliary (Power Outlet) ........185
Electrical Power Outlets .....................185
Electric Remote Mirrors .....................113 Electronic Brake Control System
...............481
Anti-Lock Brake System ..................482
Electronic Roll Mitigation .................495
Traction Control System ...................487
Electronic Speed Control (Cruise Control) ........181
Electronic Stability Control (ESC) ..............488
Electronic Throttle Control Warning Light ........323
Electronic Vehicle Information Center (EVIC) ......344
Emergency Brake ........................ .478
Emergency, In Case Of Jacking .............................. .573
Jump Starting ......................... .581
Tow Hooks ........................... .586
Emission Control System Maintenance ..........597
Engine Air Cleaner .......................... .603
Block Heater ......................... .437
Break-In Recommendations .................98
Compartment ......................... .595
686 INDEX

Compartment Identification................595
Coolant (Antifreeze) .....................660
Cooling ............................. .624
Exhaust Gas Caution .................100, 538
Fails To Start ......................... .435
Flooded, Starting ...................... .435
Fuel Requirements ...................534, 659
Jump Starting ......................... .581
Oil .......................... .600, 659, 660
Oil Change Interval ..................... .353
Oil Filter ............................ .603
Oil Selection ...................... .601, 659
Oil Synthetic ......................... .602
Overheating .......................... .570
Starting .......................... .434, 435
Engine Oil Viscosity ...................... .602
Engine Oil Viscosity Chart ...................602
Enhanced Accident Response Feature ............71
Entry System, Illuminated ....................21 Ethanol
............................... .535
Event Data Recorder ........................74
Exhaust Gas Caution ...................100, 538
Exhaust System ...................... .100, 622
Exterior Lights .......................... .104
Fabric Care ............................. .644
Fabric Top ............................. .644
Filters Air Cleaner .......................... .603
Air Conditioning ....................427, 612
Engine Oil ........................ .603, 660
Engine Oil Disposal .....................602
Flashers Hazard Warning ....................... .570
Turn Signal .....................104, 657, 658
Flash-To-Pass ........................... .171
Flooded Engine Starting ....................435
Fluid, Brake ............................ .662
10
INDEX 687
