approximately one minute and then remain continuously
illuminated. This sequence will continue upon subse-
quent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the sys-
tem may not be able to detect or signal low tire pressure
as intended. TPMS malfunctions may occur for a variety
of reasons, including the installation of replacement or
alternate tires or wheels on the vehicle that prevent the
TPMS from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more
tires or wheels on your vehicle, to ensure that the
replacement or alternate tires and wheels allow the TPMS
to continue to function properly.CAUTION!
The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and
warning have been established for the tire size
equipped on your vehicle. Undesirable system opera-
tion or sensor damage may result when using re-
placement equipment that is not of the same size,
type, and/or style. Aftermarket wheels can cause
sensor damage. Using aftermarket tire sealants may
cause the Tire Pressure Monitoring System (TPMS)
sensor to become inoperable. After using an after-
market tire sealant it is recommended that you take
your vehicle to an authorized dealership to have your
sensor function checked.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 319

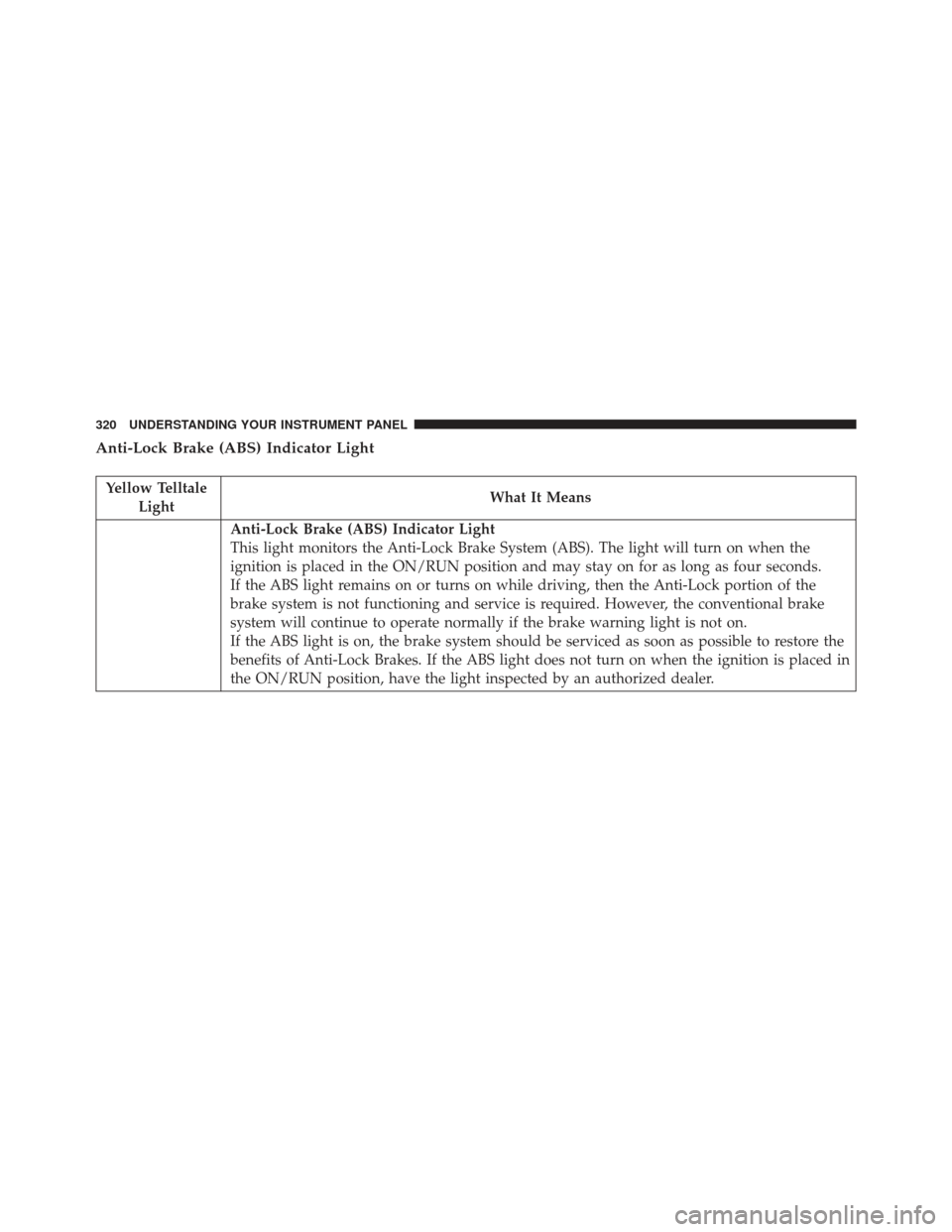

Anti-Lock Brake (ABS) Indicator Light
Yellow TelltaleLight What It Means
Anti-Lock Brake (ABS) Indicator Light
This light monitors the Anti-Lock Brake System (ABS). The light will turn on when the
ignition is placed in the ON/RUN position and may stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, then the Anti-Lock portion of the
brake system is not functioning and service is required. However, the conventional brake
system will continue to operate normally if the brake warning light is not on.
If the ABS light is on, the brake system should be serviced as soon as possible to restore the
benefits of Anti-Lock Brakes. If the ABS light does not turn on when the ignition is placed in
the ON/RUN position, have the light inspected by an authorized dealer.
320 UNDERSTANDING YOUR INSTRUMENT PANEL

Low Fuel Indicator Light
Yellow TelltaleLight What It Means
Low Fuel Indicator Light
When the fuel level reaches approximately 1.5 gal (5.8 L) this light will turn on, and remain
on until fuel is added.
Service Stop/Start System Indicator Light — If Equipped
Yellow Telltale
Light What It Means
Service Stop/Start System Indicator Light — If Equipped
This telltale will turn on to indicate the Stop/Start system is not functioning properly and
service is required.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 321

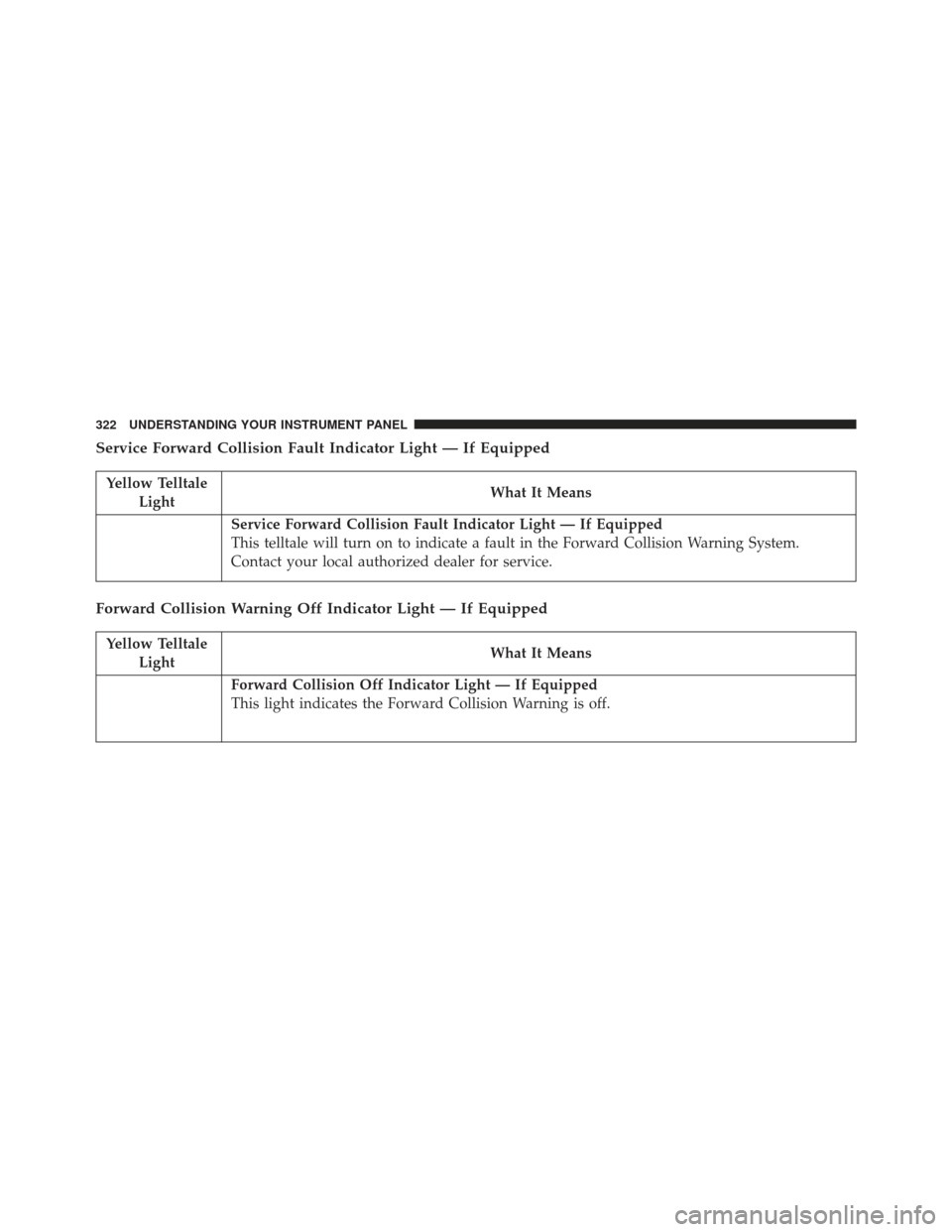

Service Forward Collision Fault Indicator Light — If Equipped
Yellow TelltaleLight What It Means
Service Forward Collision Fault Indicator Light — If Equipped
This telltale will turn on to indicate a fault in the Forward Collision Warning System.
Contact your local authorized dealer for service.
Forward Collision Warning Off Indicator Light — If Equipped
Yellow Telltale
Light What It Means
Forward Collision Off Indicator Light — If Equipped
This light indicates the Forward Collision Warning is off.
322 UNDERSTANDING YOUR INSTRUMENT PANEL

Low Washer Fluid Indicator Light — If Equipped
Yellow TelltaleLight What It Means
Low Washer Fluid Indicator Light — If Equipped
This indicator will illuminate when the windshield washer fluid is low.
Adaptive Cruise Control Fault Indicator Light — If Equipped
Yellow Telltale
Light What It Means
Adaptive Cruise Control Fault Indicator Light
This light will turn on when the ACC is not operating and needs service. For further infor-
mation, refer to “Adaptive Cruise Control (ACC)” in “Understanding The Features Of Your
Vehicle.”
4
UNDERSTANDING YOUR INSTRUMENT PANEL 323

Service 4WD Indicator Light — If Equipped
Yellow TelltaleLight What It Means
Service 4WD Indicator Light
If the light stays on or comes on during driving, it means that the 4WD system is not function-
ing properly and that service is required. We recommend you drive to the nearest service center
and have the vehicle serviced immediately.
4WD Low Indicator Light — If Equipped
Yellow Telltale
Light What It Means
4WD Low Indicator Light
This light alerts the driver that the vehicle is in the four-wheel drive LOW mode. The front
and rear driveshafts are mechanically locked together forcing the front and rear wheels to
rotate at the same speed. Low range provides a greater gear reduction ratio to provide
increased torque at the wheels.
324 UNDERSTANDING YOUR INSTRUMENT PANEL

Yellow TelltaleLight What It Means
Refer to “Four-Wheel Drive Operation — If Equipped” in “Starting And Operating” for
further information on four-wheel drive operation and proper use.
Air Suspension Light — If Equipped
Yellow Telltale Light What It Means
Air Suspension Light
This light will illuminate when the air suspension system is actively adjusting the ride
height.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 325

Green Telltale Indicator Lights
Park/Headlight ON Indicator Light
Green TelltaleLight What It Means
Park/Headlight ON Indicator Light
This indicator will illuminate when the park lights or headlights are turned on.
Front Fog Indicator Light — If Equipped
Green Telltale
Light What It Means
Front Fog Indicator Light — If Equipped
This indicator will illuminate when the front fog lights are on.
