SYSTEM MALFUNCTION
If the BCI system malfunctions, it will turn off
automatically, a chime will sound and the BCI
system warning light (orange) will illuminate.
Action to take:
Stop the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
(orange) continues to illuminate, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The radar sensors1and the sonar sensors2
for the BCI system are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
Check for and remove objects obstructing the
area around the radar sensors.
Do not attach stickers (including transparent ma-
terial) , install accessories or apply additional
paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you visit an
INFINITI retailer if the area around the radar sen-
sors is damaged due to a collision.
LSD2025
Starting and driving5-65

Action to take
When the conditions listed above are no longer
present, turn the system off using the ICC
CRUISE ON/OFF switch. Turn the ICC system
back on to use the system.
Condition B
When the radar sensor area of the front bumper
is covered with dirt or is obstructed, the ICC
system will automatically be cancelled. If the sen-
sor area is covered with ice, a transparent or
translucent vinyl bag, etc., the ICC system may
not detect vehicles ahead. In these instances, the
ICC system may not cancel and may not be able
to maintain the selected following distance from
the vehicle ahead. Be sure to check and clean the
sensor area.
The system warning light (orange) will illuminate
and the “front radar obstruction” warning mes-
sage will appear in the vehicle information dis-
play.Action to take
If the warning light (orange) comes on, park the
vehicle in a safe location and turn the engine off.
Check to see if the radar sensor window is
blocked. If the radar sensor window is blocked,
remove the blocking material. Restart the engine.
If the warning light continues to illuminate, have
the ICC system checked. It is recommended that
you visit an INFINITI retailer for this service.
Condition C
When the ICC system is not operating properly, a
chime sounds and the system warning light (or-
ange) will come on.Action to take
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
resume driving and set the ICC system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal condi-
tions, have the vehicle checked. It is recom-
mended that you visit an INFINITI retailer
for this service.
LSD2174LSD2175
5-88Starting and driving

To cancel the preset speed,use any of the
following three methods:
1. Press the CANCEL button. The SET indica- tor will go out.
2. Tap the brake pedal. The SET indicator will go out.
3. Turn the CRUISE ON/OFF switch off. Both the CRUISE indicator and SET indicator will
go out.
To reset at a faster cruising speed, use one of
the following three methods:
1. Depress the accelerator pedal. When the vehicle attains the desired speed, push and
release the COAST/SET switch.
2. Push and hold the ACCEL/RES set switch. When the vehicle attains the speed you de-
sire, release the switch.
3. Push, then quickly release the ACCEL/ RES switch. Each time you do this, the set speed
will increase by about 1 mph (1.6 km/h).
To reset at a slower cruising speed, use one
of the following three methods:
1. Lightly tap the brake pedal. When the ve- hicle attains the desired speed, push the
COAST/SET switch and release it. 2. Push and hold the COAST/SET switch. Re-
lease the switch when the vehicle slows
down to the desired speed.
3. Push, then quickly release the COAST/SET switch. Each time you do this, the set speed
will decrease by about 1 mph (1.6 km/h).
To resume the preset speed, push and re-
lease the ACCEL/RES switch. The vehicle will
resume the last set cruising speed when the
vehicle speed is over 25 mph (40 km/h).
Automatic cancellation
Under the following condition, a chime will sound
and the system control is automatically canceled.
● When the vehicle speed falls below approxi-
mately 20 mph (32 km/h)
● When the shift lever is not in the D (Drive) or
Manual mode
● When the parking brake is applied
● When the VDC (including the TCS) oper-
ates
● When a wheel slips
Warning light
When the system is not operating properly, the
chime sounds and the system warning light (or-
ange) will come on.
Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
resume driving and then perform the setting again.
If it is not possible to set or the indicator
stays on, it may indicate that the system is
malfunctioning. Although the vehicle is still
driveable under normal conditions, have the
vehicle checked. It is recommended that you
visit an INFINITI retailer for this service.
LSD2067
5-92Starting and driving

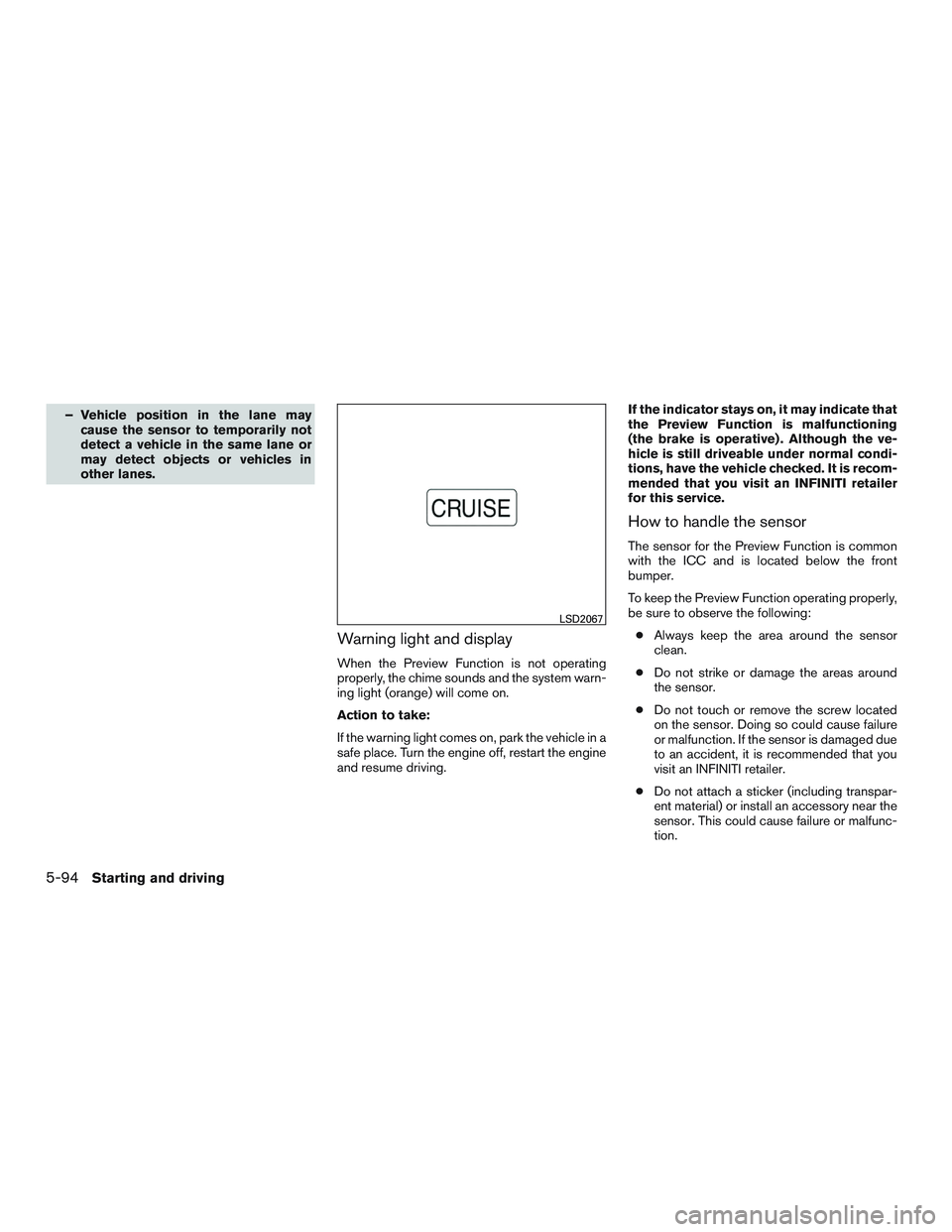

– Vehicle position in the lane maycause the sensor to temporarily not
detect a vehicle in the same lane or
may detect objects or vehicles in
other lanes.
Warning light and display
When the Preview Function is not operating
properly, the chime sounds and the system warn-
ing light (orange) will come on.
Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine
and resume driving. If the indicator stays on, it may indicate that
the Preview Function is malfunctioning
(the brake is operative) . Although the ve-
hicle is still driveable under normal condi-
tions, have the vehicle checked. It is recom-
mended that you visit an INFINITI retailer
for this service.
How to handle the sensor
The sensor for the Preview Function is common
with the ICC and is located below the front
bumper.
To keep the Preview Function operating properly,
be sure to observe the following:
● Always keep the area around the sensor
clean.
● Do not strike or damage the areas around
the sensor.
● Do not touch or remove the screw located
on the sensor. Doing so could cause failure
or malfunction. If the sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.
● Do not attach a sticker (including transpar-
ent material) or install an accessory near the
sensor. This could cause failure or malfunc-
tion.
LSD2067
5-94Starting and driving

Condition B:
When the sensor area of the front bumper is dirty,
making it impossible to detect a vehicle ahead,
the DCA system is automatically canceled.
The chime sounds and the system warning light
(orange) will come on and the “Sensor Blocked”
indicator will appear.
Action to take:
If the warning light comes on, park the vehicle in a
safe place, turn the engine off. Clean the sensor
area of the bumper and then perform the settings
again.Condition C:
When the DCA system is not operating properly,
the chime sounds and the system warning light
(“DCA” orange) will come on.
Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
and turn on the DCA system again.If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still driveable under normal condi-
tions, have the vehicle checked. It is recom-
mended that you visit an INFINITI retailer
for this service.
SYSTEM MAINTENANCE
The sensor for the DCA system is common with
ICC and is located behind the front bumper.
For additional information, refer to “Intelligent
Cruise Control (ICC)” in this section.
DCA warning light (orange)
LSD2081
Starting and driving5-105

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A
When the radar sensor picks up interference
from another radar source, making it impossible
to detect a vehicle ahead, the FEB system is
automatically turned off.
The FEB system warning light (orange) will illu-
minate.
Action to take
When the above conditions no longer exist, the
FEB system will resume automatically.
Condition B
When the sensor area of the front bumper is
covered with dirt or is obstructed, making it im-
possible to detect a vehicle ahead, the FEB sys-
tem is automatically turned off.
The FEB system warning light (orange) will illu-
minate and the “front radar obstruction” warning
message will appear in the vehicle information
display.Action to take
If the warning light (orange) comes on, stop the
vehicle in a safe place, place the shift lever in the
P (Park) position and turn the engine off. Clean
the radar cover on the lower grille with a soft
cloth, and restart the engine. If the warning light
continues to illuminate, have the FEB system
checked. It is recommended that you visit an
INFINITI retailer for this service.
NOTE:
If the FEB system stops working, the PFCW
system (if so equipped) will also stop work-
ing.
SYSTEM MALFUNCTION
If the FEB system malfunctions, it will be turned
off automatically, a chime will sound, the FEB
warning light (orange) will illuminate and the
warning message [Malfunction] will appear in the
vehicle information display.
Action to take
If the warning light (orange) comes on, stop the
vehicle in a safe location, turn the engine off and
restart the engine. If the warning light continues
to illuminate, have the FEB systems checked. It is
recommended that you visit an INFINITI retailer
for this service.
SYSTEM MAINTENANCE
The radar sensorAis located behind the lower
grille of the front bumper.
To keep the system operating properly, be sure to
observe the following:
● Always keep the sensor area of the front
bumper clean.
● Do not strike or damage the areas around
the sensor.
● Do not cover or attach stickers or similar
objects on the front bumper near the sensor
area. This could cause failure or malfunction.
LSD2098
Starting and driving5-111

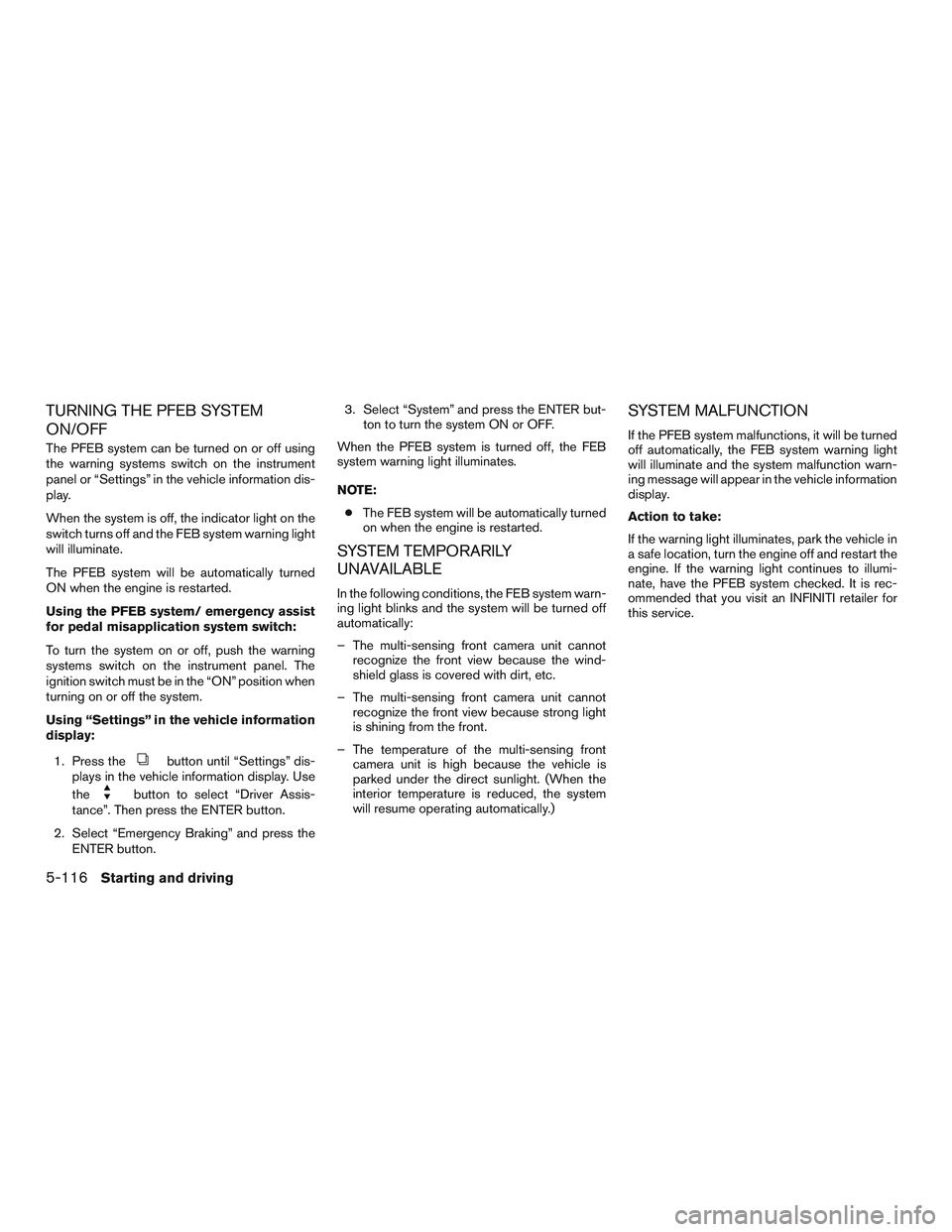

TURNING THE PFEB SYSTEM
ON/OFF
The PFEB system can be turned on or off using
the warning systems switch on the instrument
panel or “Settings” in the vehicle information dis-
play.
When the system is off, the indicator light on the
switch turns off and the FEB system warning light
will illuminate.
The PFEB system will be automatically turned
ON when the engine is restarted.
Using the PFEB system/ emergency assist
for pedal misapplication system switch:
To turn the system on or off, push the warning
systems switch on the instrument panel. The
ignition switch must be in the “ON” position when
turning on or off the system.
Using “Settings” in the vehicle information
display:1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
button to select “Driver Assis-
tance”. Then press the ENTER button.
2. Select “Emergency Braking” and press the ENTER button. 3. Select “System” and press the ENTER but-
ton to turn the system ON or OFF.
When the PFEB system is turned off, the FEB
system warning light illuminates.
NOTE: ● The FEB system will be automatically turned
on when the engine is restarted.
SYSTEM TEMPORARILY
UNAVAILABLE
In the following conditions, the FEB system warn-
ing light blinks and the system will be turned off
automatically:
– The multi-sensing front camera unit cannot recognize the front view because the wind-
shield glass is covered with dirt, etc.
– The multi-sensing front camera unit cannot recognize the front view because strong light
is shining from the front.
– The temperature of the multi-sensing front camera unit is high because the vehicle is
parked under the direct sunlight. (When the
interior temperature is reduced, the system
will resume operating automatically.)
SYSTEM MALFUNCTION
If the PFEB system malfunctions, it will be turned
off automatically, the FEB system warning light
will illuminate and the system malfunction warn-
ing message will appear in the vehicle information
display.
Action to take:
If the warning light illuminates, park the vehicle in
a safe location, turn the engine off and restart the
engine. If the warning light continues to illumi-
nate, have the PFEB system checked. It is rec-
ommended that you visit an INFINITI retailer for
this service.
5-116Starting and driving

Action to take
If the warning light (orange) comes on, stop the
vehicle in a safe place, place the shift lever in the
P (Park) position and turn the engine off. Clean
the radar cover on the lower grille with a soft
cloth, and restart the engine. If the warning light
continues to illuminate, have the PFCW system
checked. It is recommended that you visit an
INFINITI retailer for this service.
NOTE:
If the FEB system stops working, the PFCW
system (if so equipped) will also stop work-
ing.
SYSTEM MALFUNCTION
If the PFCW system malfunctions, it will be
turned off automatically, a chime will sound, the
FEB system warning light (orange) will illuminate
and the warning message [Malfunction] will ap-
pear in the vehicle information display.
Action to take
If the warning light (orange) comes on, stop the
vehicle in a safe location, turn the engine off and
restart the engine. If the warning light continues
to illuminate, have the PFCW system checked. It
is recommended that you visit an INFINITI retailer
for this service.
SYSTEM MAINTENANCE
The sensorAis located behind the lower grille
of the front bumper.
To keep the system operating properly, be sure to
observe the following:
● Always keep the sensor area of the front
bumper clean.
● Do not strike or damage the areas around
the sensor.
● Do not cover or attach stickers or similar
objects on the front bumper near the sensor
area. This could cause failure or malfunction. ●
Do not attach metallic objects near the sen-
sor area (brush guard, etc.) . This could
cause failure or malfunction.
● Do not alter, remove or paint the front bum-
per. Before customizing or restoring the
front bumper, it is recommended that you
visit an INFINITI retailer.
FCC Notice
For USA
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: 1. This device may not cause harmful in-
terference, and
2. This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
FCC Warning
Changes or modification not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
LSD2098
Starting and driving5-127
