2016 INFINITI QX60 roof rack

120v outlet (if so equipped)....................2-49
E-call (SOS) switch (if so equipped) ................2-50
Extended storage switch .......................... 2-50
Storage ......................................... 2-51
Map pockets .................................. 2-51
Seatback pockets ............................. 2-51
Glove box .................................... 2-52
Console box .................................. 2-52
Storage trays ................................. 2-53
Sunglasses holder ............................. 2-54
Cup holders .................................. 2-54
Luggage hooks ................................ 2-56
Cargo area storage bin ......................... 2-57
Roof rack (if so equipped) ......................2-57
Windows ........................................ 2-58
Power windows ............................... 2-58
Moonroof ........................................ 2-61
Power moonroof ............................... 2-61Dual panel moonroof (if so equipped)
...............2-62
Power moonroof ............................... 2-62
Interior lights ..................................... 2-65
Console light (if so equipped) ...................2-65
Map lights .................................... 2-66
Personal Lights ................................ 2-66
Luggage compartment light .....................2-66
Homelink® universal transceiver (if so equipped) .....2-67
Programming HomeLink® ......................2-67
Programming HomeLink® for Canadian
customers and gate openers ....................2-69
Operating the HomeLink® universal
transceiver .................................... 2-69
Programming trouble-diagnosis .................2-69
Clearing the programmed information ............2-70
Reprogramming a single HomeLink® button ......2-70
If your vehicle is stolen ......................... 2-70

BCI OFF (if so equipped)
This message appears when the Back-up Colli-
sion Intervention (BCI) system is turned OFF
using the BCI switch. For additional information,
refer to “Back-up Collision Intervention (BCI)
system” in the “Starting and driving” section of
this manual.
Loose Fuel Cap
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has been
refueled. For additional information, refer to
“Fuel-filler cap” in the “Pre-driving checks and
adjustments” section of this manual.
Shipping Mode On Push Storage Fuse
This warning may appear if the extended storage
switch is not pushed in. When this warning ap-
pears, push in the extended storage switch to
turn off the warning. For additional information,
refer to “Extended storage switch” in the “Instru-
ments and controls” section of this manual.Your vehicle has two types of security systems:
● Vehicle security system
● INFINITI Vehicle Immobilizer System
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and
audible alarm signals if someone opens the
doors, liftgate or hood when the system is armed.
It is not, however, a motion detection type system
that activates when a vehicle is moved or when a
vibration occurs. The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior or
exterior vehicle components in all situations. Al-
ways secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key in
the vehicle, and always lock the vehicle when
unattended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.
Many devices offering additional protection, such
as component locks, identification markers, and
tracking systems, are available at auto supply
stores and specialty shops. An INFINITI retailer
may also offer such equipment. Check with your
insurance company to see if you may be eligible
for discounts for various theft protection features.
How to arm the vehicle security
system
1. Close all windows and the moonroof.
The
system can be armed even if the win-
dows and moonroof are open.
2. Remove the Intelligent Key from the vehicle.
3. Close all doors, hood and liftgate. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request switch
or power door lock switch.
Key fob operation:
LIC0661
SECURITY SYSTEMS
2-30Instruments and controls

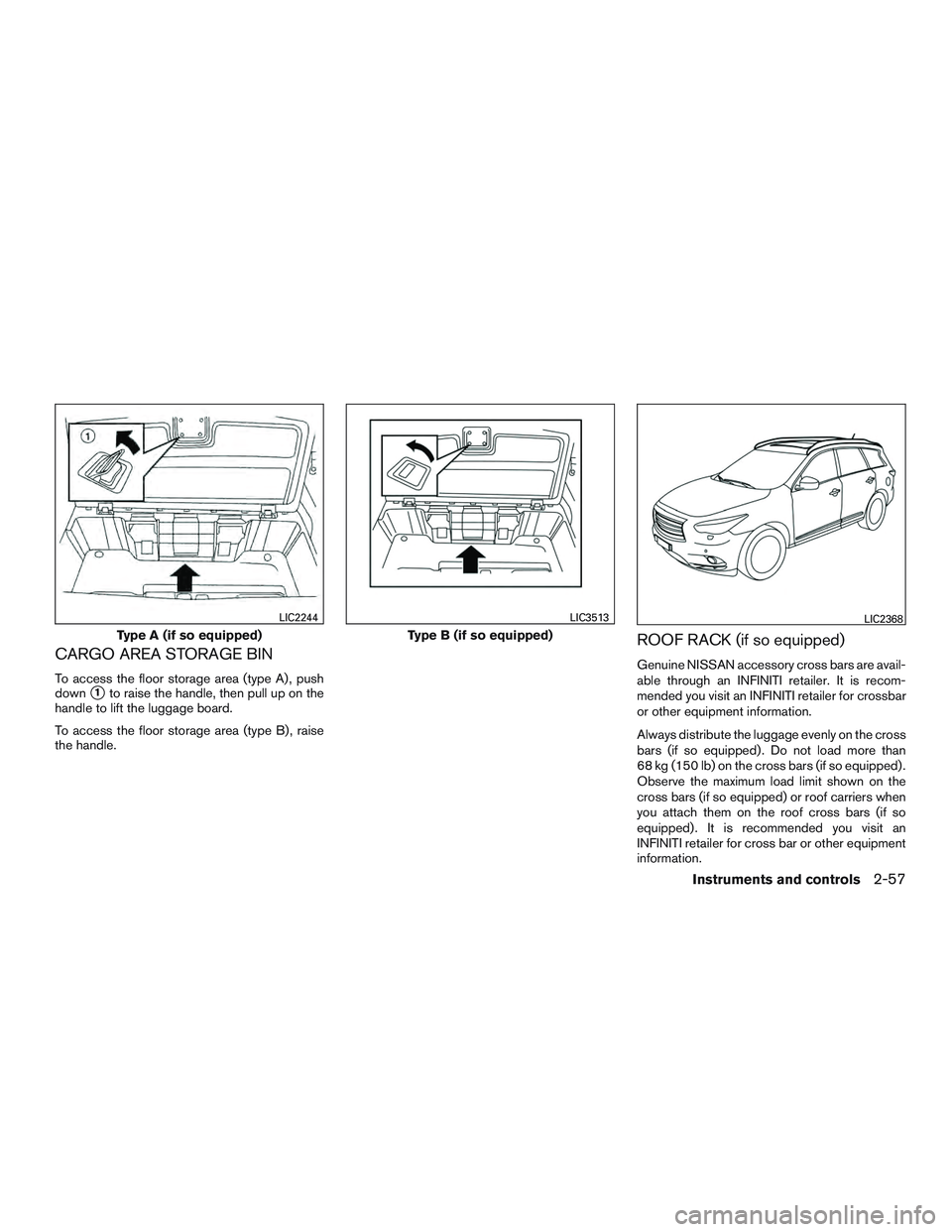

CARGO AREA STORAGE BIN
To access the floor storage area (type A) , push
down
1to raise the handle, then pull up on the
handle to lift the luggage board.
To access the floor storage area (type B) , raise
the handle.
ROOF RACK (if so equipped)
Genuine NISSAN accessory cross bars are avail-
able through an INFINITI retailer. It is recom-
mended you visit an INFINITI retailer for crossbar
or other equipment information.
Always distribute the luggage evenly on the cross
bars (if so equipped) . Do not load more than
68 kg (150 lb) on the cross bars (if so equipped) .
Observe the maximum load limit shown on the
cross bars (if so equipped) or roof carriers when
you attach them on the roof cross bars (if so
equipped) . It is recommended you visit an
INFINITI retailer for cross bar or other equipment
information.
Type A (if so equipped)
LIC2244
Type B (if so equipped)
LIC3513LIC2368
Instruments and controls2-57

Do not apply any load directly to the roof side
rails. Cross bars (if so equipped) must be in-
stalled before applying load/cargo/luggage to
the roof of the vehicle.
Be careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its
Gross Axle Weight Rating (GAWR front and
rear) . The GVWR and GAWR are located on the
F.M.V.S.S. or C.V.M.S.S. certification label (lo-
cated on the driver’s door pillar) . For additional
information, refer to “Vehicle loading information”
in the “Technical and consumer information” sec-
tion of this manual.
WARNING
●Drive extra carefully when the vehicle is
loaded at or near the cargo carrying
capacity, especially if the significant
portion of that load is carried on the
cross bars (if so equipped) .
● Heavy loading of the cross bars (if so
equipped) has the potential to affect the
vehicle stability and handling during
sudden or unusual handling
maneuvers.
● Roof rack cross bars (if so equipped)
should be evenly distributed. ●
Do not exceed maximum roof rack cross
bars (if so equipped) load.
● Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injury.
CAUTION
Always install the cross bars (if so
equipped) onto the roof side rails before
loading cargo of any kind. Loading cargo
directly onto the roof side rails or the
vehicle’s roof may cause vehicle damage.
POWER WINDOWS
WARNING
● Make sure that all passengers have
their hands, etc. inside the vehicle while
it is in motion and before closing the
windows. Use the window lock switch to
prevent unexpected use of the power
windows.
● To help avoid risk of injury or death
through unintended operation of the
vehicle and or its systems, including
entrapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your
vehicle. Additionally, the temperature
inside a closed vehicle on a warm day
can quickly become high enough to
cause a significant risk of injury or
death to people and pets.
The power windows operate when the ignition
switch is placed in the ON position, or for a
period of time after the ignition switch is placed in
the OFF position. If the driver’s or passenger’s
door is opened during this period of time, the
power to the windows is canceled.
WINDOWS
2-58Instruments and controls

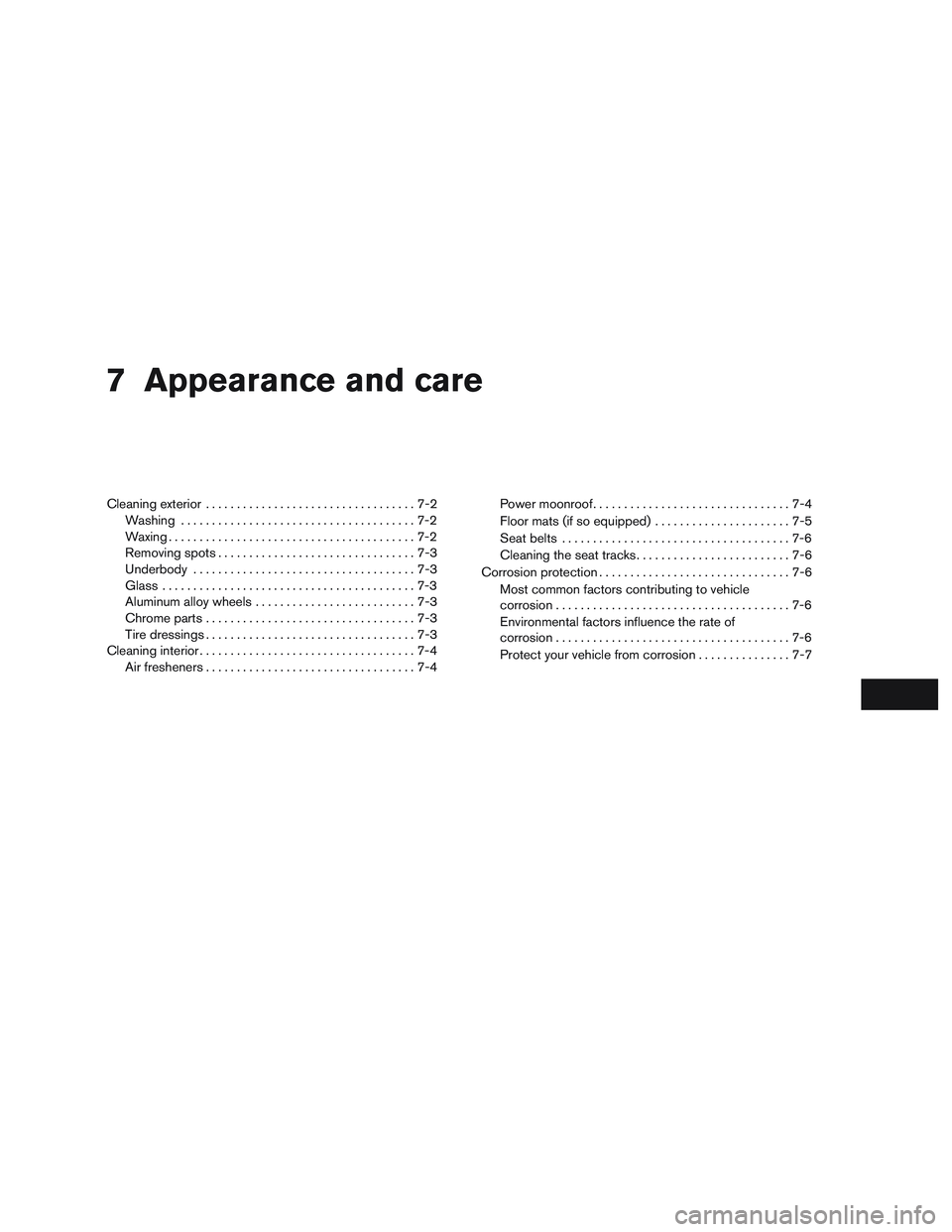

7 Appearance and care
Cleaning exterior..................................7-2
Washing ......................................7-2
Waxing ........................................7-2
Removing spots ................................7-3
Underbody ....................................7-3
Glass .........................................7-3
Aluminum alloy wheels ..........................7-3
Chrome parts ..................................7-3
Tire dressings ..................................7-3
Cleaning interior ...................................7-4
Air fresheners ..................................7-4 Power moonroof
................................7-4
Floor mats (if so equipped) ......................7-5
Seat belts .....................................7-6
Cleaning the seat tracks .........................7-6
Corrosion protection ...............................7-6
Most common factors contributing to vehicle
corrosion ......................................7-6
Environmental factors influence the rate of
corrosion ......................................7-6
Protect your vehicle from corrosion...............7-7

WHEELS AND TIRES
Wheel typeOffset in (mm) Size
Aluminum 1.97 (50) 18 x 7.5J
1.97 (50) 20 x 7.5J
Spare Wheel - Steel 18 x4T
Tire size 235/65R18
235/55R20
Spare tire T165/90D18
DIMENSIONS AND WEIGHTS
Overall lengthin (mm)199.8 (5,075)
Overall width in (mm)77.2 (1,960)
Overall height without roof rack in (mm)68.6 (1,742)
with roof rack in (mm)71.4 (1,813)
Front and rear track in (mm)65.7 (1,670)
Wheelbase in (mm)114.2 (2,900)
Gross vehicle weight rating lb (kg) Refer to the “F.M.V.S.S./C.M.
V.S.S. certification label” on
the center pillar between the driver’s side front and rear doors.
Gross axle weight rating
Front lb (kg)
Rear lb (kg)
Technical and consumer information9-9

Inside automatic anti-glare mirror........3-32
Instrument brightness control ..........2-40
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-40
Intelligent cruise control (ICC) system Brake assist .................5-76
Intelligent Key system Key operating range ..............3-8
Key operation ................3-10
Mechanicalkey ................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interiorlight....................2-65
iPod®Player ...............4-88,4-90
ISOFIX child restraints .............1-29
J
Jump starting ...............6-10,8-17
K
Key.........................3-2
Key fob battery replacement ..........8-24
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
L
Labels Air conditioner specification label .....9-12C.M.V.S.S. certification label
........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-67
Lane Departure Prevention (LDP)
system ...............5-26,5-31,5-34
Lane Departure Warning (LDW)
system ...............5-26,5-31,5-34
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-29
License plate Installing the license plate ..........9-13
Liftgate ......................3-22
Liftgate release ..................3-26
Light Air bag warning light .........1-67,2-12
Brake light (See stop light) .........8-26
Bulb check/instrument panel .........2-8
Bulbreplacement..............8-26
Charge warning light .............2-9
Consolelight.................2-65
Exterior and Interior lights ..........8-26
Foglights...................8-26
Foglightswitch ...............2-41
Headlight and turn signal switch ......2-36
Headlight control switch ..........2-37
Headlights..................8-26
Interiorlight..................2-65
Lightbulbs..................8-26
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light......................2-27 Passenger air bag and status light
.....1-58
Personal lights ................2-66
Security indicator light ............2-14
Warning/indicator lights and audible
reminders .............2-8,2-9,2-13
Lights.......................8-26 Maplights ..................2-66
Lock Child safety rear door lock ..........3-6
Gloveboxlock................2-52
Liftgate release ................3-26
Power door locks ............3-5,3-6
Loose fuel cap warning .............
2-30
Low fuel warning light ..........2-11,2-27
Low tire pressure warning light .........2-10
Low windshield-washer fluid warning light . . .2-27
Luggage hook ..................2-56
Luggage rack (see roof rack) ..........2-57
Luggage (See vehicle loading information) . .9-14
M
Maintenance General maintenance .............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-24
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-13
Maplights ....................2-66
Mappocket....................2-51
Memory Seat ...................3-34
Meters and gauges ................2-4
10-4

Instrument brightness control........2-40
Mirror Automatic anti-glare inside mirror ......3-32
Outside mirrors ...............3-32
Vanity mirror .................3-31
Mirrors ......................3-32
Moonroof ......................7-4
Moving Object Detection (MOD) ........4-43
O
Octanerating(Seefueloctanerating)......9-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-11
Changing engine oil filter ..........8-12
Checking engine oil level ..........8-10
Engine oil ...................8-10
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-7
Oneshotcall..............4- 117, 4-129
Outside mirrors .................3-32
Overheat Ifyourvehicleoverheats...........6-12
Owner’s manual order form ...........9-34
Owner’s manual/service manual order
information ....................9-34
P
Parking Parking brake operation ...........5-22 Parking/parking on hills
..........5-134
Parking brake ...................5-22
Personallights..................2-66
Phone, Bluetooth® hands-free
system .................4- 113, 4-127
Power Power door locks ............3-5,3-6
Power outlet ..............2-48,2-49
Power rear windows .............2-60
Power steering fluid .............8-13
Power steering system ...........5-134
Power windows ...............2-58
Rear power windows ............2-60
Power inverter switch ..............2-47
Power outlet ................2-48,2-49
Power steering .................5-134
Power steering fluid ...............8-13
Precautions Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-9
Precautions on booster
seats...........1-27,1-34,1-40,1-46
Precautions on child
restraints .........1-27,1-34,1-40,1-46
Precautions on seat belt usage .......1-16
Precautions on supplemental restraint
system ....................1-49
Precautions when starting and driving ....5-4
Predictive Forward Collision Warning
(PFCW) .....................5-117
Push starting ...................6-12 R
Radio CarphoneorCBradio...........4-113
FM/AM/SAT radio with compact disc (CD)
player .....................4-72
Steering wheel audio control switch . . . .4-99
Rainsensor....................2-34
Readiness for inspection maintenance (I/M)
test ........................9-32
Rear Cross Traffic Alert (RCTA) ........5-66
Rear
power windows ..............2-60
RearView Monitor ................4-23
Rear window and outside mirror defroster
switch.......................2-36
Rear window wiper and washer switches . . .2-35
Recommended Fluids ...............9-2
Recorders EventData..................9-33
Refrigerant recommendation ...........9-7
Registering a vehicle in another country ....9-10
Remote Start ...............3-19,5-17
Reporting safety defects (US only) .......9-31
Roadside assistance program ..........6-2
Roof rack .....................2-57
S
Safety Child safety rear door lock ..........3-6
Child seat belts .....1-27,1-34,1-40,1-46
Reporting safety defects (US only) .....9-31
Seat adjustment Front power seat adjustment .........1-3
10-5
