2016 INFINITI QX60 Owners Manual

12V OUTLETS
The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum.
The instrument panel and console power outlets
are powered only when the ignition switch is in
the ACC or ON position.
The power outlet in the cargo area is powered
directly by the vehicle’s battery.
CAUTION
●The outlet and plug may be hot during
or immediately after use.
● Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
you visit an INFINITI retailer for addi-
tional information.
● Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw.
Instrument Panel
LIC2238
Center Console
LIC2885
Cargo Area
LIC2236
POWER OUTLETS
2-48Instruments and controls

●Do not use double adapters or more
than one electrical accessory.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
● Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF.
● Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
120V OUTLET (if so equipped)
CAUTION
● The outlet and plug may be hot during
or immediately after use.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Do not use accessories that exceed a
120V, 150W power draw. Do not use
double adaptors or more than one elec-
trical accessory. ●
Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
● Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF.
● Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
2nd Row
LIC2215
Instruments and controls2-49

The E-call (SOS) system switch is used in com-
bination with an Infiniti ConnectionTMServices
subscription to call for assistance in case of an
emergency.
Pushing the switch will (with a paid subscription)
reach a Response Specialist that will provide
assistance based on the situation described by
the vehicle’s occupant. For additional informa-
tion, or to enroll your vehicle, refer to
www.InfinitiUSA.com/intouch or call
800–662–6200.
LIC3357LDI2758
OFF position
LIC3266
E-CALL (SOS) SWITCH (if so
equipped) EXTENDED STORAGE SWITCH
2-50Instruments and controls

The extended storage switch is pulled out when
in transit from the factory to the retailer. It is
located in the fuse panel to the left of the steering
wheel on the instrument panel. If any electrical
equipment does not operate, ensure the ex-
tended storage switch is pushed fully in place, as
shown.MAP POCKETSSEATBACK POCKETS
There is a seatback pocket located on the back of
the driver and passenger seats. The pockets can
be used to store maps.
ON position
LIC3268LIC2211LIC1328
STORAGE
Instruments and controls2-51

WARNING
To ensure proper operation of the passen-
ger’s INFINITI Advanced Air Bag System,
please observe the following items:
●Do not allow a passenger in the rear
seat to push or pull on the seatback
pocket or head restraint/head rest.
● Do not place heavy loads heavier than
2.2 lbs. (1 kg) on the seatback, head
restraint/head rest or in the seatback
pocket.
GLOVE BOX
Open the glove box by pulling the handle. Use the
master key when locking
1or unlocking2the
glove box.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
CONSOLE BOX
Upper half
Pull up on the driver’s side latch to open the
upper half of the console box.
The upper half of the console box may be used for
storage of cellular phones. An access hole is
provided at the front of the upper half of the
console box for a phone or iPod® cord routing to
the power outlet.
LIC1176WIC1120
2-52Instruments and controls

Lower half
Pull up on the passenger’s side latch to open the
lower half of the console box. A power outlet is
located inside the console box and there is stor-
age for compact discs.STORAGE TRAYS
WARNING
Do not place sharp objects in the trays to
help prevent injury in an accident or sud-
den stop.
LIC0702
Front console
LIC3282
Rear armrest
LIC2214
Instruments and controls2-53

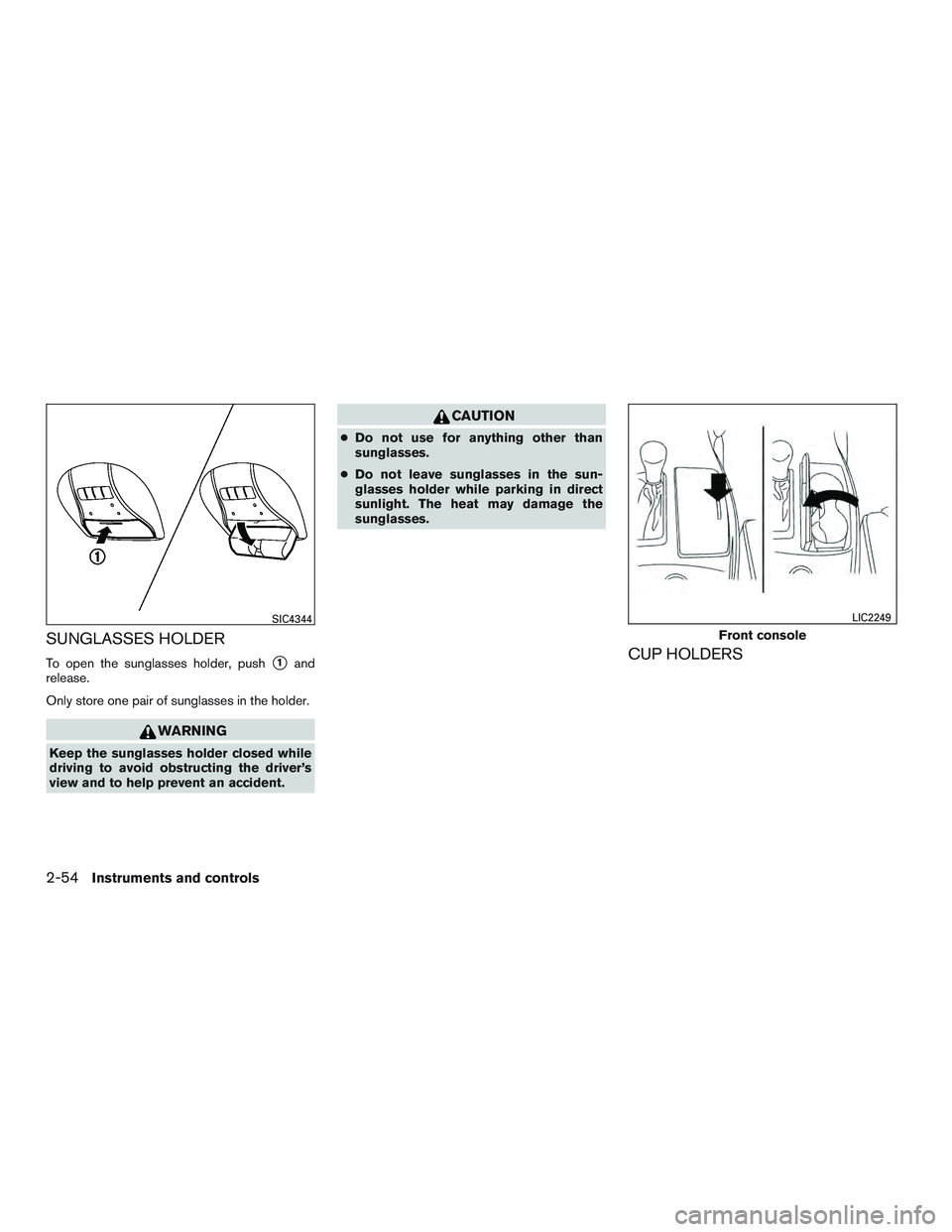

SUNGLASSES HOLDER
To open the sunglasses holder, push1and
release.
Only store one pair of sunglasses in the holder.
WARNING
Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.
CAUTION
● Do not use for anything other than
sunglasses.
● Do not leave sunglasses in the sun-
glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.
CUP HOLDERS
SIC4344
Front console
LIC2249
2-54Instruments and controls

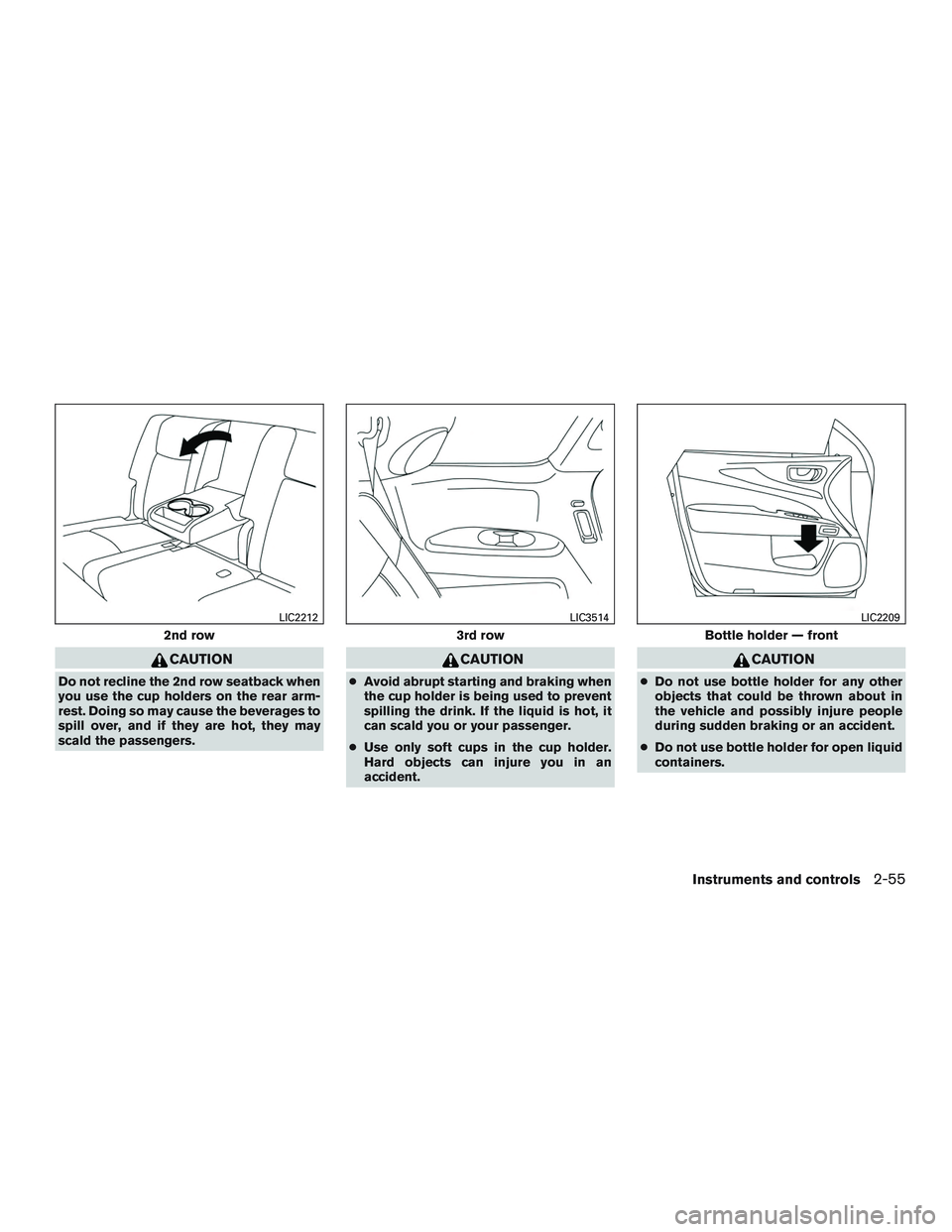

CAUTION
Do not recline the 2nd row seatback when
you use the cup holders on the rear arm-
rest. Doing so may cause the beverages to
spill over, and if they are hot, they may
scald the passengers.
CAUTION
●Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
● Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
CAUTION
● Do not use bottle holder for any other
objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
● Do not use bottle holder for open liquid
containers.
2nd row
LIC2212
3rd row
LIC3514
Bottle holder — front
LIC2209
Instruments and controls2-55
