2016 INFINITI QX60-HYBRID sensor

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR
The inside mirror is designed so that it automati-
cally dims according to the intensity of the head-
lights of the vehicle following you. The automatic
anti-glare feature operates only when the ignition
switch is in the ON position.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature, press
the O button. The indicator light will turn off. To turn on the automatic anti-glare feature, press
the | button again. The indicator light will turn
on.
For information on HomeLink® Universal Trans-
ceiver operation, refer to “HomeLink® Universal
Transceiver” in the “Instruments and controls”
section of this manual.
NOTE:
Do not hang any objects over the sensors
1or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the
sensors, resulting in improper operation.
OUTSIDE MIRRORS
The outside mirror remote control will operate
only when the ignition switch is in the ACC or ON
position.
Move the small switch
1to select the left or right
mirror. Adjust each mirror to the desired position
using the large switch
2.
LPD0469LPD2269
MIRRORS
3-32Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen without
Navigation System (if so equipped)..................4-4
How to use the INFINITI controller ................4-5
How to select menus on the screen ..............4-6
How to use the STATUS button ..................4-7
How to use the INFO button .....................4-7
How to use the DISP button .....................4-8
How to use the SETTING button ................4-10
ECON (fuel economy) button .............4-11
OFF button............................. 4-11
Control panel buttons — color screen with
Navigation System (if so equipped) .................4-12
How to use the INFINITI controller ...............4-13
How to use the touch-screen . . .................4-13
Menu options ................................. 4-15
How to select menus on the screen .............4-16
How to use the STATUS button .................4-17
How to use the INFO button ....................4-17
How to use the SETTING button ................4-19
OFF button............................. 4-21
Image viewer (if so equipped) ......................4-22
Using the image viewer ........................ 4-22
RearView Monitor (if so equipped) ..................4-24RearView Monitor system operation
.............4-25
How to read the displayed lines .................4-25
Difference between predicted and actual
distances ..................................... 4-26
How to park with predicted course lines ..........4-27
Adjusting the screen ........................... 4-29
How to turn on and off predicted course
lines ......................................... 4-29
RearView Monitor system limitations .............4-29
System maintenance ........................... 4-30
Around View® Monitor (if so equipped) .............4-31
Around View® Monitor system operation .........4-32
Difference between predicted and actual
distances ..................................... 4-35
How to park with predicted course lines ..........4-37
How to switch the display ......................4-38
Adjusting the screen ........................... 4-39
Around View® Monitor system limitations ........4-39
System maintenance ........................... 4-41
Camera Aiding Sonar (parking sensor) ..............4-42
Moving Object Detection (MOD) (if so equipped) ....4-44
MOD system operation ......................... 4-45
Turning MOD on and off ........................ 4-46
MOD system limitations ........................ 4-46

The Camera Aiding Sonar (parking sensor)
sounds a tone to inform the driver of obstacles
near the bumper.
The colors of the Camera Aiding Sonar (parking
sensor) indicators and the distance guide lines in
the rear view indicate different distances to the
object.
WARNING
●The Camera Aiding Sonar (parking sen-
sor) is a convenience feature. It is not a
substitute for proper parking.
● The driver is always responsible for
safety during parking and other
maneuvers.
● Always look around and check that it is
safe to move before parking.
● Read and understand the limitations of
the Camera Aiding Sonar (parking sen-
sor) as contained in this section.
● The colors of the sonar indicators and
the distance guide lines in the front,
front-wide, rear and rear-wide views in-
dicate different distances to the object.
● Inclement weather or ultrasonic
sources such as an automatic car wash,
a truck’s compressed-air brakes or a
pneumatic drill may affect the function
of the system; this may include reduced
performance or a false activation.
● This function is designed as an aid to
the driver in detecting large stationary
objects to help avoid damaging the
vehicle. ●
The system is not designed to prevent
contact with small or moving objects.
● The system will not detect small objects
below the bumper, and may not detect
objects close to the bumper or on the
ground.
● The system may not detect the follow-
ing objects:
– Fluffy objects such as snow, cloth, cotton, glass or wool.
– Thin objects such as rope, wire or chain.
– Wedge-shaped objects.
● If your vehicle sustains damage to the
bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
LHA2549
CAMERA AIDING SONAR (parking
sensor)
4-42Monitor, climate, audio, phone and voice recognition systems

CAUTION
●Excessive noise (such as audio system
volume or an open vehicle window) will
interfere with the tone and it may not be
heard.
● Keep the surface of the Camera Aiding
Sonars (parking sensors) (located on
the front and rear bumper fascia) free
from accumulations of snow, ice and
dirt. Do not scratch the surface of the
Camera Aiding Sonars (parking sen-
sors) when cleaning. If the Camera Aid-
ing Sonars (parking sensors) are cov-
ered, the accuracy of the Camera Aiding
Sonar’s (parking sensor’s) function will
be diminished.
The system gives the tone for rear objects when
the shift lever is in the R (Reverse) position.
The system is deactivated at speeds above
6 mph (10 km/h). It is reactivated at lower
speeds. When the objects are detected, the indicator
(green) appears and blinks and the tone sounds
intermittently. When the vehicle moves closer to
the object, the color of the indicator turns yellow
and the rate of the blinking and the rate of the
tone increase. When the vehicle is very close to
the object, the indicator stops blinking and turns
red, and the tone sounds continuously.
The intermittent tone will stop after 3 seconds
when an object is detected by only the corner
Camera Aiding Sonar (parking sensor) and the
distance does not change.
The tone will stop when the object is no longer
near the vehicle.
In the below cases, the Camera Aiding Sonar
(parking sensor) will be turned back on automati-
cally:
● When the shift lever is in the R (Reverse)
position.
● When vehicle speed decreases below ap-
proximately 6 mph (10 km/h). ●
When the ignition switch is placed in the
OFF position and turned back to the ON
position again.
● The Camera Aiding Sonar (parking sensor)
system can be permanently turned off using
the meter settings.
Monitor, climate, audio, phone and voice recognition systems4-43

Air recirculation
Press theair recirculation button to recir-
culate interior air inside the vehicle. The
indicator light on the button will come on.
The air recirculation cannot be activated when
the air conditioner is in the
front defrosting
mode.
Automatic intake air control
In the AUTO mode, the intake air will be con-
trolled automatically. To manually control the in-
take air, press the
air recirculation button.
To return to the automatic control mode, press
and hold the
air recirculation button for
about 2 seconds. The indicator light will flash
twice, and then the intake air will be controlled
automatically.
Air flow control
Press thebutton to manually control air
flow. Pressing the button repeatedly will cycle
through the available modes and display the cor-
responding icon on the center display:
— Air flows from center and side
vents.
— Air flows from center and sidevents and foot outlets.
— Air flows mainly from foot outlets.
— Air flows from defroster and footoutlets.
— Air flows from defroster outlets.
To turn system off
Press the OFF button.
Rear window and outside mirror
defroster switch
For additional information, refer to “Rear window
and outside mirror defroster switch” in the “In-
struments and controls” section of this manual.
OPERATING TIPS
●When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate for a
maximum of 150 seconds. However, this is
not a malfunction. After the coolant tempera-
ture warms up, air flow from the foot outlets
will operate normally. The sunload sensor, located on the top driver’s
side of the instrument panel, helps the system
maintain a constant temperature. Do not put any-
thing on or around this sensor.LHA2173
Monitor, climate, audio, phone and voice recognition systems4-51

Advanced Climate Control System
(ACCS) (if so equipped)
The Advanced Climate Control System (ACCS)
keeps the air inside of the vehicle clean, using the
ion control and the automatic air intake control
with exhaust gas detecting sensor.Ion control (if so equipped)
This unit generates highly concentrated Plasma-
cluster® ions into the air blown from the vents
and reduces odor absorbed into the interior trim.
When the air conditioner is turned on, the system
generates Plasmacluster® ions automatically.
The amount of Plasmacluster® ions increases
according to the amount of air flow. When the air
flow is high,
is displayed on the screen and
when the air flow is low, the indication in the
screen changes to
.
Plasmacluster® and Plasmacluster® ion are
registered trademarks of Sharp Corporation. Exhaust gas/outside odor detection sensor
(if so equipped)
This vehicle is equipped with an exhaust gas detec-
tion sensor. When the automatic intake air control is
ON, the sensor detects industry odors such as pulp
or chemicals, and exhaust gas such as gasoline or
diesel. When such odors or gas are detected, the
system automatically changes from the outside air
circulation mode to the recirculation mode.
When the intake air control button is pressed
under the following conditions, the indicator light
on the
button will illuminate and the ex-
haust gas detection sensor will turn on.
●
The air flow control is not in the front defroster
mode (the indicator light on the
front
defroster button is turned off) .
● The outside temperature is about 32°F (0°C)
or more.
When the automatic intake air control is ON, for
the first 5 minutes, the recirculation mode is
selected to prevent dust, dirt and pollen from
entering the vehicle and cleans the air inside of
the vehicle with positive and negative ions that
are emitted from the vent.
After the 5 minutes, the sensor detects exhaust gas
and automatically alternates between the recircu-
lation mode and outside air circulation mode.
LHA2222
Monitor, climate, audio, phone and voice recognition systems4-53

●Since the spare tire is not equipped with
the TPMS, when a spare tire is mounted
or a wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure warn-
ing light will flash for approximately
1 minute. The light will remain on after
1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you
visit an INFINITI retailer for this service.
● Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
●
Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CAUTION
● The TPMS may not function properly
when the wheels are equipped with tire
chains or the wheels are buried in snow.
● Do not place metalized film or any
metal parts (antenna, etc.) on the win-
dows. This may cause poor reception of
the signals from the tire pressure sen-
sors, and the TPMS will not function
properly.
Some devices and transmitters may temporarily
interfere with the operation of the TPMS and cause
the low tire pressure warning light to illuminate.
Some examples are:
– Facilities or electric devices using similar radio
frequencies are near the vehicle.
– If a transmitter set to similar frequencies is being used in or near the vehicle.
– If a computer (or similar equipment) or a DC/AC converter is being used in or near the
vehicle.
Low tire pressure warning light may illuminate in
the following cases. ● If the vehicle is equipped with a wheel and
tire without TPMS.
● If the TPMS has been replaced and the ID
has not been registered.
● If the wheel is not originally specified by
INFINITI.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s au-
thority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device
TPMS with Tire Inflation Indicator
When adding air to an under-inflated tire, the
TPMS with Tire Inflation Indicator provides visual
and audible signals outside the vehicle to help
you inflate the tires to the recommended COLD
tire pressure.
Vehicle set-up:
1. Park the vehicle in a safe and level place.
2. Apply the parking brake and place the shift lever into the P (Park) position.
3. Place the ignition switch to the ON position. Do not start the hybrid system.
Starting and driving5-7

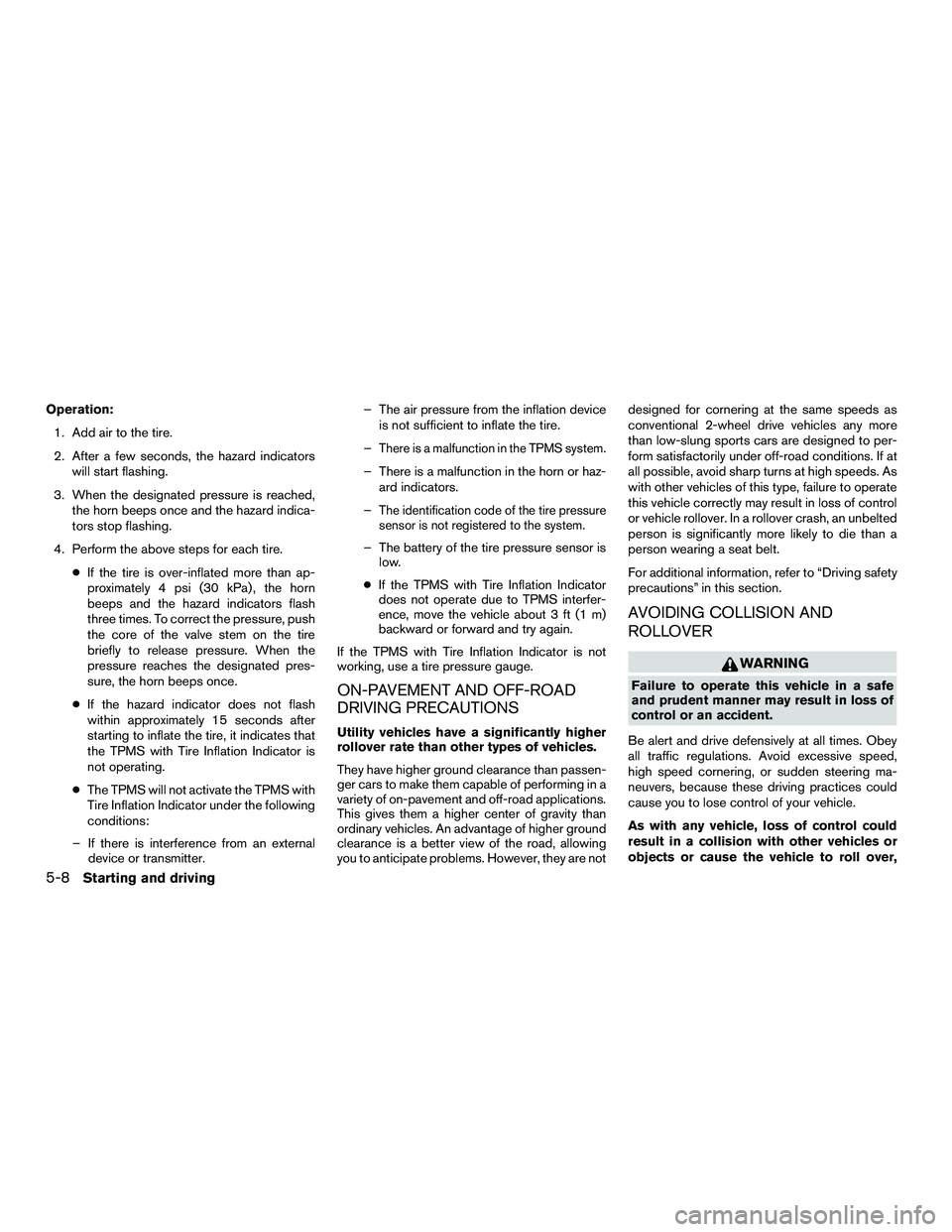

Operation:1. Add air to the tire.
2. After a few seconds, the hazard indicators will start flashing.
3. When the designated pressure is reached, the horn beeps once and the hazard indica-
tors stop flashing.
4. Perform the above steps for each tire. ●If the tire is over-inflated more than ap-
proximately 4 psi (30 kPa) , the horn
beeps and the hazard indicators flash
three times. To correct the pressure, push
the core of the valve stem on the tire
briefly to release pressure. When the
pressure reaches the designated pres-
sure, the horn beeps once.
● If the hazard indicator does not flash
within approximately 15 seconds after
starting to inflate the tire, it indicates that
the TPMS with Tire Inflation Indicator is
not operating.
● The TPMS will not activate the TPMS with
Tire Inflation Indicator under the following
conditions:
– If there is interference from an external device or transmitter. – The air pressure from the inflation device
is not sufficient to inflate the tire.
–
There is a malfunction in the TPMS system.
– There is a malfunction in the horn or haz- ard indicators.
–
The identification code of the tire pressure
sensor is not registered to the system.
– The battery of the tire pressure sensor is low.
● If the TPMS with Tire Inflation Indicator
does not operate due to TPMS interfer-
ence, move the vehicle about 3 ft (1 m)
backward or forward and try again.
If the TPMS with Tire Inflation Indicator is not
working, use a tire pressure gauge.
ON-PAVEMENT AND OFF-ROAD
DRIVING PRECAUTIONS
Utility vehicles have a significantly higher
rollover rate than other types of vehicles.
They have higher ground clearance than passen-
ger cars to make them capable of performing in a
variety of on-pavement and off-road applications.
This gives them a higher center of gravity than
ordinary vehicles. An advantage of higher ground
clearance is a better view of the road, allowing
you to anticipate problems. However, they are not designed for cornering at the same speeds as
conventional 2-wheel drive vehicles any more
than low-slung sports cars are designed to per-
form satisfactorily under off-road conditions. If at
all possible, avoid sharp turns at high speeds. As
with other vehicles of this type, failure to operate
this vehicle correctly may result in loss of control
or vehicle rollover. In a rollover crash, an unbelted
person is significantly more likely to die than a
person wearing a seat belt.
For additional information, refer to “Driving safety
precautions” in this section.
AVOIDING COLLISION AND
ROLLOVER
WARNING
Failure to operate this vehicle in a safe
and prudent manner may result in loss of
control or an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could
cause you to lose control of your vehicle.
As with any vehicle, loss of control could
result in a collision with other vehicles or
objects or cause the vehicle to roll over,
5-8Starting and driving
