2016 Hyundai Sonata Hybrid steering

3-67
Convenient features of your vehicle
3
Information
When the ABS warning light illumi-
nates, or when both the ABS and the
Parking Brake & Brake Fluid warning
lights illuminate, the speedometer, the
odometer, or the tripmeter may not
properly operate. Also, the EPS
Warning Light may illuminate, and the
efforts to operate the steering wheel
may need to be increased or decreased.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
Electronic ParkingBrake (EPB) WarningLight (if equipped)
This warning light illuminates:
When the Engine Start/Stop button
is in the ON position.
- It illuminates for approximately 3seconds and then goes off.
When there is a malfunction with the EPB.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.
Information
The Electric Parking Brake (EPB)
warning light may illuminate, when
the Electronic Stability Control (ESC)
indicator illuminates due to the ESC
malfunction (This does not indicate
the EPB malfunction).
i
i
When both the ABS and Parking
Brake & Brake Fluid Warning
Lights are on, the brake system
will not work normally and you
may experience an unexpected
and dangerous situation during
sudden braking.
In this case, avoid high speed
driving and abrupt braking.
Have the vehicle inspected by
an authorized HYUNDAI dealer
as soon as possible.
WARNINGEPB

3-71
Convenient features of your vehicle
3
Electronic StabilityControl (ESC) Indicator
This indicator illuminates:
When the Engine Start/Stop button
is in the ON position.
- It illuminates for approximately 3seconds and then goes off.
When there is a malfunction with the ESC system.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.
This indicator blinks:
While the ESC is operating.
For more information, refer to
“Electronic Stability Control (ESC)”
in chapter 5.
Electronic StabilityControl (ESC) OFFIndicator
This indicator illuminates:
When the Engine Start/Stop button
is in the ON position.
- It illuminates for approximately 3 seconds and then goes off.
When you deactivate the ESC sys- tem by pressing the ESC OFF but-
ton.
For more information, refer to
“Electronic Stability Control (ESC)”
in chapter 5.
Electric Power Steering (EPS)Warning Light
This warning light illuminates:
When the Engine Start/Stop button
is in the ON position.
- It illuminates for approximately 3seconds and then goes off.
When there is a malfunction with the EPS.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.

3-76
Convenient features of your vehicle
Warning messages
Shift to "P" position
This warning message illuminates,
when you attempt to turn OFF the
vehicle without setting the shift lever
in P (Park).
At this time, the Engine Start/Stop
button turns to the ACC position
(When you re-press the Engine
Start/Stop button again, it will turn to
the ON position).
Low Key Battery
This warning message illuminates,
when the Smart Key battery is dis-
charged while turning the Engine
Start/Stop button to the OFF position.
Press POWER button whileturning wheel
This warning message illuminates,
when the steering wheel is fully
turned to the left or right while press-
ing the Engine Start/Stop button.
OLF044126L/OLFH044127L
OLFH044544L/OLFH044551L
OLFH045415N/OLFH044545L
■ Type A ■Type B
■Type A ■Type B
■Type A ■Type B

3-77
Convenient features of your vehicle
3
Steering wheel unlocked
This warning message illuminates
when the steering wheel does not
lock while the Engine Start/Stop but-
ton changes to the OFF position.
Check steering wheel lock system
This warning message illuminates
when the steering wheel does not
lock normally while the Engine
Start/Stop button changes to the
OFF position.
Press brake pedal to start engine
This warning message illuminates,
when the Engine Start/Stop button
changes to the ACC position twice
by repeatedly pressing the button
without depressing the brake pedal.
You can start the vehicle by depress-
ing the brake pedal
OLFH044546L/OLFH044547L
OLFH044417L/OLFH044548L
OLFH044549L/OLFH044125L
■ Type A ■Type B
■Type A ■Type B
■Type A ■Type B

3-80
Convenient features of your vehicle

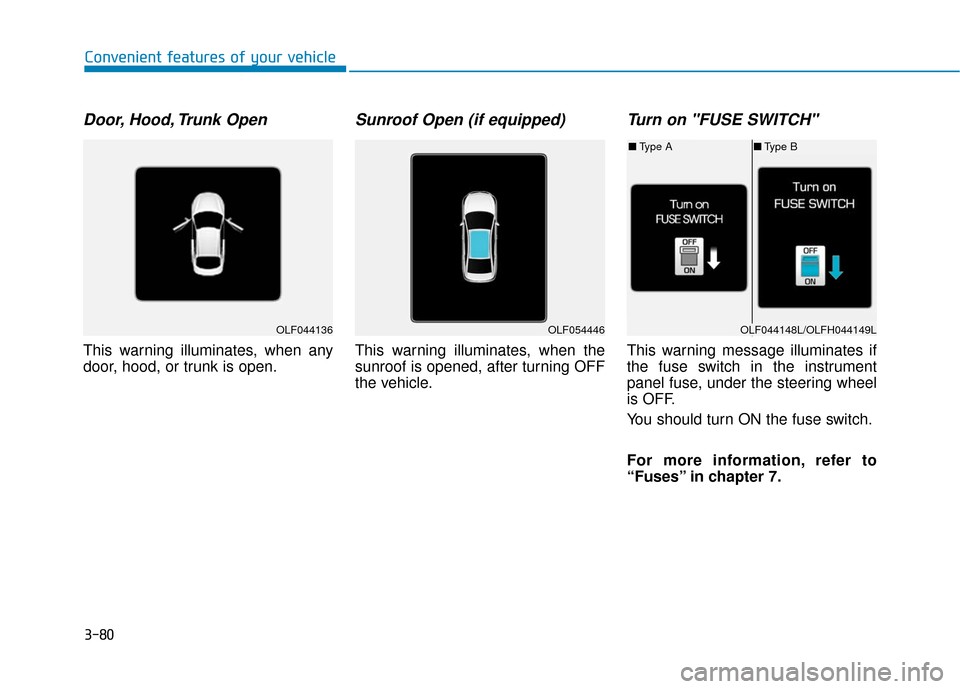

Door, Hood, Trunk Open
This warning illuminates, when any
door, hood, or trunk is open.
Sunroof Open (if equipped)
This warning illuminates, when the
sunroof is opened, after turning OFF
the vehicle.
Turn on "FUSE SWITCH"
This warning message illuminates if
the fuse switch in the instrument
panel fuse, under the steering wheel
is OFF.
You should turn ON the fuse switch.
For more information, refer to
“Fuses” in chapter 7.
OLF044136OLF054446OLF044148L/OLFH044149L
■Type A ■Type B

3-81
Convenient features of your vehicle
3
Align steering wheel (if equipped)
This warning message illuminates,
when the steering wheel is turned by
90 degrees or wider, either to left or
to right, while running the engine.
You should align the steering wheel
and narrow the steering wheel angle
to be less than 30 degrees.
Steering wheel aligning is com-pleted (if equipped)
If the steering wheel aligning is com-
pleted after “Align steering wheel”
warning message is displayed, this
message is displayed for 2 seconds.
Low Washer Fluid
This warning message illuminates in
the service reminder mode, when
the washer fluid in the reservoir is
nearly empty.
You should refill the washer fluid.
OLF044150L/OLF044152L
■ Type A ■Type B
OLF044154L
OLF044156L

3-88
Convenient features of your vehicle
LCD Display
LCD display control
The LCD display modes can be
changed by pressing the control but-
tons on the steering wheel.
(1) button :Changing LCD modes
or returning to previ-
ous position
(2) ▲, ▼button : Changing items
(3) OK button : Selecting or resetting
LCD modes
OLFH044553L
Modes SymbolExplanation
Tr i p
Computer
This mode displays driving information like the tripme-
ter, fuel economy, etc.
For more information, refer to "Trip Computer" in this
chapter.
Tu r n B y Tu r n (TBT)
(if equipped)
This mode displays the state of the navigation.
SCC/LDWS
(If equipped)
This mode displays the state of the Smart Cruise Control
(SCC) and Lane Departure Warning System (LDWS).
For more information, refer to "Smart Cruise Control (SCC)"
and Lane Departure Warning System (LDWS) in chapter 5.
A/V
(If equipped)This mode displays the state of the A/V system.
Information
This mode displays the service interval (mileage or days)
and warning messages related to the Blind Spot
Detection system, etc.
User SettingsIn this mode, you can change settings of the doors,
lamps, etc.
or
or

3-96
Convenient features of your vehicle
ItemsExplanation
Seat Easy Access
The seat easy access function is deactivated.
- When you turn off the engine, the driver’s seat will automatically move rearward short (Normal)or long (Extended) for you to enter or exit the vehicle more comfortably.
- If you change the Engine Start/Stop button from OFF position to the ACC, ON, or START posi- tion, the driver’s seat will return to the original position.
For more information, refer to “Driver Position Memory System” in this chapter.
ItemsExplanation
Service Interval The service interval function is deactivated.

Service interval
Seat / Steering
