2016 Hyundai Sonata Hybrid display

6-11
What to do in an emergency
6
If any of the below happens, have
the system checked by an author-
ized HYUNDAI dealer.
1. The Low Tire Pressure Telltale/TPMS Malfunction Indicator
does not illuminate for 3 sec-
onds when the ignition switch
is placed to the ON position or
engine is running.
2. The TPMS Malfunction Indicator remains illuminated after blink-
ing for approximately 1 minute.
3. The Low Tire Pressure Position Telltale remains illuminated.
Low tire pressure
telltale
Low tire pressure
position and tire
pressure telltale
When the tire pressure monitoring
system warning indicators are illumi-
nated and warning message dis-
played on the cluster LCD display,
one or more of your tires is signifi-
cantly under-inflated. The Low Tire
Pressure Position Telltale will indi-
cate which tire is significantly under-
inflated by illuminating the corre-
sponding position light.
If either telltale illuminates, immedi-
ately reduce your speed, avoid hard
cornering and anticipate increased
stopping distances. You should stop
and check your tires as soon as pos-
sible. Inflate the tires to the proper
pressure as indicated on the vehi-
cle’s placard or tire inflation pressure
label located on the driver’s side cen-
ter pillar outer panel. If you cannot reach a service station
or if the tire cannot hold the newly
added air, replace the low pressure
tire with the spare tire.
The Low Tire Pressure Telltale will
remain on and the TPMS Malfunction
Indicator may blink for one minute
and then remain illuminated (when
the vehicle is driven approximately
20 minutes at speed above 15.5 mph
(25 km/h)) until you have the low
pressure tire repaired and replaced
on the vehicle.
Information
The spare tire is not equipped with a
tire pressure sensor.
i
NOTICE
OLF064028N

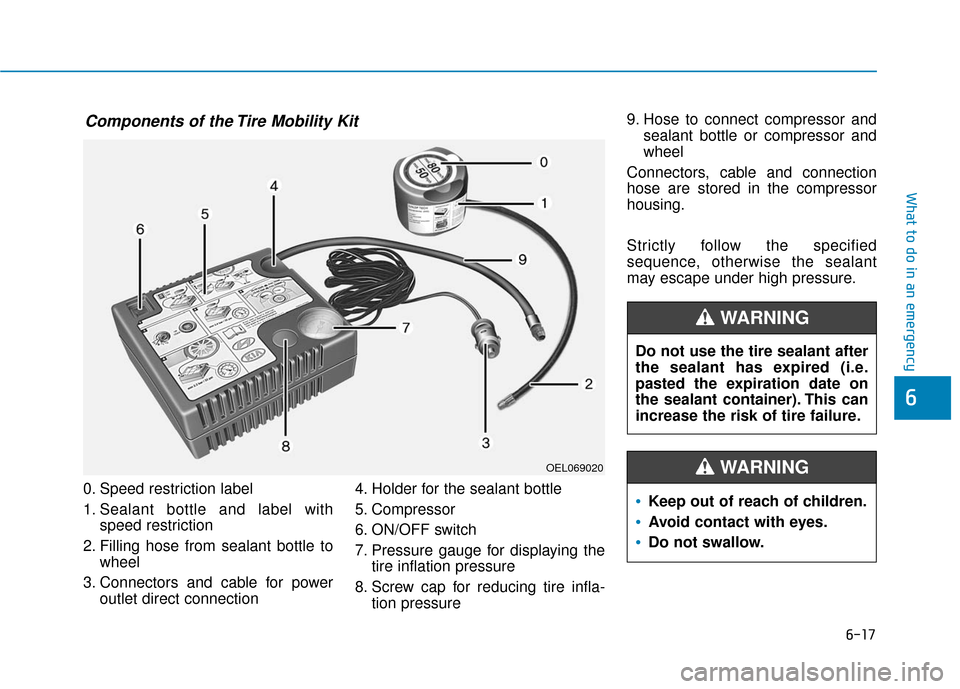

6-17
What to do in an emergency
0. Speed restriction label
1. Sealant bottle and label withspeed restriction
2. Filling hose from sealant bottle to wheel
3. Connectors and cable for power outlet direct connection 4. Holder for the sealant bottle
5. Compressor
6. ON/OFF switch
7. Pressure gauge for displaying the
tire inflation pressure
8. Screw cap for reducing tire infla- tion pressure 9. Hose to connect compressor and
sealant bottle or compressor and
wheel
Connectors, cable and connection
hose are stored in the compressor
housing.
Strictly follow the specified
sequence, otherwise the sealant
may escape under high pressure.
6
Components of the Tire Mobility Kit
OEL069020
Do not use the tire sealant after
the sealant has expired (i.e.
pasted the expiration date on
the sealant container). This can
increase the risk of tire failure.
WARNING
Keep out of reach of children.
Avoid contact with eyes.
Do not swallow.
WARNING

7-51
7
Maintenance
Wheel size designation
Wheels are also marked with impor-
tant information that you need if you
ever have to replace one. The follow-
ing explains what the letters and
numbers in the wheel size designa-
tion mean.
Example wheel size designation:
6.5JX16
6.5 - Rim width in inches.
J - Rim contour designation.
16 - Rim diameter in inches.
Tire speed ratings
The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger car tires. The
speed rating is part of the tire size
designation on the sidewall of the
tire. This symbol corresponds to that
tire’s designed maximum safe oper-
ating speed.
3. Checking tire life (TIN : TireIdentification Number)
Any tires that are over six years old,
based on the manufacturing date,
(including the spare tire) should be
replaced by new ones. You can find
the manufacturing date on the tire
sidewall (possibly on the inside of the
wheel), displaying the DOT Code.
The DOT Code is a series of num-
bers on a tire consisting of numbers
and English letters. The manufactur-
ing date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT means a
plant code number, tire size and
tread pattern and the last four num-
bers indicate week and year manu-
factured.
For example:
DOT XXXX XXXX 1615 represents
that the tire was produced in the 16th
week of 2015.
Speed
Rating
Symbol Maximum Speed
S 112 mph (180 km/h) T 118 mph (190 km/h)
H 130 mph (210 km/h) V 149 mph (240 km/h)Z Above 149 mph (240 km/h)

I-4
Clothes hanger ..............................................................3-151
Combined instrument, see instrument cluster ................3-57
Consumer information ......................................................8-9
Coolant ........................................................................\
....7-29
Cooling fluid, see engine coolant ...................................7-29
Cruise control..................................................................5-43
Cup holder.....................................................................3-1\
47
Dashboard illumination, see instrument panel illumination..................................................................3-58
Dashboard, see instrument cluster ..................................3-57
Day/night rearview mirror ..............................................3-19
Daytime running light ...................................................3-114
Defogging (Windshield) ...............................................3-141
Defroster (Rear window) ..............................................3-126
Defrosting (Windshield) ...............................................3-141
Digital speedometer ......................................................3-102
Dimensions .......................................................................8\
-2
Disc brakes wear indicator ............................................5-20
Display illumination, see instrument panel illumination..................................................................3-58
Display of hybrid system .................................................H-3
Displays, see instrument cluster .....................................3-57
Do not install a child restraint on the front passenger seat ..............................................................2-62 Door courtesy lamp .......................................................3-118
Door locks ........................................................................\
.3-9
Auto door lock/unlock features ..................................3-12
Central door lock switch ............................................3-10
Child-protector rear door lock....................................3-12
Drinks holders, see cup holders ....................................3-147
Drive mode integrated control system ............................5-41
Driver assis system .......................................................3-122 Rear parking assist system (RPAS) ..........................3-123
Rear view camera .....................................................3-122
Driver position memory system .....................................3-14
Driver’s front air bag ......................................................2-49
Driving at night ...............................................................5-79
Driving in flooded areas .................................................5-80
Driving in the rain...........................................................5-80
Electronic chromic mirror (ECM) ..................................3-20
Electric parking brake (EPB) ..........................................5-22
Electric power steering (EPS).........................................3-16
Electronic stability control (ESC)...................................5-34
Emergency situations .....................................................H-24
Emission control system .................................................7-93
Engine ........................................................................\
.......8-2
Engine compartment..................................................1-6, 7-3
Engine compartment panel fuse .....................................7-62
Engine coolant ................................................................7-29
Engine Coolant Temperature gauge................................3-61
Index
D

I-6
Highway driving .............................................................5-81
Hill-start assist control (HAC)........................................5-39
Hood........................................................................\
........3-46
Horn ........................................................................\
........3-18
How to use this manual ....................................................F-6
Hybrid Battery SOC (State of Charge) Gauge ...............3-60
Hybrid starter and generator belt (HSG belt) .................7-32
Hybrid System Gauge .....................................................3-59
If an accident occurs .......................................................6-26
If the engine overheats ......................................................6-7
If the vehicle stalls at a crossroad or crossing ..................6-2
If the vehicle stalls while driving .....................................6-2
If the vehicle will not start ................................................6-3
If you have a flat tire ......................................................6-15
If you have a flat tire while driving ..................................6-3
Immobilzer system............................................................3-7
Improtant safety precautions.............................................2-2Air bag hazards ............................................................2-2
Always wear your seat belt ..........................................2-2
Control your speed .......................................................2-3
Driver distraction..........................................................2-2
Keep your vehicle in safe condition.............................2-3
Restrain all children .....................................................2-2
In case of emergency while driving..................................6-2
Indicator lights (Instrument cluster) ...............................3-63
Information Mode ...........................................................3-91 Inside rearview mirror ....................................................3-19
Instrument cluster ...........................................................3-57
Automtice transaxle shift indicator ............................3-72
Gauges ........................................................................\
3-59
Instrument panel illumination ....................................3-58
LCD Display Control .................................................3-88
Instrument panel fuse......................................................7-61
Instrument panel overview ...............................................1-5
Interior care .....................................................................7-9\
1
Interior features .............................................................3-147 Clock ........................................................................\
3-150
Clothes hanger ..........................................................3-151
Cup holder ................................................................3-147
Floor mat anchor(s) ..................................................3-152
Power outlet..............................................................3-148
Side curtain...............................................................3-153
Sunvisor ....................................................................3-14\
8
Interior lamp AUTO cut................................................3-116
Interior light bulb replacement .......................................7-84
Interior lights .................................................................3-116 Door courtesy lamp ..................................................3-118
Front lamp ................................................................3-116
Glove box lamp ........................................................3-119
Interior lamp AUTO cut ...........................................3-116
Rear lamp...............................................................\
...3-118
Room lamp ...............................................................3-116
Trunk room lamp ......................................................3-118
Vanity mirror lamp ...................................................3-119
Interior overview...............................................................1-4
Index
I

I-7
Jump starting .....................................................................6-4\
Keys ........................................................................\
..........3-3Smart key......................................................................3-\
3
Label Air bag warning labels ...............................................2-70
Tire sidewall labeling .................................................7-50
Tire specification and pressure label ............................8-9
Vehicle certification label .............................................8-8
Lane departure warnings system (LDWS) .....................5-66
LCD display ....................................................................3-88\
A/V mode ...................................................................3-90
Information Mode ......................................................3-91
LCD modes ................................................................3-88
Trip computer modes..................................................3-88\
Turn by turn (TBT) mode ..........................................3-90
User settings mode .....................................................3-93
Warning Messages......................................................3-76
LCD Display Control......................................................3-88
LCD modes .....................................................................3-8\
8 License plate light bulb replacement ..............................7-84
Light ........................................................................\
......3-107
Auto light position....................................................3-107
Battery saver function ..............................................3-113
Daytime running light ..............................................3-114
Headlamp delay function..........................................3-113
Headlamp position....................................................3-108
High - beam operation..............................................3-109
Interior lights ............................................................3-116
Parking lamp position ..............................................3-108
Smart high beam ......................................................3-109
Turn signals ..............................................................3-112
Welcome system .......................................................3-115
Light bulbs ......................................................................7-\
73
Lubricants and capacities..................................................8-6
Luggage net holder .......................................................3-153
Main fuse ........................................................................\
7-63
Maintenance Explanation of scheduled maintenance items ............7-24
Maintenance services ...................................................7-4
Owner maintenance ......................................................7-5
Tire maintenance ........................................................7-50
Maintenance schedule .......................................................7-8 Maintenance under severe usage conditions ..............7-22
Normal maintenance schedule .....................................7-9
I
Index
J
K
L
M

I-11
Vanity mirror lamp ........................................................3-119
Vehicle break-in process ...................................................F-9
Vehicle certification label .................................................8-8
Vehicle data collection and event data recorders ...........F-11
Vehicle identification number (VIN) ................................8-8
Vehicle load limit ............................................................5-87
Vehicle Stability Management ........................................5-38
Volume and weight ...........................................................8-5
Warning lights (Instrument cluster) ................................3-63
Warning Messages (LCD display) ..................................3-76
Washer fluid ....................................................................7-34\
Welcome system ...........................................................3-115
Wheel alignment and tire balance ..................................7-48
Wheel replacement .........................................................7-48
Windows ........................................................................\
.3-38Power window lock button ........................................3-41
Windshield defrosting and defogging ...........................3-141
Windshield washers ......................................................3-121
Windshield wipers........................................................\
.3-120
Winter driving .................................................................5-82 Snow tires ...................................................................5-82
Tire chains ..................................................................5-83
Winter precautions......................................................5-84 Winter precautions ..........................................................5-84
Wiper blades ...................................................................7-39
Wipers and washers ......................................................3-120
Windshield washers ..................................................3-121
Windshield wipers ....................................................3-120
I
Index
V
W

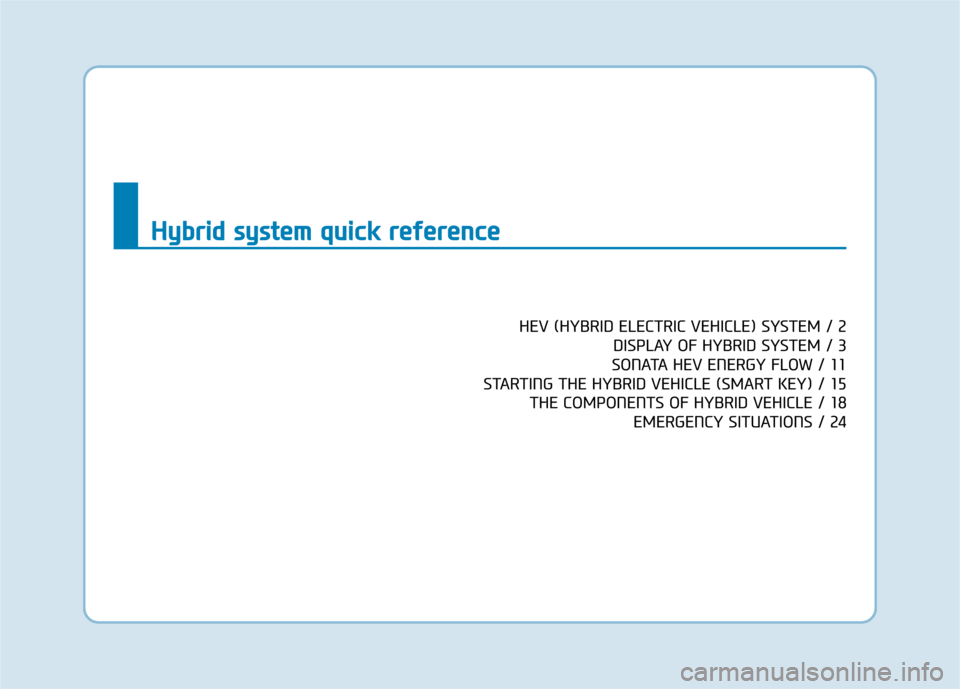

HEV (HYBRID ELECTRIC VEHICLE) SYSTEM / 2DISPLAY OF HYBRID SYSTEM / 3
SONATA HEV ENERGY FLOW / 11
STARTING THE HYBRID VEHICLE (SMART KEY) / 15 THE COMPONENTS OF HYBRID VEHICLE / 18 EMERGENCY SITUATIONS / 24
H
Hy
yb
br
ri
id
d
s
s y
y s
st
te
e m
m
q
q u
u i
ic
c k
k
r
r e
e f
fe
e r
re
e n
n c
ce
e
