2016 Hyundai Santa Fe Sport headlamp

775

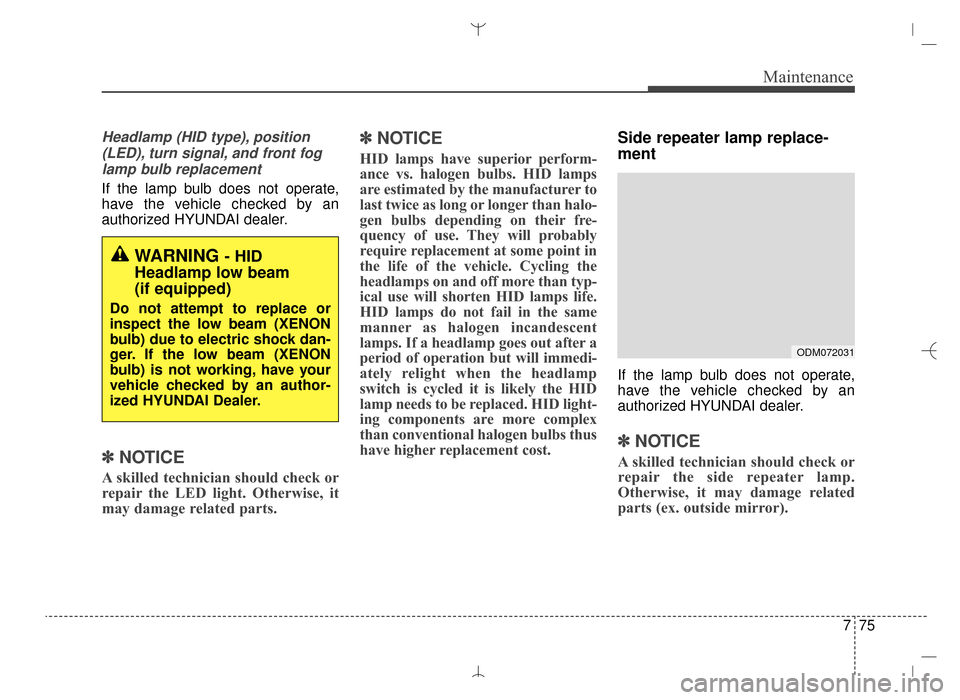

Maintenance
Headlamp (HID type), position(LED), turn signal, and front foglamp bulb replacement
If the lamp bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽ ✽ NOTICE
A skilled technician should check or
repair the LED light. Otherwise, it
may damage related parts.
✽ ✽NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer to
last twice as long or longer than halo-
gen bulbs depending on their fre-
quency of use. They will probably
require replacement at some point in
the life of the vehicle. Cycling the
headlamps on and off more than typ-
ical use will shorten HID lamps life.
HID lamps do not fail in the same
manner as halogen incandescent
lamps. If a headlamp goes out after a
period of operation but will immedi-
ately relight when the headlamp
switch is cycled it is likely the HID
lamp needs to be replaced. HID light-
ing components are more complex
than conventional halogen bulbs thus
have higher replacement cost.
Side repeater lamp replace-
ment
If the lamp bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽ ✽NOTICE
A skilled technician should check or
repair the side repeater lamp.
Otherwise, it may damage related
parts (ex. outside mirror).
WARNING - HID
Headlamp low beam
(if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, have your
vehicle checked by an author-
ized HYUNDAI Dealer.
ODM072031
AN HMA 7.QXP 3/5/2015 3:25 PM Page 75

83
Specifications, Consumer information, Reporting safety defects

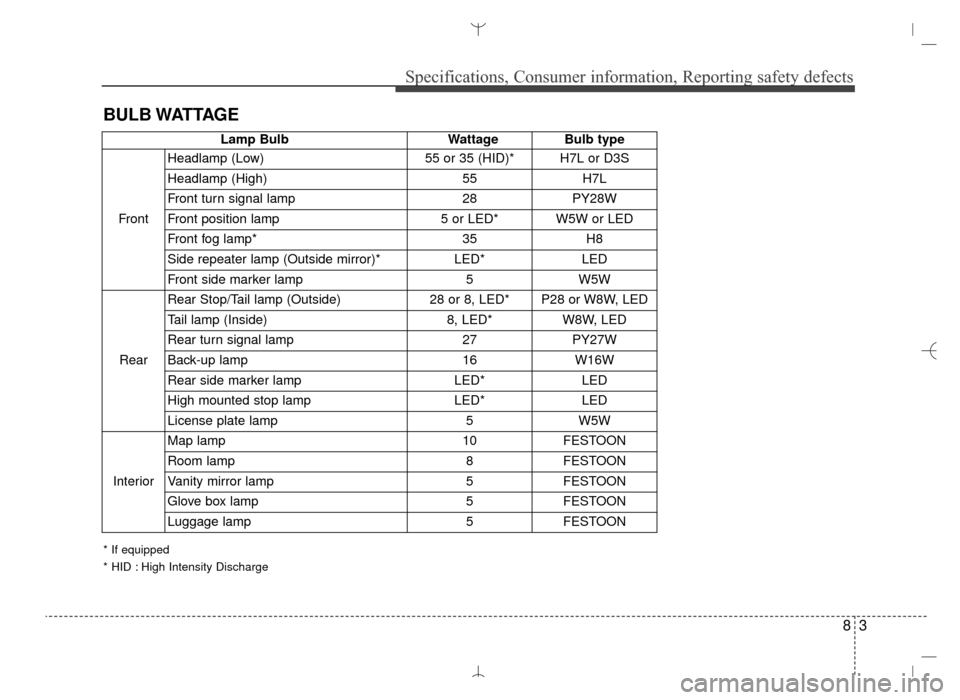

BULB WATTAGE
Lamp BulbWattageBulb type
Front Headlamp (Low)
55 or 35 (HID)* H7L or D3S
Headlamp (High) 55H7L
Front turn signal lamp 28PY28W
Front position lamp 5 or LED* W5W or LED
Front fog lamp* 35H8
Side repeater lamp (Outside mirror)* LED*LED
Front side marker lamp 5W5W
Rear Rear Stop/Tail lamp (Outside)
28 or 8, LED* P28 or W8W, LED
Tail lamp (Inside) 8, LED*W8W, LED
Rear turn signal lamp 27PY27W
Back-up lamp 16W16W
Rear side marker lamp LED*LED
High mounted stop lamp LED*LED
License plate lamp 5W5W
Interior Map lamp
10FESTOON
Room lamp 8FESTOON
Vanity mirror lamp 5FESTOON
Glove box lamp 5FESTOON
Luggage lamp 5FESTOON
* If equipped
* HID : High Intensity Discharge
