Safety features of your vehicle
24
3

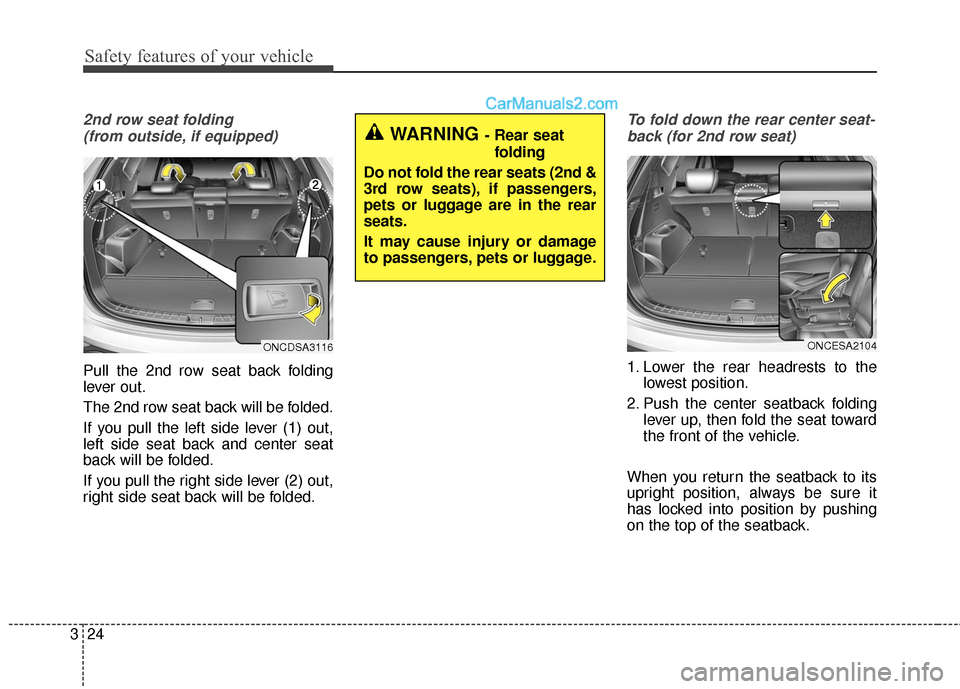

2nd row seat folding
(from outside, if equipped)
Pull the 2nd row seat back folding
lever out.
The 2nd row seat back will be folded.
If you pull the left side lever (1) out,
left side seat back and center seat
back will be folded.
If you pull the right side lever (2) out,
right side seat back will be folded.
To fold down the rear center seat-back (for 2nd row seat)
1. Lower the rear headrests to the lowest position.
2. Push the center seatback folding lever up, then fold the seat toward
the front of the vehicle.
When you return the seatback to its
upright position, always be sure it
has locked into position by pushing
on the top of the seatback.
ONCDSA3116
WARNING - Rear seat folding
Do not fold the rear seats (2nd &
3rd row seats), if passengers,
pets or luggage are in the rear
seats.
It may cause injury or damage
to passengers, pets or luggage.
ONCESA2104

Safety features of your vehicle
26
3
WARNING- Cargo
Cargo should always be
secured to prevent it from being
thrown about the vehicle in a
collision and causing injury to
the vehicle occupants. Do not
place objects in the rear (2nd
and/or 3rd row) seats, since they
cannot be properly secured and
may hit the front seat occupants
in a collision.
WARNING - Cargo loading
Make sure the engine is off, the
automatic transaxle is in P (Park)
and the parking brake is secure-
ly applied whenever loading or
unloading cargo. Failure to take
these steps may allow the vehi-
cle to move if the shift lever is
inadvertently moved to another
position.
OUN026140
WARNING
If the liftgate (tailgate) is pushed
down to close it when a passen-
ger's head is not against a prop-
erly adjusted headrest or a tall
person is seated, the liftgate
(tailgate) may hit the occupant's
head, which could cause injury.

Safety features of your vehicle
42
3
Using a child restraint system
For small children and babies, the use
of a child seat or infant seat is required.
This child seat or infant seat should be
of appropriate size for the child and
should be installed in accordance with
the manufacturer's instructions. For safety reasons, we recommend
that the child restraint system be
used in the rear seats.
Since all passenger seat belts move
freely under normal conditions and
only lock under extreme or emer-
gency conditions (emergency locking
mode), you must manually change
these seat belts to the automatic lock-
ing mode to secure a child restraint.
WARNING - Child seat
installation
A child can be seriously injured or killed in a collision if
the child restraint is not prop-
erly anchored to the vehicle
and the child is not properly
restrained in the child restraint.
(Continued)
(Continued)Before installing the child
restraint system, read the
instructions supplied by the
child restraint system manu-
facturer.
If the seat belt does not oper- ate as described in this sec-
tion, have the system checked
immediately by your author-
ized HYUNDAI dealer.
Failure to observe this manu- al's instructions regarding
child restraint systems and
the instructions provided with
the child restraint system
could increase the chance
and/or severity of injury in an
accident.
If the vehicle headrest pre- vents proper installation of a
child seat, the headrest of the
respective seating position
shall be readjusted or entirely
removed.
WARNING
Never place a rear-facing child
restraint in the front passenger
seat, because of the danger that
an inflating passenger-side air
bag could impact the rear-facing
child restraint and kill the child.
CRS09
OANNSA2032
Forward-facing child restraint system
Rearward-facing child restraint system

Safety features of your vehicle
46
3
1. Route the child restraint seat strap
over the seatback.
For vehicles with adjustable head-
rests, route the tether strap under
the headrest and between the
headrest posts, otherwise route
the tether strap over the top of the
seatback.
❈ Refer to "Adjusting the height up
and down - 2nd row" in this chap-
ter.
2. Connect the tether strap hook to the appropriate child restraint
hook holder and tighten to secure
the child restraint seat.WARNING - Tether strap
Never mount more than one
child restraint to a single tether
anchor or to a single lower
anchorage point. The increased
load caused by multiple seats
may cause the tethers or
anchorage points to break,
causing serious injury or death.
WARNING
A child can be seriously injured
or killed in a collision if the
child restraint is not properly
anchored to the car and the
child is not properly restrained
in the child restraint. Always fol-
low the child seat manufactur-
er’s instructions for installation
and use.
WARNING
When using the vehicle's "Tether Anchor" system to
install a child restraint system
in the rear seat, all unused
vehicle rear seat belt metal
latch plates or tabs must be
latched securely in their seat
belt buckles and the seat belt
webbing must be retracted
behind the child restraint to
prevent the child from reaching
and taking hold of unretracted
seat belts. Unlatched metal
latch plates or tabs may allow
the child to reach the unretract-
ed seat belts which may result
in strangulation and a serious
injury or death to the child in
the child restraint.
Do not place anything around the lower anchors. Also make
sure that the seat belt is not
caught in the lower anchors.
OANNSA2033

I5
Index
Jack and tools ............................................................6-20
Jack label ...................................................................6-29
Removing and storing the spare tire .........................6-21
Floor mat anchor(s) ....................................................4-155
Fluid Brakes fluid ...............................................................7-35
Washer fluid ..............................................................7-37
Folding Key ....................................................................4-4
Folding the rear seat .....................................................3-21
Front fog light .............................................................4-116
Front seat adjustment - Manual ......................................3-5
Front seat adjustment - power ........................................3-6
Fuel Economy ...............................................................4-91
Fuel filler lid .................................................................4-43 Emergency fuel filer door release .............................4-46
Fuel Gauge....................................................................4-74\
Fuel requirements ...........................................................1-3
Fuse switch ...................................................................7-64
Fuse/relay panel description .........................................7-66
Fuses ........................................................................\
.....7-62 Engine compartment panel fuse ......................7-64, 7-70
Fuse switch ................................................................7-64
Fuse/relay panel description......................................7-66
Instrument panel fuse ................................................7-63
Main fuse...................................................................7-65
Multi fuse ..................................................................7-65 Gauges ........................................................................\
..4-73
Glove box ...................................................................4-147\
Glove box lamp ..........................................................4-122
Good braking practices .................................................5-43
Good driving practices .................................................5-19
Gross vehicle weight ......................................................8-5
Hazard warning flasher...............................................4-110
Hazardous driving conditions .......................................5-59
Headlamp delay ..........................................................4-111
Headlamp welcome ....................................................4-123
Headlight bulb replacement..........................................7-74
Headlight position.......................................................4-113
Headrest(3rd row) .........................................................3-18
Headrest(front)..............................................................3-10
Headrest(rear) ...............................................................3-17
Heated steering wheel...................................................4-55
Height adjustment (Front) ............................................3-30
High beam operation ..................................................4-114
Highway driving ...........................................................5-63
Hill-start assist control (HAC) .....................................5-42
Hood ........................................................................\
.....4-41
Horn ........................................................................\
......4-55
How to use this manual ..................................................1-2G
H

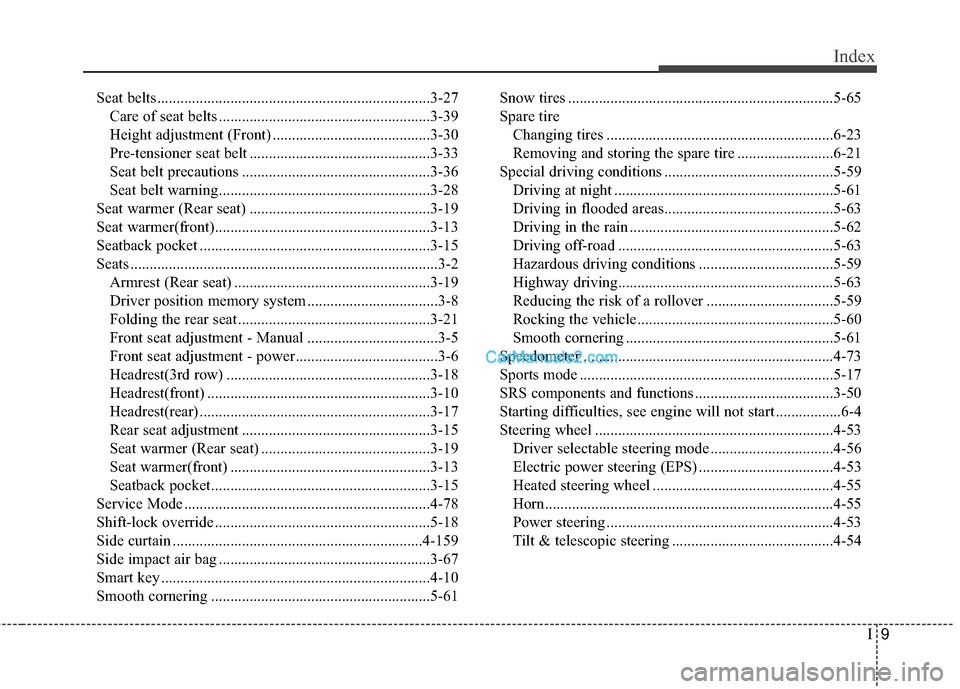

I9
Index
Seat belts .......................................................................3\
-27Care of seat belts .......................................................3-39
Height adjustment (Front) .........................................3-30
Pre-tensioner seat belt ...............................................3-33
Seat belt precautions .................................................3-36
Seat belt warning.......................................................3-28
Seat warmer (Rear seat) ...............................................3-19
Seat warmer(front)........................................................3-13
Seatback pocket ............................................................3-15
Seats ........................................................................\
........3-2 Armrest (Rear seat) ...................................................3-19
Driver position memory system ..................................3-8
Folding the rear seat ..................................................3-21
Front seat adjustment - Manual ..................................3-5
Front seat adjustment - power .....................................3-6
Headrest(3rd row) .....................................................3-18
Headrest(front) ..........................................................3-10
Headrest(rear) ............................................................3-17
Rear seat adjustment .................................................3-15
Seat warmer (Rear seat) ............................................3-19
Seat warmer(front) ....................................................3-13
Seatback pocket.........................................................3-15
Service Mode ................................................................4-78
Shift-lock override ........................................................5-18
Side curtain .................................................................4-159
Side impact air bag .......................................................3-67
Smart key ......................................................................4-\
10
Smooth cornering .........................................................5-61 Snow tires .....................................................................5-6\
5
Spare tire
Changing tires ...........................................................6-23
Removing and storing the spare tire .........................6-21
Special driving conditions ............................................5-59 Driving at night .........................................................5-61
Driving in flooded areas............................................5-63
Driving in the rain .....................................................5-62
Driving off-road ........................................................5-63
Hazardous driving conditions ...................................5-59
Highway driving........................................................5-63
Reducing the risk of a rollover .................................5-59
Rocking the vehicle...................................................5-60
Smooth cornering ......................................................5-61
Speedometer .................................................................4-73
Sports mode ..................................................................5-17
SRS components and functions ....................................3-50
Starting difficulties, see engine will not start .................6-4
Steering wheel ..............................................................4-53 Driver selectable steering mode ................................4-56
Electric power steering (EPS) ...................................4-53
Heated steering wheel ...............................................4-55
Horn........................................................................\
...4-55
Power steering ...........................................................4-53
Tilt & telescopic steering ..........................................4-54
