2016 HYUNDAI I20 Owners Manual

)' )
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
WWhen using the air conditioning sys-
tem, monitor the temperature gauge
closely while driving up hills or in
heavy traffic when outside tempera-
tures are high. Air conditioning sys-
tem operation may cause engine
overheating. Continue to use the
blower fan but turn the air condition-
ing system off if the engine tempera-
ture gauge indicates engine over-
heating.
Air conditioning system operation
tips • If the vehicle has been parked in direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
• After sufficient cooling has been achieved, switch back from the
recirculated air to the fresh outside
air position.
• To help reduce moisture inside of the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the win-
dows closed.
• Use the air conditioning system every month only for a few minutes
to ensure maximum system per-
formance. • If you operate air conditioner
excessively, the difference between
the temperature of the outside air
and that of the windshield could
cause the outer surface of the
windshield to fog up, causing loss
of visibility. In this case, set the
mode selection knob or button to
the position and fan speed
control to the lower speed.
NOTICE

)' #10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3SSystem maintenanceClimate control air filter This filter is installed behind the glove
box. It filters the dust or other pollu-
tants that enter the vehicle through the
heating and air conditioning system.
We recommend the climate control
air filter be cleaned according to the
maintenance schedule. If the car is
being driven in severe conditions such as dusty or rough roads, more
frequent air conditioner filter inspec-
tions and cleaning are required. If the air flow rate suddenly decreas-
es, we recommend the system be
checked at an authorized HYUNDAI
dealer.
Checking the amount of air
conditioner refrigerant and com- pressor lubricantWhen the amount of refrigerant is
low, the performance of the air con-
ditioning is reduced. Overfilling also
has a bad influence on the air condi-
tioning system.
Therefore, if abnormal operation is
found, we recommend that the system
be inspected by an authorized
HYUNDAI dealer.
Information
It is important that the correct type
and amount of oil and refrigerant is
used. Otherwise, damage to the com-
pressor and abnormal system opera-
tion may occur.i
1LDA5047
Outside air
Recirculatedair
Climate control air filter Blower
Evaporatorcore Heater core

)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
We recommend the air conditioning
system be serviced by an authorized
HYUNDAI dealer.
WWindshield defrosting and defog-
ging
• For maximum defrosting, set the
temperature control to the extreme
right/hot position and the fan speed
control to the highest speed.
• If warm air to the floor is desired while defrosting or defogging, set
the mode to the floor-defrost posi-
tion.
• Before driving, clear all snow and ice from the windshield, rear win-
dow, outside rear view mirrors, and
all side windows.
• Clear all snow and ice from the hood and air inlet at the buttom of
the windshield.
• If the engine temperature is still cold after starting, then a brief
engine warm up period may be
required for the vented air flow to
become warm or hot.
Because the refrigerant
is at very high pressure,
the air conditioning sys-
tem should only be serv-
iced by trained and certi-
fied technicians. It is important that
the correct type and amount of oil
and refrigerant is used, otherwise
damage to the vehicle and personal
injury may occur.WARNING
Do not use the or position
during cooling operation in
extremely humid weather. The dif-
ference between the temperature
of the outside air and that of the
windshield could cause the outer
surface of the windshield to fog
up, causing loss of visibility. Set
the mode selection to the
position and fan speed control to a
lower speed.
WARNING

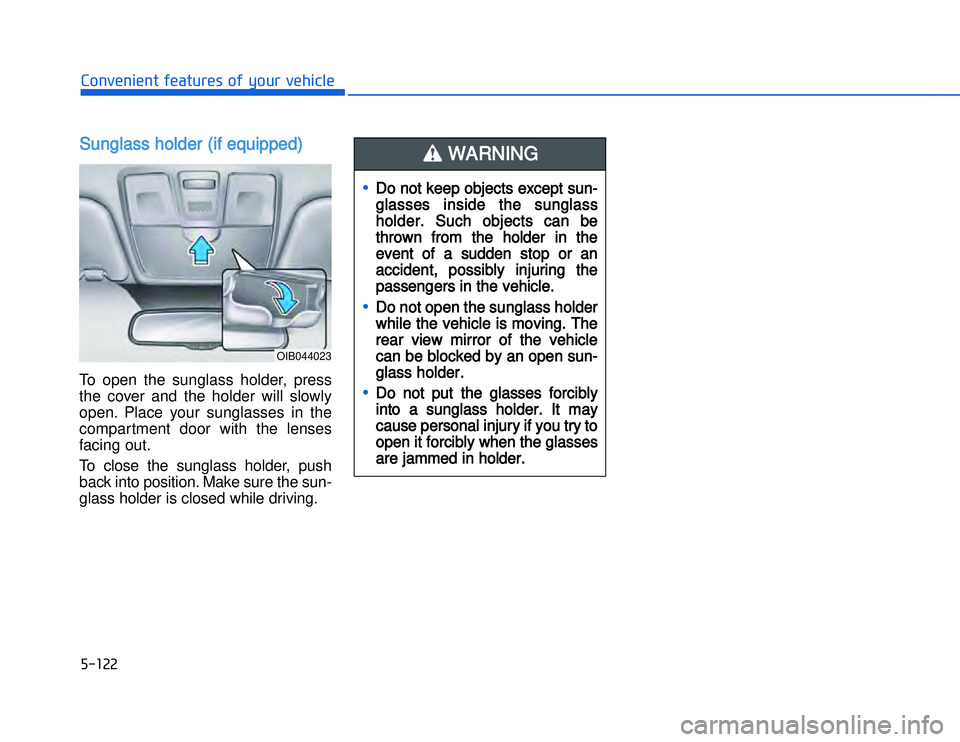

)' #10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3SSunglass holder (if equipped)To open the sunglass holder, press
the cover and the holder will slowly
open. Place your sunglasses in the
compartment door with the lenses
facing out.
To close the sunglass holder, push
back into position. Make sure the sun-
glass holder is closed while driving.
OIB044023
•
Do not keep objects except sun-
glasses inside the sunglass
holder. Such objects can be
thrown from the holder in the
event of a sudden stop or an
accident, possibly injuring the
passengers in the vehicle.
•
Do not open the sunglass holder
while the vehicle is moving. The
rear view mirror of the vehicle
can be blocked by an open sun-
glass holder.
•
Do not put the glasses forcibly
into a sunglass holder. It may
cause personal injury if you try to
open it forcibly when the glasses
are jammed in holder.
WARNING

)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
''#)+*'&*+$)"*+(Clock (if equipped)To set the time:
The ignition switch must be in the
ACC position or the ON position.
1. Press the SETUP CLOCK button.
2. Select "Clock" →"Clock Settings"
by using the TUNE knob.
3. Set the clock by using the TUNE knob.
Digital clock (if equipped)
Whenever the battery terminals or
related fuses are disconnected, you
must reset the time.
When the ignition switch is in the
ACC or ON position, the clock but-
tons operate as follows:Press the "H" button to advance the
time displayed by one hour.Press the "M" button to advance the
time displayed by one minute.To change the 12 hour format to the
24 hour format, press the "H" and
"M" button simultaneously for more
than 4 seconds.
For example, if the "H" and "M" but-
ton is pressed when the time is 10:15
p.m., the display will change to 22:15
Do not adjust the clock while driv-
ing. You may lose your steering
control and cause severe personal
injury or accidents.
WARNING
OIB044038
Do not adjust the clock while driv-
ing. You may lose your steering
control and cause severe personal
injury or accidents.
WARNING

UUSB charger (if equipped)The USB charger is designed to
recharge batteries of small size elec-
trical devices using a USB cable.
The electrical devices can be
recharged when the Engine Start/
Stop button is in the ACC, ON or
START position.
The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the
USB port after use. • A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging sys-
tem.
• A smart phone or a tablet PC, which adopts a different re-charg-
ing method, may not be properly
re-charged. In this case, use an
exclusive charger of your device.
• The charging terminal is only to recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media on the
AV N .
Clothes hanger (if equipped)These hangers are not designed to
hold large or heavy items.
OIB044031
OIB047195R
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
)'

SShopping bag holder
(if equipped)Do not hang a bag weighing more
than 3 kg (7 lbs.). It may cause dam-
age to the shopping bag holder.
Floor mat anchor(s)
(if equipped)ALWAYS use the Floor Mat Anchors
to attach the front floor mats to the
vehicle. The anchors on the front
floor carpet keep the floor mats from
sliding forward.
NOTICE
OFS040126
OIB047032
Do not hang other objects such as
hangers or hard objects except
clothes. Also, do not put heavy,
sharp or breakable objects in the
clothes pockets. In an accident or
when the curtain air bag is inflated,
it may cause vehicle damage or
personal injury.
WARNING
OIB047192
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3)'

CCargo area cover (if equipped)Use the cargo area cover to hide
items stored in the cargo area.
The cargo area cover can be upright-
ed or removed.
Do not put luggage on the cover
since it may be damaged or mal-
formed.NOTICE•
Do not place objects on the
cargo area cover. Such objects
may be thrown about inside the
vehicle and possibly injure vehi-
cle occupants during an acci-
dent or braking.
•
Never allow anyone to ride in
the luggage compartment. It is
designed for luggage only.
WARNING
OIB047033
The following must be observed
when installing ANY floor mat to
the vehicle.•
Ensure that the floor mats are
securely attached to the vehi-
cle's floor mat anchor(s) before
driving the vehicle.
•
Do not use ANY floor mat that
cannot be firmly attached to the
vehicle's floor mat anchors.
•
Do not stack floor mats on top of
one another (e.g. all-weather
rubber mat on top of a carpeted
floor mat). Only a single floor
mat should be installed in each
position.
IMPORTANT - Your vehicle was
manufactured with driver's side floor
mat anchors that are designed to
securely hold the floor mat in place.
To avoid any interference with pedal
operation, HYUNDAI recommends
that the HYUNDAI floor mat
designed for use in your vehicle be
installed.
WARNING
