2016 Hyundai H350 key

2-31
Safety system of your vehicle
2
Driver's and front passenger's
air bag (if equipped)
Your vehicle is equipped with a sup-
plemental restraint system (air bag)
and lap/shoulder belts for both the
driver and the front passenger. Thepresence of the system is indicated
by the letters, "SRS AIR BAG," which
are embossed on the steering wheel
and the front panel above the glove
box.
The SRS consists of air bags, which
are installed under the pad cover of
the steering wheel and under the
front panel above the glove box.
(Continued)
It may become a dangerous
projectile and cause injury,
when a front passenger's air
bag inflates.
When an air bag deploys,
there may be a loud noise aswell as fine dusts released in
the vehicle. These conditionsare normal and are not haz-
ardous - the air bags are
packed with fine powders. The
dust generated during air bag
deployment may cause
skin/eye irritation as well as
aggravate asthma for some
persons. Always wash all
exposed skin areas thorough-
ly with lukewarm water and amild soap after an accident in
which the air bags were
deployed. (Continued)
WARNING
(Continued)
The SRS operates, only after turning ON the ignition
switch. When the SRS air bagwarning light does not illumi-nate after turning ON the igni-
tion switch, when light contin-
uously remains ON longer
than approximately 6 sec-
onds, or when the light
remains ON while driving, the
SRS does not properly oper-
ate.
In this case, we recommend that the system be inspected
by an authorized HYUNDAI
dealer.
Before replacing a fuse or dis-
connecting a battery terminal,
turn the ignition switch to the
LOCK position and remove
the ignition key. Never remove
or replace the air bag relatedfuse(s) when the ignition
switch is in the ON position.
Failure to heed this warning
will cause the SRS air bag
warning light to illuminate.
OEU034007
■Driver's front air bag

Convenient features of your vehicle
Keys .........................................................................3-4Record your key number ................................................3-4
Key operations ...................................................................3-4
Immobilizer system............................................................3-5
Remote keyless entry ...........................................3-6 Remote keyless entry system operations...................3-6
Transmitter precautions...................................................3-7
Battery replacement .........................................................3-8

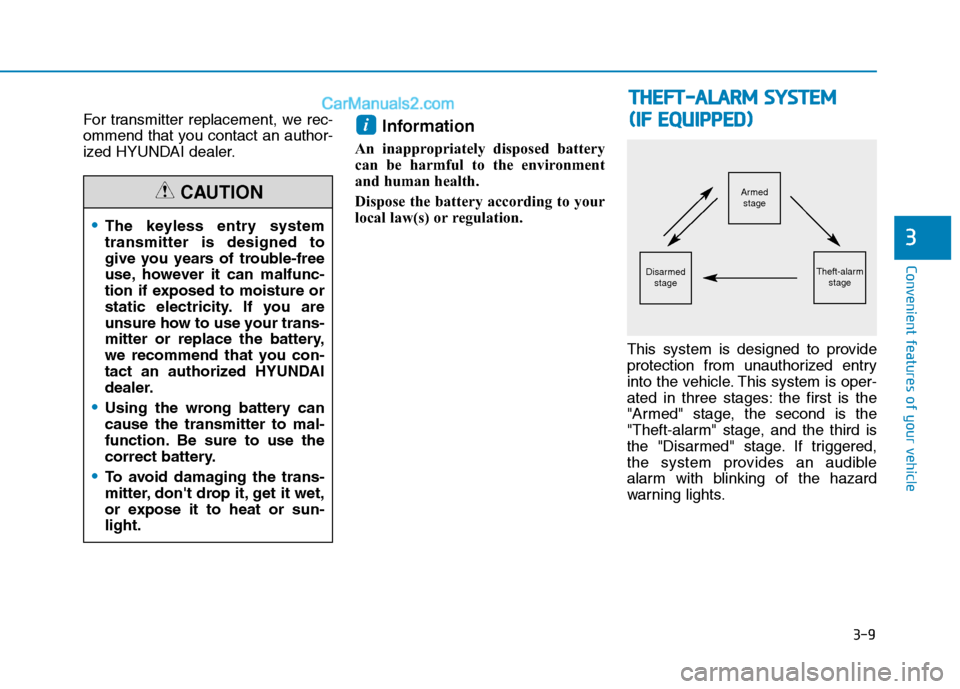

Theft-alarm system...............................................3-9 Armed stage .....................................................................3-10
Theft-alarm stage...........................................................3-10
Disarmed stage ................................................................3-11
Door locks .............................................................3-11 Operating door locks from outside the vehicle ......3-11
Operating door locks from inside the vehicle .........3-12
Deadlocks ..........................................................................3-14
Speed sensing door lock system ................................3-14
Mid sliding door ...................................................3-15 Opening/closing from the outside..............................3-15
Opening/closing from the inside.................................3-16
Child-protector mid sliding door lock ........................3-16
Electrical step .......................................................3-17 Operation and obstacle detection ..............................3-19
Electrical step warning alarm ......................................3-19
Regular cleaning ..............................................................3-21 Rear door ..............................................................3-22
Opening/closing from the outside..............................3-23
Opening/closing from the inside.................................3-23
Opening the left-hand rear door ...............................3-24
Opening the rear doors to an angle of
180° or 270° ......................................................................3-24 Closing the rear doors from the outside ..................3-25
Child-protector rear door lock ....................................3-25
Windows ................................................................3-26 Power windows ................................................................3-27
Rear seat windows .........................................................3-29
Hood.......................................................................3-30 Opening the hood ...........................................................3-30
Closing the hood .............................................................3-31
Fuel filler lid .........................................................3-32 Closing the fuel filler lid ................................................3-32
Urea solution filler lid .........................................3-34
Steering wheel......................................................3-37 Power steering.................................................................3-37
Tilt & telescopic steering ..............................................3-37
Horn ....................................................................................3-38
Mirrors ...................................................................3-39 Inside rearview mirror....................................................3-39
Outside rearview mirror ................................................3-41
3

3-4
Convenient features of your vehicle

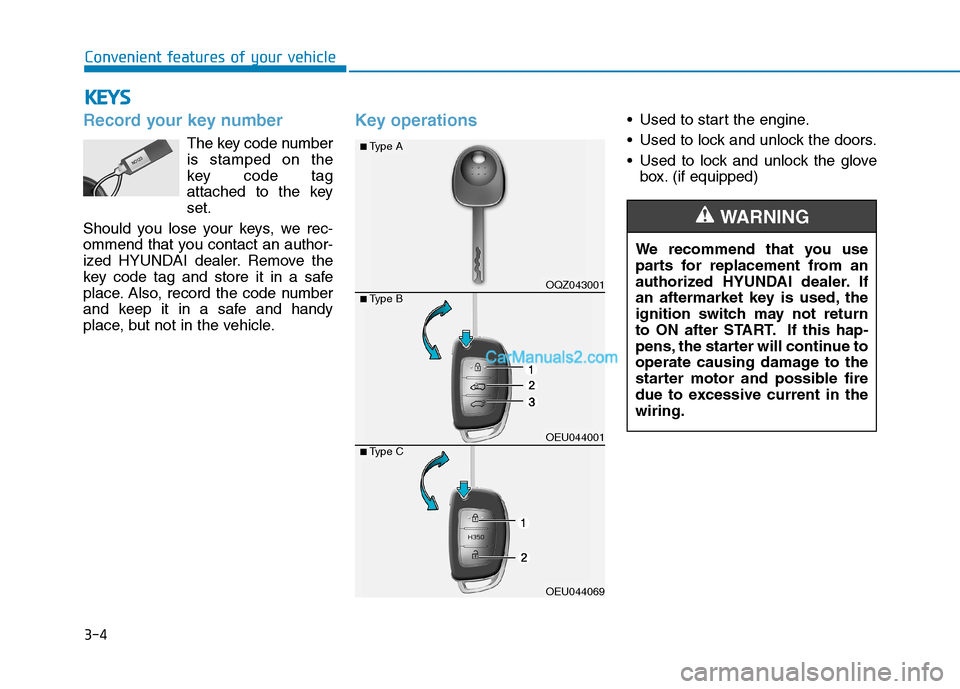

Record your key number
The key code number is stamped on the
key code tag
attached to the keyset.
Should you lose your keys, we rec-
ommend that you contact an author-
ized HYUNDAI dealer. Remove the
key code tag and store it in a safe
place. Also, record the code number
and keep it in a safe and handy
place, but not in the vehicle.
Key operations• Used to start the engine.
Used to lock and unlock the doors.
Used to lock and unlock the glove box. (if equipped)
KKEEYY SS
We recommend that you use
parts for replacement from an
authorized HYUNDAI dealer. If
an aftermarket key is used, the
ignition switch may not return
to ON after START. If this hap-
pens, the starter will continue to
operate causing damage to the
starter motor and possible fire
due to excessive current in thewiring.
WARNING
OQZ043001
OEU044001
OEU044069
■Type A
■Type B
■Type C

3-5
Convenient features of your vehicle
Immobilizer system
Your vehicle may be equipped with
an electronic engine immobilizer sys-
tem to reduce the risk of unautho-
rized vehicle use.
Your immobilizer system is com-
prised of a small transponder in the
ignition key and electronic devices
inside the vehicle.
With the immobilizer system, when-
ever you insert your ignition key into
the ignition switch and turn it to ON,
it checks and determines and verifies
if the ignition key is valid or not.
If the key is determined to be valid,
the engine will start.
If the key is determined to be invalid,
the engine will not start.
To deactivate the immobilizersystem:
Insert the ignition key into the key
cylinder and turn it to the OFF posi-tion.
To activate the immobilizer sys-tem:
Turn the ignition key to the ON posi-tion.
The immobilizer system activates
automatically. Without a valid ignition
key for your vehicle, the engine will
not start.
3
Ignition key
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition or start is ACC orON position.
Children copy adults and they
could place the key in the igni-tion.
The ignition key would enable
children to operate power win-
dows or other controls, or even
make the vehicle move, which
could result in serious bodily
injury or even death.
Never leave the keys in your
vehicle with unsupervised chil-
dren, when the engine is run-ning.
WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobilizer password is a cus-
tomer unique password and
should be kept confidential. Do
not leave this number anywhere
in your vehicle.
WARNING

3-6Information
When starting the engine, do not use
the key with other immobilizer keys
around. Otherwise the engine may not
start or may stop soon after it starts.
Keep each key separately not to have
any malfunction after you receive
your new vehicle.
Information
If you need additional keys or lose
your keys, we recommend that you
consult an authorized HYUNDAI
dealer. The transponder in your ignition
key is an important part of the
immobilizer system. It is designed
to give years of trouble-free serv-
ice, however you should avoid
exposure to moisture, static elec-
tricity and rough handling.
Immobilizer system malfunction
could occur.
Remote keyless entry system operations
To unfold the key, press the release
button then the key will unfold auto-
matically.
To fold the key, fold the key manually
while pressing the release button.
NOTICE
i
i
Convenient features of your vehicle
Do not put metal accessories
near the ignition switch.
The engine may not start for the
metal accessories may interrupt
the transponder signal from
normally transmitting.
CAUTION
Do not change, alter or adjust
the immobilizer systembecause it could cause the
immobilizer system to malfunc-
tion. We recommend that the
system be serviced by an
authorized HYUNDAI dealer.
Malfunctions caused by
improper alterations, adjust-ments or modifications to the
immobilizer system are not cov-
ered by your vehicle manufac-
turer warranty.
CAUTION
RR
EEMM OOTTEE KK EEYY LLEE SSSS EE NN TTRR YY
(
( IIFF EE QQ UUIIPP PPEEDD ))
OEU044069OEU044001
■
Type A
■ Type B

3-7
Convenient features of your vehicle
Do not fold the key without press-
ing the release button. This may
damage the key.
Lock (1)
All doors (and rear door) are locked if
the lock button is pressed. If all doors
are closed, the hazard warning lights
blink once to indicate that all doors
are locked. However, if any door
remains open, the hazard warning
lights will not blink. Close the door
and try again to lock the doors.
Unlock (2)
Driver door and front passenger door
are unlocked if the unlock button ispressed.
The hazard warning lights will blink
twice to indicate that driver door and
front passenger door are unlocked.
After depressing this button, the
doors will be locked automatically
unless you open any door within 30
seconds.
Rear door and mid sliding doorunlock (3) (if equipped)
The rear door and mid sliding door
are unlocked if the button is pressed
for more than 1 second.
The hazard warning lights will blink twice to indicate that the rear door
and mid sliding door are unlocked.
However, after pressing this button, the rear door and mid sliding door
will lock automatically unless youopen the rear door within 30 sec-
onds.
Also, once the rear door and mid sliding door are opened and then
closed, the rear door will lock auto-
matically.
Transmitter precautions
The transmitter will not work if any of
following occur:
The ignition key is in ignition switch.
You exceed the operating distance limit (about 30 m [90 feet]).
The battery in the transmitter is weak.
Other vehicles or objects may be blocking the signal.
The weather is extremely cold.
The transmitter is close to a radio transmitter such as a radio station
or an airport which can interfere
with normal operation of the trans-
mitter.
When the transmitter does not work
correctly, open and close the door
with the ignition key. If you have a
problem with the transmitter, we rec-
ommend that you contact an author-
ized HYUNDAI dealer.
NOTICE
3

3-8
If the transmitter is in close proxim-
ity to your cell phone or smart
phone, the signal from the trans-
mitter could be blocked by normal
operation of your cell phone or
smart phone. This is especially
important when the phone is activesuch as making call, receiving
calls, text messaging, and/or send-
ing/ receiving emails. Avoid placing
the transmitter and your cell phone
or smart phone in the same pants
or jacket pocket and maintain ade-
quate distance between the two
devices.
Keep the transmitter away from
water or any liquid. If the keyless
entry system is inoperative due to
exposure to water or liquids, it will
not be covered by your manufac-
turer vehicle warranty. Information
Changes or modifications not express-
ly approved by the party responsible
for compliance could void the user's
authority to operate the equipment. If
the keyless entry system is inoperative
due to changes or modifications not
expressly approved by the party
responsible for compliance, it will not
be covered by your manufacturer's
vehicle warranty.
Keep the transmitter away from
electromagnetic materials that
blocks electromagnetic waves to
the key surface.
Battery replacement
Transmitter uses a 3 volt lithium bat-
tery which will normally last for sev-
eral years. When replacement is
necessary, use the following proce-
dure.
1.Insert a slim tool into the slot and gently pry open the transmitter
center cover.
2.Replace the battery with a new battery (CR2032). When replacing
the battery, make sure the batteryposition.
3.Install the battery in the reverse order of removal.
NOTICE
i
NOTICE
Convenient features of your vehicle
OLM042302

3-9
Convenient features of your vehicle
For transmitter replacement, we rec-
ommend that you contact an author-
ized HYUNDAI dealer.Information
An inappropriately disposed battery
can be harmful to the environment
and human health.
Dispose the battery according to your
local law(s) or regulation.
This system is designed to provide
protection from unauthorized entry
into the vehicle. This system is oper-
ated in three stages: the first is the
"Armed" stage, the second is the
"Theft-alarm" stage, and the third is
the "Disarmed" stage. If triggered,
the system provides an audible
alarm with blinking of the hazard
warning lights.i
3•The keyless entry system transmitter is designed to
give you years of trouble-free
use, however it can malfunc-
tion if exposed to moisture or
static electricity. If you are
unsure how to use your trans-
mitter or replace the battery,
we recommend that you con-
tact an authorized HYUNDAI
dealer.
Using the wrong battery can cause the transmitter to mal-
function. Be sure to use the
correct battery.
To avoid damaging the trans-
mitter, don't drop it, get it wet,
or expose it to heat or sun-light.
CAUTION
TTHH EEFFTT --AA LLAA RRMM SS YY SSTT EEMM
(
( IIFF EE QQ UUIIPP PPEEDD ))
Armed
stage
Theft-alarm stageDisarmedstage
