2-9
Safety system of your vehicle
2

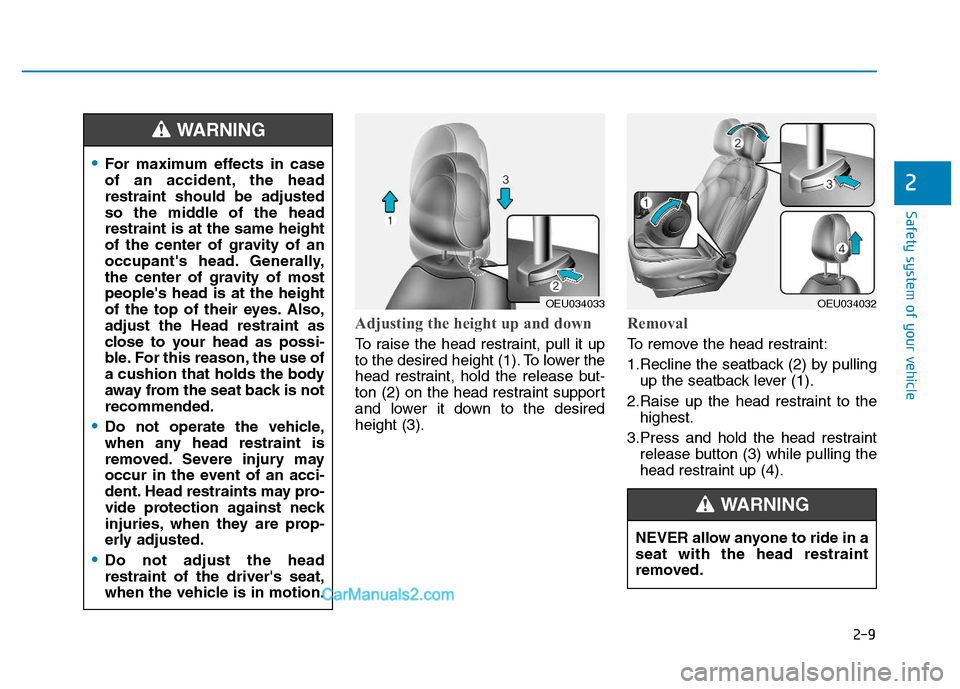

Adjusting the height up and down
To raise the head restraint, pull it up
to the desired height (1). To lower the
head restraint, hold the release but-
ton (2) on the head restraint support
and lower it down to the desiredheight (3).
Removal
To remove the head restraint:
1.Recline the seatback (2) by pullingup the seatback lever (1).
2.Raise up the head restraint to the highest.
3.Press and hold the head restraint release button (3) while pulling the
head restraint up (4).
For maximum effects in case
of an accident, the headrestraint should be adjusted
so the middle of the headrestraint is at the same height
of the center of gravity of an
occupant's head. Generally,
the center of gravity of mostpeople's head is at the height
of the top of their eyes. Also,adjust the Head restraint as
close to your head as possi-
ble. For this reason, the use of
a cushion that holds the body
away from the seat back is notrecommended.
Do not operate the vehicle,
when any head restraint is
removed. Severe injury may
occur in the event of an acci-
dent. Head restraints may pro-
vide protection against neck
injuries, when they are prop-
erly adjusted.
Do not adjust the head restraint of the driver's seat,
when the vehicle is in motion.
WARNING
OEU034033OEU034032
NEVER allow anyone to ride in a seat with the head restraint
removed.
WARNING
