2016 Hyundai H350 seats

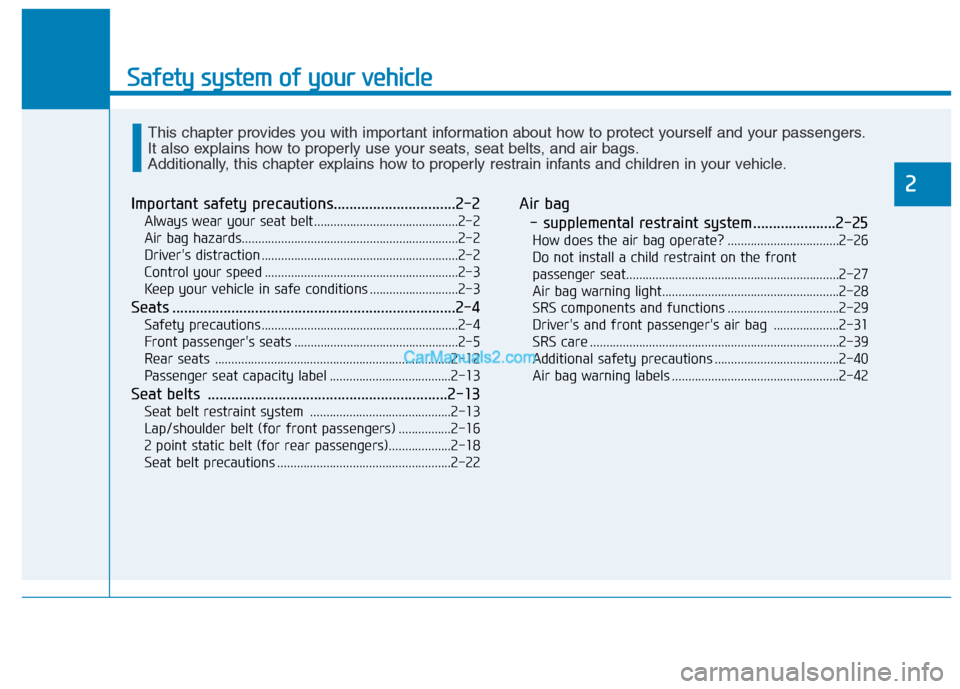

Safety system of your vehicle
2
Important safety precautions...............................2-2Always wear your seat belt............................................2-2
Air bag hazards..................................................................2-2
Driver's distraction ............................................................2-2
Control your speed ...........................................................2-3
Keep your vehicle in safe conditions ...........................2-3
Seats ........................................................................2-4 Safety precautions............................................................2-4
Front passenger's seats ..................................................2-5
Rear seats ........................................................................2-12
Passenger seat capacity label .....................................2-13
Seat belts .............................................................2-13 Seat belt restraint system ...........................................2-13
Lap/shoulder belt (for front passengers) ................2-16
2 point static belt (for rear passengers)...................2-18
Seat belt precautions .....................................................2-22 Air bag
- supplemental restraint system.....................2-25How does the air bag operate? ..................................2-26
Do not install a child restraint on the front
passenger seat.................................................................2-27 Air bag warning light......................................................2-28
SRS components and functions ..................................2-29
Driver's and front passenger's air bag ....................2-31
SRS care ............................................................................2-39
Additional safety precautions ......................................2-40
Air bag warning labels ...................................................2-42
This chapter provides you with important information about how to protect yourself and your passengers.
It also explains how to properly use your seats, seat belts, and air bags.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.

2-5
Safety system of your vehicle
2

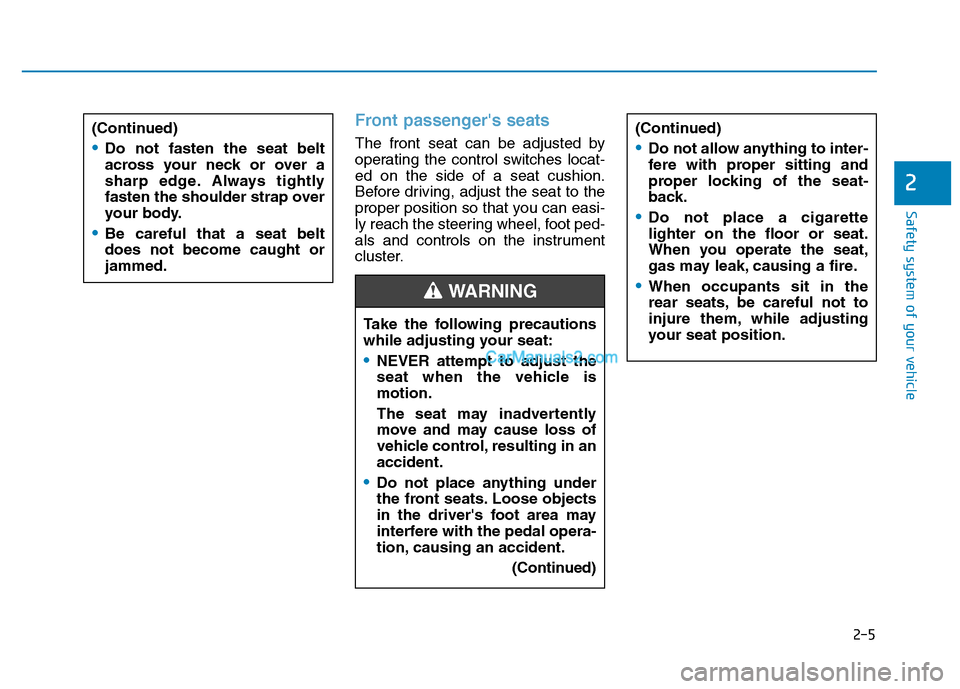

Front passenger's seats
The front seat can be adjusted by
operating the control switches locat-ed on the side of a seat cushion.
Before driving, adjust the seat to the
proper position so that you can easi-
ly reach the steering wheel, foot ped-
als and controls on the instrument
cluster.Take the following precautions
while adjusting your seat:
NEVER attempt to adjust the
seat when the vehicle ismotion.
The seat may inadvertently
move and may cause loss of
vehicle control, resulting in anaccident.
Do not place anything under
the front seats. Loose objects
in the driver's foot area may
interfere with the pedal opera-
tion, causing an accident. (Continued)
WARNING
(Continued)
Do not fasten the seat belt
across your neck or over a
sharp edge. Always tightly
fasten the shoulder strap over
your body.
Be careful that a seat belt does not become caught orjammed.
(Continued)
Do not allow anything to inter-
fere with proper sitting and
proper locking of the seat-
back.
Do not place a cigarette lighter on the floor or seat.
When you operate the seat,
gas may leak, causing a fire.
When occupants sit in the
rear seats, be careful not to
injure them, while adjusting
your seat position.

2-8

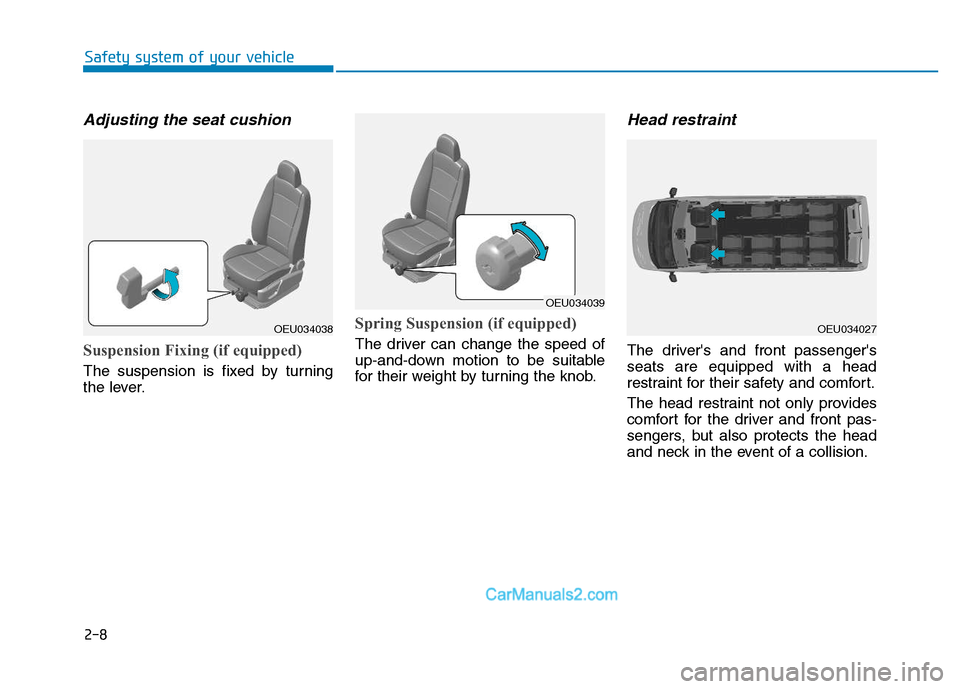

Adjusting the seat cushion
Suspension Fixing (if equipped)
The suspension is fixed by turning
the lever.
Spring Suspension (if equipped)
The driver can change the speed of
up-and-down motion to be suitable
for their weight by turning the knob.
Head restraint
The driver's and front passenger'sseats are equipped with a head
restraint for their safety and comfort.
The head restraint not only provides
comfort for the driver and front pas-
sengers, but also protects the head
and neck in the event of a collision.
Safety system of your vehicle
OEU034038
OEU034039
OEU034027

2-10
Safety system of your vehicle
Reinstall
To reinstall the head restraint:
1.Put the head restraint poles (2) intothe holes while pressing the
release button (1).
2.Recline the seatback (4) by pulling up the seatback lever (3).
3.Adjust the head restraint to the desired height.
Seat warmer (if equipped)
The seat warmer is equipped to
warm the front seats during cold
weather.
With the ignition switch in the ON
position, push either of the switches
to warm the driver's seat or the frontpassenger's seat.
In the mild weather or under condi-
tions where the operation of the seat
warmer is unnecessary, keep the
switches in the "OFF" position. Information
Even with the seat warmer switch in
the ON position, the seat warmer
automatically turns ON and OFF
depending on the seat temperature.
Do not use an organic solvent such as thinner, benzene, alco-
hol and gasoline to clean the
seat. Doing so may damage thesurface of the heater or seats.
To prevent the seat warmer from being overheated, do not place
anything on the seats that
blocks the thermal emission,
such as blankets, cushions or
seat covers, when the seatwarmer is in operation.
Do not place heavy or sharp objects on the seats equipped
with seat warmers. Damage tothe seat warming components
may occur.
Do not change the seat cover. It may damage the seat warmer orthe air ventilation system.
NOTICE
i
OEU034031
Always make sure the head
restraint is locked into positionafter reinstalling or adjusting it.
WARNING
OEU034025

2-12
Safety system of your vehicle

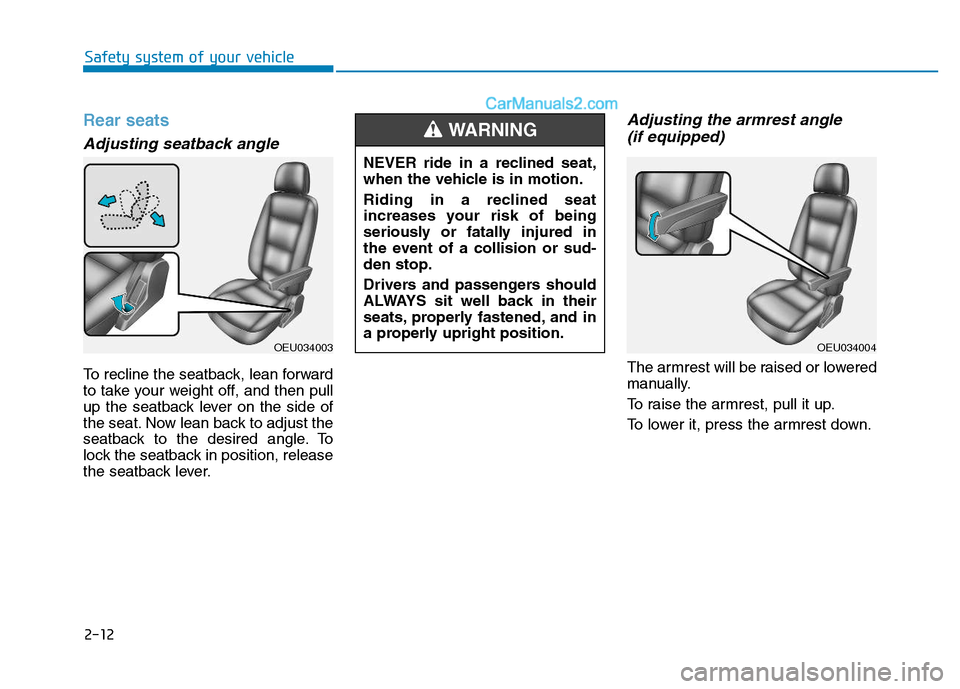

Rear seats
Adjusting seatback angle
To recline the seatback, lean forward
to take your weight off, and then pull
up the seatback lever on the side of
the seat. Now lean back to adjust the
seatback to the desired angle. To
lock the seatback in position, release
the seatback lever.
Adjusting the armrest angle (if equipped)
The armrest will be raised or lowered
manually.
To raise the armrest, pull it up.
To lower it, press the armrest down.
OEU034003 NEVER ride in a reclined seat,
when the vehicle is in motion.
Riding in a reclined seat
increases your risk of being
seriously or fatally injured in
the event of a collision or sud-den stop.
Drivers and passengers should
ALWAYS sit well back in their
seats, properly fastened, and in
a properly upright position.
WARNING
OEU034004

2-13
Safety system of your vehicle
2

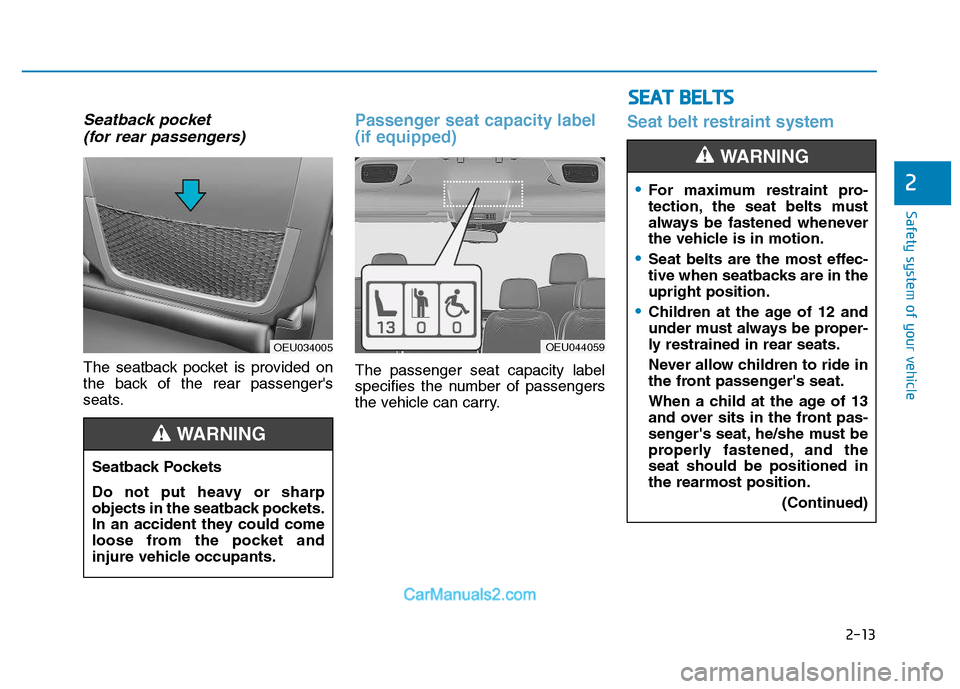

Seatback pocket (for rear passengers)
The seatback pocket is provided on
the back of the rear passenger's
seats.
Passenger seat capacity label (if equipped)
The passenger seat capacity label
specifies the number of passengers
the vehicle can carry.
Seat belt restraint system
OEU034005
Seatback Pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.
WARNING
OEU044059
SS EE AA TT BB EELLTT SS

For maximum restraint pro-
tection, the seat belts must
always be fastened whenever
the vehicle is in motion.
Seat belts are the most effec-
tive when seatbacks are in theupright position.
Children at the age of 12 and
under must always be proper-
ly restrained in rear seats.
Never allow children to ride in
the front passenger's seat.
When a child at the age of 13
and over sits in the front pas-
senger's seat, he/she must be
properly fastened, and theseat should be positioned inthe rearmost position. (Continued)
WARNING

2-15
Safety system of your vehicle
2
Seat belt warning
As a reminder to the driver, the seat
belt warning light is turned ON for
approximately 6 seconds each time
you turn the ignition switch ON
regardless of belt fastening.
When the vehicle start to move with-
out fastening the seat belt with the
ignition switch ON, the seat belt
warning light flashes until it stops.
When the vehicle drives faster than
20km/h without fastening the seat
belt with the ignition switch is ON, the
seat belt warning chime will sound
for approximately 100 seconds.
No modifications or additions
should be made by the user,
as it may fail the seat belt
adjusting devices, or fail the
seat belt assembly from being
adjusted to remove slack to
be tightly fastened without
any slack.
When you fasten the seat belt,
be careful not to latch the seat
belt tap in the buckles of otherseats.
It is very dangerous, and you
may not be properly protected
by the seat belt.
Do not fasten or unfasten the seat belt in a repetitive man-
ner, while driving. This may
result in loss of control, and
an accident, causing death,
serious injury, or property
damage.(Continued)
WARNING (Continued)
While fastening the seat belt, make sure that the seat belt is
not fastened over a hard or a
fragile object.
Make sure that there is noth-
ing in the buckle. If so, the
seat belt may not be securelyfastened.
1GQA2083

2-22
Safety system of your vehicle
Seat belt precautionsLarger children
Children who are too large for child
restraint systems should always sit in
a rear seat and use the available
lap/shoulder belts. The lap belt
should be fastened as low and snug-
gly as possible across the hips.
Frequently check the belt tightness.
A child's squirming may move the
belt out of position. Children are
afforded the most safety in the event
of an accident when they are
restrained by a proper restraint sys-
tem in a rear seat. When a large child
(at the age of 13 and over) must beseated in the front seat, the child
should be securely restrained by the
available lap/shoulder belt, and theseat should be placed in the rear-
most position. Children at the age of
12 and under should be restrained
securely in a rear seat. NEVER placea child at the age of 12 and under ina front seat.
NEVER place a rear facing child seat
in the front seat of a vehicle.When the shoulder belt is fastened
slightly across the child's neck or
face, move the child closer to the
center of the vehicle. When the
shoulder belt is still fastened slightly
across their face or neck, they need
to be returned to a child restraint sys-tem.
All occupants of the vehicle
must and always fasten their
seat belts. Seat belts and childrestraints reduce the risk of
serious or fatal injury in the
event of a collision or sudden
stop. Without a seat belt, occu-
pants may slide too close to a
deploying air bag, strike the
interior structure or be thrown
out of the vehicle. Properly
worn seat belts greatly reduce
these hazards.
Always follow the precautions
of this manual, about seat belts,
air bags and occupant seats.
WARNING
Shoulder belts on small chil- dren
Never fasten a shoulder even
slightly across a child's neck
or face, when the vehicle is inmotion.
When seat belts are improper-
ly fastened over children,there is a risk of death or seri-
ous injury.
WARNING
