7-41
7
MaintenanceReset items
Items should be reset after the bat-
tery has been discharged or the bat-
tery has been disconnected.
Auto up/down window(See section 3)
Trip computer (See section 3)
Climate control system (See section 3)
Clock (See section 3)
Audio (See section 4)
(Continued)
Disconnect the battery charg-
er in the following order.
1. Turn off the battery charger main switch.
2. Unhook the negative clamp from the negative battery ter-minal.
3. Unhook the positive clamp from the positive battery ter-minal.
4. After recharging, park the vehicle for about 5 hours with
the hood and all doors
closed. During this period,
the dark current must be
under 100mA.(AGM battery
only)
Before performing mainte-
nance or recharging the bat-
tery, turn off all accessories
and stop the engine.
The negative battery cable
must be removed first and
installed last when the batteryis disconnected.
Do not open the AGM battery.
WARNING
Recharging battery
When recharging the battery,
observe the following precau-tions:
The battery must be removed
from the vehicle and placed inan area with good ventilation.
Do not allow cigarettes,
sparks, or flame near the bat-
tery.
Watch the battery during
charging, and stop or reduce
the charging rate if the batterycells begin gassing (boiling)
violently or if the temperature
of the electrolyte of any cell
exceeds 49°C (120°F).
Do not charge the AGM bat-
tery with over 14.5V. No quick-
charging routines
Wear eye protection when
checking the battery during
charging.
(Continued)
WARNING
7-56
Maintenance

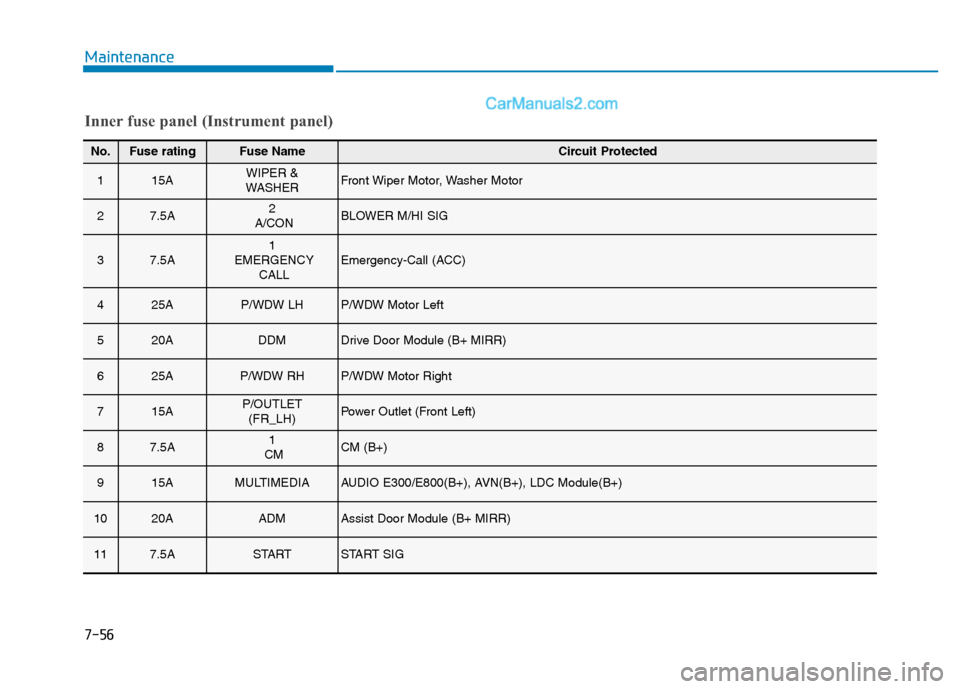

Inner fuse panel (Instrument panel)
No.Fuse ratingFuse NameCircuit Protected
115AWIPER &
WASHERFront Wiper Motor, Washer Motor
27.5A2
A/CONBLOWER M/HI SIG
37.5A1
EMERGENCY CALLEmergency-Call (ACC)
425AP/WDW LHP/WDW Motor Left
520ADDMDrive Door Module (B+ MIRR)
625AP/WDW RHP/WDW Motor Right
715AP/OUTLET(FR_LH)Power Outlet (Front Left)
87.5A1
CMCM (B+)
915AMULTIMEDIAAUDIO E300/E800(B+), AVN(B+), LDC Module(B+)
1020AADMAssist Door Module (B+ MIRR)
117.5ASTARTSTART SIG
7-57
7
Maintenance
No.Fuse ratingFuse NameCircuit Protected
1210AMEMORYCluster (B+), A/C Control Module(B+), Drive Door Module(B+ECU), Assist Door Module(B+ECU), DTG(B+), OBDII (B+)
137.5ABRAKE SWBrake Switch, Stop Lamp
1410AMODULE E-3Cluster, Drive Door Module, Assist Door Module, A/C Control Module, Seat HTD Switch
Left/Right, VDC off Switch, AVN, Seat HTD Module Left/Right, DTG, LDWS Module, RPAS
Sensor, Yaw Rate Sensor, Fuel Water Sensor
1510AMIDDLE
DR LOCKMiddle Door Lock Actuator
1610ATAILGATE DR LOCKTailgate Door Lock Actuator
1710AMODULE E-4AUDIO E300/E800(ACC), AVN(ACC), LDC Module(ACC), CM(ACC)
1820AENG BOX (IG1)UH BOX (ABS3 7.5A, SNSR5 7.5A, INHIBITOR 7.5A, BACK UP LAMP 7.5A)
1910ADCUSEAT BOX (DCU SNSR Relay 'S')
207.5A2
CMCM (IG1)
217.5AMODULE-1Rain Sensor
2210AINTERIOR LAMPSEAT BOX(PASS ROOM LAMP Relay 'S'), Key Warning Switch, Step Lamp(MID/ASS),
OH_CONSOLE Lamp, Map Lamp, Passenger Reading Lamp, Cargo_Lamp(Middle / TGAT)

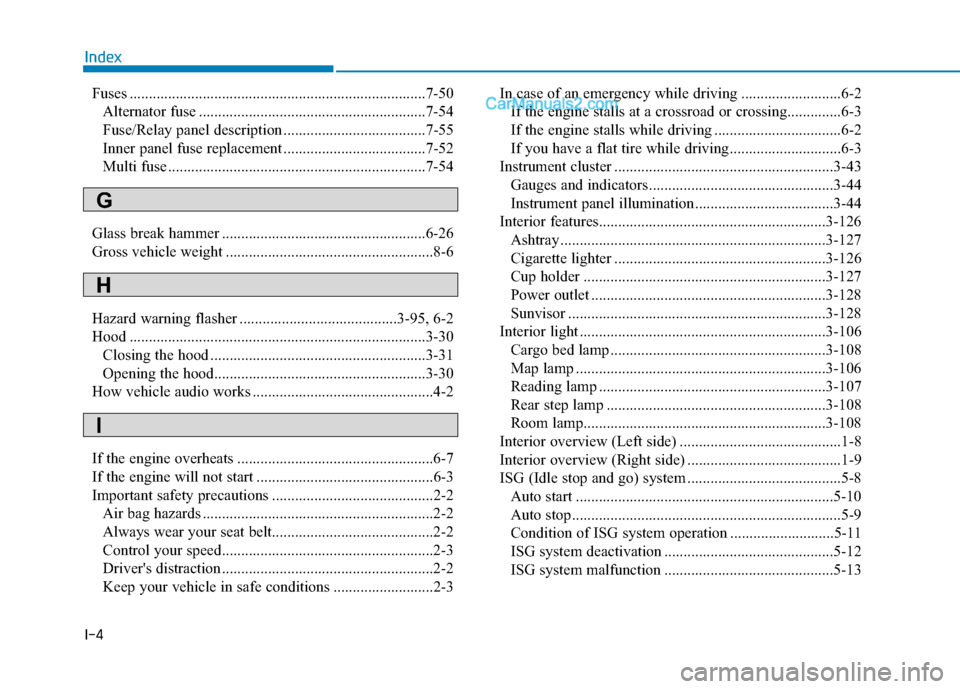

I-4Fuses .............................................................................7-50
Alternator fuse ...........................................................7-54
Fuse/Relay panel description .....................................7-55
Inner panel fuse replacement .....................................7-52
Multi fuse ...................................................................7-54
Glass break hammer .....................................................6-26
Gross vehicle weight ......................................................8-6
Hazard warning flasher .........................................3-95, 6-2
Hood .............................................................................3-30 Closing the hood ........................................................3-31
Opening the hood.......................................................3-30
How vehicle audio works ...............................................4-2
If the engine overheats ...................................................6-7
If the engine will not start ..............................................6-3
Important safety precautions ..........................................2-2 Air bag hazards ............................................................2-2
Always wear your seat belt..........................................2-2
Control your speed.......................................................2-3
Driver's distraction .......................................................2-2
Keep your vehicle in safe conditions ..........................2-3 In case of an emergency while driving ..........................6-2
If the engine stalls at a crossroad or crossing..............6-3
If the engine stalls while driving .................................6-2
If you have a flat tire while driving.............................6-3
Instrument cluster .........................................................3-43
Gauges and indicators................................................3-44
Instrument panel illumination....................................3-44
Interior features...........................................................3-126 Ashtray .....................................................................3-127
Cigarette lighter .......................................................3-126
Cup holder ...............................................................3-127
Power outlet .............................................................3-128
Sunvisor ...................................................................3-128
Interior light ................................................................3-106 Cargo bed lamp ........................................................3-108
Map lamp .................................................................3-106
Reading lamp ...........................................................3-107
Rear step lamp .........................................................3-108
Room lamp...............................................................3-108
Interior overview (Left side) ..........................................1-8
Interior overview (Right side) ........................................1-9
ISG (Idle stop and go) system ........................................5-8
Auto start ...................................................................5-10
Auto stop......................................................................5-9
Condition of ISG system operation ...........................5-11
ISG system deactivation ............................................5-12
ISG system malfunction ............................................5-13
