2016 Hyundai H350 warning light

2-28
Never place a rear-facing child
restraint in the front passenger’s
seat. If the air bag deploys, it would
impact the rear-facing child restraint,
causing serious or fatal injury.
In addition, do not place front-facing
child restraints in the front passen-
ger’s seat either. If the front passen-
ger air bag inflates, it would cause
serious or fatal injuries to the child.
Air bag warning light
The purpose of the air bag warning
light on your instrument cluster is to
alert you of a potential problem with
your air bag - Supplemental
Restraint System (SRS). The warn-
ing light illuminates for approximately
6 seconds, after turning ON the igni-
tion switch. Then, it goes OFF.
Check the system for the below symptoms:
The light does not briefly illumi-
nate, after turning ON the ignition
switch.
The light remains ON longer than approximately 6 seconds.
The light remains ON, when the vehicle is in motion.
Safety system of your vehicle

NEVER use a rearward facing
child restraint on a seat pro-
tected by an ACTIVE AIRBAG
in front of it, DEATH or SERI-
OUS INJURY to the CHILD can
occur.
Never put a child restraint in
the front passenger’s seat. If
the front passenger air bag
inflates, it would cause seri-ous or fatal injuries.
WARNING
W7-147

2-29
Safety system of your vehicle
2
SRS components and func- tions
The SRS consists of the following components:
1.Driver's front airbag module
2.Passenger’s front airbag module
3.Driver's pre-tensioner assembly
4.Passenger's pre-tensioner assem-bly
5.SRS control module (SRSCM)
6.Front impact sensors*
* : if equipped When the ignition switch is turned
ON, the SRSCM continually moni-
tors all the SRS components, to
determine whether an impact is
severe enough to deploy an air bagor a pre-tensioner seat belt.
The SRS air bag warning light on the
instrument cluster illuminates for
approximately 6 seconds after turn-
ing ON the ignition switch. Then, it
goes OFF.
When any of the following conditions
occurs, this indicates a SRS mal-
function. We recommend that the
system be inspected by an author-
ized HYUNDAI dealer.
The light does not briefly illuminate
after turning ON the ignition switch.
The light remains ON longer than 6 seconds.
The light remains ON, when the vehicle is in motion. The front air bag modules are locat-
ed inside both the steering wheel
and the front panel above the glove
box. When the SRSCM detects a suf-
ficient impact at the frontal part of the
vehicle, it automatically deploys the
front air bags.
OEU034008
B240B01L
■
Driver's front air bag (1)

2-31
Safety system of your vehicle
2
Driver's and front passenger's
air bag (if equipped)
Your vehicle is equipped with a sup-
plemental restraint system (air bag)
and lap/shoulder belts for both the
driver and the front passenger. Thepresence of the system is indicated
by the letters, "SRS AIR BAG," which
are embossed on the steering wheel
and the front panel above the glove
box.
The SRS consists of air bags, which
are installed under the pad cover of
the steering wheel and under the
front panel above the glove box.
(Continued)
It may become a dangerous
projectile and cause injury,
when a front passenger's air
bag inflates.
When an air bag deploys,
there may be a loud noise aswell as fine dusts released in
the vehicle. These conditionsare normal and are not haz-
ardous - the air bags are
packed with fine powders. The
dust generated during air bag
deployment may cause
skin/eye irritation as well as
aggravate asthma for some
persons. Always wash all
exposed skin areas thorough-
ly with lukewarm water and amild soap after an accident in
which the air bags were
deployed. (Continued)
WARNING
(Continued)
The SRS operates, only after turning ON the ignition
switch. When the SRS air bagwarning light does not illumi-nate after turning ON the igni-
tion switch, when light contin-
uously remains ON longer
than approximately 6 sec-
onds, or when the light
remains ON while driving, the
SRS does not properly oper-
ate.
In this case, we recommend that the system be inspected
by an authorized HYUNDAI
dealer.
Before replacing a fuse or dis-
connecting a battery terminal,
turn the ignition switch to the
LOCK position and remove
the ignition key. Never remove
or replace the air bag relatedfuse(s) when the ignition
switch is in the ON position.
Failure to heed this warning
will cause the SRS air bag
warning light to illuminate.
OEU034007
■Driver's front air bag

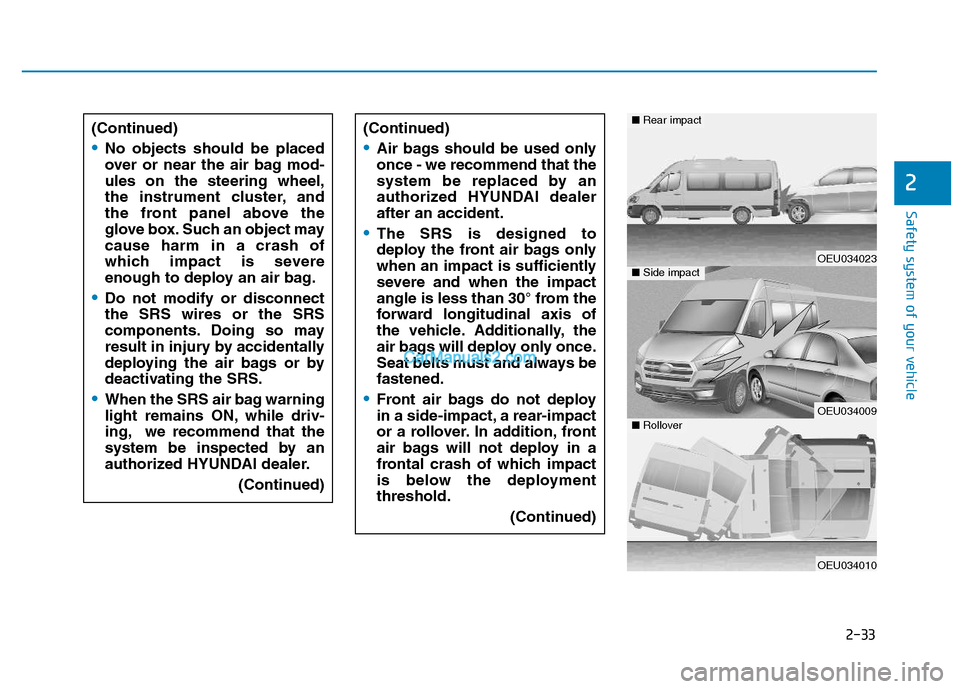

2-33
Safety system of your vehicle
2
(Continued)
No objects should be placed
over or near the air bag mod-ules on the steering wheel,
the instrument cluster, and
the front panel above the
glove box. Such an object maycause harm in a crash of
which impact is severe
enough to deploy an air bag.
Do not modify or disconnect the SRS wires or the SRS
components. Doing so may
result in injury by accidentally
deploying the air bags or by
deactivating the SRS.
When the SRS air bag warning
light remains ON, while driv-
ing, we recommend that the
system be inspected by an
authorized HYUNDAI dealer.(Continued)
(Continued)
Air bags should be used only once - we recommend that the
system be replaced by an
authorized HYUNDAI dealerafter an accident.
The SRS is designed to
deploy the front air bags only
when an impact is sufficiently
severe and when the impact
angle is less than 30° from the
forward longitudinal axis of
the vehicle. Additionally, the
air bags will deploy only once.
Seat belts must and always befastened.
Front air bags do not deploy
in a side-impact, a rear-impact
or a rollover. In addition, front
air bags will not deploy in a
frontal crash of which impact
is below the deploymentthreshold.(Continued)
OEU034023
OEU034009
OEU034010
■Rear impact
■Side impact
■Rollover

2-39
Safety system of your vehicle
2
Air bags may not inflate, when thevehicle collides with objects such
as utility poles or trees, where the
impacts are concentrated to one
point. This is because the full force
of the impact is not delivered to the
sensors.
SRS Care
The SRS is virtually maintenance-
free. Thus, you do not need to main-
tain any SRS parts by yourself. When
the SRS air bag warning light does
not Illuminate, or when it continuous-
ly remains ON, we recommend that
the system be inspected by an
authorized HYUNDAI dealer.
OEU034021
Modification to SRS compo-
nents or wirings, such as
adding badges or the pad cov-
ers or body-structure modifi-
cations, may adversely affect
SRS performance and lead to
possible injury.
Use only a soft, dry cloth or the one moistened with plain
water to clean the air pad
cover. Solvents or cleaners
may adversely affect the air
bag covers and proper
deployment.
No objects should be placed
over or near the air bag mod-ules on the steering wheel,
the instrument cluster, and
the front panel above the
glove box. Any such object
may cause harm, when the
vehicle is in a crash severe
enough to inflate the air bags.
(Continued)
WARNING

Instrument cluster................................................3-43Instrument panel illumination .......................................3-44
Gauges and indicators ...................................................3-44
Multi-display ........................................................3-50 Main display .....................................................................3-50
Function description .......................................................3-51
Trip computer ...................................................................3-53
Drive info. mode ..............................................................3-53
AV information .................................................................3-53
Turn by turn navigation.................................................3-54
Information Mode ...........................................................3-54
User Settings Mode ........................................................3-55
Warning Messages..........................................................3-57
Trip computer .......................................................3-60 Overview............................................................................3-60
Trip modes ........................................................................3-61
Driving distance/average vehicle speed/
elapsed time .....................................................................3-62 Fuel economy ...................................................................3-63
Urea Solution Gauge ......................................................3-65
Total AUTO STOP Hour..................................................3-66
Driving Information .........................................................3-66
Warning and indicator lights ..............................3-66 Digital tachograph................................................3-80
Type A ................................................................................3-80
Type B ................................................................................3-82
Parking assist system..........................................3-88 Rear parking assist system type .................................3-89
Front/rear parking assist system type......................3-92
Rearview camera..................................................3-94
Hazard warning flasher ......................................3-95
Lighting..................................................................3-95 Battery saver function ..................................................3-95
Headlight escort function .............................................3-96
Headlight welcome function.........................................3-96
Lighting control ...............................................................3-96
High - beam operation ..................................................3-98
Turn signals and lane change signals ........................3-99
Front fog light ...............................................................3-100
Rear fog light .................................................................3-100
Daytime running light ..................................................3-101
Headlight leveling device ............................................3-101
Wipers and washers ..........................................3-102 Windshield wiper/washer ...........................................3-102
Windshield wipers .........................................................3-102
Windshield washers ......................................................3-105
3

3-7
Convenient features of your vehicle
Do not fold the key without press-
ing the release button. This may
damage the key.
Lock (1)
All doors (and rear door) are locked if
the lock button is pressed. If all doors
are closed, the hazard warning lights
blink once to indicate that all doors
are locked. However, if any door
remains open, the hazard warning
lights will not blink. Close the door
and try again to lock the doors.
Unlock (2)
Driver door and front passenger door
are unlocked if the unlock button ispressed.
The hazard warning lights will blink
twice to indicate that driver door and
front passenger door are unlocked.
After depressing this button, the
doors will be locked automatically
unless you open any door within 30
seconds.
Rear door and mid sliding doorunlock (3) (if equipped)
The rear door and mid sliding door
are unlocked if the button is pressed
for more than 1 second.
The hazard warning lights will blink twice to indicate that the rear door
and mid sliding door are unlocked.
However, after pressing this button, the rear door and mid sliding door
will lock automatically unless youopen the rear door within 30 sec-
onds.
Also, once the rear door and mid sliding door are opened and then
closed, the rear door will lock auto-
matically.
Transmitter precautions
The transmitter will not work if any of
following occur:
The ignition key is in ignition switch.
You exceed the operating distance limit (about 30 m [90 feet]).
The battery in the transmitter is weak.
Other vehicles or objects may be blocking the signal.
The weather is extremely cold.
The transmitter is close to a radio transmitter such as a radio station
or an airport which can interfere
with normal operation of the trans-
mitter.
When the transmitter does not work
correctly, open and close the door
with the ignition key. If you have a
problem with the transmitter, we rec-
ommend that you contact an author-
ized HYUNDAI dealer.
NOTICE
3

3-9
Convenient features of your vehicle
For transmitter replacement, we rec-
ommend that you contact an author-
ized HYUNDAI dealer.Information
An inappropriately disposed battery
can be harmful to the environment
and human health.
Dispose the battery according to your
local law(s) or regulation.
This system is designed to provide
protection from unauthorized entry
into the vehicle. This system is oper-
ated in three stages: the first is the
"Armed" stage, the second is the
"Theft-alarm" stage, and the third is
the "Disarmed" stage. If triggered,
the system provides an audible
alarm with blinking of the hazard
warning lights.i
3•The keyless entry system transmitter is designed to
give you years of trouble-free
use, however it can malfunc-
tion if exposed to moisture or
static electricity. If you are
unsure how to use your trans-
mitter or replace the battery,
we recommend that you con-
tact an authorized HYUNDAI
dealer.
Using the wrong battery can cause the transmitter to mal-
function. Be sure to use the
correct battery.
To avoid damaging the trans-
mitter, don't drop it, get it wet,
or expose it to heat or sun-light.
CAUTION
TTHH EEFFTT --AA LLAA RRMM SS YY SSTT EEMM
(
( IIFF EE QQ UUIIPP PPEEDD ))
Armed
stage
Theft-alarm stageDisarmedstage
