Maintenance
BRAKE/CLUTCH FLUID
Checking the brake/clutchfluid
level
Check the fluid level in the reservoir
periodically. The fluid level should be
between MAX and MIN marks on the
side of the reservoir.
Before removing the reservoir cap
and adding brake/clutch fluid, clean
the area around the reservoir cap
thoroughly to prevent brake/clutch
fluid contamination.If the level is low, add the specified
brake/clutch fluid to the MAX level.
The level will fall with accumulated
mileage.
This is a normal condition associated
with the wear of the brake linings. If
the fluid level is excessively low, have
the brake/clutch system checked by
an authorized HYUNDAI dealer.
✽NOTICE
Use only the specified brake/clutch
fluid (refer to “Recommended
Lubricants and Capacities” in chap-
ter 8).
WARNING
If the brake/clutch system
requires frequent additions of
fluid this could indicate a leak in
the brake/clutch system. Have
the vehicle inspected by an
authorized HYUNDAI dealer.
WARNING
Do not allow brake/clutch fluid
to come in contact with your
eyes. If brake/clutch fluid comes
in contact with your eyes, flush
your eyes with clean water for at
least 15 minutes and get imme-
diate medical attention.
CAUTION
• Do not allow brake/clutch fluid
to contact the vehicle’s body
paint, as paint damage will
result.
• Brake/clutch fluid, which has
been exposed to open air for an
extended time should NEVER
be used as its quality cannot be
guaranteed. It should be dis-
posed of properly.
• Do not use the wrong kind of
brake/clutch fluid. A few drops
of mineral based oil, such as
engine oil, in your brake/
clutch system can damage
brake/clutch system parts.
OMD070006N

Maintenance
30 7
WASHER FLUID
Checking the washer fluid
level
Check the fluid level in the washer
fluid reservoir and add fluid if neces-
sary. Plain water may be used if
washer fluid is not available.
However, use washer solvent with
antifreeze characteristics in cold cli-
mates to prevent freezing.
Checking the parking brake
Check the stroke of the parking
brake by counting the number of
“clicks’’ heard while fully applying it
from the released position. Also, the
parking brake alone should securely
hold the vehicle on a fairly steep
grade. If the stroke is more or less
than specified, have the parking
brake adjusted by an authorized
HYUNDAI dealer.
Stroke : 6 clicks at a force of 20 kg
(44 lbs, 196 N)
PARKING BRAKE
OMD070007N
OMD050014
CAUTION
To prevent serious injury or
death, take the following safety
precautions when using washer
fluid:
• Do not use engine coolant or
antifreeze in the washer fluid
reservoir.
Engine coolant can severely
obscure visibility when
sprayed on the windshield
and may cause loss of vehicle
control resulting in an acci-
dent or damage to paint and
body trim.
• Do not allow sparks or flame
to contact the washer fluid or
the washer fluid reservoir.
Washer fluid may contain
alcohol and can be flammable.
• Do not drink washer fluid and
avoid contact with skin.
Washer fluid is poisonous to
humans and animals.
• Keep washer fluid away from
children and animals.

731
Maintenance
AIR CLEANER
Filter replacement
The air cleaner filter can be cleaned
for inspection using compressed air.
Do not attempt to wash or to rinse it,
as water will damage the filter. If
soiled, the air cleaner filter must be
replaced.1. Loosen the air cleaner cover
attaching clips and open the cover.
2. Wipe the inside of the air cleaner.3. Replace the air cleaner filter.
4. Lock the cover with the cover
attaching clips.
OMD070010
OMD070011OMD070012

Maintenance
32 7
Replace the filter according to the
Maintenance Schedule
✽NOTICE
If the vehicle is operated in extreme-
ly dusty or sandy areas, replace the
element more often than the usual
recommended intervals (refer to
“Maintenance Under Severe Usage
Conditions” in this chapter).
CAUTION
• Do not drive with the air clean-
er filter removed. This will
result in excessive engine
wear.
• When removing the air cleaner
filter, be careful that dust or
dirt does not enter the air
intake, or damage may result.
• Use HYUNDAI genuine parts,
use of non-genuine parts
could damage the air flow sen-
sor.

733
Maintenance
CLIMATE CONTROL AIR CLEANER
Filter inspection
The climate control air filter should
be replaced according to the
Maintenance Schedule. If the vehicle
is operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the fol-
lowing procedure, and be careful to
avoid damaging other components.
1. With the glove box open, remove
the stoppers on both sides to allow
the glove box to hang freely on the
hinges.
2. Remove the support rod.3. Remove the climate control air fil-
ter case by pulling out both sides
of the cover.
OMD070013OMD070015

Maintenance
34 7

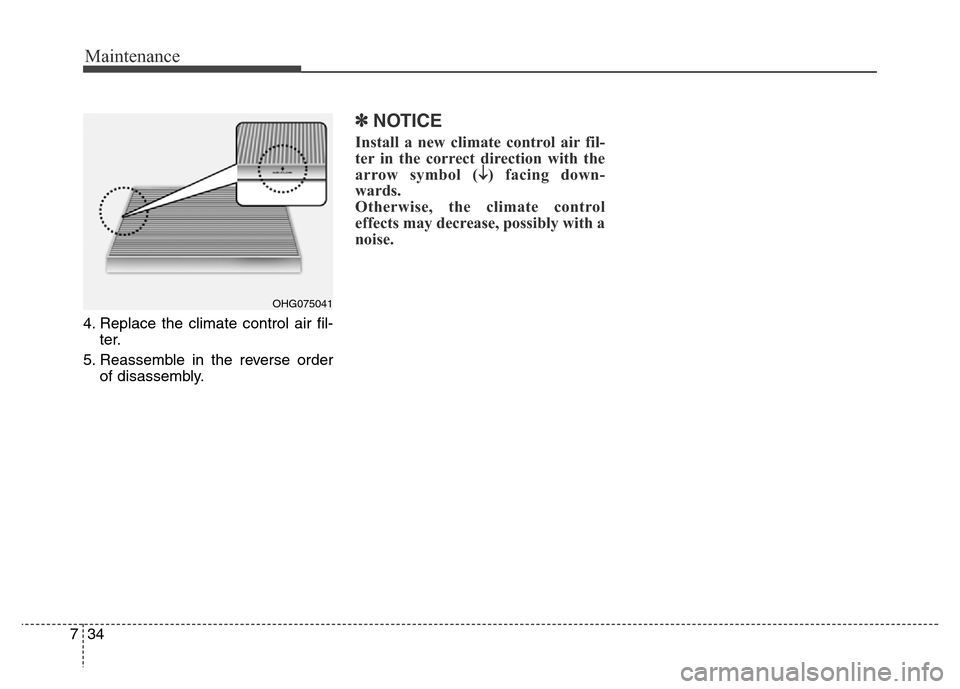

4. Replace the climate control air fil-
ter.
5. Reassemble in the reverse order
of disassembly.
✽NOTICE
Install a new climate control air fil-
ter in the correct direction with the
arrow symbol (
↓) facing down-
wards.
Otherwise, the climate control
effects may decrease, possibly with a
noise.
OHG075041

735
Maintenance
WIPER BLADES
Blade inspection
Contamination of either the wind-
shield or the wiper blades with for-
eign matter can reduce the effective-
ness of the windshield wipers.
Common sources of contamination
are insects, tree sap, and hot wax
treatments used by some commer-
cial car washes. If the blades are not
wiping properly, clean both the win-
dow and the blades with a clean
cloth dampened with washer fluid.✽NOTICE
Commercial hot waxes applied by
automatic car washes have been
known to make the windshield diffi-
cult to clean.
Blade replacement
■Ty p e A
1. Raise the wiper arm and slightly
rotate the wiper blade assembly to
expose the plastic locking clip.
1JBA5122
CAUTION
Do not allow the wiper arm to
fall against the windshield,
since it may chip or crack the
windshield.
CAUTION
To prevent damage to the wiper
blades, arms or other compo-
nents, do not:
• Use gasoline, kerosene, paint
thinner, or other solvents on
or near them.
• Attempt to move the wipers
manually.
• Use non-specified wiper
blades.
1LDA5023

Maintenance
36 7
2. Press the clip (1) and slide the
blade assembly downward (2).
3. Lift it off the arm.
4. Install the blade assembly in the
reverse order of removal.
5. Return the wiper arm on the wind-
shield.
■Ty p e B
1. Raise the wiper arm.
2. Lift up the wiper blade clip (1).
Then pull down the blade assem-
bly (2) and remove it.
3. Install the new blade assembly in
the reverse order of removal.
4. Return the wiper arm on the wind-
shield.
1JBA7037
1JBA7038
OHM078059
CAUTION
Do not allow the wiper arm to
fall against the windshield,
since it may chip or crack the
windshield.
OYF079061
