Multimedia System
Information - Using the AUX
device
If an external device connector is connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will
be restored.
AUX mode can be used only when an external audio player (cam-
corder, car VCR, etc.) has been con-
nected.
The AUX volume can be controlled separately from other audio modes.
Connecting a connector jack to the AUX terminal without an external
device will convert the system to
AUX mode, but only output noise.
When an external device is not
being used, also remove the connec-
tor jack.
When the external device power is connected to the power jack, play-
ing the external device may output
noise. In such cases, disconnect the
power connection before use.
Fully insert the AUX cable to the AUX jack upon use. Information
- Before using
the Bluetooth ®
handsfree
What is Bluetooth ®
?
Bluetooth ®
refers to a short-dis-
tance wireless networking technolo-
gy which uses a 2.4GHz ~ 2.48GHz
frequency to connect various
devices within a certain distance.
Supported within PCs, external devices, Bluetooth ®
phones, Personal
Digital Assistant, various electronic
devices, and automotive environ-
ments, Bluetooth ®
allows data to be
transmitted at high speeds without
having to use a connector cable.
Bluetooth ®
Handsfree refers to a
device which allows the user to con-
veniently make phone calls with
Bluetooth ®
mobile phones through
the audio system.
Bluetooth ®
Handsfree may not be
supported in some mobile phones.
To learn more about mobile device
compatibility. Information
- Precautions for
safe driving
Bluetooth ®
Handsfree is a feature
that enables drivers to practice safe
driving. Connecting the head unit
with a Bluetooth ®
phone allows the
user to conveniently make and
receive calls and use contacts.
Before using Bluetooth ®
, carefully
read the contents of this user’s man-
ual.
Excessive use or operations while driving may lead to negligent driv-
ing practices and result in accidents.
Refrain from excessive operations
while driving.
Viewing the screen for prolonged periods of time is dangerous and
may lead to accidents. When driv-
ing, view the screen only for short
periods of time.iii
7-71
7
Maintenance

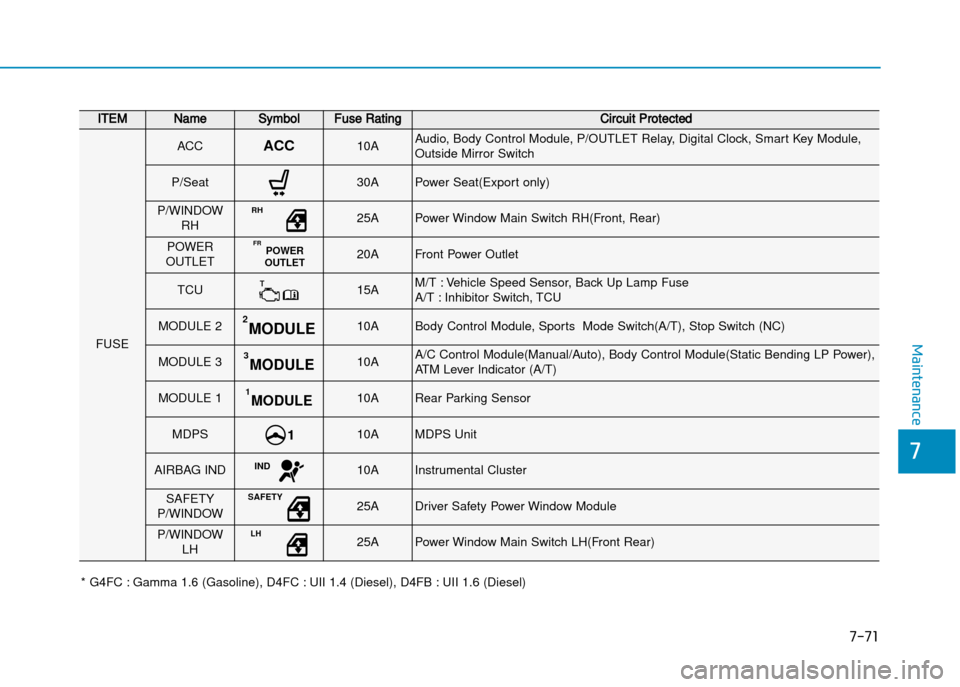

ITEMNameSymbolFuse RatingCircuit Protected
FUSE
ACCACC10AAudio, Body Control Module, P/OUTLET Relay, Digital Clock, Smart Key Module,
Outside Mirror Switch
P/Seat 30APower Seat(Export only)
P/WINDOWRHRH25APower Window Main Switch RH(Front, Rear)
POWER
OUTLET POWER
OUTLET
FR20AFront Power Outlet
TCU15AM/T : Vehicle Speed Sensor, Back Up Lamp Fuse
A/T : Inhibitor Switch, TCU
MODULE 2MODULE
210ABody Control Module, Sports Mode Switch(A/T), Stop Switch (NC)
MODULE 3MODULE
310AA/C Control Module(Manual/Auto), Body Control Module(Static Bending LP Power),
ATM Lever Indicator (A/T)
MODULE 1MODULE
110ARear Parking Sensor
MDPS10AMDPS Unit
AIRBAG INDIND10AInstrumental Cluster
SAFETY
P/WINDOWSAFETY25ADriver Safety Power Window Module
P/WINDOW LHLH25APower Window Main Switch LH(Front Rear)
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)
