464
uuMaintenance Under the Hood uOpening the Hood
Maintenance

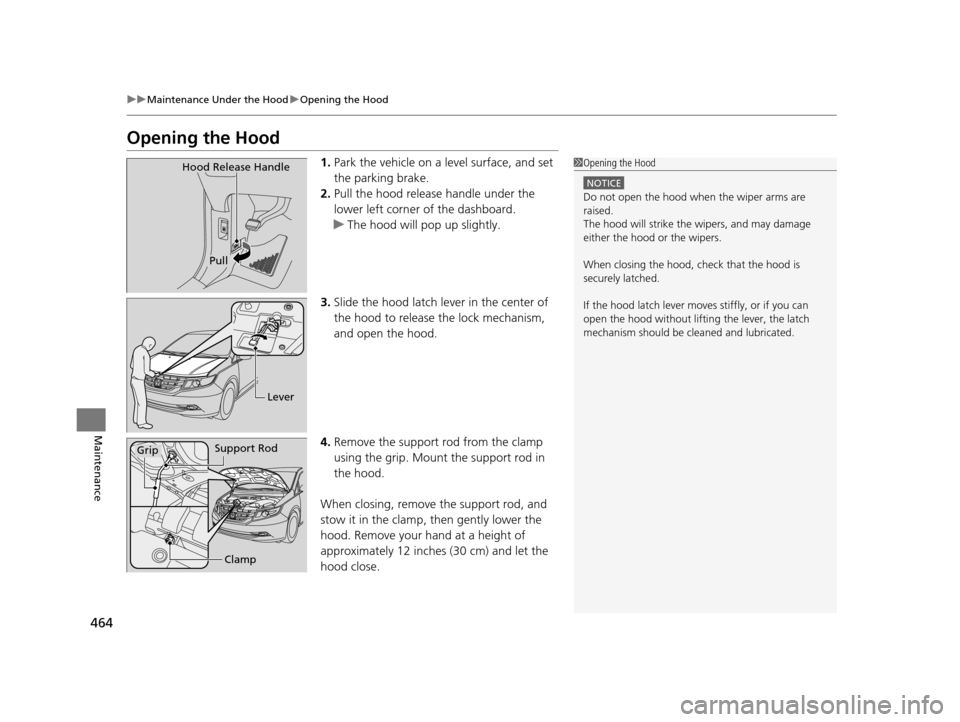

Opening the Hood
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
lower left corner of the dashboard.
u The hood will pop up slightly.
3. Slide the hood latch lever in the center of
the hood to release the lock mechanism,
and open the hood.
4. Remove the support rod from the clamp
using the grip. Mount the support rod in
the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.1 Opening the Hood
NOTICE
Do not open the hood when the wiper arms are
raised.
The hood will strike the wipers, and may damage
either the hood or the wipers.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cleaned and lubricated.
Hood Release Handle
Pull
Lever
Support RodGrip
Clamp
16 US ODYSSEY-31TK86500.book 464 ページ ２０１５年６月２４日 水曜日 午後３時０分
535
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Driver Side Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Front Passenger's Door
Lock7.5 A
2Rear Passenger's Door Lock7.5 A
3Driver’s Door Lock7.5 A
4Front Passenger's Door Unlock7.5 A
5Rear Passenger's Door Unlock7.5 A
6Driver’s Door Unlock7.5 A
7Door Lock Main20 A
8HAC Option*10 A
9Driver’s Side Power Sliding
Door Closer*(20 A)
10 Rear Fuse Box 15 A
11Meter7.5 A
12 Engine Compartment Fuse
Box (Passenger Side) 20 A
13Accessory7.5 A
14 STS*7.5 A
15Driver’s Power Seat Sliding20 A
16 Moonroof*(20 A)
17Rear Driver’s Side Power Window20 A
18 Smart Entry System
*(10 A)
19Driver’s Power Window20 A
20 − −
21Fuel Pump20 A
22 Passenger Side Fuse Box 15 A
23VSA7.5 A
24 ACG AS 7.5 A
25STRLD7.5 A
26 HAC 7.5 A
27DRL(7.5 A)
28 ACC Key Lock 7.5 A
29Driver’s Power Seat Lumbar Support*(7.5 A)
30 TPMS 7.5 A
31−−
32 Driver’s Power Seat
Reclining 20 A
33Driver’s Side Power Sliding
Door Motor*(40 A)
34 − −
Circuit ProtectedAmps
* Not available on all models
