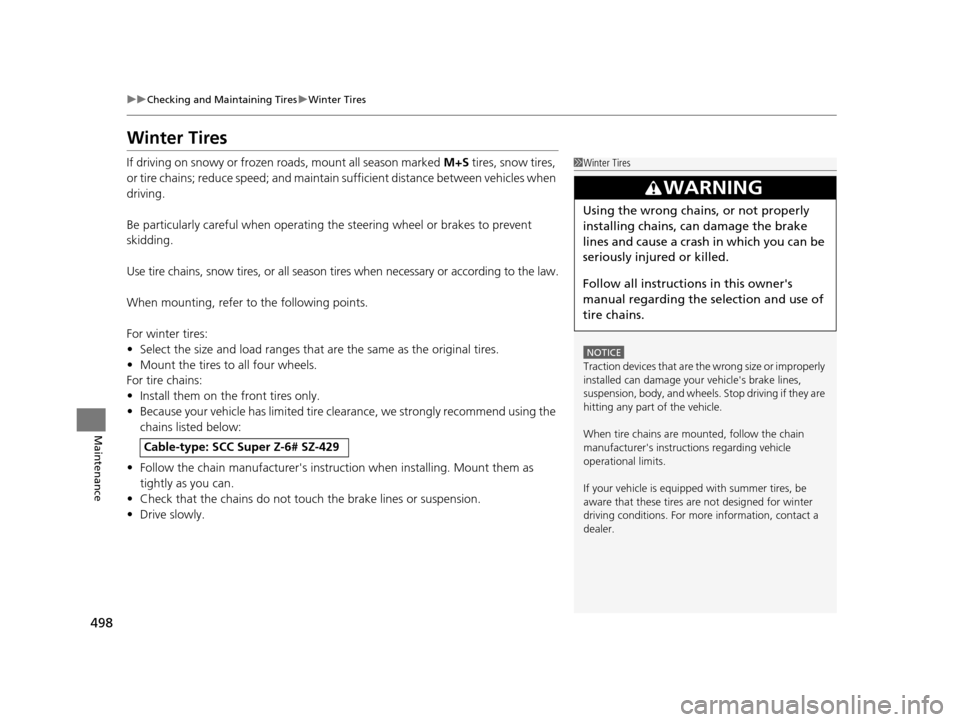

uuChecking and Maintaining Tires uWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires,
or tire chains; reduce speed; and maintain su fficient distance between vehicles when
driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season ti res when necessary or according to the law.
When mounting, refer to the following points.
For winter tires:
• Select the size and load ranges that are the same as the original tires.
• Mount the tires to all four wheels.
For tire chains:
• Install them on the front tires only.
• Because your vehicle has limited tire cl earance, we strongly recommend using the
chains listed below:
• Follow the chain manufacturer's instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not to uch the brake lines or suspension.
• Drive slowly.
Cable-type: SCC Super Z-6# SZ-429
1Winter Tires
NOTICE
Traction devices that are th e wrong size or improperly
installed can damage your vehicle's brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer's instructi ons regarding vehicle
operational limits.
If your vehicle is equipped with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.
3WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instruction s in this owner's
manual regarding the selection and use of
tire chains.
16 US ODYSSEY-31TK86500.book 498 ページ ２０１５年６月２４日　水曜日　午後３時０分

509
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 510
If a Tire Goes Flat Changing a Flat Tire ......................... 511
Engine Does Not Start Checking the Engine ........................ 520
If the Smart Entry Remote Battery is Weak...521
Emergency Engine Stop ................... 522
Jump Starting .................................... 523
Shift Lever Does Not Move .............. 525
Overheating How to Handle Overheating ............. 526 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 528
If the Charging System Indicator Comes
On ................................................. 528
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 529
If the Brake System Indicator (Red) Comes On ................................................. 530
If the Low Tire Pressure Indicator Comes On ................................................. 531 If the TPMS Indicator Comes On ...... 531
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 532
Fuses Fuse Locations ................................. 533
Inspecting and Changing Fuses ........ 538
Emergency Towing ........................... 539
When You Cannot Open or Close the Tailgate ............................................ 540
16 US ODYSSEY-31TK86500.book 509 ページ ２０１５年６月２４日　水曜日　午後３時０分

511Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, non-slip pery surface and apply the parking brake.
2. Move the shift lever to
(P.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
16 US ODYSSEY-31TK86500.book 511 ページ ２０１５年６月２４日　水曜日　午後３時０分

543
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid
ATF DW-1
Capacity Change 3.3 US qt (3.1 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.93 US gal (7.3 ℓ)
(change including the remaining
0.225 US gal (0.85 ℓ) in the reserve tank)
■ Tire
*1: Touring models
RegularSizeP235/65R17 103T
P235/60R18 102T*1
Pressure
psi(kPa[kgf/cm2])33 (230 [2.3])
35 (240 [2.4])*1
Compact
Spare Size
T135/80D17 103M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7J
18 x 7J*1
Compact Spare17 x 4T
16 US ODYSSEY-31TK86500.book 543 ページ ２０１５年６月２４日　水曜日　午後３時０分

557
Index
Lights On .................................................. 77
Low Fuel ................................................... 73
Low Oil Pressure ............................... 71, 528
Low Tire Pressure .............................. 76, 428
Low Tire Pressure/TPMS ............ 76, 428, 429
Maintenance Minder......................... 82, 455
Malfunction Indicator Lamp .............. 71, 529
Parking Brake and Brake System (Red) ............................................... 70, 530
Parking Sensor .......................................... 75
Power Sliding Door ................................... 83
Power Tailgate .......................................... 82
Seat Belt Reminder.............................. 31, 73
Security System Alarm............................... 79
Shift Lever Position.................................... 72
Smart Entry System ................................... 79
Starter System........................................... 79
Supplemental Restraint System ........... 49, 74
System Message ....................................... 77
TPMS ................................................ 76, 430
Transmission ............................................. 72
Turn Signal ............................................... 77
Vehicle Stability Assist (VSA® ) System ........ 74
VSA ® (Vehicle Stability Assist) System ...... 426
VSA ® OFF.......................................... 74, 427
Washer Level ............................................ 82
Information .............................................. 541
Information Button ................................... 96
Information Display ................................... 93
Instant Fuel Economy .......................... 94, 97 Instrument Panel
........................................ 69
Brightness Control ................................... 153
Integrated Sunshades ............................... 190
Interface Dial ............................................ 234
Interior Lights ........................................... 176
Interior Rearview Mirror .......................... 158
J
Jack (Wheel Nut Wrench) ........................ 514
Jump Starting ........................................... 523
K
Key Number Tag ....................................... 111
Keyless Lockout Prevention ..................... 117
Keys ........................................................... 110
Lockout Prevention .................................. 117
Master Keys ............................................. 110
Number Tag ............................................ 111
Rear Door Won’t Open ............................ 119
Remote Transmitter ................................. 115
Types and Functions ................................ 110
Valet Key ................................................. 111
Won’t Turn ................................................ 22
Kickdown (Automatic Transmission) ....... 412
L
Lane Departure Warning (LDW).............. 422
LaneWatchTM............................................. 434 Language (HFL)
................................ 328, 361
LATCH (Child Seats) .................................... 57
Lights ................................................. 147, 475
Automatic ............................................... 148
Bulb Replacement ................................... 475
Daytime Running Lights........................... 150
Fog Lights ............................................... 150
High Beam Indicator .................................. 77
Interior .................................................... 176
Light Switches ......................................... 147
Lights On Indicator .................................... 77
Turn Signals ............................................ 147
Load Limits ................................................ 399
Locking/Unlocking .................................... 110
Auto Door Locking/Unlocking.................. 120
Childproof Door Locks............................. 119
From Inside ............................................. 118
From Outside .......................................... 113
Keys ........................................................ 110
Using a Key ............................................. 116
Lockout Prevention System ..................... 117
Low Battery Charge ................................. 528
Low Fuel Indicator ...................................... 73
Low Oil Pressure Indicator ................. 71, 528
Low Smart Entry Remote Signal
Strength .................................................. 112
Lower Anchors ............................................ 57
Luggage (Maximum Load Limit) ............. 399
