2016 HONDA ODYSSEY service indicator

461
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear bra kes/service as necessary●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: If you drive regularly in very high temperatures (over 110ºF, 43ºC), in very low temperatures (under -20 ºF, -29ºC), replace every 60,000 miles/100,000 km.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
16 US ODYSSEY-31TK86500.book 461 ページ ２０１５年６月２４日　水曜日　午後３時０分

495

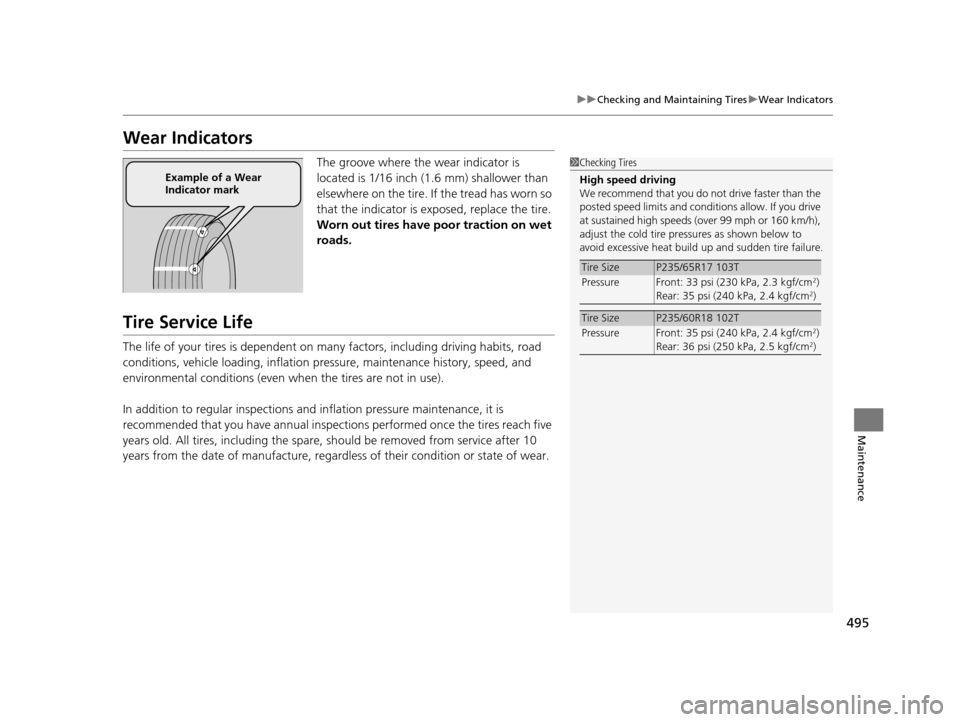

uuChecking and Maintaining Tires uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is ex posed, replace the tire.
Worn out tires have po or traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even wh en the tires are not in use).
In addition to regular inspections and in flation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare, should be removed from service after 10
years from the date of manufacture, regardle ss of their condition or state of wear.
1Checking Tires
High speed driving
We recommend that you do not drive faster than the
posted speed limits and condi tions allow. If you drive
at sustained high speeds (over 99 mph or 160 km/h),
adjust the cold tire pressures as shown below to
avoid excessive heat build up and sudden tire failure.
Tire SizeP235/65R17 103T
Pressure Front: 33 psi (230 kPa, 2.3 kgf/cm2)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2)
Tire SizeP235/60R18 102T
Pressure Front: 35 psi (240 kPa, 2.4 kgf/cm2)
Rear: 36 psi (250 kPa, 2.5 kgf/cm2)
Example of a Wear
Indicator mark
16 US ODYSSEY-31TK86500.book 495 ページ ２０１５年６月２４日　水曜日　午後３時０分

554
Index
B
Battery....................................................... 499
Charging System Indicator ................. 72, 528
Jump Starting .......................................... 523
Maintenance (Checking the Battery) ........ 499
Maintenance (Replacing).................. 500, 502
Belts (Seat) .................................................. 30
Beverage Holders ...................................... 181
Blind Spot Information (BSI) System ........ 432
Bluetooth ® Audio ............................. 232, 265
Bluetooth ® HandsFreeLink ®............. 327, 360
Booster Seats (For Children) ....................... 65
Brake System ............................................. 436
Anti-lock Brake System (ABS) ................... 438
Brake Assist System ................................. 439
Fluid ........................................................ 473
Foot Brake ............................................... 437
Indicator ............................................ 70, 530
Parking Brake .......................................... 436
Brightness Control (Instrument Panel) .... 153
BSI (Blind Spot Information) System ........ 432
Bulb Replacement ..................................... 475
Back-Up Light/Taillights............................ 483
Brake Light, Rear Turn Signal Light, and Rear
Side Marker/Taill ights ............................. 481
Fog Lights ................................................ 479
Front Turn Signal/Par king/Side Marker
Lights..................................................... 480
Headlights ............................................... 475
High-Mount Brake Light .......................... 485
Rear License Plate Lights .......................... 484 Side Turn Signal/Emergency Indicator
Lights .................................................... 480
Bulb Specifications ................................... 542
C
Carbon Monoxide Gas ............................... 66
Cargo Hooks ............................................. 186
Carrying Cargo ................................. 397, 399
CD Player ........................................... 221, 252
Center Pocket ........................................... 180
Certification Label .................................... 544
Changing Bulbs ........................................ 475
Charging System Indicator ................. 72, 528
Child Safety ................................................. 52
Childproof Door Locks............................. 119
Child Seat .................................................... 52
Booster Seats ............................................ 65
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 60
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 62
Childproof Door Locks ............................. 119
Cleaning the Exterior ............................... 507
Cleaning the Interior ................................ 505
Climate Control System ............................ 198
Changing the Mode ................................ 198 Defrosting the Windshield and
Windows .............................................. 199
Dust and Pollen Filter .............................. 504
Recirculation/Fresh Air Mode................... 198
Sensors ................................................... 203
Using Automatic Climate Control............ 198
Clock ......................................................... 108
Coat Hooks ............................................... 186
Compact Spare Tire .......................... 511, 543
Compass .................................................... 392
Controls .................................................... 107
Coolant (Engine) ...................................... 470
Adding to the Radiator ........................... 471
Adding to the Reserve Tank .................... 470
Overheating ............................................ 526
Temperature Gauge .................................. 92
Creeping (Automatic Transmission) ........ 412
Cruise Control .......................................... 415
Indicator ................................................... 82
Cup Holders .............................................. 181
Customer Service Information ................ 552
Customized Features ......................... 99, 295
D
Daytime Running Lights .......................... 150
Dead Battery ............................................ 523
Defrosting the Windshield and Windows ......................................... 196, 199
Detachable Anchor .................................... 35
Devices that Emit Radio Waves ............... 545
16 US ODYSSEY-31TK86500.book 554 ページ ２０１５年６月２４日　水曜日　午後３時０分

558
Index
M
Maintenance............................................. 451
Battery..................................................... 499
Brake Fluid............................................... 473
Cleaning .................................................. 505
Climate Control System ........................... 504
Coolant ................................................... 470
Heating and Cooling System .................... 504
Maintenance Minder
TM............................ 455
Oil ........................................................... 466
Power Steering Fluid ................................ 474
Precautions .............................................. 452
Radiator................................................... 471
Remote Control and Wireless
Headphone ............................................ 502
Remote Transmitter ................................. 500
Replacing Light Bulbs ............................... 475
Safety ...................................................... 453
Service Items.................................... 457, 461
Tires ........................................................ 490
Transmission Fluid.................................... 472
Under the Hood....................................... 463
Malfunction Indicator Lamp .............. 71, 529
Map Lights ................................................ 177
Maximum Load Limit ................................ 399
Meters, Gauges ........................................... 92
Mirrors ....................................................... 158
Adjusting ................................................. 158
Door ........................................................ 159
Exterior .................................................... 159
Interior Rearview...................................... 158 Modifications (and Accessories)
.............. 450
Moonroof ................................................. 141
MP3 ................................... 221, 229, 252, 262
Multi-Information Display ......................... 96
N
Numbers (Identification).......................... 544
O
Odometer............................................. 93, 97
Oil (Engine) ............................................... 465
Adding .................................................... 467
Checking................................................. 466
Displaying Oil Life ............................ 455, 459
Low Oil Pressure Indicator ................. 71, 528
Recommended Engine Oil ....................... 465
Viscosity .................................................. 465
Opening/Closing
Hood....................................................... 464
Moonroof ............................................... 141
Power Windows ...................................... 138
Sliding Doors ........................................... 127
Tailgate ................................................... 121
Outside Temperature Display .............. 95, 98
Overheating .............................................. 526
P
Pandora®........................................... 228, 260
Panic Mode ............................................... 137 Parking
..................................................... 440
Parking Brake ........................................... 436
Parking Brake and Brake System Indicator ................................................... 70
Parking Sensor System ............................. 441
Passenger Airbag Off Indicator ................. 50
Passing Indicators ..................................... 147
Power Sliding Doors ................................ 129
Power Tailgate ......................................... 123
Power Windows ....................................... 138
Precautions While Driving ....................... 411
Rain ........................................................ 411
Pregnant Women ....................................... 37
Puncture (Tire) ......................................... 511
R
Radiator.................................................... 471
Radio (AM/FM) ................................. 218, 245
Radio (SiriusXM ®)..................................... 249
Radio Data System (RDS) ................. 219, 247
Range .................................................... 94, 97
RDS (Radio Data System) ................. 219, 247
Readiness Codes (Emissions Testing) ...... 547
Rear Defogger/Heated Door Mirror Button ..................................................... 154
Rear Entertainment System ..................... 276
Rear Seats (Folding Down) .............. 162, 173
Rearview Camera ..................................... 445
Rearview Mirror ....................................... 158
16 US ODYSSEY-31TK86500.book 558 ページ ２０１５年６月２４日　水曜日　午後３時０分
