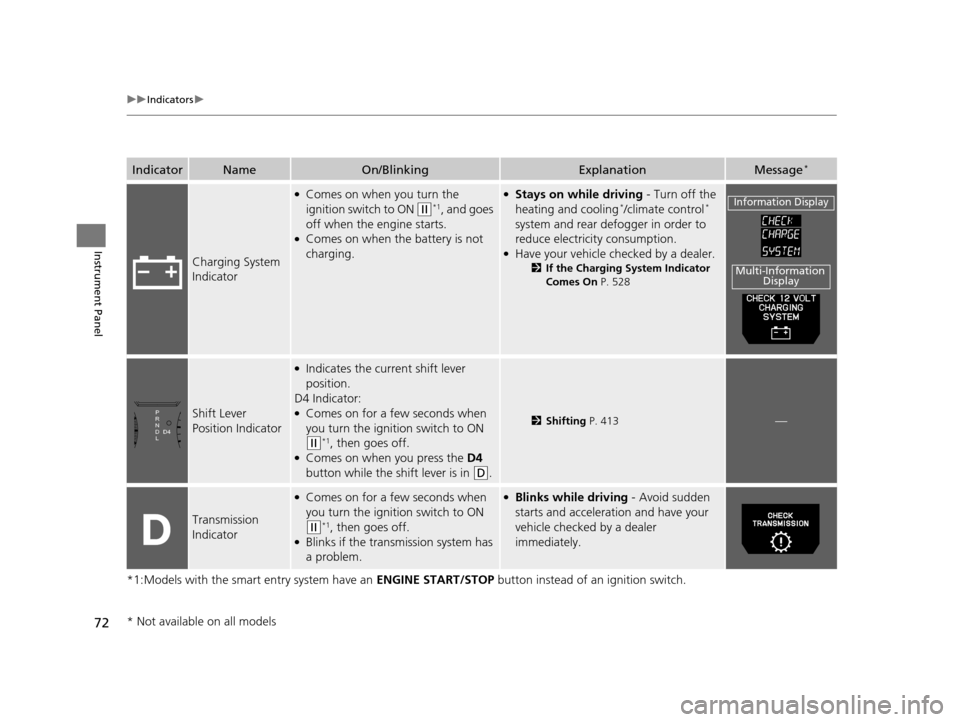

2016 HONDA ODYSSEY check engine

72
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Charging System
Indicator
●Comes on when you turn the
ignition switch to ON
(w*1, and goes
off when the engine starts.
●Comes on when the battery is not
charging.
●Stays on while driving - Turn off the
heating and cooling*/climate control*
system and rear defogger in order to
reduce electricity consumption.
●Have your vehicle checked by a dealer.
2 If the Charging System Indicator
Comes On P. 528
Shift Lever
Position Indicator
●Indicates the current shift lever
position.
D4 Indicator:
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on when you press the D4
button while the shift lever is in
(D.
2 Shifting P. 413—
Transmission
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Blinks if the transmission system has
a problem.
●Blinks while driving - Avoid sudden
starts and acceleration and have your
vehicle checked by a dealer
immediately.
Information Display
Multi-Information Display
* Not available on all models
16 US ODYSSEY-31TK86500.book 72 ページ ２０１５年６月２４日　水曜日　午後３時０分

73
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds if
you are not wearing a seat belt when
you turn the ignition switch to ON
(w*1.●If the front passenger is not wearing
a seat belt, the indicator comes on
about a few seconds later.
●Blinks while driving if either you or
the front passenger has not fastened
a seat belt. The beeper sounds and
the indicator blinks at regular
intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
●Stays on after you or the front
passenger has fastened the seat
belt - A detection error may have
occurred in the sensor. Have your
vehicle checked by a dealer.
2 Seat Belt Reminder P. 31
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 3.0 U.S.
gal./11.4 Liter left).
●Blinks if there is a problem with the
fuel gauge.
●Comes on - Refuel your vehicle as soon
as possible.
●Blinks - Have your vehicle checked by a
dealer.
Anti-lock Brake
System ( ABS)
Indicator
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●If it comes on at any other time,
there is a problem with the ABS.
●Stays on constantly - Have your
vehicle checked by a dealer. With this
indicator on, your vehicle still has
normal braking ability but no anti-lock
function.
2 Anti-lock Brake System (ABS)
P. 438
Indicator
* Not available on all models
16 US ODYSSEY-31TK86500.book 73 ページ ２０１５年６月２４日　水曜日　午後３時０分

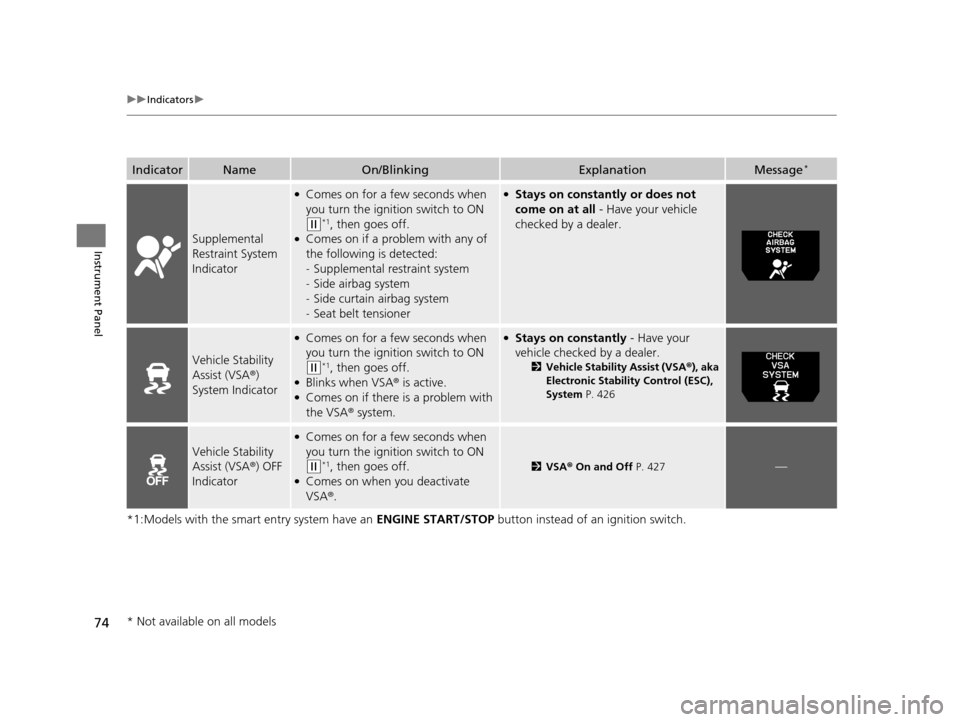

74
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Supplemental
Restraint System
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●Stays on constantly or does not
come on at all - Have your vehicle
checked by a dealer.
Vehicle Stability
Assist (VSA ®)
System Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Blinks when VSA ® is active.●Comes on if there is a problem with
the VSA® system.
●Stays on constantly - Have your
vehicle checked by a dealer.
2 Vehicle Stability Assist (VSA® ), aka
Electronic Stability Control (ESC),
System P. 426
Vehicle Stability
Assist (VSA ®) OFF
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on when you deactivate
VSA ®.
2 VSA ® On and Off P. 427—
* Not available on all models
16 US ODYSSEY-31TK86500.book 74 ページ ２０１５年６月２４日　水曜日　午後３時０分

75
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Door and Tailgate
Open Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if any door or the tailgate
is not completely closed.
●The beeper sounds and the indicator
comes on if any door or the tailgate
is opened while driving.
●Goes off when all doors and tailgate are
closed.
Parking Sensor
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●A corresponding indicator comes on
when an obstacle is detected while
parking.
●Comes on if there is a problem with
the parking sensor system. The
beeper sounds.
●Comes on without any obstacles or
when you are not parking - Check if
the area around the sensor(s) is covered
with mud, ice, snow, etc. If the
indicator(s) stays on even after you
clean the area, have the system checked
by a dealer.
—
Daytime Running
Lights Indicator*
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●Comes on if there is a problem with
the DRL system.
●Have your vehicle checked by a dealer.
2Daytime Running Lights P. 150
—
* Not available on all models
16 US ODYSSEY-31TK86500.book 75 ページ ２０１５年６月２４日　水曜日　午後３時０分

76
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
TPMS Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if there is a problem with
the TPMS, or when a compact spare
tire is temporarily installed.
●Stays on constantly or does not
come on at all - Have your vehicle
checked by a dealer. If the vehicle is
fitted with a compac t spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
—
Low Tire Pressure
Indicator
Low Tire Pressure/
TPMS Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if the tire pressure of any
of the tires becomes significantly
low.
●Comes on for a while and then goes
off when a compact spare tire is
temporarily installed.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire is temporarily installed.
●Comes on while driving - Stop in a
safe place, check tire pressures, and
inflate the tire(s) if necessary.
●Blinks and remains on - Have your
vehicle checked by a dealer. If the
vehicle is fitted with a compact spare,
get your regular tire repaired or
replaced and put back on your vehicle
as soon as you can.
Models with
information
display
Models with
information
display
Models with
multi-
information
displayModels with info rmation display
Models with multi- information display
Models with multi-information display
* Not available on all models
16 US ODYSSEY-31TK86500.book 76 ページ ２０１５年６月２４日　水曜日　午後３時０分

78
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Fog Light
Indicator*
●Comes on when the fog lights are
on.——
Immobilizer
System Indicator
●Comes on briefly when you turn the
ignition switch to ON
(w*1, then
goes off.
●Comes on if the immobilizer system
cannot recognize the key
information.
●Blinks - You cannot start the engine.
Turn the ignition switch to LOCK
(0*1,
pull the key out, and then insert the key
and turn it to ON
(w*1 again.●Repeatedly blinks - The system may
be malfunctioning. Have your vehicle
checked by a dealer.
●Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
—
* Not available on all models
16 US ODYSSEY-31TK86500.book 78 ページ ２０１５年６月２４日　水曜日　午後３時０分

79
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage*
Security System
Alarm Indicator*
●Blinks when the security system
alarm has been set.
2Security System Alarm* P. 135—
Smart Entry
System Indicator*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on as soon as a problem is
detected in the smart entry system or
push button starting system.
●Stays on constantly or does not
come on at all - Have your vehicle
checked by a dealer.
Starter System
Indicator*
●Comes on if there is a problem with
the starter system.●As a temporary measure, press and hold
the ENGINE START/STOP button for
up to 15 seconds while pressing the
brake pedal and manually start the
engine. Have your vehicle checked by a
dealer.
●As a temporary measure, hold the
ignition switch to START
(e for up to
15 seconds and start the engine. Have
your vehicle checked by a dealer.
—
Indicator
U.S.
Canada
Models with smart entry system
Models without smart entry system
* Not available on all models
16 US ODYSSEY-31TK86500.book 79 ページ ２０１５年６月２４日　水曜日　午後３時０分

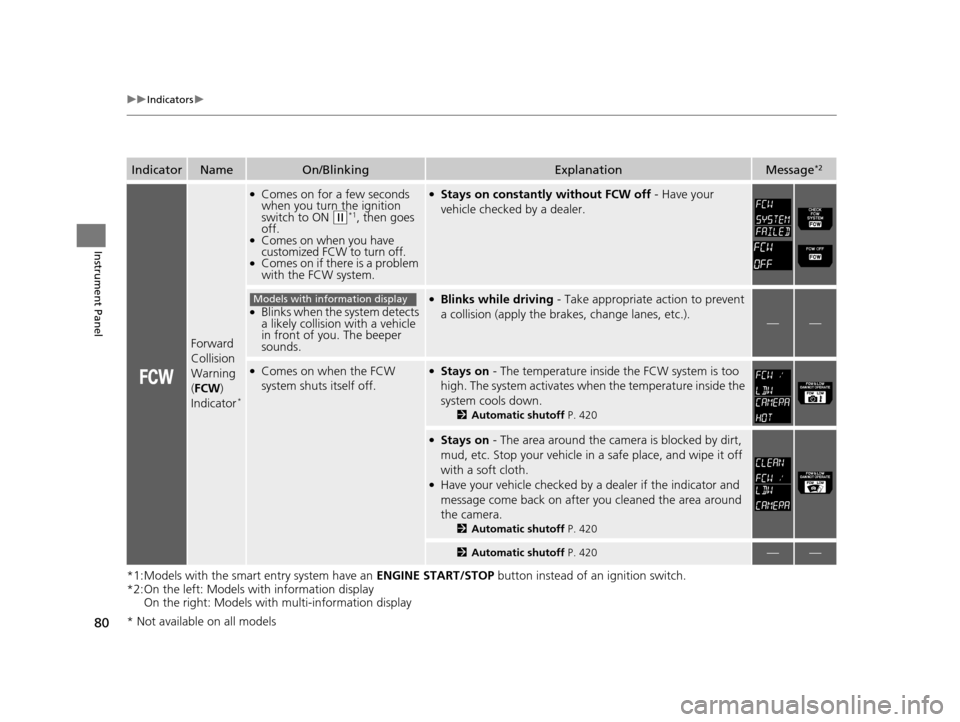

80
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:On the left: Models with information display On the right: Models with multi-information display
IndicatorNameOn/BlinkingExplanationMessage*2
Forward
Collision
Warning
(FCW )
Indicator
*
●Comes on for a few seconds
when you turn the ignition
switch to ON
(w*1, then goes
off.
●Comes on when you have
customized FCW to turn off.
●Comes on if there is a problem
with the FCW system.
●Stays on constantly without FCW off - Have your
vehicle checked by a dealer.
●Blinks when the system detects
a likely collision with a vehicle
in front of you. The beeper
sounds.
●Blinks while driving - Take appropriate action to prevent
a collision (apply the br akes, change lanes, etc.).
——
●Comes on when the FCW
system shuts itself off.●Stays on - The temperature inside the FCW system is too
high. The system activates when the temperature inside the
system cools down.
2 Automatic shutoff P. 420
●Stays on - The area around the camera is blocked by dirt,
mud, etc. Stop your vehicle in a safe place, and wipe it off
with a soft cloth.
●Have your vehicle checked by a dealer if the indicator and
message come back on after you cleaned the area around
the camera.
2 Automatic shutoff P. 420
2Automatic shutoff P. 420——
Models with information display
* Not available on all models
16 US ODYSSEY-31TK86500.book 80 ページ ２０１５年６月２４日　水曜日　午後３時０分
