2016 HONDA CR-Z remote start

uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
128
Controls
If you open the driver’s doo r when the power mode is set to ACCESSORY, a warning
buzzer sounds.
Warning buzzers may sound from inside or/
and outside the vehicle to remind you that the
smart entry remote is out of the vehicle. If the
buzzer continues even after the remote is put
back inside, place it to be within its
operational range.
■When the power mode is in ON
If the smart entry remote is taken out of th e vehicle, and the driver’s door is closed,
warning buzzers sound from both insi de and outside the vehicle. The KEYLESS
REMOTE NOT DETECTED message on the multi-information display notifies the
driver inside that the remote is out.
■When the power mode is in ACCESSORY
If the smart entry remote is taken out of th e vehicle, and the driver’s door is closed,
a warning buzzer sounds from outside the vehicle.
■Power Mode Reminder
■Smart Entry Remote Reminder1Smart Entry Remote Reminder
When the smart entry remote is within the system’s
operational range, and the driv er’s door is closed, the
warning function cancels.
If the smart entry remote is taken out of the vehicle
after the engine has been started, you can no longer
change the ENGINE START/STOP button or restart
the engin e. Always make sure if the remote is in your
vehicle when you operate the ENGINE START/STOP
button.
Removing the smart entry remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put a smart entry re mote on the dashboard or
in the glove box. It may cause the warning buzzer to
go off. Under some other c onditions that can prevent
the vehicle from locating the remote, the warning
buzzer may also go off even if the smart entry remote
is within the system’s operational range.
16 CR-Z-31SZT6500.book 128 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

uuWhen Driving uStarting the Engine
252
Driving
3. Press the ENGINE START/STOP button
without depressing the accelerator pedal.
You can turn the engine off when the vehicle is completely stopped.
1. Shift to
(P.
2. Press the ENGINE START/STOP button.
• If the shift lever is in
(N, press the ENGINE START/STOP button.
• If the shift lever is in any gear other than
(N, depress the clutch pedal, then press
the ENGINE START/STOP button.
1Starting the Engine
Bring the smart entry remote close to the ENGINE
START/STOP button if the battery in the smart entry
remote is weak.
2 If the Smart Entry Remote Battery is Weak
P. 364
The engine may not start if the smart entry remote is
subjected to strong radio waves.
Do not hold the ENGINE START/STOP button to
start the engine.
If the engine does not start, wait at least 30 seconds
before trying again.
The immobilizer system pr otects your vehicle from
theft. If an improperly c oded device is used, the
engine's fuel system is disabled 2 Immobilizer System P. 122
ENGINE
START
STOP
■Stopping the Engine
Continuously variable transmission models
Manual transmission models
16 CR-Z-31SZT6500.book 252 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

349
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 350
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 351
Engine Does Not Start Checking the Engine ........................ 362
If the Smart Entry Remote Battery is Weak .......................................... 364
Emergency Engine Stop ................... 365
Jump Starting .................................... 366
Shift Lever Does Not Move .............. 369Overheating
How to Handle Overheating............. 370
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On ............................................. 372
If the 12V Battery Charging System
Indicator Comes On ....................... 373
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 374
If the Brake System Indicator (Red) Comes On or Blinks ................................... 375
If the Electric Power Steering (EPS) System Indicator Comes On............................ 375
If the Brake System Indicator (Red) comes on or blinks at the same time when the Brake
System Indicator (Amber) comes on .... 376
If the IMA Indicator Comes On ........ 377
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 377
Fuses
Fuse Locations ................................. 378
Inspecting and Changing Fuses ........ 382
Emergency Towing ........................... 383
When You Cannot Open the Hatch ..... 385
16 CR-Z-31SZT6500.book 349 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

362
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The 12-volt battery may be dead.
Check each of the items on the
right and respond accordingly.Check for a message on the multi-information display.
●If the TO START, HOLD REMOTE NEAR START BUTTON message appears
2If the Smart Entry Remote Battery is Weak P. 364
uMake sure the smart entry remote is in its operating range.
2 ENGINE START/STOP Button P. 126
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Checking the 12-Volt Battery P. 340●If the interior lights come on normally

2Inspecting and Changing Fuses P. 382
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 366
16 CR-Z-31SZT6500.book 362 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

364
uuEngine Does Not Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected
If the Smart Entry Remote Battery is Weak
If the beeper sounds, the TO START, HOLD REMO TE NEAR START BUTTON
message appears on the multi-information display, the indicator on the ENGINE
START/STOP button flashes, and the engine wo n’t start, start the engine as
follows. 1.Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the ENGINE START/
STOP button is flashing. The buttons on
the smart entry remote should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal
*1 or clutch pedal*2
and press the ENGINE START/STOP
button within 10 seconds after the beeper
sounds and the ENGINE START/STOP
button changes from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
*1: Continuously variable transmission models
*2: Manual transmission models
16 CR-Z-31SZT6500.book 364 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

Index
399
Index
Index
Numbers
12 Volt Battery Charging System Indicator ................................................... 72
3-Mode Drive System ............................... 270
ECON Mode Indicator ............................... 81
NORMAL Mode Indicator .......................... 81
SPORT Mode Indicator .............................. 81
7-Speed Manual Shift Mode ................... 258
A
ABS (Anti-lock Brake System) .................. 288
Accessories and Modifications ................ 297
Accessory Power Socket ........................... 149
Active Head Restraints ............................. 145
Additives
Coolant .................................................. 314
Engine Oil ............................................... 309
Washer ................................................... 319
Additives, Engine Oil ............................... 309
Adjusting
Clock ...................................................... 108
Headlights .............................................. 320
Mirrors.................................................... 139
Seats....................................................... 141
Steering Wheel ....................................... 138
Adjusting the Sound ................................ 173
Air Conditioning System (Climate Control System) .................................................... 155
Changing the Mode................................ 155 Defrosting the Windshield and
Windows ............................................... 156
Dust and Pollen Filter ............................... 343
Recirculation/Fresh Air Mode ................... 155
Sensors .................................................... 157
Using Automatic Climate Control ............ 155
Air Pressure ............................................... 331
Airbags ........................................................ 43
Advanced Airbags ..................................... 49
After a Collision ......................................... 57
Airbag Care ............................................... 57
Event Data Recorders ................................... 0
Front Airbags (SRS) .................................... 46
Indicator ........................................ 54, 74, 78
Passenger Airbag Off Indicator .................. 55
Sensors ...................................................... 49
Side Airbag Cutoff System ......................... 52
Side Airbag Off Indicator ........................... 52
Side Airbags .............................................. 50
Side Curtain Airbags .................................. 53
AM/FM Radio ............................................ 175
Anti-lock Brake System (ABS) .................. 288
Indicator .................................................... 74
ASST Indicator ............................................. 90
Audio Remote Controls ............................ 164
Audio System ............................................ 160
Adjusting the Sound ................................ 173
Error Messages ........................................ 195
General Information ................................ 199
HDMI
TM Port ............................................ 162
iPhone ..................................................... 201 iPod ........................................................ 181
MP3/WMA/AAC .............................. 178, 186
Reactivating ............................................ 163
Recommended CDs ................................. 199
Recommended Devices............................ 201
Security Code .......................................... 163
Theft Protection ...................................... 163
USB Flash Drives ...................................... 201
USB Ports ................................................ 161
Audio/Information Screen ....................... 168
Authorized Manuals ................................ 397
Auto Door Locking/Unlocking ................. 118
Customize ................................................. 98
Auto Idle Stop
Continuously Variable Transmission ......... 264
Manual Transmission ............................... 267
Auto Idle Stop Indicator ............................ 80
Automatic Lighting .................................. 131
Average Fuel Economy .............................. 96
Average Fuel Economy Records ................ 96
Average Speed ........................................... 93
B
Back-Up Light........................................... 325
Battery ...................................................... 340
Charging System Indicator................. 72, 373
Jump Starting .......................................... 366
Maintenance (Checking the 12 Volt Battery) ................................................. 340
16 CR-Z-31SZT6500.book 399 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

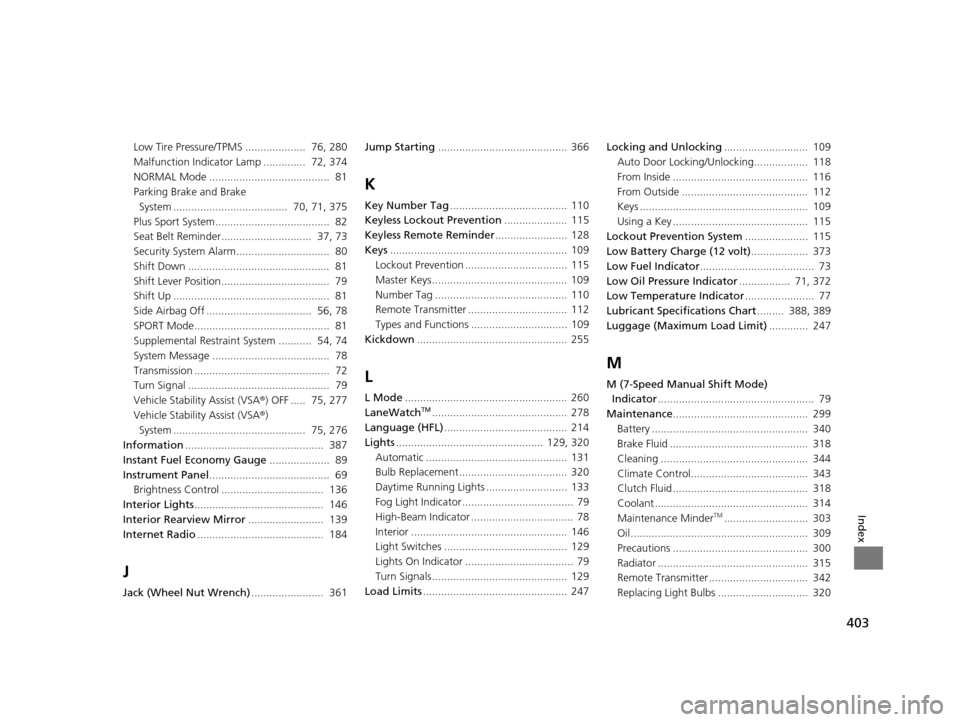

403
Index
Low Tire Pressure/TPMS .................... 76, 280
Malfunction Indicator Lamp .............. 72, 374
NORMAL Mode ........................................ 81
Parking Brake and Brake System ...................................... 70, 71, 375
Plus Sport System...................................... 82
Seat Belt Reminder.............................. 37, 73
Security System Alarm............................... 80
Shift Down ............................................... 81
Shift Lever Position.................................... 79
Shift Up .................................................... 81
Side Airbag Off ................................... 56, 78
SPORT Mode............................................. 81
Supplemental Restraint System ........... 54, 74
System Message ....................................... 78
Transmission ............................................. 72
Turn Signal ............................................... 79
Vehicle Stability Assist (VSA® ) OFF ..... 75, 277
Vehicle Stability Assist (VSA® )
System ............................................ 75, 276
Information .............................................. 387
Instant Fuel Economy Gauge .................... 89
Instrument Panel ........................................ 69
Brightness Control .................................. 136
Interior Lights ........................................... 146
Interior Rearview Mirror ......................... 139
Internet Radio .......................................... 184
J
Jack (Wheel Nut Wrench) ........................ 361Jump Starting
........................................... 366
K
Key Number Tag ....................................... 110
Keyless Lockout Prevention ..................... 115
Keyless Remote Reminder ........................ 128
Keys ........................................................... 109
Lockout Prevention .................................. 115
Master Keys ............................................. 109
Number Tag ............................................ 110
Remote Transmitter ................................. 112
Types and Functions ................................ 109
Kickdown .................................................. 255
L
L Mode...................................................... 260
LaneWatchTM............................................. 278
Language (HFL) ......................................... 214
Lights ................................................. 129, 320
Automatic ............................................... 131
Bulb Replacement .................................... 320
Daytime Running Lights ........................... 133
Fog Light Indicator ..................................... 79
High-Beam Indicator .................................. 78
Interior .................................................... 146
Light Switches ......................................... 129
Lights On Indicator .................................... 79
Turn Signals ............................................. 129
Load Limits ................................................ 247 Locking and Unlocking
............................ 109
Auto Door Locking/Unlocking.................. 118
From Inside ............................................. 116
From Outside .......................................... 112
Keys ........................................................ 109
Using a Key ............................................. 115
Lockout Prevention System ..................... 115
Low Battery Charge (12 volt) ................... 373
Low Fuel Indicator ...................................... 73
Low Oil Pressure Indicator ................. 71, 372
Low Temperature Indicator ....................... 77
Lubricant Specifications Chart ......... 388, 389
Luggage (Maximum Load Limit) ............. 247
M
M (7-Speed Manual Shift Mode)
Indicator .................................................... 79
Maintenance ............................................. 299
Battery .................................................... 340
Brake Fluid .............................................. 318
Cleaning ................................................. 344
Climate Control....................................... 343
Clutch Fluid ............................................. 318
Coolant ................................................... 314
Maintenance Minder
TM............................ 303
Oil ........................................................... 309
Precautions ............................................. 300
Radiator .................................................. 315
Remote Transmitter ................................. 342
Replacing Light Bulbs .............................. 320
16 CR-Z-31SZT6500.book 403 ページ ２０１５年９月１１日　金曜日　午前１１時４７分
