2016 HONDA CIVIC turn signal bulb

82
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
System Message
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.
●While the indicator is on, press the
(display/information) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
●The driver information interface does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
Turn Signal and
Hazard Warning
Indicators
●Blink when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately.
2 Replacing Light Bulbs P. 508, 511
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on whenever the light
switch is on, or in AUTO* when
the exterior lights are on.
●If you remove the key from the ignition
switch*1 while the exterior lights are on, a
chime sounds when the driver's door is
opened.—
Fog Light
Indicator*
●Comes on when the fog lights are
on.——
* Not available on all models
16 CIVIC 4D-31TBA6000.book 82 ページ ２０１５年８月３１日　月曜日　午後５時５６分

508
uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance
Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Front Turn Signal Light: 21 W (Amber)
Models with halogen headlights
Socket Bulb
Models with LED headlights
16 CIVIC 4D-31TBA6000.book 508 ページ ２０１５年８月３１日　月曜日　午後５時５６分

510
uuReplacing Light Bulbs uParking/Daytime Running Lights
Maintenance
4. Turn the socket clockwise to remove it,
then remove the old bulb.
5. Insert a new bulb.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Side turn lights are LED type. Have an au thorized Honda dealer inspect and replace
the light assembly.
Bulb
Socket
Passenger side
* Not available on all models
16 CIVIC 4D-31TBA6000.book 510 ページ ２０１５年８月３１日　月曜日　午後５時５６分

511
uuReplacing Light Bulbs uBrake Light, Tail/Rear Side Marker Light, Rear Turn Signal Light and Back-Up Light Bulbs
Maintenance

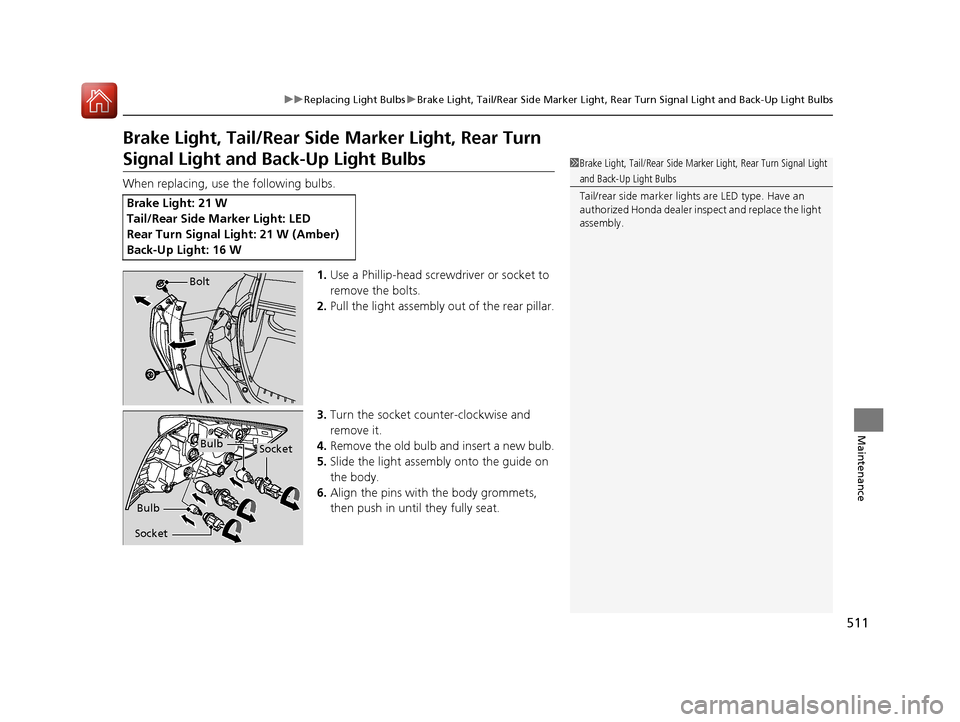

Brake Light, Tail/Rear Side Marker Light, Rear Turn
Signal Light and Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillip-head screwdriver or socket to
remove the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in until they fully seat.
Brake Light: 21 W
Tail/Rear Side Marker Light: LED
Rear Turn Signal Light: 21 W (Amber)
Back-Up Light: 16 W
1Brake Light, Tail/Rear Side Marker Light, Rear Turn Signal Light
and Back-Up Light Bulbs
Tail/rear side marker lights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Bolt
BulbSocket
Bulb
Socket
16 CIVIC 4D-31TBA6000.book 511 ページ ２０１５年８月３１日　月曜日　午後５時５６分

568
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
*
ModelHonda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,737 lbs (1,695 kg)
Canada: 1,695 kg
Gross Axle Weight
Rating (Front)U.S.: 1,984 lbs (900 kg)
Canada: 900 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,786 lbs (810 kg)
Canada: 810 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 2.7 – 3.6 oz (77 – 103 g)
2.0 ℓ engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.76 cu-in (1,996 cm3)
Spark Plugs NGK
DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Parking/Daytime Running LightsLED
Front Side Marker Lights 3W
Front Turn Signal Lights21W (Amber)
Brake Lights 21W
Rear Turn Signal Lights21W (Amber)
Rear Side Marker Lights LED
Back-Up Lights16W
Taillights LED
High-Mount Brake Light21W
Rear License Plate Light LED
Trunk Light5W
Interior Lights Map Lights 8W
Ceiling Light 8W
* Not available on all models
16 CIVIC 4D-31TBA6000.book 568 ページ ２０１５年８月３１日　月曜日　午後５時５６分

570
uuSpecifications u
Information
■Vehicle Specifications
■ Air Conditioning
ModelHonda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,902 lbs (1,770 kg)
Canada: 1,770 kg
Gross Axle Weight
Rating (Front)U.S.: 2,105 lbs (955 kg)
Canada: 955 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,808 lbs (820 kg)
Canada: 820 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 2.7 – 3.6 oz (77 – 103 g)
1.5 ℓ engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement91.26 cu-in (1,496 cm3)
Spark Plugs NGK ILZKAR8H8S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
*1: Except Tour models
*2: Tour models
Headlights (Low Beam)55W (H11)*1
LED*2
Headlights (High Beam) 60W (HB3)*1
LED*2
Fog Lights35W (H8)
Parking/Daytime Running Lights LED
Front Side Marker Lights3W
Front Turn Signal Lights 21W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21W
Rear Turn Signal Lights21W (Amber)
Rear Side Marker Lights LED
Back-Up Lights16W
Taillights LED
High-Mount Brake Light21W
Rear License Plate Light LED
Trunk Light5W
Interior Lights Map Lights 8W
Ceiling Light 8W
* Not available on all models
16 CIVIC 4D-31TBA6000.book 570 ページ ２０１５年８月３１日　月曜日　午後５時５６分

582
Index
Automatic Lighting.................................. 157
Average Fuel Economy ..................... 105, 109
Average Speed .......................................... 109
B
Battery....................................................... 525
Charging System Indicator ................. 77, 552
Jump Starting .......................................... 546
Maintenance (Checking the Battery) ........ 525
Maintenance (Replacing).......................... 527
Belts (Seat) .................................................. 36
Beverage Holders ...................................... 179
Bluetooth ® Audio ..................................... 276
Bluetooth ® HandsFreeLink ®............. 333, 356
Booster Seats (For Children) ....................... 69
Brake System ............................................. 451
Anti-lock Brake System (ABS) ................... 457
Automatic Brake Hold.............................. 454
Brake Assist System ................................. 458
Fluid ........................................................ 502
Foot Brake ............................................... 453
Indicator (Red) ........................... 74, 554, 555
Parking Brake .......................................... 451
Brightness Control (Instrument Panel) .... 162
Bulb Replacement ..................................... 504
Brake Light, Tail/Rear Side Marker Light, Rear
Turn Signal Lights and Back-Up Lights .... 511
Fog Lights ................................................ 506
Front Side Marker Lights .......................... 509
Front Turn Signal Lights ........................... 508 Headlights ............................................... 504
High-Mount Brake Light .......................... 513
Parking/Daytime Running Lights .............. 510
Rear License Plate Light ........................... 512
Side Turn Signal/Emergency Indicator
Lights .................................................... 510
Taillights.................................................. 512
Bulb Specifications ........................... 568, 570
C
Carbon Monoxide Gas ............................... 70
Carrying Cargo ................................. 391, 393
Certification Label .................................... 572
Changing Bulbs ........................................ 504
Charging System Indicator ................. 77, 552
Child Safety ................................................. 58
Childproof Door Locks............................. 136
Emergency Trunk Opener ........................ 143
Child Seat .................................................... 58
Booster Seats ............................................ 69
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 65
Larger Children ......................................... 68
Rear-facing Child Seat ............................... 60
Selecting a Child Seat ................................ 62
Using a Tether ........................................... 66
Childproof Door Locks ............................. 136
Cleaning the Exterior ............................... 532 Cleaning the Interior
............................... 530
Climate Control System ........................... 190
Changing the Mode................................ 190
Defrosting the Windshield and Windows ...................................... 188, 193
Dust and Pollen Filter .............................. 529
Recirculation/Fresh Air Mode........... 188, 192
Sensors ................................................... 196
Synchronized Mode ................................ 195
Using Automatic Climate Control............ 190
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 459
Coat Hooks ............................................... 184
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 459
Compact Spare Tire .................. 537, 569, 571
Console Compartment ............................. 178
Continuously Variable Transmission Creeping................................................. 404
Fluid ....................................................... 501
Kickdown ............................................... 404
Operating the Shift Lever .................. 24, 406
Shift Lever Does Not Move ...................... 549
Shifting ................................................... 405
Controls .................................................... 121
Coolant (Engine) ...................................... 499
Adding the Coolant ................................ 500
Overheating ............................................ 550
Creeping (Continuously Variable Transmission) .......................................... 404
16 CIVIC 4D-31TBA6000.book 582 ページ ２０１５年８月３１日　月曜日　午後５時５６分

585
Index
I
Identification Numbers............................ 572
Vehicle Identification............................... 572
Ignition Switch ......................................... 151
Illumination Control ................................ 162
Knob ...................................................... 162
Immobilizer System .................................. 144
Immobilizer System Indicator..................... 83
Indicators .................................................... 74
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ..................................... 87, 416
Anti-lock Brake System (ABS) .................... 79
Automatic Brake Hold ....................... 76, 454
Automatic Brake Hold System ........... 76, 454
Brake Depressing ...................................... 85
Charging System............................... 77, 552
Collision Mitigati on Braking System
TM
(CMBSTM) ................................................ 89
CRUISE CONTROL ............................. 84, 412
CRUISE MAIN.................................... 84, 411
Door and Trunk Open ......................... 35, 80
ECON Mode ..................................... 84, 410
Electric Power Steering (EPS) System ............................................ 80, 556
Fog Light .................................................. 82
High Beam ................................................ 82
Immobilizer System ................................... 83
Lane Keeping Assist System (LKAS) ... 88, 436
Lights On .................................................. 82
Low Fuel ................................................... 78
Low Oil Pressure ............................... 76, 552 Low Tire Pressure/TPMS ............. 81, 446, 449
Maintenance Minder ......................... 84, 479
Malfunction Indicator Lamp ............... 77, 553
Parking Brake and Brake System (Amber) ... 75
Parking Brake and Brake System
(Red)........................................ 74, 554, 555
Road Departure Mitigation (RDM) .............. 86
Seat Belt Reminder .............................. 38, 78
Security System Alarm ............................... 83
Shift Lever Position .................................... 77
Supplemental Restraint System ............ 55, 79
System Message ........................................ 82
Transmission .............................................. 78
Turn Signal ................................................ 82
Vehicle Stability Assist (VSA ®)
System............................................. 79, 441
VSA ® OFF .......................................... 80, 442
Washer Level ............................................. 84
Information ............................................... 567
Information Display .................................. 104
Instant Fuel Economy ....................... 105, 110
Instrument Panel ........................................ 73
Brightness Control ................................... 162
Interior Lights ........................................... 175
Interior Rearview Mirror .......................... 165
iPod ........................................................... 263
J
Jack (Wheel Nut Wrench) ........................ 540
Jump Starting ........................................... 546
K
Key Number Tag ....................................... 125
Keys ........................................................... 124
Keys ........................................................ 124
Number Tag ............................................ 125
Rear Door Won’t Open............................ 136
Remote Transmitter ................................. 131
Types and Functions ................................ 124
Won’t Turn ............................................... 28
Kickdown (Continuously Variable Transmission) .......................................... 404
L
Lane Keeping Assist System (LKAS) ......... 434
LaneWatchTM............................................ 444
Language (HFL) ................................ 334, 358
LATCH (Child Seats) .................................... 63
Lights ................................................. 156, 504
Automatic ............................................... 157
Bulb Replacement ................................... 504
Daytime Running Lights........................... 159
Fog Lights ............................................... 159
High Beam Indicator .................................. 82
Interior .................................................... 175
Light Switches ......................................... 156
Lights On Indicator .................................... 82
Turn Signals ............................................ 156
Load Limits ................................................ 393
16 CIVIC 4D-31TBA6000.book 585 ページ ２０１５年８月３１日　月曜日　午後５時５６分
