2016 HONDA ACCORD display

88 || 89
NAVIGATION
NAVIGATION
Using the navigation system while driving can take your attention away f\
rom
the road, causing a crash in which you could be seriously injured or killed.
operate system controls only when the conditions permit you to safely do \
so.
WARNING
Navigation Display and Controls
Touch icons on the screen to enter information and make selections.
Navigation: Display
the navigation screen.
BACK:
 Go back to the previous display. MENU: Display
navigation options.
Traffic flow
Current vehicle
position Traffic incident
icon
Search icon
Map menu
MAP: Display the
map screen.
Street name
Entering a Destination
Use several methods to enter a destination.
Home Address Store your home address in the system so you can easily route to it.
1. From the map screen, select the Search icon.
2. Select MeNU.
3. Select Set Home Location.
4. Select enter My Address.
5. Select Search All.
6. Enter the street number and select Done.
7. enter the street name and select Done. Select
the street from the list.
8. Select the address from the list. A map of the
address is shown. Select Select.
When your home address is stored, you can press the Talk button and say 
“Navigation” and then “Go home” at any time. You can also select Go Home from
the Where To? menu.
Street Address
enter a street address.
1. From the map screen, select the Search icon.
2. Select Address.
3. Select Search All.
4. Enter the street number and select Done.
5. enter the street name and select Done. Select
the street from the list.
6. Select the address from the list.
7. Select Go!.
You can also enter a street address using voice
commands. Press the Talk button and say 
“Navigation” and then “Find Address.” Follow the
prompts.

92 || 93
NAVIGATION
NAVIGATION
Routing
After a destination is set, you can alter or cancel your route.
Map Legend
During route guidance
Next guidance
point
Speed limit Search icon
Turn-by-turn directions
Shows a more detailed view of the next maneuver on the upper display.
Distance to next
guidance point Lane guidance
Cancel route
Current route
Traffic
view traffic flow and incidents in major metro areas. You can also select traffic to
avoid. Traffic coverage is limited in Canada.
Viewing traffic
1. From the map screen, select the traffic icon.
2. Select Traffic Conditions.
3. Traffic icons are shown on the map. Select the
magnifying glass icon to display a full list of
traffic delays.
Avoiding traffic on your route
1. From the map screen, select the traffic icon.
2. Select Traffic on route.
3. Select an incident to avoid from the list.
4. Select the menu icon.
5. Select Avoid.

104 || 105
DRIVING
DRIVING
Braking
Slow down or stop your vehicle, and keep it from moving when parked.
Foot Brake
Press the brake pedal to slow down or stop your 
vehicle from moving.
Brake Assist System
During hard or emergency braking, the system 
increases braking force. The brake pedal may move 
slightly or make a noise; this is normal. Continue to
hold the brake pedal firmly down. 
Anti-Lock Brake System (ABS)
During hard or emergency braking, the system 
rapidly pumps the brakes to prevent wheel lockup 
and help you maintain steering control. The brake 
pedal may pulsate slightly during ABS operation;
this is normal. Do not pump the brake pedal, and 
continue to hold it firmly down.
Parking Brake
Keep the vehicle from moving when it is parked.
To apply: Pull the lever up fully without pressing the
release button. 
To release: Press and hold the release button, then 
lower the lever down all the way.
Brake peda l
Brake pedal
The ABS may not function correctly if you use an incorrect tire type and size. 
NOTICE
Release the parking brake fully before driving. The rear brakes and axle can be 
damaged if you drive with the parking brake applied. 
NOTICE
Eco Assist System
Can help improve fuel economy by adjusting the performance of the engine, 
transmission, climate control system, and cruise control.
ECON Button
Press the ECON button to turn the system on or off. 
The eCoN Mode indicator and a message in the
multi-information display* appear when the system 
is turned on.
Ambient Meter
Color-coded bars change based on your driving 
style and brake or accelerator pedal operation.
Green: Fuel-efficient driving
Light green:
 Moderate acceleration/deceleration
White: Aggressive acceleration/deceleration
Ambient meter
Vehicle Stability Assist (VSA®), aka Electronic Stability Control
(ESC) System
Helps to stabilize the vehicle during cornering if the vehicle turns more or less 
than what was intended. It assists in maintaining traction on slippery surfaces by 
regulating engine output and selectively applying the brakes.
Turning VSA On or Off
vSA is turned on every time you start the engine,
even if you previously turned it off. If you turn VSA 
off, your vehicle has normal braking and cornering 
ability, but VSA traction and stability enhancement 
become less effective.
Press and hold the VSA OFF button until you hear a 
beep to turn VSA on or off. The VSA OFF indicator 
appears when the system is off.
Traction control becomes less effective, which may make it easier when trying to 
free your vehicle if it is stuck in mud or snow.
VSA OFF indicator
*if equipped

106 || 107
DRIVING
DRIVING
Cruise Control*
Maintain a constant vehicle speed without having to keep your foot on th\
e
accelerator pedal. Use cruise control on freeways or open roads where yo\
u can
travel at a constant speed with little acceleration or deceleration.
Activating and Setting the Vehicle Speed
1. Press the CRUISE button. The CRUISE MAIN indicator 
appears.
2. Accelerate to the desired speed (above 25 mph/
40 km/h). Take your foot off the pedal and press the -/
SET button to set the speed. The CRUISE CONTROL 
indicator appears.
Adjusting the Vehicle Speed
Press the RES/+ button to increase speed, or the -/SET 
button to decrease speed.
Each time you press the button, the vehicle speed is 
increased or decreased by about 1 mph (1.6 km/h). If you 
keep the button pressed, the vehicle speed increases or 
decreases until you release it.
Canceling Cruise Control
Press the CANCEL button or the brake pedal. The CRUISE 
CoNTroL indicator goes off.
After cruise control has been canceled, you can still 
resume the prior set speed by pressing the RES/+ button 
while driving at a speed of at least 25 mph (40 km/h).
Press the CRUISE button to turn the system off.
*if equipped
Improper use of cruise control can lead to a crash.
Use cruise control only when traveling on open highways in good weather.
WARNING
CRUISE button
RES/+ button
-/SET button
CANCEL button
*if equipped
Adaptive Cruise Control (ACC)*
Helps maintain a constant vehicle speed and a set following interval behind a 
vehicle detected ahead of yours.
Activating and Setting the Vehicle Speed
1. Press the MAIN button. The ACC indicator appears 
in the multi-information display.
2. Accelerate to the desired speed (above 25 mph/
40 km/h). Take your foot off the pedal and press the 
-/SET button to set the speed. 
Adjusting the Vehicle Speed
Press the RES/+ button to increase speed or the -/SET 
button to decrease speed.
Each time you press the button, the vehicle speed is 
increased or decreased by about 1 mph (1.6 km/h). 
If you keep the button pressed, the vehicle speed 
increases or decreases by 5 mph or 5 km/h until you 
release it.
Adjusting the Vehicle Distance
Press the Distance button to change the following 
interval. Each time you press the button, the setting 
cycles through short, middle, long, and extra long.
Switching to Standard Cruise Control
Press and hold the Distance button. Cruise Mode appears in the multi-information 
display. Press and hold the button again to switch back to ACC.
MAIN button
RES/+ button
CANCEL button
-/SET button
Distance button

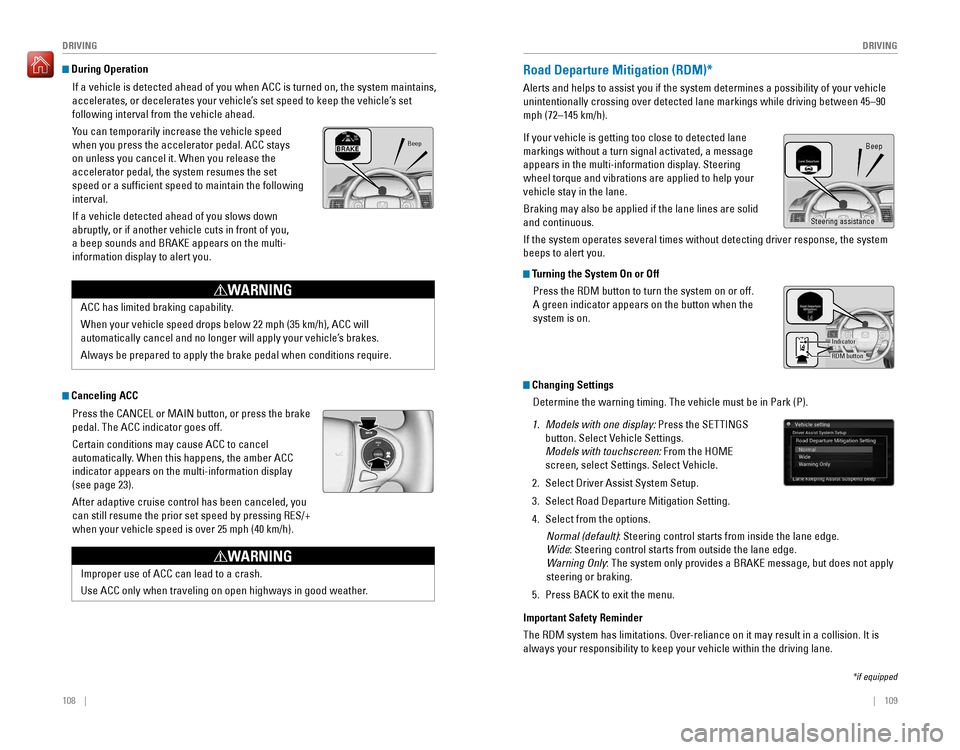

108 || 109
DRIVING
DRIVING
During Operation
If a vehicle is detected ahead of you when ACC is turned on, the system maintains, 
accelerates, or decelerates your vehicle’s set speed to keep the vehicle’s set
following interval from the vehicle ahead.
You can temporarily increase the vehicle speed
when you press the accelerator pedal. ACC stays
on unless you cancel it. When you release the 
accelerator pedal, the system resumes the set
speed or a sufficient speed to maintain the following
interval.
If a vehicle detected ahead of you slows down 
abruptly, or if another vehicle cuts in front of you, 
a beep sounds and BRAKE appears on the multi-
information display to alert you.
ACC has limited braking capability. 
When your vehicle speed drops below 22 mph (35 km/h), ACC will 
automatically cancel and no longer will apply your vehicle’s brakes. 
Always be prepared to apply the brake pedal when conditions require. 
WARNING
Canceling ACC
Press the CANCEL or MAIN button, or press the brake 
pedal. The ACC indicator goes off.
Certain conditions may cause ACC to cancel
automatically. When this happens, the amber ACC 
indicator appears on the multi-information display
(see page 23).
After adaptive cruise control has been canceled, you 
can still resume the prior set speed by pressing RES/+ 
when your vehicle speed is over 25 mph (40 km/h). 
Improper use of ACC can lead to a crash. 
Use ACC only when traveling on open highways in good weather.
WARNING
Beep
Road Departure Mitigation (RDM)*
Alerts and helps to assist you if the system determines a possibility of your vehicle 
unintentionally crossing over detected lane markings while driving between 45–90 
mph (72–145 km/h).
If your vehicle is getting too close to detected lane 
markings without a turn signal activated, a message
appears in the multi-information display. Steering
wheel torque and vibrations are applied to help your 
vehicle stay in the lane.
Braking may also be applied if the lane lines are solid 
and continuous.
If the system operates several times without detecting driver response, the system 
beeps to alert you.
Changing Settings
Determine the warning timing. The vehicle must be in Park (P).
1. Models with one display: Press the SETTINGS 
button. Select Vehicle Settings.
Models with touchscreen: From the HoMe
screen, select Settings. Select vehicle.
2. Select Driver Assist System Setup.
3. Select road Departure Mitigation Setting.
4. Select from the options.
Normal (default): Steering control starts from inside the lane edge.
Wide: Steering control starts from outside the lane edge.
Warning Only: The system only provides a BRAKE message, but does not apply 
steering or braking.
5. Press BACK to exit the menu.
Important Safety Reminder
The RDM system has limitations. Over-reliance on it may result in a collision. It is 
always your responsibility to keep your vehicle within the driving lane.
*if equipped
Beep
Turning the System On or Off
Press the RDM button to turn the system on or off. 
A green indicator appears on the button when the 
system is on.
RDM button
Indicator
Steering assistance

110 || 111
DRIVING
DRIVING
Lane Keeping Assist System (LKAS)*
Provides steering input to help keep the vehicle in the middle of a dete\
cted lane and
visual and tactile alerts if the vehicle is detected drifting out of its\
lane while driving
between 45–90 mph (72–145 km/h).
If your vehicle is getting too close to detected left 
or right side lane markings without a turn signal
activated, the system provides visual and tactile
alerts.
A Lane Departure message appears on the multi-
information display, and the steering wheel vibrates. 
Steering torque is also applied to help keep your 
vehicle within your driving lane. Take appropriate
action to stay within your driving lane.
Turning the System On or Off
1. Press the MAIN button. LKAS appears in the 
multi-information display.
2. Press the LKAS button. Lane outlines appear in 
the multi-information display. Dotted lane lines
turn solid when the system activates.
3. Press the MAIN button or the LKAS button to turn 
the system off.
Important Safety Reminder
LKAS is for your convenience only. It is not a substitute for your vehicle control. The 
system does not work if you take your hands off the steering wheel or fa\
il to steer
the vehicle.
Do not place an object on the top of the instrument panel. It may reflect onto the 
windshield and prevent the system from detecting lane lines properly.
MAIN button
*if equipped
Steering assistance
LKAS button
LaneWatch™*
Check the passenger-side rear areas in the upper display when the right turn signal
is activated.
Activating LaneWatch
Activate the right turn signal. The LaneWatch display 
appears. Check the display for blind spots, and 
visually confirm that it is safe to change lanes.
You can also press the LaneWatch button on the end 
of the turn signal switch to view a constant real-time
display. Press it again to turn the display off.
Changing Settings
Customize the display and how and when the display appears.
1. From the Home screen, select Settings.
2. Select Camera.
3. Select LaneWatch.
4. Select an option and make the preferred changes.
5. Press BACK to exit the menu.
Important Safety Reminder
Like all assistance systems, LaneWatch has limitations. Over-reliance on the system 
may result in a collision.
*if equipped
LaneWatch display
Failure to visually confirm that it is safe to change lanes before doing so may 
result in a crash and serious injury or death.
Do not rely only on LaneWatch while driving. Always look in your mirrors, to 
either side of your vehicle, and behind you for other vehicles before changing 
lanes.
WARNING

112 || 113
DRIVING
DRIVING
Collision Mitigation Braking System™ (CMBS™)*
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a 
pedestrian detected in front of yours.
The system can give you visual, audible, and tactile alerts when a potential collision 
is determined, and reduce your vehicle speed to help minimize collision severity 
when a collision is deemed unavoidable.
When a potential collision with a detected oncoming vehicle is determined, a BRAKE 
message appears in the multi-information display, the head-up warning lights flash,
a beep sounds, and the steering wheel vibrates.
The system activates when:
• 
The speed difference between your vehicle and a vehicle or pedestrian detected 
in front of you is about 3 mph (5 km/h) and over with a chance of a collision.
• Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a 
collision with an oncoming detected vehicle or a pedestrian in front of \
you.
*if equipped
Alert Stages
The system has three alert stages for a possible collision. Depending on the 
circumstances or CMBS settings, CMBS may not go through all of the stage\
s
before initiating the last stage.
Stage 1: Visual and audible warning, steering wheel vibrations
Stage 2: Visual and audible warning, light brake application
Stage 3: Visual and audible warning, strong brake application
Beep Head-up

warning lights 4UFFSJOH
WJCSBUJPOT
Important Safety Reminder
CMBS is designed to reduce the severity of an unavoidable collision. It does not 
prevent collisions nor stop the vehicle automatically. It is still your responsibility to 
operate the brake pedal and steering wheel appropriately according to the driving 
conditions.
Turning CMBS On or Off
Press and hold the CMBS OFF button. A beep sounds 
and a message appears in the multi-information
display. The CMBS indicator appears when the
system is off.CMBS oFF button
Changing Settings
Determine the warning timing. The vehicle must be in Park (P).
1. From the HoMe screen, select Settings.
2. Select vehicle.
3. Select Driver Assist System Setup.
4. Select Forward Collision Warning Distance.
5. Select Long, Normal, or Short.
6. Press BACK to exit the menu.
Parking Sensor System*
When the system senses an object when you are parking or backing up, indicators 
appear on the upper display and a series of beeps will sound.
Turning the System On or Off
Press the parking sensor button to turn the system 
on or off. A green indicator light appears on the
button when the system is on.
Screen indicators
*if equipped

114 || 115
DRIVING
DRIVING
Multi-View Rear Camera
When you shift into Reverse (R), a real-time image of the area behind your vehicle is 
shown in the upper display, along with helpful parking guidelines.
Changing Camera Settings
Turn the guidelines on or off.
1. Models with one display: Press the SETTINGS button.
Models with touchscreen: From the HoMe screen, select Settings.
2. Select Camera.
3. Select rear Camera.
4. Select an option.
Fixed Guidelines: Guidelines appear when you shift into reverse.
Dynamic Guidelines: Guidelines move as you turn the steering wheel.
5. Select on or off.
6. Press BACK to exit the menu.
Wide view
Press the selector knob or touch icons on the screen to change views.
Normal view Top down view
The rear camera view is restricted. You cannot see the corner ends of the bumper or what is underneath the bumper. Its unique lens also makes objects appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing up. Certain conditions (such as weather, lighting, and high temperatures) may also restrict the rear view. Do not rely on the rearview display, which does not give you all information about conditions at the rear of your vehicle.
Refueling
Use the proper fuel and refueling procedure to ensure the best performance and 
safety of your vehicle.
Fuel Information
Use of unleaded gasoline of 87 octane or higher is recommended.
• 
Honda recommends TOP TIER Detergent Gasoline where available.
• Do NOT use gasoline containing more than 15% ethanol.
• Do NoT use gasoline containing methanol.
• Do NoT use gasoline containing MMT.
How to Refuel
1. The fuel fill door is located at the left rear of the
vehicle. Park next to the service pump that is
most accessible.
2. Turn off the engine.
3. Push the fuel fill door release handle near the
bottom of the driver’s seat. The fuel fill door 
opens.
4. Turn the fuel fill cap slowly to open. Place the fuel
fill cap in the holder.
5. Insert the filler nozzle fully. When the tank is full, 
the fuel nozzle clicks off automatically.
6. replace the fuel fill cap. Tighten it until you hear
at least one click. Close the fuel fill door.
Push
Cap
Holder
Gasoline is highly flammable and explosive. You can be burned or seriously 
injured when handling fuel.
•  Stop the engine, and keep heat, sparks, and flame away.
•  Handle fuel only outdoors.
• 
Wipe up spills immediately.
WARNING
We recommend quality gasoline containing detergent additives that help 
prevent fuel system and engine deposits. In addition, in order to maintain good 
performance, fuel economy, and emissions control, we strongly recommend the
use of gasoline that does NOT contain harmful manganese-based fuel additives 
such as MMT, if such gasoline is available. 
NOTICE
