2016 HONDA ACCORD COUPE headlights

5
Quick Reference Guide
❙(+ / (- / / Buttons (P 190)
❙SOURCE Button (P 190)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 343, 374)
❙Navigation System Voice Control Buttons*
(P 235), () See Navigation System Manual
❙Steering Wheel Adjustments (P 158)
❙Wipers/Washers (P 152)
❙Paddle Shifte r (Shift up)* (P 432, 436)
❙Brightness Control (P 154)
❙ (Select/Reset) Knob (P 99)
❙ (Display) Button (P 193, 216)
❙Paddle Shifter (Shift down)* (P 432, 436)
❙LaneWatchTM *(P 473)
❙Fog Lights* (P 147)
❙Headlights/Turn Signals (P 145)
❙Adaptive Cruise Control (ACC) Buttons*
(P 448)
❙ (Information) Buttons* (P 102)
❙SEL/RESET Button* (P 103)
❙Lane Keeping Assist System (LKAS) Button*
(P 466)
❙Horn (Press an area around .)
❙Cruise Control Buttons (P 442)
❙Distance Button* (P 455)
❙MENU Button* (P 190)
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 5 ページ ２０１５年７月２３日　木曜日　午後４時１１分

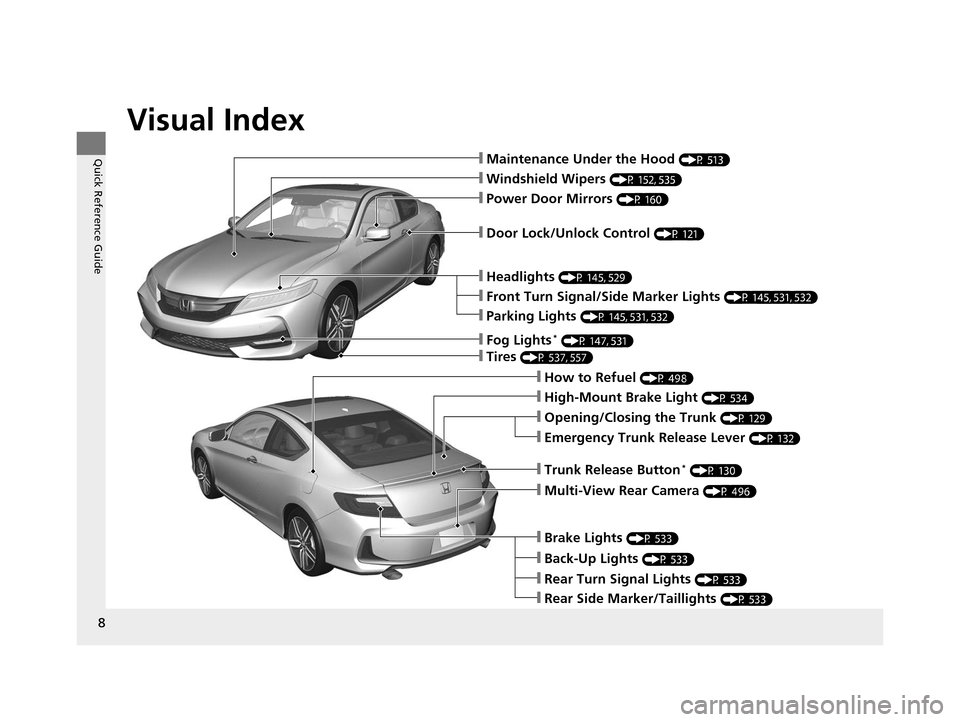

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P 513)
❙Windshield Wipers (P 152, 535)
❙Tires (P 537, 557)
❙Door Lock/Unlock Control (P 121)
❙Power Door Mirrors (P 160)
❙Headlights (P 145, 529)
❙How to Refuel (P 498)
❙High-Mount Brake Light (P 534)
❙Emergency Trunk Release Lever (P 132)
❙Opening/Closing the Trunk (P 129)
❙Parking Lights (P 145, 531, 532)
❙Front Turn Signal/Side Marker Lights (P 145, 531, 532)
❙Fog Lights* (P 147, 531)
❙Multi-View Rear Camera (P 496)
❙Trunk Release Button* (P 130)
❙Brake Lights (P 533)
❙Rear Side Marker/Taillights (P 533)
❙Rear Turn Signal Lights (P 533)
❙Back-Up Lights (P 533)
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 8 ページ ２０１５年７月２３日　木曜日　午後４時１１分

79
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
System
Message
Indicator
*
●Comes on for a few seconds when you
turn the ignition switch to ON
(w*1, then
goes off.
●Comes on along with a beep when a
problem is detected. A system message on
the multi-information display appears at
the same time.
●While the indicator is on, press the
(information) button to see the
message again.
●Refer to the Indicators information in
this chapter when a system message
appears on the multi-information
display. Take the appr opriate action for
the message.
●The multi-information display does not
return to the normal screen unless the
warning is canceled, or the
button is pressed.
—
Turn Signal
and Hazard
Warning
Indicators●Blinks when you operate the turn signal
lever.
●Blink along with all turn signals when you
press the hazard warning button.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown.
Change the bulb immediately.
2 Replacing Light Bulbs P. 532, 531,
533
—
High Beam
Indicator●Comes on when the high beam headlights
are on.——
Lights On
Indicator
●Comes on whenever the light switch is on,
or in AUTO when the exterior lights are
on.●If you remove the key from the ignition
switch*1 while the exteri or lights are on,
a chime sounds when the driver's door
is opened.—
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 79 ページ ２０１５年７月２３日　木曜日　午後４時１１分

82
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Smart Entry
System
Indicator
*
●Comes on for a few seconds when
you change the power mode to ON.
●Comes on as soon as a problem is
detected in the smart entry system
or push button starting system.
●Stays on constantly or does not come
on at all - Have your vehicle checked by a
dealer.
Starter System
Indicator*
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●Comes on if the starter system has a
problem.
●As a temporary measure, press and hold
the ENGINE START/STOP button for up to
15 seconds while pressing the brake pedal
and manually start the engine. Have your
vehicle checked by a dealer.
—
Light Control
Indicator*
●Comes on if there is a problem with
the automatic lighting control
system or low beam headlights
*.
●Comes on while driving - Turn the lights
on manually and have your vehicle checked
by a dealer.
—
U.S.
Canada
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 82 ページ ２０１５年７月２３日　木曜日　午後４時１１分

83
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Auto High-Beam
Indicator
(Green)
*
●Comes on when all the operating
conditions of the auto high-beam
are met.2Auto High-Beam (High Beam Support
System)* P. 148—
Auto High-Beam
Indicator
(Amber)
*
●Comes on if there is a problem with
the auto high-beam.●Manually operate the headlight switch.●If you are driving with the high-beam
headlights when this happens, the
headlights are changed to low beams.
—●Comes on when the area around
the camera on the windshield is
blocked by dirt, mud, etc.●Stop your vehicle in a safe place, and wipe
it off with a soft cloth.
●If the indicator does not go off after
cleaning the lens, have your vehicle
checked by a dealer.
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 83 ページ ２０１５年７月２３日　木曜日　午後４時１１分

90
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
Multi-Information Display Warn ing and Information Messages*
The following messages appear only on the mu lti-information display. Press the (information) button to see the message again
with the system me ssage indicator on.
MessageConditionExplanation
●Appears when the fuel fill cap is loose or is not
installed.
2Check/Tighten Fuel Cap Message P. 573
●Appears when the scheduled maintenance is due
soon. u Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Multi-
Information Display P. 510
●Appears when the engine coolant temperature gets
abnormally high.
2 Overheating P. 570
●Appears if there is a problem with the automatic
lighting control system.●Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
●Appears if there is a pr oblem with the low beam
headlights.●Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle chec ked by a dealer as soon as
possible.
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 90 ページ ２０１５年７月２３日　木曜日　午後４時１１分

91
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the auto high-
beam.●Manually operate the headlight switch.●If you are driving with th e high-beam headlights when
this happens, the headlights are changed to low beams.
●Appears when the area around the camera on the
windshield is blocked by dirt, mud, etc.●Stop your vehicle in a safe pl ace, and wipe it off with a
soft cloth.
●If the message does not disappear after cleaning the
lens, have your vehicl e checked by a dealer.
●Appears if there is a problem with the parking sensor
system. The beeper sounds.●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
●Appears when the washer fluid is low.●Refill the washer fluid.
2 Refilling Window Washer Fluid P. 528
Models with
auto high-beam
Models with
auto high-beam
Models with
parking sensor
system
Canadian models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 91 ページ ２０１５年７月２３日　木曜日　午後４時１１分

111
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Keyless
Access
Setup
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only*1/All Doors
Keyless Access Light
FlashCauses some exterior lights to blink when you
unlock/lock the doors.On*1/ Off
Keyless Access BeepSets the beeper sound or not when you grab either
door handle.On*1/Off
Remote Start System
ON/OFF*Turns the remote engine start feature on and off.ON*1/OFF
Lighting
Setup Interior Light Dimming
Time
Changes the length of time the interior lights stay on
after you close the doors.
60sec
/30sec
*1/15sec
Headlight Auto Off
Timer Changes the length of time
the exterior lights stay
on after you close the driver’s door. 60sec
/30sec /15sec
*1/ 0sec
Auto Light Sensitivity Changes the timing for the headlights to come on. Max/High /Mid
*1/Low /Min
* Not available on all models
