2016 HONDA ACCORD COUPE fog light bulb

531

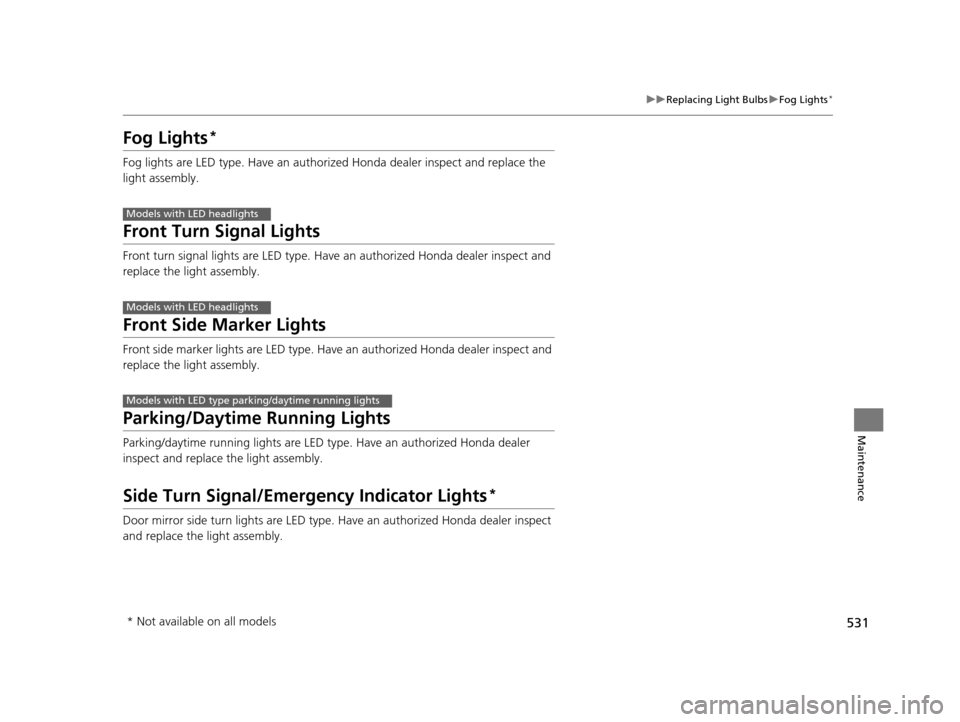

uuReplacing Light Bulbs uFog Lights*
Maintenance
Fog Lights*
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Front Side Marker Lights
Front side marker lights are LED type. Have an authorized Hond a dealer inspect and
replace the light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.
Side Turn Signal/Emer gency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Models with LED headlights
Models with LED headlights
Models with LED type parking/daytime running lights
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 531 ページ ２０１５年７月２３日　木曜日　午後４時１１分

582
Information
Specifications
■Vehicle Specifications
*1: LX-S models
*2: Except LX-S models
*3: LX models
*4: Except LX models
ModelHonda Accord Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,189 lbs (1,900 kg)*1
4,255 lbs (1,930 kg)*2
Canada: 1,900 kg*3
1,930 kg*4
Gross Axle Weight
Rating (Front)U.S.: 2,271 lbs (1,030 kg)*1
2,315 lbs (1,050 kg)*2
Canada: 1,040 kg*3
1,055 kg*4
Gross Axle Weight
Rating (Rear)U.S.: 1,962 lbs (890 kg)*1
2,006 lbs (910 kg)*2
Canada: 890 kg*3
910 kg*4
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
4-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*5: Models with halogen headlights
*6: Models with LED headlights
*7: Models with bulb type parking lights
*8: Models with LED type parking/daytime running lights
Headlights (Low Beam)55W (H11)*5
LED*6
Headlights (High Beam) 60W (HB3)*5
LED*6
Fog Lights*LEDFront Turn Signal/Side Marker/Parking Lights*5, *7
Front Turn Signal/Side Marker Lights*5, *828/8W (Amber)
Front Turn Signal Lights*6LED
Front Side Marker Lights*6LEDSide Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21W
Rear Side Marker/TaillightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Trunk Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4W
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 582 ページ ２０１５年７月２３日　木曜日　午後４時１１分

584
uuSpecifications u
Information
■Vehicle Specifications
*1: Manual transmission models
*2: Automatic transmission models
ModelHonda Accord Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,387 lbs (1,990 kg)*1
4,475 lbs (2,030 kg)*2
Canada: 1,990 kg*1
2,030 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,403 lbs (1,090 kg)*1
2,513 lbs (1,140 kg)*2
Canada: 1,090 kg*1
1,145 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 2,006 lbs (910 kg)
Canada: 910 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
6-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*3: Models with halogen headlights
*4: Models with LED headlights
Headlights (Low Beam)55W (H11)*3
LED*4
Headlights (High Beam) 60W (HB3)*3
LED*4
Fog LightsLED
Parking/Daytime Running Lights LED
Front Turn Signal/Side Marker Lights*328/8W (Amber)
Front Turn Signal Lights*4LEDFront Side Marker Lights*4LED
Side Turn Signal Lights
(on Door Mirrors) LED
Brake Lights21W
Rear Side Marker/Taillights LED
Back-Up Lights16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5WInterior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WCourtesy Lights2CP
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 584 ページ ２０１５年７月２３日　木曜日　午後４時１１分

599
Index
Automatic TransmissionCreeping................................................. 429
Fluid ....................................................... 526
Kickdown ............................................... 429
Operating the Shift Lever .................. 20, 435
Shift Lever Does Not Move ...................... 569
Shifting ................................................... 434
Auxiliary Input Jack ................................. 188
Average Fuel Economy .................... 100, 104
Average Speed ......................................... 105
B
Battery...................................................... 546
Charging System Indicator ................ 71, 572
Jump Starting ......................................... 566
Maintenance (Checking the Battery) ....... 546
Maintenance (Replacing) ......................... 547
Belts (Seat) .................................................. 34
Beverage Holders ..................................... 173
Bluetooth ® Audio ............................. 213, 268
Bluetooth ® HandsFreeLink ®............ 343, 374
Booster Seats (For Children) ...................... 65
Brake System ............................................ 479
Anti-lock Brake System (ABS) .................. 481
Brake Assist System................................. 482
Fluid ....................................................... 527
Foot Brake .............................................. 480
Indicator ........................................... 70, 574
Parking Brake.......................................... 479
Brake System Indicator (Amber) ............... 70Brake System Indicator (Red)
..................... 70
Brightness Control (Instrument Panel) .... 154
Bulb Replacement .................................... 529
Brake Lights, Back-Up Li ghts, Rear Turn Signal
Lights and Rear Side Ma rker/Taillights .... 533
Fog Lights ................................................ 531
Front Side Marker Lights .......................... 531
Front Turn Signal/Side Marker Lights ........ 532
Front Turn Signal/Si de Marker/Parking
Lights .................................................... 532
Headlights ............................................... 529
High-Mount Brake Light .......................... 534
Parking/Daytime Running Lights .............. 531
Rear License Plate Lights .......................... 534
Side Turn Signal/Em ergency Indicator
Lights .................................................... 531
Bulb Specifications ........................... 582, 584
C
Carbon Monoxide Gas ................................ 66
Cargo Hooks ............................................. 177
Carrying Cargo .................................. 413, 415
CD Player ........................................... 201, 252
Center Pocket ........................................... 172
Certification Label .................................... 586
Changing Bulbs ......................................... 529
Charging System Indicator ................. 71, 572
Child Safety ................................................. 54
Emergency Trunk Opener ........................ 132 Child Seat
.................................................... 54
Booster Seats ............................................ 65
Child Seat for Infants................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 61
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Using a Tether ........................................... 63
Cleaning the Exterior ............................... 552
Cleaning the Interior ................................ 550
Climate Control System ............................ 180
Changing the Mode ................................ 180
Defrosting the Windshield and Windows ............................................... 181
Dust and Pollen Filter............................... 549
Recirculation and Fresh Air Mode ............ 180
Sensors ................................................... 183
Synchronized Mode................................. 182
Using Automatic Climate Control ............ 180
Clock .......................................................... 116
Clutch Fluid ............................................... 527
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 483
Coat Hook ................................................. 177
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 483
Compact Spare Tire .................. 557, 583, 585
Compass .................................................... 409
Console Compartment ............................. 171
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 599 ページ ２０１５年７月２３日　木曜日　午後４時１１分

601
Index
Exhaust Gas Hazard (Carbon Monoxide) ................................................ 66
Expanded View Driver’s Mirror ............... 160
Exterior Care (Cleaning) .......................... 552
Exterior Mirrors ........................................ 160
F
Features.................................................... 185
Filters
Dust and Pollen....................................... 549
Oil .......................................................... 521
Flat Tire ..................................................... 557
Floor Mats ................................................ 551
Fluids Automatic Transmission .......................... 526
Brake/Clutch ........................................... 527
Continuously Variable Transmission
(CVT) .................................................... 525
Engine Coolant ....................................... 523
Manual Transmission .............................. 525
Windshield Washer ................................. 528
FM/AM Radio ................................... 199, 239
Fog Light Indicator .................................... 80
Folding Down the Rear Seat ................... 168
Foot Brake ................................................ 480
Front Airbags (SRS) .................................... 44
Front Seats ................................................ 161
Adjusting ................................................ 161
Front Sensor Camera ............................... 445 Fuel
...................................................... 22, 497
Economy ................................................. 499
Gauge ....................................................... 98
Instant Fuel Economy ....................... 100, 105
Low Fuel Indicator ..................................... 75
Range .............................................. 101, 104
Recommendation .................................... 497
Refueling ................................................. 497
Fuel Economy ............................................ 499
Fuel Fill Cap ......................................... 22, 498
Message .................................................. 573
Fuel Fill Door ....................................... 22, 498
Fuses .......................................................... 576
Inspecting and Changing ......................... 579
Locations ......................................... 576, 578
G
Gasoline (Fuel) Economy ................................................. 499
Gauge ....................................................... 98
Information ............................................. 497
Instant Fuel Economy ....................... 100, 105
Low Fuel Indicator ..................................... 75
Refueling ................................................. 497
Gauges ........................................................ 98
Gear Shift Lever Positions
Automatic Transmission ........................... 434
Continuously Variab le Transmission
(CVT) ..................................................... 430
Manual Transmission ............................... 439 Glass (care)
........................................ 550, 553
Glove Box .................................................. 171
H
Halogen Bulbs .......................................... 529
Handling the Unexpected ........................ 555
HandsFreeLink ® (HFL) ....................... 343, 374
Auto Answer ........................................... 358
Automatic Import of Ce llular Phonebook and
Call History .................................... 360, 388
Automatic Transferring............................ 358
Displaying Messages................................ 403
Displaying Text Messages ........................ 371
HFL Buttons..................................... 343, 374
HFL Menus ...................................... 345, 378
HFL Status Display ........................... 344, 376
In Case of Emergency .............................. 407
Limitations for Manual Operation .... 344, 377
Making a Call .................................. 364, 396
Options During a Call ...................... 369, 400
Phone Setup.................................... 350, 383
Phonebook Phonetic Modification ........... 392
Receiving a Call ............................... 368, 399
Receiving a Text Message ........................ 370
Receiving a Text Message/E-mail.............. 401
Ring Tone........................................ 359, 387
Selecting a Mail Account ......................... 402
Speed Dial ....................................... 361, 389
To Create a Security PIN .......................... 357
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 601 ページ ２０１５年７月２３日　木曜日　午後４時１１分

603
Index
Keys........................................................... 118
Lockout Prevention ................................. 125
Master Keys ............................................ 118
Number Tag............................................ 119
Remote Engine Start ............................... 425
Remote Transmitter ................................ 123
Types and Functions................................ 118
Valet Key ........................................ 119, 131
Won’t Turn ............................................... 25
Kickdown (Automatic Transmission /CVT) ........................................................ 429
L
Lane Keeping Assist System (LKAS) ........ 464
LaneWatchTM............................................ 473
Language (HFL) ................................ 344, 376
LATCH (Child Seats) ................................... 59
Lights ................................................ 145, 529
Auto High-Beam ..................................... 148
Automatic............................................... 146
Bulb Replacement ................................... 529
Daytime Running Lights .......................... 151
Fog Lights ............................................... 147
High Beam Indicator ................................. 79
Interior.................................................... 169
Light Switches......................................... 145
Lights On Indicator.................................... 79
Turn Signals ............................................ 145
Load Limits ............................................... 415 Locking/Unlocking
.................................... 118
Auto Door Locking/Unlocking .................. 128
From Inside .............................................. 126
From Outside ........................................... 121
Keys ........................................................ 118
Using a Key ............................................. 125
Lockout Prevention System ...................... 125
Low Battery Charge .................................. 572
Low Fuel Indicator ...................................... 75
Low Oil Pressure Indicator ................. 71, 572
Low Smart Entry Remote Signal
Strength .................................................. 120
Lower Anchors ............................................ 59
Lubricant Specifications Chart ......... 582, 584
Luggage (Maximum Load Limit) ............. 415
M
Maintenance............................................. 501
Battery .................................................... 546
Brake/Clutch Fluid ................................... 527
Cleaning .................................................. 550
Climate Control System ........................... 549
Coolant ................................................... 523
Maintenance Minder
TM............................ 505
Oil ........................................................... 518
Precautions .............................................. 502
Radiator .................................................. 524
Remote Transmitter ................................. 547
Replacing Light Bulbs ............................... 529 Safety...................................................... 503
Service Items ................................... 507, 511
Tires ........................................................ 537
Transmission Fluid ................................... 525
Under the Hood ...................................... 513
Malfunction Indicator Lamp .............. 71, 573
Manual Transmission ............................... 438
Map Lights ................................................ 170
Maximum Load Limit ............................... 415
Meters, Gauges ........................................... 98
Mirrors ...................................................... 159
Adjusting ................................................ 159
Door ....................................................... 160
Exterior ................................................... 160
Interior Rearview ..................................... 159
Modifications (and Accessories) .............. 500
Moonroof ................................................. 139
MP3 ................................... 201, 210, 252, 265
Multi-Information Display ....................... 102
Multi-View Rear Camera .......................... 496
N
Numbers (Identification).......................... 586
O
Odometer......................................... 100, 104
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 603 ページ ２０１５年７月２３日　木曜日　午後４時１１分

606
Index
Troubleshooting....................................... 555
Blown Fuse ...................................... 576, 578
Brake Pedal Vibrates .................................. 26
Buzzer Sounds When Opening Door .......... 26
Emergency Towing .................................. 580
Engine Won’t Start .................................. 563
Noise When Braking .................................. 27
Overheating............................................. 570
Puncture/Flat Tire ..................................... 557
Shift Lever Won’t Move ........................... 569
Warning Indicators .................................... 70
Trunk ......................................................... 129
Lid ........................................................... 129
Light Bulb ........................................ 582, 584
Main Switch ............................................ 131
Turn Signals ............................................... 145
Indicators (Instrum ent Panel) ...................... 79
U
Unlocking the Doors ................................. 121
Unlocking the Doors from the Inside ........ 13
USB Flash Drives ........................ 210, 265, 294
USB Port(s) ................................................. 187
Using the Smart Entry wi th Push Button Start
System ...................................................... 121
V
Valet Key ........................................... 119, 131
Vanity Mirrors ............................................... 7 Vehicle Identification Number
................ 586
Vehicle Stability Assist (VSA ®).................. 471
Off Button............................................... 472
Off Indicator.............................................. 76
System Indicator ........................................ 76
Ventilation ................................................ 180
Viscosity (Oil) ............................ 517, 583, 585
Voice Control Operation .......................... 235
Audio Commands ................................... 237
Climate Control Commands .................... 238
General Commands ................................ 238
Music Search Commands ........................ 238
On Screen Commands............................. 238
Phone Commands ................................... 237
Useful Commands ................................... 237
Voice Portal Screen.................................. 236
Voice Recognition ................................... 235
VSA ® (Vehicle Stability Assist) .................. 471
W
Wallpaper......................................... 195, 222
Warning and Information Messages ... 88, 90
Warning Indicator On/Blinking ............... 572
Warning Labels ........................................... 67
Warranties (Warranty Manual provided separately) .............................................. 591
Watts ................................................. 582, 584
Wear Indicators (Tire) .............................. 542
Wheel Nut Wrench (Jack Handle) ........... 560
Wi-Fi Connection ...................................... 275 Window Washers
..................................... 152
Adding/Refilling Fluid .............................. 528
Switch .................................................... 152
Windows (Opening and Closing) ............ 136
Windshield ............................................... 152
Cleaning ......................................... 550, 553
Defrosting/Defogging ............................. 181
Washer Fluid ........................................... 528
Wiper Blades........................................... 535
Wipers and Washers ............................... 152
Winter Tires
Snow Tires .............................................. 545
Tire Chains.............................................. 545
Wipers and Washers ................................ 152
Automatic Intermittent Wipers ................ 153
Checking and Replacing Wiper Blades..... 535
Wireless Charger ...................................... 175
WMA ................................. 201, 210, 252, 265
Worn Tires ................................................ 537
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 606 ページ ２０１５年７月２３日　木曜日　午後４時１１分
