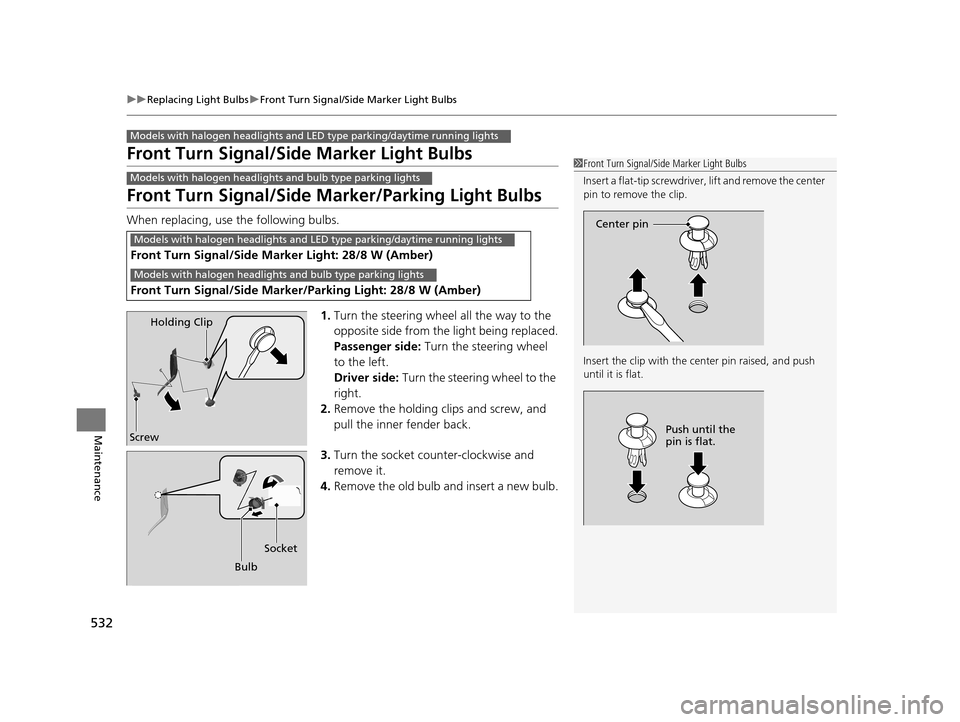

uuReplacing Light Bulbs uFront Turn Signal/Side Marker Light Bulbs
Maintenance
Front Turn Signal/Side Marker Light Bulbs
Front Turn Signal/Side Marker/Parking Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clips and screw, and
pull the inner fender back.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
Front Turn Signal/Side Marker Light: 28/8 W (Amber)
Front Turn Signal/Side Marker/P arking Light: 28/8 W (Amber)
Models with halogen headlights and LED type parking/daytime running lights
1Front Turn Signal/Side Marker Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Center pin
Push until the
pin is flat.
Models with halogen headlights and bulb type parking lights
Models with halogen headlights and LED type parking/daytime running lights
Models with halogen headlights and bulb type parking lights
Holding Clip
Screw
Bulb Socket
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 532 ページ ２０１５年７月２３日　木曜日　午後４時１１分

533

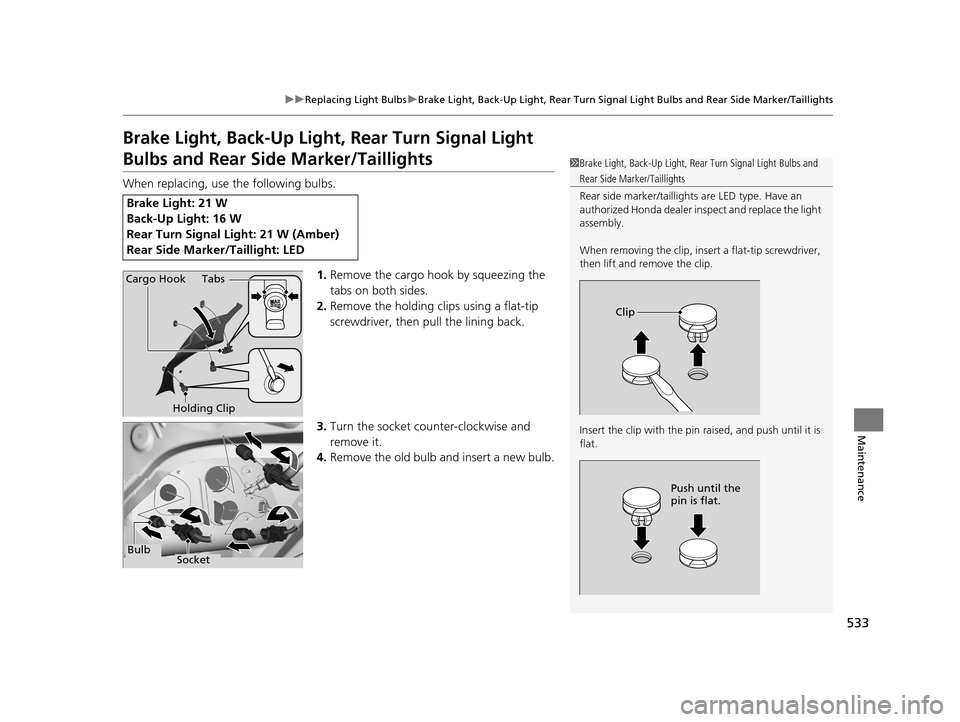

uuReplacing Light Bulbs uBrake Light, Back-Up Light, Rear Turn Signa l Light Bulbs and Rear Side Marker/Taillights
Maintenance
Brake Light, Back-Up Light, Rear Turn Signal Light
Bulbs and Rear Side Marker/Taillights
When replacing, use the following bulbs.
1.Remove the cargo hook by squeezing the
tabs on both sides.
2. Remove the holding cl ips using a flat-tip
screwdriver, then pull the lining back.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
Brake Light: 21 W
Back-Up Light: 16 W
Rear Turn Signal Light: 21 W (Amber)
Rear Side Marker/Taillight: LED
1Brake Light, Back-Up Light, Rear Turn Signal Light Bulbs and
Rear Side Marker/Taillights
Rear side marker /taillights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is
flat.
Clip
Push until the
pin is flat.
Holding Clip
TabsCargo Hook
BulbSocket
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 533 ページ ２０１５年７月２３日　木曜日　午後４時１１分

546
Maintenance
Battery
Checking the Battery
Check the battery terminals for corrosion
monthly.
The battery condition is being monitored by
the sensor on the negative terminal. If there is
a problem with the sensor, the warning
message on the information display
*/multi-
information display* will let you know. Have
your vehicle checked by a dealer.
If your vehicle's battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 189
•The clock resets.
2 Clock P. 116
•The navigation system* is disabled.
2 Refer to the Navigation System Manual
Charging the Battery
Disconnect both battery cables to prevent da maging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1 Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 546 ページ ２０１５年７月２３日　木曜日　午後４時１１分

Index
598
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 432
Operation ................................................ 433
A
ABS (Anti-lock Brake System) ................... 481
Accessories and Modifications ................. 500
Accessory Power Sockets .......................... 174
Adaptive Cruise Control (ACC) ........... 85, 447
Additives Coolant ................................................... 523
Engine Oil ................................................ 517
Washer .................................................... 528
Additives, Engine Oil ................................ 517
Adjusting
Clock ....................................................... 116
Front Seats .............................................. 161
Head Restraints........................................ 164
Mirrors .................................................... 159
Rear Seats................................................ 168
Steering Wheel ........................................ 158
Temperature .................................... 101, 105
Aha
TM......................................................... 264
Air Conditioning System (Climate Control System) .................................................... 180
Changing the Mode ................................ 180
Defrosting the Windshield and Windows ............................................... 181
Dust and Pollen Filter ............................... 549 Recirculation/Fresh Air Mode ................... 180
Sensor ..................................................... 183
Synchronized Mode................................. 182
Using Automatic Climate Control ............ 180
Air Pressure ............................... 538, 583, 585
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
After a Collision ........................................ 44
Airbag Care............................................... 53
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator.............................................. 51, 75
Passenger Airbag Off Indicator .................. 52
Sensors ..................................................... 41
Side Airbags .............................................. 48
Side Curtain Airbags.................................. 50
AM/FM Radio .................................... 199, 239
Android Auto ........................................... 281
Anti-lock Brake System (ABS) .................. 481
Indicator.................................................... 75
Apple CarPlay ........................................... 277
Audio Remote Controls ........................... 190
Audio System ............................................ 186
Adjusting the Sound........................ 197, 232
Audio/Information Screen................ 193, 216
Audio/Information Touch Screen ............. 218
Auxiliary Input Jack.................................. 188
Changing the Home Screen Icon
Layout ................................................... 221
Closing Apps ........................................... 231 Display Setup .................................. 198, 233
Error Messages ....................................... 286
General Information................................ 291
Home Screen .......................................... 224
Internet Radio ......................... 207, 262, 264
iPod ........................................ 204, 255, 294
Limitations for Manual
Operation ............................. 234, 344, 377
MP3/WMA/AAC ............. 201, 210, 252, 265
Playing a CD ................................... 201, 252
Recommended CDs ................................ 292
Recommended Devices ........................... 294
Remote Controls ..................................... 190
Security Code ......................................... 189
Selecting an Audio Source ...................... 234
Status Area ............................................. 230
Theft Protection ...................................... 189
USB Flash Drives...................... 210, 265, 294
USB Port(s) .............................................. 187
Wallpaper Setup ............................. 195, 222
Audio/Information Screen ............... 193, 216
Audio/Information Touch Screen ............ 218
Authorized Manuals ................................ 593
Auto Door Locking/Unlocking ................ 128
Customize .............................. 112, 309, 332
Auto High-Beam (High Beam Support System) .................................................... 148
Indicator ................................................... 83
Automatic Intermittent Wipers .............. 153
Automatic Lighting .................................. 146
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 598 ページ ２０１５年７月２３日　木曜日　午後４時１１分

599
Index
Automatic TransmissionCreeping................................................. 429
Fluid ....................................................... 526
Kickdown ............................................... 429
Operating the Shift Lever .................. 20, 435
Shift Lever Does Not Move ...................... 569
Shifting ................................................... 434
Auxiliary Input Jack ................................. 188
Average Fuel Economy .................... 100, 104
Average Speed ......................................... 105
B
Battery...................................................... 546
Charging System Indicator ................ 71, 572
Jump Starting ......................................... 566
Maintenance (Checking the Battery) ....... 546
Maintenance (Replacing) ......................... 547
Belts (Seat) .................................................. 34
Beverage Holders ..................................... 173
Bluetooth ® Audio ............................. 213, 268
Bluetooth ® HandsFreeLink ®............ 343, 374
Booster Seats (For Children) ...................... 65
Brake System ............................................ 479
Anti-lock Brake System (ABS) .................. 481
Brake Assist System................................. 482
Fluid ....................................................... 527
Foot Brake .............................................. 480
Indicator ........................................... 70, 574
Parking Brake.......................................... 479
Brake System Indicator (Amber) ............... 70Brake System Indicator (Red)
..................... 70
Brightness Control (Instrument Panel) .... 154
Bulb Replacement .................................... 529
Brake Lights, Back-Up Li ghts, Rear Turn Signal
Lights and Rear Side Ma rker/Taillights .... 533
Fog Lights ................................................ 531
Front Side Marker Lights .......................... 531
Front Turn Signal/Side Marker Lights ........ 532
Front Turn Signal/Si de Marker/Parking
Lights .................................................... 532
Headlights ............................................... 529
High-Mount Brake Light .......................... 534
Parking/Daytime Running Lights .............. 531
Rear License Plate Lights .......................... 534
Side Turn Signal/Em ergency Indicator
Lights .................................................... 531
Bulb Specifications ........................... 582, 584
C
Carbon Monoxide Gas ................................ 66
Cargo Hooks ............................................. 177
Carrying Cargo .................................. 413, 415
CD Player ........................................... 201, 252
Center Pocket ........................................... 172
Certification Label .................................... 586
Changing Bulbs ......................................... 529
Charging System Indicator ................. 71, 572
Child Safety ................................................. 54
Emergency Trunk Opener ........................ 132 Child Seat
.................................................... 54
Booster Seats ............................................ 65
Child Seat for Infants................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 61
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Using a Tether ........................................... 63
Cleaning the Exterior ............................... 552
Cleaning the Interior ................................ 550
Climate Control System ............................ 180
Changing the Mode ................................ 180
Defrosting the Windshield and Windows ............................................... 181
Dust and Pollen Filter............................... 549
Recirculation and Fresh Air Mode ............ 180
Sensors ................................................... 183
Synchronized Mode................................. 182
Using Automatic Climate Control ............ 180
Clock .......................................................... 116
Clutch Fluid ............................................... 527
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 483
Coat Hook ................................................. 177
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 483
Compact Spare Tire .................. 557, 583, 585
Compass .................................................... 409
Console Compartment ............................. 171
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 599 ページ ２０１５年７月２３日　木曜日　午後４時１１分
