2016 FORD TRANSIT CONNECT Owners Manual

Circuits protected
Fuse Rating
Fuse
Accessories.
40A **
F26
Trailer tow module.
Taxi.
40A **
F27
Not used.
-
F28
Rear view camera.
5A *
F29
Parking aid.
5A *
F30
Not used.
-
F31
Not used.
-
F32
Not used.
-
F33
Driver heated seat.
15A *
F34
Passenger heated seat.
15A *
F35
Not used.
-
F36
Power sunblind.
20A *
F37
Taxi.
10A *
F38
Not used.
-
F39
Rear heating.
7.5A *
F40
Ventilation and air conditioning module ignition feed.
Taxi connector.
10A *
F41
Taxi connector.
20A *
F42
Not used.
-
F43
Not used.
-
F44
Not used.
-
F45
Not used.
-
F46
* Mini fuses **
Cartridge fuses
190
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing Fuses

Circuits switched
Relay
Ignition switch.
R1
Rear heating, ventilation and air conditioning motor.
R2
Ventilation and air conditioning motor.
Not used.
R3
Not used.
R4
Not used.
R5
Not used.
R6
CHANGING A FUSE
Fuses WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
Standard Fuse Amperage Rating and Color Color
J-type fuses
M-type fuses
Dual micro fuses
Micro fuses
Fuse rating
-
-
Tan
Tan
5A
-
-
Brown
Brown
7.5A
-
-
Red
Red
10A
-
Grey
Blue
Blue
15A
Blue
Light Blue
-
Yellow
20A
White
White
-
White
25A
Pink
Pink
-
Green
30A
191
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing FusesE142430

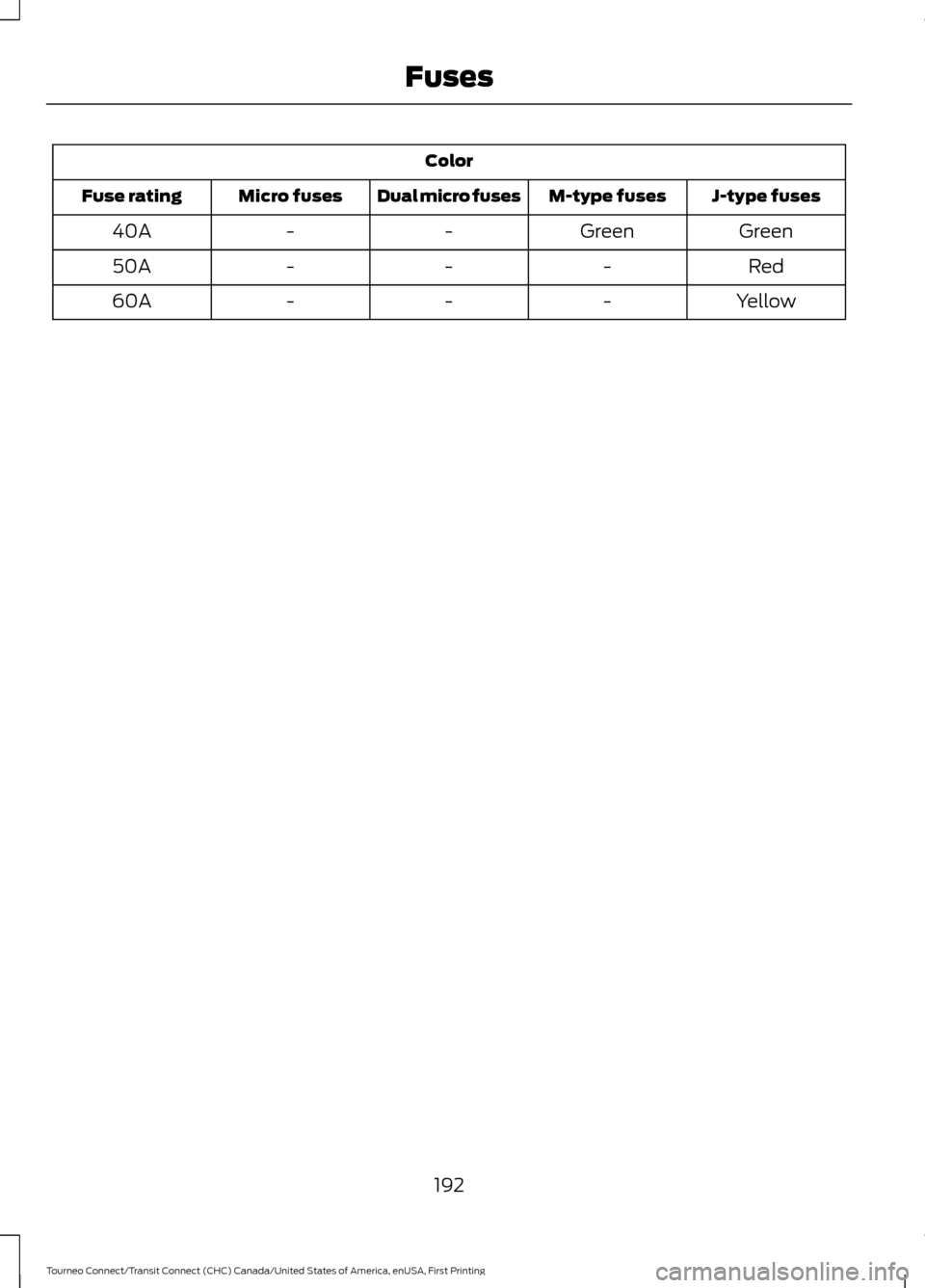

Color
J-type fuses
M-type fuses
Dual micro fuses
Micro fuses
Fuse rating
Green
Green
-
-
40A
Red
-
-
-
50A
Yellow
-
-
-
60A
192
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing Fuses

GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.
If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.
Precautions
•
Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.
• Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts.
Working with the Engine Off
1. Set the parking brake and shift to park
(P).
2. Switch off the engine.
3. Block the wheels. Working with the Engine On WARNING
To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner
removed and do not remove it while the
engine is running. 1.
Set the parking brake and shift to park
(P).
2. Block the wheels.
OPENING AND CLOSING THE
HOOD
Opening the Hood 1. Open the front door.
2. Pull the hood release handle.
193
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing MaintenanceE164919

3. Move the catch to the left.
4.
Open the hood and support it with the
support rod.
Closing the Hood
1. Remove the support rod from the catch
and secure correctly.
2. Lower the hood and allow it to drop under its own weight for the last 8
inches to 12 inches (20 centimeters
to 30 centimeters).
Note: Make sure the hood is fully closed.
194
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing MaintenanceE164920 E87786

UNDER HOOD OVERVIEW - 1.6L
Engine coolant reservoir
*
: See Engine Coolant Check (page 198).
A
Engine oil filler cap *
:
See Engine Oil Check (page 197).
B
Engine oil dipstick *
:
See Engine Oil Check (page 197).
C
Brake and clutch fluid reservoir *
:
See Brake Fluid Check (page 200).
D
Battery:
See Changing the 12V Battery (page 201).
E
Engine compartment fuse box:
See Fuses (page 181).
F
Air cleaner:
See Changing the Engine Air Filter (page 212).
G
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 200).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
195
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing MaintenanceA
HG
DBCEF
E163400

UNDER HOOD OVERVIEW - 2.5L
Engine coolant reservoir
*
: See Engine Coolant Check (page 198).
A
Engine oil filler cap *
:
See Engine Oil Check (page 197).
B
Engine oil dipstick *
:
See Engine Oil Check (page 197).
C
Brake and clutch fluid reservoir *
:
See Brake Fluid Check (page 200).
D
Battery:
See Changing the 12V Battery (page 201).
E
Engine compartment fuse box:
See Fuses (page 181).
F
Air cleaner:
See Changing the Engine Air Filter (page 212).
G
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 200).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
196
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing MaintenanceBCA
HG
DEF
E166456

ENGINE OIL DIPSTICK - 1.6L
ECOBOOST™
Minimum.
A
Maximum.
B
ENGINE OIL DIPSTICK - 2.5L Minimum
A
Maximum
B
ENGINE OIL CHECK
1. Make sure that your vehicle is on level ground.
2. Check the oil level before starting the engine, or switch the engine off and
wait 15 minutes for the oil to drain into
the oil pan. 3. Remove the dipstick and wipe it with
a clean, lint free cloth. Replace the
dipstick and remove it again to check
the oil level.
If the oil level is at the minimum mark, add
oil immediately. See Capacities and
Specifications (page 249).
Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by your vehicle warranty.
Note: Make sure that the oil level is
between the minimum and the maximum
marks.
Note: The oil consumption of new engines
reaches its normal level after approximately
3,000 mi (5,000 km)
.
Adding Engine Oil Only use oils certified for gasoline engines
by the American Petroleum Institute (API).
An oil with this trademark symbol
conforms to the current engine and
emission system protection standards and
fuel economy requirements of the
International Lubricants Specification
Advisory Council (ILSAC), comprised of
U.S. and Japanese automobile
manufacturers.
197
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing MaintenanceE141337
AB E142462 E142732
