2016 FORD POLICE INTERCEPTOR UTILITY Owners Manual

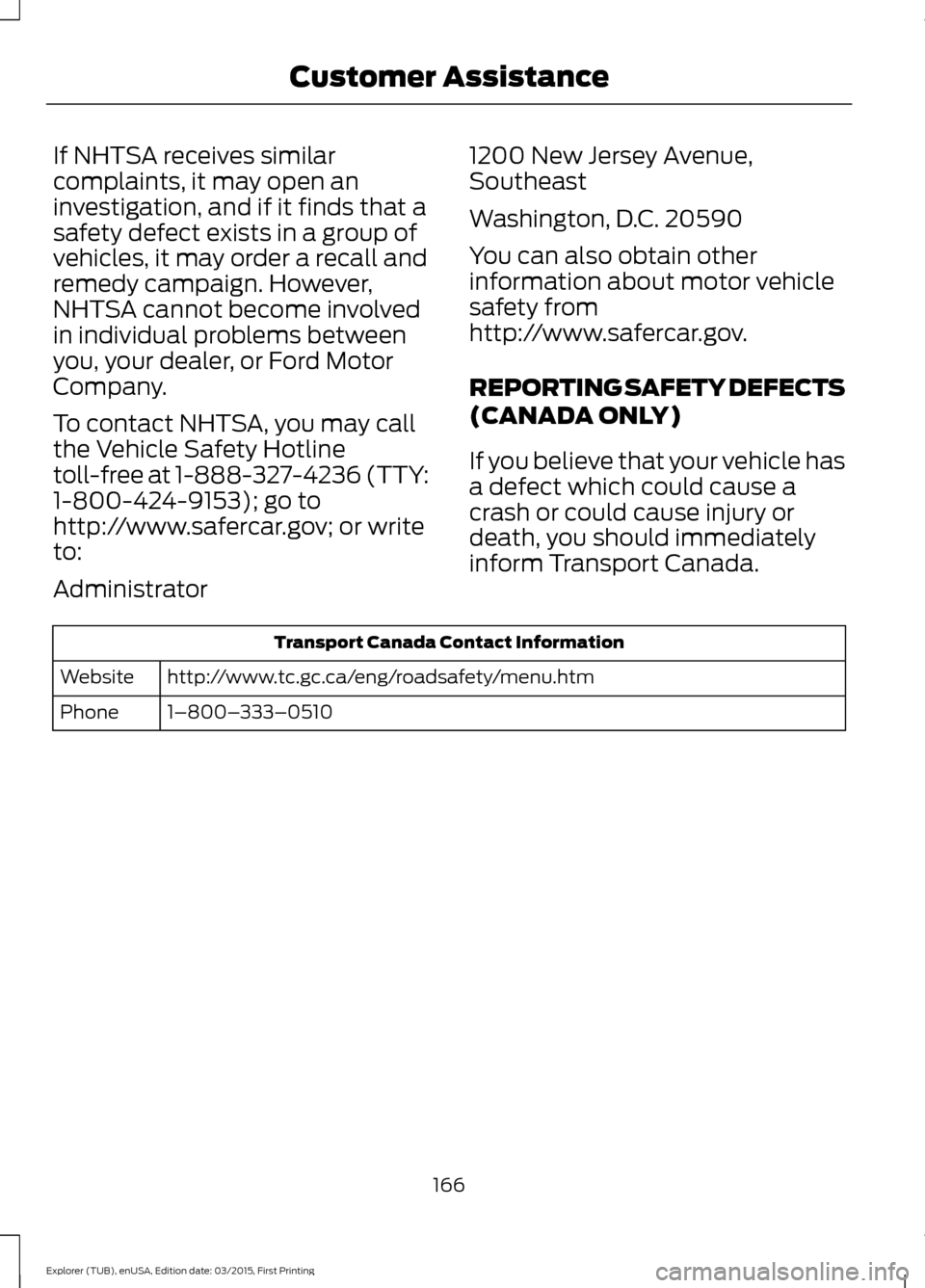

If NHTSA receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Ford Motor
Company.
To contact NHTSA, you may call
the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to
http://www.safercar.gov; or write
to:
Administrator
1200 New Jersey Avenue,
Southeast
Washington, D.C. 20590
You can also obtain other
information about motor vehicle
safety from
http://www.safercar.gov.
REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately
inform Transport Canada.Transport Canada Contact Information
http://www.tc.gc.ca/eng/roadsafety/menu.htm
Website
1–800–333–0510
Phone
166
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Customer Assistance

FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high-current fuses.
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs. The power distribution box is located in
the engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.
If the battery has been disconnected and
reconnected, some features will need to
be reset. See Changing the 12V Battery
(page 187).
167
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing FusesE193713

Protected components
Fuse amp rating
Fuse or relay number
Powertrain control module power.
20A 1
1
Engine emissions (MIL).
20A 1
2
A/C clutch control relay coil.
20A 1
3
VACC.
Ignition coils.
20A 1
4
Not used.
—
5
Not used.
—
6
Not used.
—
7
Not used.
—
8
Not used.
—
9
Heated mirrors.
15A 1
10
Right hand side electronic cooling fan 3
relay.
—
11
Heated rear window.
40A 2
12
Not used.
—
13
Powertrain control module relay.
—
14
Horn relay power.
20A 1
15
A/C clutch relay power.
10A 1
16
Rear heated window and heated mirrors
relay.
—
17
Rear blower motor relay.
—
18
Not used.
—
19
Left hand side cooling fan relay.
—
20
Cooling fans series/parallel relay.
—
21
Electronic fan relay 2.
25A 2
22
Not used.
—
23
168
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
24
Not used.
—
25
Anti-lock brake system valves.
30A 2
26
Police power tap #1.
40A 2
27
Not used.
—
28
Run/start relay.
—
29
Not used.
—
30
Electric power-assisted steering.
10A 1
31
Anti-lock brake system module.
10A 1
32
Powertrain control module (ISPR).
10A 1
33
Blind spot information system.
10A 1
34
Rear camera.
Not used.
—
35
Blower motor relay.
—
36
Not used.
—
37
A/C compressor clutch relay.
—
38
Horn relay.
—
39
Not used.
—
40
Rear blower motor.
40A 2
41
Not used.
—
42
Front blower motor.
40A 2
43
Voltage quality module bus.
50A 3
44
Electric fan relay 1.
40A 3
45
Police rear power outlet #1.
50A 3
46
Not used.
—
47
169
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Body control module RP1 bus.
50A 3
48
Not used.
—
49
Body control module RP2 bus.
50A 3
50
Electric fan relay 3.
50A 3
51
Anti-lock brake system pump.
60A 3
52
Police rear power outlet #2.
50A 3
53
Not used.
—
54
Police power tap #3.
40A 2
55
Police power tap #2.
40A 2
56
Not used.
—
57
Not used.
—
58
Passenger seat power.
30A 2
59
Power point #1 (instrument panel).
20A 2
60
Not used.
—
61
Power point #2(instrument panel).
20A 2
62
Fuel pump.
30A 2
63
Not used.
—
64
Not used.
—
65
Not used.
—
66
Not used.
—
67
Not used.
—
68
Not used.
—
69
Trailer tow left-hand and right-hand stop
and direction indicator lamps.
20A
2
70
Not used.
—
71
170
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Police power transfer unit cooler.
20A 2
72
Driver seat power.
30A 2
73
Not used.
—
74
Front wiper motor.
30A 2
75
Not used.
—
76
Not used.
—
77
Not used.
—
78
Starter relay.
30A 2
79
Not used.
—
80
Police start.
5A 1
81
Not used.
—
82
Brake on/off switch.
10A 1
83
Not used.
—
84
Police run/start #2.
20A 1
85
Not used.
—
86
Not used.
—
87
Not used.
—
88
Police run/start #1.
20A 1
89
Not used.
—
90
Not used.
—
91
Police adjustable pedals.
15A 1
92
Alternator sense.
10A 1
93
Rear washer relay.
15A 1
94
Rear wiper relay.
15A 1
95
171
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Powertrain control module relay coil
power.
10A
1
96
Not used.
—
97
Police spot light.
20A 1
98
Trailer tow parking lamp relay.
20A 1
99
1 Micro fuse.
2 M-type fuse.
3 J-type fuse.
Passenger Compartment Fuse
Panel
The fuse panel is located under the
instrument panel to the left of the steering
column. Note:
It may be easier to access the fuse
panel if you remove the finish trim piece. Protected components
Fuse amp rating
Fuse or relay number
Demand lamps.
10A 1
1
Battery saver.
172
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing FusesE145984

Protected components
Fuse amp rating
Fuse or relay number
Police battery saver tap-in (14-way).
Not used.
—
2
Driver unlock relay.
20A 1
3
Police brake on/off tap-in.
5A 1
4
Police battery feed #2.
20A 1
5
Not used.
—
6
Not used.
—
7
Not used.
—
8
Police battery feed #3.
10A 1
9
Not used.
—
10
Rear climate control module.
5A 2
11
Front climate control module.
7.5A 2
12
Instrument cluster.
7.5A 2
13
Smart data link.
Steering column control module.
Not used.
—
14
Smart datalink connector power.
10A 2
15
Not used.
—
16
Electronic finish panel.
5A 2
17
Ignition switch.
5A 2
18
Key inhibit.
Transmission control switch (Police low
gear).
7.5A
2
19
Police SWIM module.
7.5A 2
20
Humidity sensor.
5A 2
21
Occupant classification sensor.
5A 2
22
173
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Fuses
