2016 FORD FLEX tow

Voice Control....................................................74
Cruise Control
..................................................74
Information Display Control
.......................74
Heated Steering Wheel
................................74
Pedals
Adjusting the Pedals.....................................75
Wipers and Washers
Windshield Wipers
.........................................76
Autowipers........................................................76
Windshield Washers
......................................77
Rear Window Wiper and Washers............77
Lighting
General Information
......................................79
Lighting Control
..............................................79
Autolamps.......................................................80
Instrument Lighting Dimmer......................81
Headlamp Exit Delay.....................................81
Daytime Running Lamps
.............................82
Automatic High Beam Control..................82
Front Fog Lamps............................................83
Adaptive Headlamps
....................................83
Direction Indicators.......................................84
Interior Lamps
.................................................84
Ambient Lighting...........................................85
Windows and Mirrors
Power Windows
.............................................86
Exterior Mirrors
................................................87
Interior Mirror
...................................................89
Sun Visors.........................................................89
Moonroof..........................................................89
Instrument Cluster
Gauges................................................................91
Warning Lamps and Indicators.................92
Audible Warnings and Indicators.............95 Information Displays
General Information
......................................97
Information Messages
................................105
Climate Control
Manual Climate Control..............................114
Automatic Climate Control - Vehicles With: Premium AM/FM/CD...................115
Automatic Climate Control - Vehicles With: Sony Audio System.......................117
Hints on Controlling the Interior Climate..........................................................118
Rear Passenger Climate Controls............121
Heated Windows and Mirrors
....................121
Cabin Air Filter
................................................122
Remote Start
..................................................122
Seats
Sitting in the Correct Position..................123
Head Restraints
.............................................123
Manual Seats
.................................................126
Power Seats
....................................................127
Memory Function
.........................................128
Rear Seats
.......................................................129
Heated Seats.................................................136
Climate Controlled Seats...........................137
Universal Garage Door Opener
Universal Garage Door Opener...............138
Auxiliary Power Points
Auxiliary Power Points................................143
Storage Compartments
Center Console
..............................................145
Overhead Console
.......................................146
2
Flex (), enUSA, First Printing Table of Contents

Starting and Stopping the
Engine
General Information....................................147
Ignition Switch
...............................................147
Keyless Starting.............................................147
Starting a Gasoline Engine.......................148
Engine Block Heater
.....................................151
Fuel and Refueling
Safety Precautions
.......................................153
Fuel Quality....................................................154
Fuel Filler Funnel Location........................154
Running Out of Fuel....................................154
Refueling..........................................................155
Fuel Consumption........................................157
Emission Control System
..........................158
Transmission
Automatic Transmission
.............................161
All-Wheel Drive
Using All-Wheel Drive.................................165
Brakes
General Information.....................................172
Hints on Driving With Anti-Lock Brakes............................................................172
Parking Brake..................................................173
Traction Control
Principle of Operation.................................174
Using Traction Control................................174
Stability Control
Principle of Operation
.................................175
Using Stability Control
................................176
Parking Aids
Principle of Operation..................................177 Rear Parking Aid.............................................177
Active Park Assist.........................................178
Rear View Camera
.......................................182
Cruise Control
Principle of Operation
.................................185
Using Cruise Control....................................185
Using Adaptive Cruise Control................186
Driving Aids
Blind Spot Information System..............192
Cross Traffic Alert
.........................................194
Steering............................................................197
Collision Warning System
.........................198
Load Carrying
Cargo Nets
......................................................201
Roof Racks and Load Carriers.................201
Load Limit.......................................................201
Towing
Towing a Trailer............................................209
Trailer Sway Control
....................................210
Recommended Towing Weights............210
Essential Towing Checks...........................212
Transporting the Vehicle
............................215
Towing the Vehicle on Four Wheels......216
Driving Hints
Breaking-In......................................................218
Economical Driving
......................................218
Driving Through Water................................219
Floor Mats........................................................219
Roadside Emergencies
Roadside Assistance
...................................221
Hazard Warning Flashers..........................222
Fuel Shutoff
...................................................222
Jump Starting the Vehicle.........................223
3
Flex (), enUSA, First Printing Table of Contents

PROTECTING THE
ENVIRONMENT
You must play your part in protecting the
environment. Correct vehicle usage and
the authorized disposal of waste, cleaning
and lubrication materials are significant
steps toward this aim.
14
Flex (), enUSA, First Printing Environment

Use a child safety seat (sometimes called
an infant carrier, convertible seat, or
toddler seat) for infants, toddlers or
children weighing 40 lb (18 kg) or less
(generally age four or younger).
Using Lap and Shoulder Belts WARNINGS
Airbags can kill or injure a child in a
child seat. Never place a rear-facing
child seat in front of an active airbag.
If you must use a forward-facing child seat
in the front seat, move the seat upon which
the child seat is installed all the way back. Airbags can kill or injure a child in a
child seat. Children 12 and under
should be properly restrained in the
rear seat whenever possible. Depending on where you secure a
child restraint, and depending on the
child restraint design, you may block
access to certain seatbelt buckle
assemblies and LATCH lower anchors,
rendering those features potentially
unusable. To avoid risk of injury, occupants
should only use seating positions where
they are able to be properly restrained. When installing a child safety seat with
combination lap and shoulder belts:
•
Use the correct seatbelt buckle for that
seating position.
• Insert the belt tongue into the proper
buckle until you hear a snap and feel it
latch. Make sure the tongue is securely
fastened in the buckle.
• Keep the buckle release button
pointing up and away from the safety
seat, with the tongue between the child
seat and the release button, to prevent
accidental unbuckling.
• Place the vehicle seat upon which the
child seat will be installed in the upright
position. •
For second-row seating positions,
adjust the recliner slightly to improve
child seat fit. If needed, remove the
head restraints.
• For third-row seating positions, stow
the head restraints to improve child
seat fit. See
Head Restraints (page
123).
• Put the seatbelt in the automatic
locking mode. See Step 5. This vehicle
does not require the use of a locking
clip.
Perform the following steps when
installing the child seat with combination
lap and shoulder belts:
Note: Although the child seat illustrated is
a forward facing child seat, the steps are
the same for installing a rear facing child
seat.
Note: The lock-off device on some child
restraints may not accommodate the
shoulder portion of the inflatable seatbelt.
Follow all instructions provided by the
manufacturer of the child restraint regarding
the necessary and proper use of the lock-off
device. In some instances these devices
have been provided only for use in vehicles
with seatbelt systems that would otherwise
require a locking clip.
Standard seatbelts 17
Flex (), enUSA, First Printing Child SafetyE142528

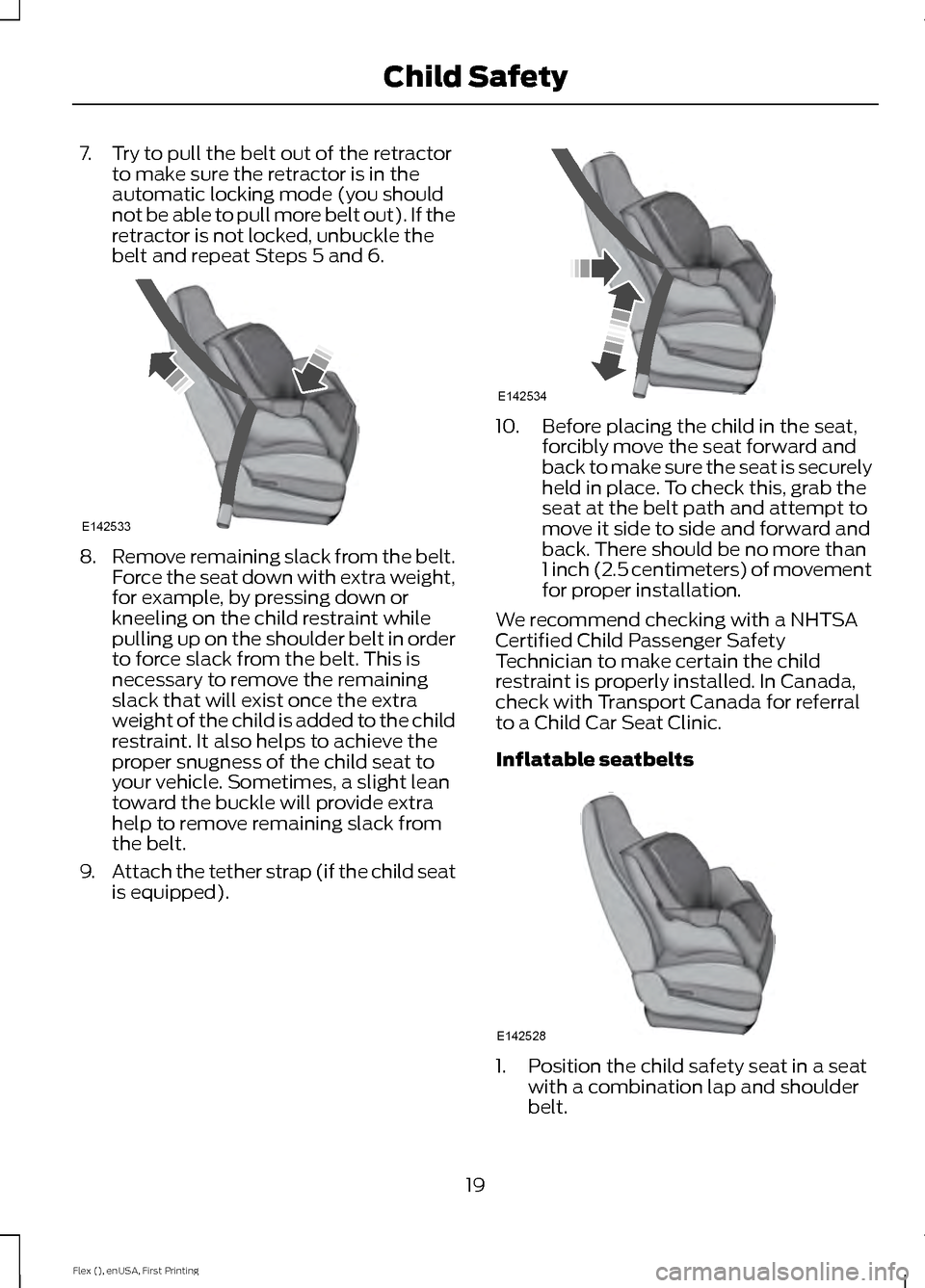

7. Try to pull the belt out of the retractor
to make sure the retractor is in the
automatic locking mode (you should
not be able to pull more belt out). If the
retractor is not locked, unbuckle the
belt and repeat Steps 5 and 6. 8.
Remove remaining slack from the belt.
Force the seat down with extra weight,
for example, by pressing down or
kneeling on the child restraint while
pulling up on the shoulder belt in order
to force slack from the belt. This is
necessary to remove the remaining
slack that will exist once the extra
weight of the child is added to the child
restraint. It also helps to achieve the
proper snugness of the child seat to
your vehicle. Sometimes, a slight lean
toward the buckle will provide extra
help to remove remaining slack from
the belt.
9. Attach the tether strap (if the child seat
is equipped). 10. Before placing the child in the seat,
forcibly move the seat forward and
back to make sure the seat is securely
held in place. To check this, grab the
seat at the belt path and attempt to
move it side to side and forward and
back. There should be no more than
1 inch (2.5 centimeters) of movement
for proper installation.
We recommend checking with a NHTSA
Certified Child Passenger Safety
Technician to make certain the child
restraint is properly installed. In Canada,
check with Transport Canada for referral
to a Child Car Seat Clinic.
Inflatable seatbelts 1. Position the child safety seat in a seat
with a combination lap and shoulder
belt.
19
Flex (), enUSA, First Printing Child SafetyE142533 E142534 E142528

Note:
Unlike the standard seatbelt, the
inflatable seatbelt's unique lap portion locks
the child seat for installation. The ability for
the shoulder portion of the belt to move
freely is normal, even after the lap belt has
been put into the automatic locking mode.
Note: The lock-off device on some child
restraints may not accommodate the
shoulder portion of the inflatable seatbelt.
Follow all instructions provided by the
manufacturer of the child restraint regarding
the necessary and proper use of the lock-off
device. In some instances, these devices
have been provided only for use in vehicles
with seatbelt systems that would otherwise
require a locking clip.
6. Allow the belt to retract to remove slack. The belt will click as it retracts
to indicate it is in the automatic locking
mode.
7. Try to pull the belt out of the retractor to make sure the retractor is in the
automatic locking mode (you should
not be able to pull more belt out). If the
retractor is not locked, unbuckle the
belt and repeat Steps 5 and 6. 8.
Remove remaining slack from the belt.
Force the seat down with extra weight,
for example, by pressing down or
kneeling on the child restraint while
pulling down on the lap belt in order to
force slack from the belt. This is necessary to remove the remaining
slack that will exist once the extra
weight of the child is added to the child
restraint. It also helps to achieve the
proper snugness of the child seat to
your vehicle. Sometimes, a slight lean
toward the buckle will additionally help
to remove remaining slack from the
belt.
9. Attach the tether strap (if the child seat
is equipped). 10. Before placing the child in the seat,
forcibly move the seat forward and
back to make sure the seat is securely
held in place. To check this, grab the
seat at the belt path and attempt to
move it side to side and forward and
back. There should be no more than
1 inch (2.5 centimeters) of movement
for proper installation.
We recommend checking with a NHTSA
Certified Child Passenger Safety
Technician to make certain the child
restraint is properly installed. In Canada,
check with Transport Canada for referral
to a Child Car Seat Clinic.
21
Flex (), enUSA, First Printing Child SafetyE146525 E142534

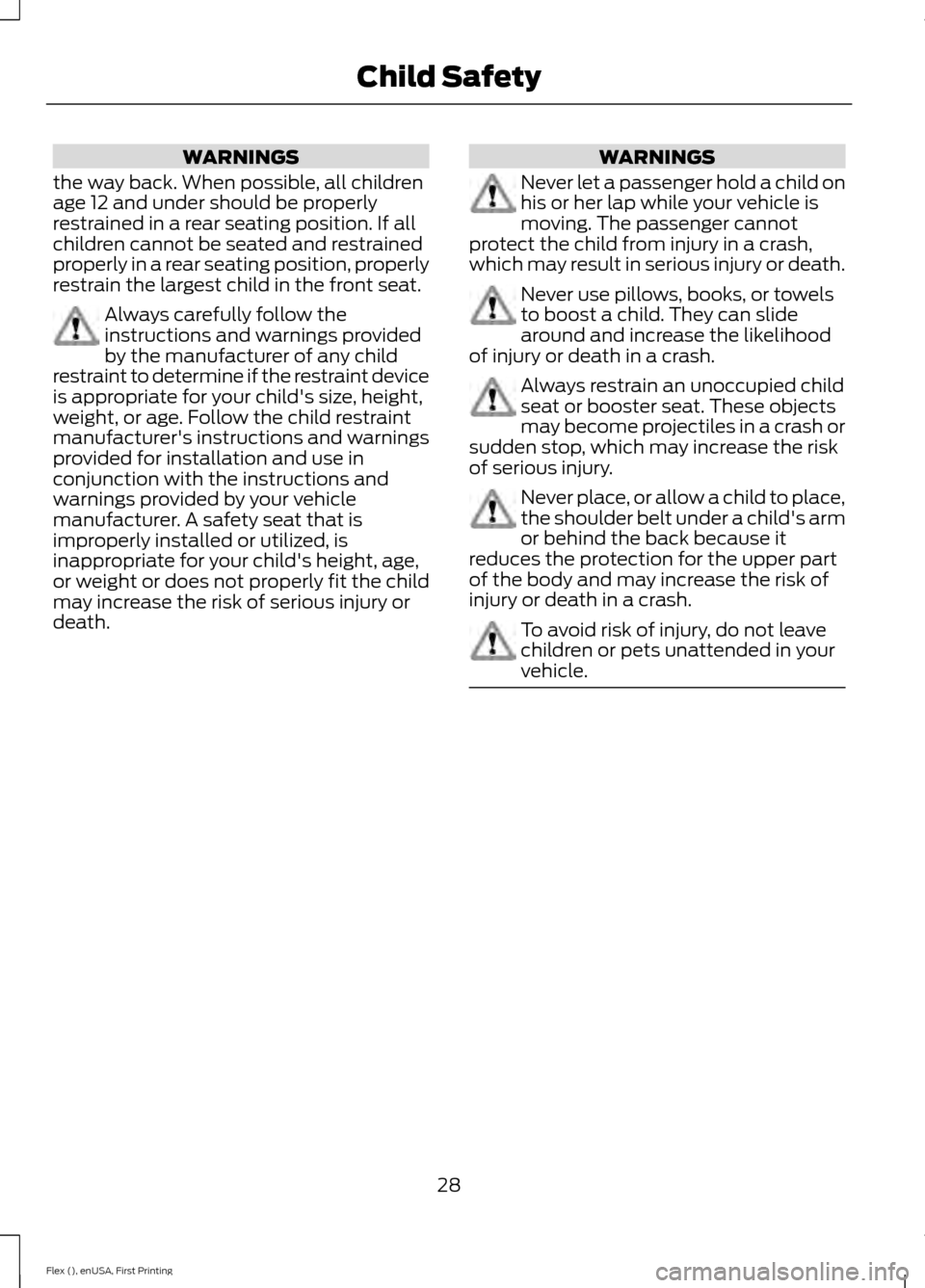

WARNINGS
the way back. When possible, all children
age 12 and under should be properly
restrained in a rear seating position. If all
children cannot be seated and restrained
properly in a rear seating position, properly
restrain the largest child in the front seat. Always carefully follow the
instructions and warnings provided
by the manufacturer of any child
restraint to determine if the restraint device
is appropriate for your child's size, height,
weight, or age. Follow the child restraint
manufacturer's instructions and warnings
provided for installation and use in
conjunction with the instructions and
warnings provided by your vehicle
manufacturer. A safety seat that is
improperly installed or utilized, is
inappropriate for your child's height, age,
or weight or does not properly fit the child
may increase the risk of serious injury or
death. WARNINGS
Never let a passenger hold a child on
his or her lap while your vehicle is
moving. The passenger cannot
protect the child from injury in a crash,
which may result in serious injury or death. Never use pillows, books, or towels
to boost a child. They can slide
around and increase the likelihood
of injury or death in a crash. Always restrain an unoccupied child
seat or booster seat. These objects
may become projectiles in a crash or
sudden stop, which may increase the risk
of serious injury. Never place, or allow a child to place,
the shoulder belt under a child's arm
or behind the back because it
reduces the protection for the upper part
of the body and may increase the risk of
injury or death in a crash. To avoid risk of injury, do not leave
children or pets unattended in your
vehicle.
28
Flex (), enUSA, First Printing Child Safety

How does the rear inflatable seatbelt
system work?
WARNING
If the rear inflatable seatbelt has
deployed, it will not function again.
The rear inflatable seatbelt system
must be replaced by an authorized dealer. The rear inflatable seatbelts will function
like standard restraints in everyday usage.
During a crash of sufficient force, the
inflatable belt will inflate from inside the
webbing. The fully inflated belt's increased diameter
more effectively holds the occupant in the
appropriate seating position, and spreads
crash forces over more area of the body
than regular seatbelts. This helps reduce
pressure on the chest and helps control
head and neck motion for passengers.
The rear inflatable seatbelts are designed
to inflate in frontal or near-frontal crashes
and some side impact crashes. The fact
that the rear inflatable seatbelt did not
inflate in a crash does not mean that
something is wrong with the system.
Rather, it means the forces were not of the
type sufficient to cause activation.
Stowing the Rear Inflatable Seatbelt
The rear inflatable seatbelt has a snap
retainer for stowing the seatbelt against
the quarter trim panel when it is not in use.
This will prevent the seatbelt tongue from
rattling against the side of the seat and
keep it out of the way when folding or
tumbling the second row seats.
Press the retainer on the seatbelt onto the
mating snap to stow. To use the seatbelt,
pull it away from the quarter trim panel.
35
Flex (), enUSA, First Printing SeatbeltsE146364 E146365 E209845
