2016 FORD FIESTA display

Alarm
Action
Message
indicator
Message
See Security (page 63).
Amber
Alarm triggered Check vehicle
See
Security (page 63).
Amber
Interior scan deactivated
Have the system checked by an
authorized dealer.
-
Alarm system malfunction Service
required
Doors Open Action
Message
indicator
Message
Vehicle is moving. Stop your vehicle
as soon as safely possible and
close.
Red
Driver door open
Vehicle is moving. Stop your vehicle
as soon as safely possible and
close.
Red
Driver side rear door open
Vehicle is moving. Stop your vehicle
as soon as safely possible and
close.
Red
Passenger door open
Vehicle is moving. Stop your vehicle
as soon as safely possible and
close.
Red
Passenger side rear door open
Vehicle is moving. Stop your vehicle
as soon as safely possible and
close.
Red
Trunk open
Vehicle is moving. Stop your vehicle
as soon as safely possible and
close. See
Opening and Closing
the Hood (page 177).
Red
Hood open
Vehicle not moving. Close.
Amber
Driver door open
Vehicle not moving. Close.
Amber
Driver side rear door open
Vehicle not moving. Close.
Amber
Passenger door open
89
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Information Displays

Action
Message
indicator
Message
Vehicle not moving. Close.
Amber
Passenger side rear door open
Vehicle not moving. Close.
Amber
Trunk open
Vehicle not moving. Close. See
Opening and Closing the Hood
(page 177).
Amber
Hood open
Engine Immobilizer Action
Message
indicator
Message
Have the system checked by an
authorized dealer as soon as
possible.
Red
Immobilizer malfunction Service
now
Hill Start Assist Action
Message
indicator
Message
See
Hill Start Assist (page 129).
Amber
Hill start assist not available
Keyless System Action
Message
indicator
Message
See
Keyless Entry (page 59).
Amber
Key not detected
See
Keyless Entry (page 59).
Amber
Key outside car
See
Remote Control (page 45).
Amber
Key Battery low Replace battery
See
Keyless Starting (page 111).
Amber
Switch ign. off Press ENGINE Start/
Stop button
See
Keyless Starting (page 111).
-
Press brake to start
See
Keyless Starting (page 111).
-
Press clutch to start
See
Keyless Entry (page 59).
-
Close trunk or use spare key
90
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Information Displays

Lighting
Action
Message
indicator
Message
See Changing a Bulb (page 195).
-
Left indicator malfunction Change
bulb
See
Changing a Bulb (page 195).
-
Right indicator malfunction Change
bulb
Maintenance Action
Message
indicator
Message
See Brake Fluid Check (page 186).
Red
Brake fluid level low Service now
Have the system checked by an
authorized dealer immediately.
Red
Brake system malfunction Stop
safely
Have the system checked by an
authorized dealer as soon as
possible.
Amber
Engine malfunction Service now
Have the system checked by an
authorized dealer.
-
Engine oil change due Service
required
Your vehicle is still in transport
mode or factory mode. Some
features may not be available. See
an authorized dealer.
-
Paused
MyKey Action
Message
indicator
Message
Displays when a MyKey is in use and
the MyKey speed limit is on and your
vehicle speed is approaching 80
mph (130 km/h).
Amber
MyKey Vehicle at top speed
Displays when MyKey is active.
-
MyKey active Drive safely
Displays when starting your vehicle
and MyKey is in use and the MyKey
speed limit is on.
-
MyKey Speed limited to mph
91
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Information Displays

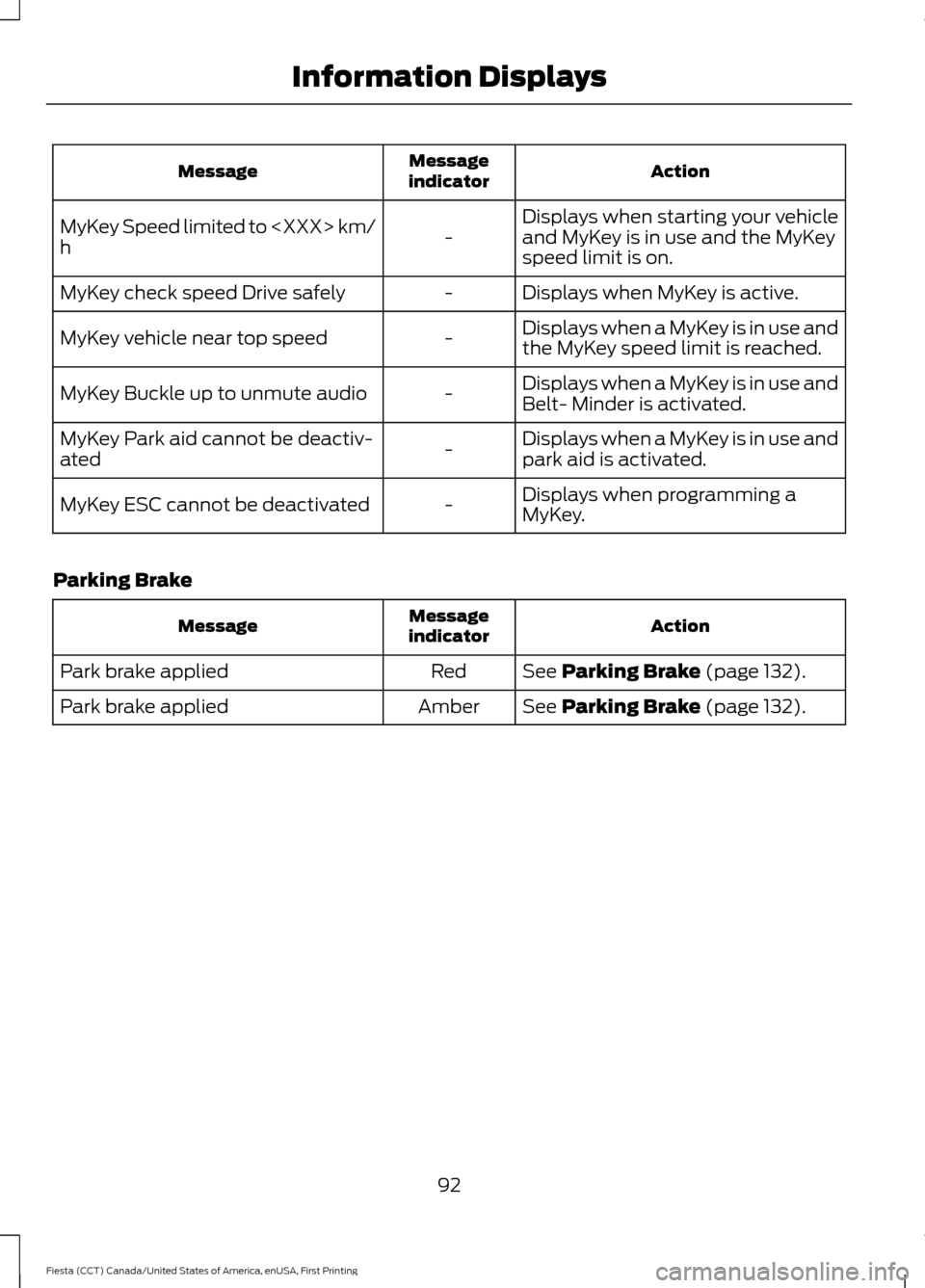

Action
Message
indicator
Message
Displays when starting your vehicle
and MyKey is in use and the MyKey
speed limit is on.
-
MyKey Speed limited to km/
h
Displays when MyKey is active.
-
MyKey check speed Drive safely
Displays when a MyKey is in use and
the MyKey speed limit is reached.
-
MyKey vehicle near top speed
Displays when a MyKey is in use and
Belt- Minder is activated.
-
MyKey Buckle up to unmute audio
Displays when a MyKey is in use and
park aid is activated.
-
MyKey Park aid cannot be deactiv-
ated
Displays when programming a
MyKey.
-
MyKey ESC cannot be deactivated
Parking Brake Action
Message
indicator
Message
See Parking Brake (page 132).
Red
Park brake applied
See
Parking Brake (page 132).
Amber
Park brake applied
92
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Information Displays

Stability Control
Action
Message
indicator
Message
See Using Stability Control (page
135).
Amber
Electronic stability control off
Have the system checked by an
authorized dealer as soon as
possible.
Amber
ABS malfunction Service Now
See Using Stability Control (page
135
).
-
Traction control off
See Using Stability Control (page
135
).
-
Sport mode
See Using Stability Control (page
135
).
-
Electronic stability control off
Starting and Stopping the Engine Action
Message
indicator
Message
See
Starting and Stopping the
Engine (page 111).
-
Press brake to start
See
Starting and Stopping the
Engine (page 111).
-
Press clutch to start
See
Starting and Stopping the
Engine (page 111).
-
Press brake and clutch to start
See
Starting and Stopping the
Engine (page 111).
-
Cranking time exceeded
Steering Action
Message
indicator
Message
Full steering will be maintained but
you will need to exert greater force
on the steering wheel. Have the
system checked by an authorized
dealer as soon as possible.
Amber
Steering assist fault Service
required
93
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Information Displays

Tire pressure monitoring system
Action
Message
indicator
Message
The pressure in one or more tires
has dropped. Check as soon as
possible.
Amber
Check tire pressures
Permanent malfunction. Have your
vehicle checked by an authorized
dealer.
Amber
Tire Pressure Monitor Fault
Transmission Action
Message
indicator
Message
Have the system checked by an
authorized dealer immediately.
Red
Transmission malfunction Service
now
Under certain driving conditions it is
possible that the clutches in the
transmission can overheat. In these
circumstances it is necessary to
press the brake pedal and stop your
vehicle to prevent damage to the
Red
Transmission overtemperature Stop
safely
transmission. Move the transmis-
sion selector lever to position N or
P and apply the parking brake until
the transmission has cooled and the
message disappears from the
display.
Have the system checked by an
authorized dealer immediately.
Red
Use brake Stop safely
See
Automatic Transmission
(page 126). See Starting and
Stopping the Engine (page 111).
-
Vehicle not in Park Select P
See
Automatic Transmission
(page 126). See Starting and
Stopping the Engine (page 111).
-
Select N or P to start
See
Starting and Stopping the
Engine (page 111).
-
Press brake to start
94
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Information Displays

Action
Message
indicator
Message
See Automatic Transmission
(page 126). See Starting and
Stopping the Engine (page 111).
-
Select N to start
See
Automatic Transmission
(page 126). See Starting and
Stopping the Engine (page 111).
-
Door open Apply brake
Transmission is getting hot. Stop to
let it cool or speed up.
-
Transmission hot Stop or speed up
Transmission is hot. Wait as needed
to let it cool.
-
Transmission hot Wait...
Your vehicle is ready to drive.
-
Transmission ready
See
Automatic Transmission
(page 126). See Starting and
Stopping the Engine (page 111).
-
Press brake to unlock gearshift lever
See
Automatic Transmission
(page 126). See Starting and
Stopping the Engine (page 111).
-
Gearshift lever unlocked
See
Automatic Transmission
(page 126). See Starting and
Stopping the Engine (page 111).
-
Transmission not in Park
95
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Information Displays

Note:
The ignition will automatically switch
off when you leave your vehicle unattended.
This is to prevent your vehicle battery
running out of charge.
Note: A valid key must be located inside
your vehicle to switch the ignition on and
start the engine.
Ignition On
Press the START button once. It is located
on the instrument panel near the steering
wheel. All electrical circuits and
accessories are operational and the
warning lamps and indicators will
illuminate. Starting with Manual
Transmission
Note:
Releasing the clutch pedal while the
engine is starting will stop the engine
cranking and return to ignition on.
1. Fully depress the clutch pedal.
2. Briefly press the button. Starting with Automatic
Transmission
Note:
Releasing the brake pedal while the
engine is starting will stop the engine
cranking and return to ignition on.
1. Move the transmission selector lever to position P or N.
2. Fully depress the brake pedal.
3. Briefly press the button.
Failure to Start
All Vehicles
The system will not function if:
• The key frequencies are jammed.
• The key battery has no charge.
If you are unable to start your vehicle, do
the following. 1. Hold the key next to the steering
column exactly as shown.
2. With the key in this position you can use the button to switch the ignition on
and start your engine.
Manual Transmission
Note: Releasing the clutch pedal while the
engine is starting will stop the engine
cranking and return to ignition on. A
message will be shown in the display.
112
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Starting and Stopping the EngineE142555 E99666
