2016 FORD FIESTA Owners Manual

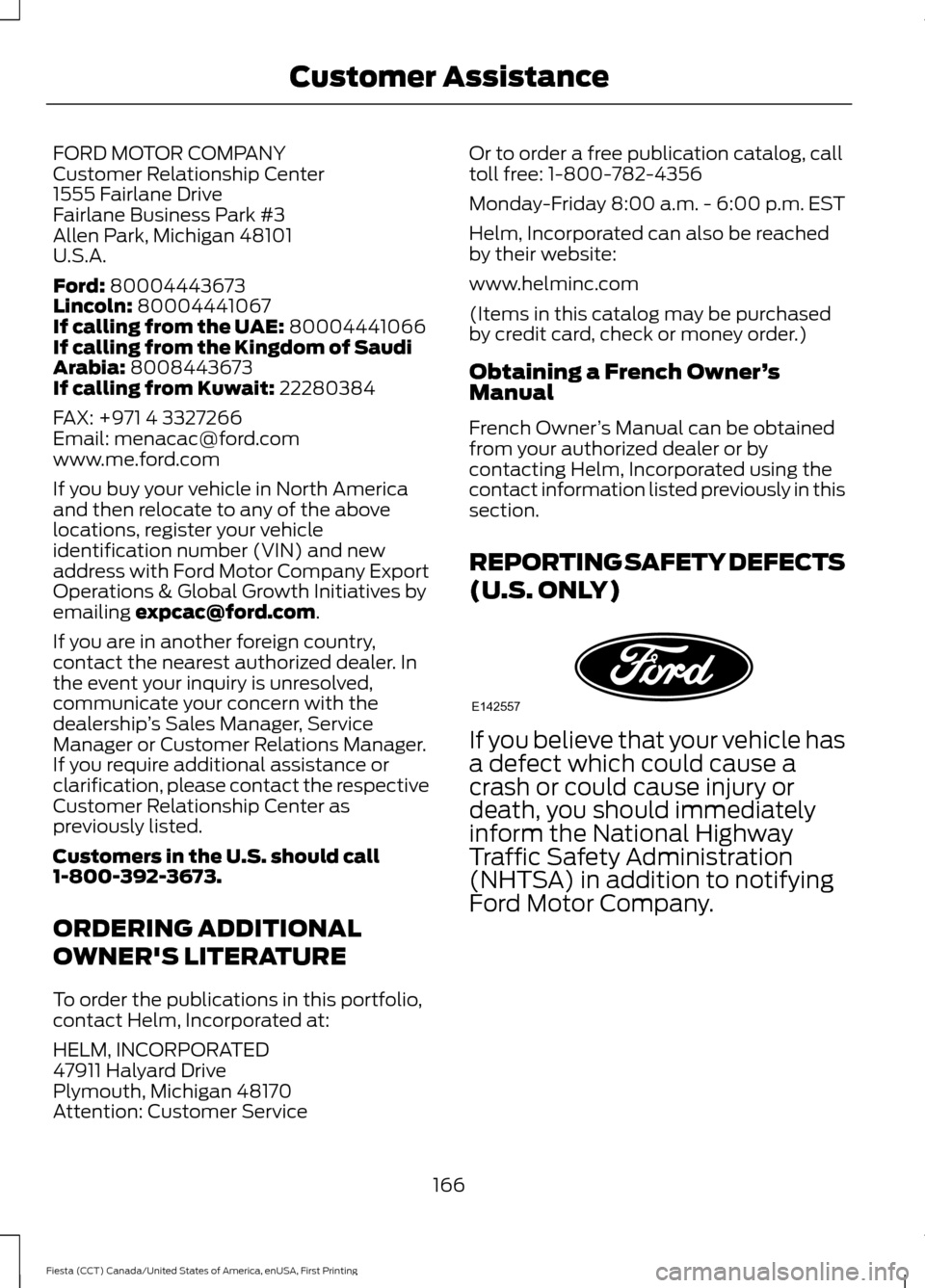

FORD MOTOR COMPANY
Customer Relationship Center
1555 Fairlane Drive
Fairlane Business Park #3
Allen Park, Michigan 48101
U.S.A.
Ford: 80004443673
Lincoln: 80004441067
If calling from the UAE: 80004441066
If calling from the Kingdom of Saudi
Arabia:
8008443673
If calling from Kuwait: 22280384
FAX: +971 4 3327266
Email: [email protected]
www.me.ford.com
If you buy your vehicle in North America
and then relocate to any of the above
locations, register your vehicle
identification number (VIN) and new
address with Ford Motor Company Export
Operations & Global Growth Initiatives by
emailing
[email protected].
If you are in another foreign country,
contact the nearest authorized dealer. In
the event your inquiry is unresolved,
communicate your concern with the
dealership ’s Sales Manager, Service
Manager or Customer Relations Manager.
If you require additional assistance or
clarification, please contact the respective
Customer Relationship Center as
previously listed.
Customers in the U.S. should call
1-800-392-3673.
ORDERING ADDITIONAL
OWNER'S LITERATURE
To order the publications in this portfolio,
contact Helm, Incorporated at:
HELM, INCORPORATED
47911 Halyard Drive
Plymouth, Michigan 48170
Attention: Customer Service Or to order a free publication catalog, call
toll free: 1-800-782-4356
Monday-Friday 8:00 a.m. - 6:00 p.m. EST
Helm, Incorporated can also be reached
by their website:
www.helminc.com
(Items in this catalog may be purchased
by credit card, check or money order.)
Obtaining a French Owner
’s
Manual
French Owner ’s Manual can be obtained
from your authorized dealer or by
contacting Helm, Incorporated using the
contact information listed previously in this
section.
REPORTING SAFETY DEFECTS
(U.S. ONLY) If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately
inform the National Highway
Traffic Safety Administration
(NHTSA) in addition to notifying
Ford Motor Company.
166
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Customer AssistanceE142557

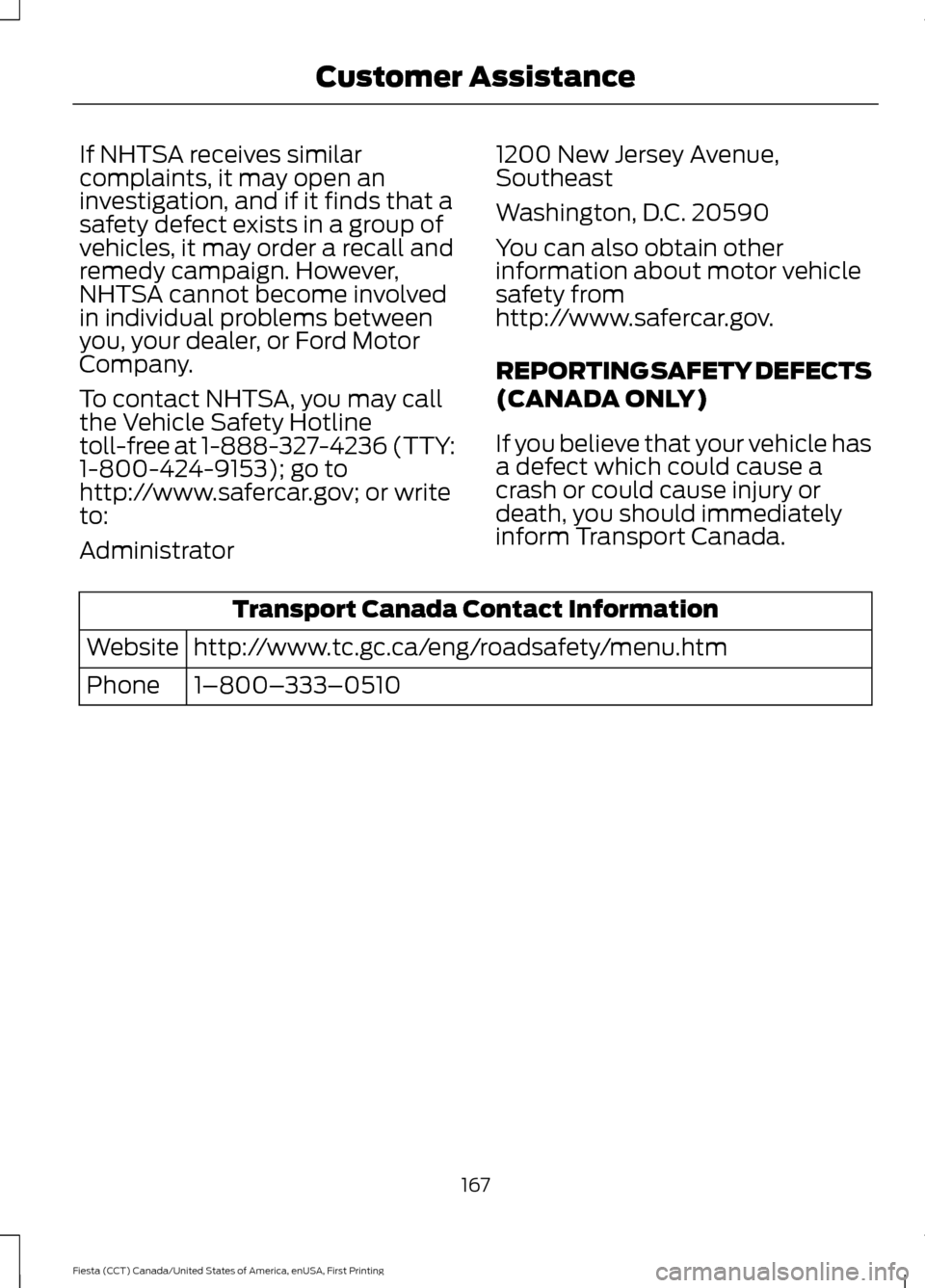

If NHTSA receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Ford Motor
Company.
To contact NHTSA, you may call
the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to
http://www.safercar.gov; or write
to:
Administrator
1200 New Jersey Avenue,
Southeast
Washington, D.C. 20590
You can also obtain other
information about motor vehicle
safety from
http://www.safercar.gov.
REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately
inform Transport Canada.Transport Canada Contact Information
http://www.tc.gc.ca/eng/roadsafety/menu.htm
Website
1–800–333–0510
Phone
167
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Customer Assistance

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
4-door and 5-door
Circuits protected
Fuse rating
Fuse
Anti-lock brake system module.
40A
F1 Stability assist.
60A
168
Fiesta (CCT) Canada/United States of America, enUSA, First Printing FusesE206972 E206971

Circuits protected
Fuse rating
Fuse
Anti-lock brake system module.
Engine cooling fan relay.
40A
F2 High speed engine cooling fan relay. 5
60A
Passenger compartment fuse box.
60A
F3
Body control module.
20A
F4
Door locks.
Not used.
-
F5
Blower motor relay.
40A
F6
Blower motor.
Not used.
-
F7
Not used.
-
F8
Foglamp relay coil.
7.5A
F9
High beam relay coil.
Body control module.
15A
F10
Right-hand side exterior lighting.
Body control module.
15A
F11
Left-hand side exterior lighting.
Not used.
-
F14
Not used.
-
F15
Not used.
-
F16
Not used.
-
F17
Not used.
-
F18
Fuel injectors.
30A
F19
Not used.
-
F20
Mass air flow sensor.2
7.5A
F21
Fuel injector driver.
10A
Powertrain control module.
15A
F22
Camshaft sensor.
15A
F23
Heated exhaust gas oxygen sensors.
169
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Fuses

Circuits protected
Fuse rating
Fuse
Ignition coil.3
15A
F24
Ignition coil.2
20A
Variable cam timing 1.
10A
F25 Variable cam timing 2.
Canister purge valve.
R5, R6 and R7 relay coil.
ECSS system.4
7.5A
F26 Active grill shutter.1
15A Water pump. 1
Air conditioning. 1
Not used.
-
F27
Not used.
-
F28
Not used.
-
F29
Not used.
-
F30
Not used.
-
F31
Passenger compartment fuse box.
60A
F32
Power windows.
60A
F33
Transmission control module. 6
40A
F34
High speed engine cooling fan. 1
60A
Stability assist/anti-lock brake system valve..
40A
F35
Starter inhibit relay.
30A
F36
Starter motor solenoid.
Heated rear window.
30A
F37
Heated mirrors.
Body control module.
20A
F38
Battery saver.
Body control module.
15A
F39
Direction indicators.
Not used.
-
F40
170
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Fuses

Circuits protected
Fuse rating
Fuse
Air condition clutch solenoid.
10A
F41
Powertrain control module.
7.5A
F42 Transmission control module.
Canister vent valve.
Left-hand fog lamp.
10A
F48
Right-hand fog lamp.
10A
F49
Left-hand high beam.
10A
F55
Right-hand high beam.
10A
F56
1 1.0L EcoBoost.
2 1.0L and 1.6L EcoBoost.
3 1.6L Sigma.
4 1.6L Flex-fuel.
5 1.6L Ecoboost.
6 6-Speed PowerShift Transmission. Circuits switched
Relay
Powertrain control module relay.
R12
High beam relay.
R13
Not used.
R43
Foglamp relay.
R44
Air conditioning clutch relay.
R45
Not used.
R46
Fuel pump relay.
R47
High speed cooling fan. 1
R50
Starter inhibit relay.
R51
Blower motor relay.
R52
Not used.
R53
171
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Fuses

Circuits switched
Relay
Reversing lamp.
R54
Engine cooling fan relay.
R57
1 1.0L and 1.6L EcoBoost.
Passenger Compartment Fuse Box
This fuse box is located behind the glove
box. Open the glove box and empty the
contents. Press the sides inwards and
swivel the glove box downward.
172
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Fuses

173
Fiesta (CCT) Canada/United States of America, enUSA, First Printing FusesE156756
