2016 FORD F150 Owners Manual

Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
81
PDRG close relay.
—
82
Not used.
—
83
Not used.
—
84
Not used.
—
85
Not used.
—
86
Trailer tow backup lamps.
10A**
87
Not used.
—
88
Cigar lighter power point 1.
20A*
89
Power point 2.
20A*
90
Power point 3.
20A*
91
Power point 4.
20A*
92
GTDI vehicle power 1.
25A**
93
PFI vehicle power 1.
10A**
Not used.
—
94
Vehicle power 2.
25A**
95
Not used.
—
96
Vehicle power 3.
10A**
97
Not used.
—
98
Vehicle power 4 (PFI).
20A**
99
Vehicle power 4 (GTDI).
15A**
Not used.
—
100
Not used.
—
101
Snow plow relay.
—
102
Not used.
—
103
Electic fan 3 relay.
—
104
Power steering.
10A**
105
302
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
106
Anti-lock brakes.
10A**
107
Not used.
—
108
Powertrain control module.
10A**
109
4x4 run/start.
10A**
110
Adaptive cruise control.
Transmission pump run-start.
10A**
111
Not used.
—
112
Blind spot information system.
7.5A**
113
Rear view camera.
Front view camera.
Voltage quality module.
Electric fan 2 relay.
—
114
Not used.
—
115
Not used.
—
116
*Cartridge fuses
**Mini fuses
Passenger Compartment Fuse
Panel
The fuse panel is in the right-hand side of
the passenger footwell behind a trim panel.
To remove the trim panel, pull it toward
you and swing it away from the side. To
reinstall it, line up the tabs with the grooves
on the panel, and then push it shut. To remove the fuse panel cover, press in
the tabs on both sides of the cover, and
then pull it off.
To reinstall the fuse panel cover, place the
top part of the cover on the fuse panel and
push the bottom part until it latches.
Gently pull on the cover to make sure it has
latched properly.
303
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Demand lamp relay.
10A
1
Power seats relay.
Glove box.
Vanity lamps.
Overhead console.
Dome.
Courtesy.
Map lamps.
Memory module logic.
7.5A
2
Memory seat switches.
Lumbar motor.
Driver door lock motor.
20A
3
Trailer brake control.
5A
4
Not used.
20A
5
Not used.
10A
6
Not used.
10A
7
Not used.
10A
8
Not used.
10A
9
304
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing FusesE145984

Protected components
Fuse amp rating
Fuse or relay number
Not used (spare).
5A
10
Combined sensor module.
5A
11
Climate head module.
7.5A
12
Smart datalink converter.
Cluster.
7.5A
13
SCCM.
Brake.
10A
14
Smart datalink converter.
10A
15
Tailgate release.
15A
16
HUD.
5A
17
Ignition switch and passive-entry passive-
start start stop switch.
5A
18
Key inhibit solenoid.
Tow haul (O/D) cancel for floor or column
shifter.
7.5A
19
Not used.
7.5A
20
HUD.
5A
21
In car temperature with humidity sensor.
EPB.
5A
22
Power seat.
PDRG switch.
10A
23
Inverter.
Driver side window.
Moonroof.
Vista roof.
Central lock/unlock.
20A
24
Driver door control module.
30A
25
Passenger door control module.
30A
26
Vista roof.
30A
27
Moonroof.
Not used.
20A
28
Not used.
30A
29
305
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
30A
30
Adjustable pedal switch and motor.
15A
31
Multi-function display.
10A
32
Global position system.
Sync 1.
Sync 2.
Radio frequency receiver.
Radio.
20A
33
Run-start relay.
30A
34
Restraints module.
5A
35
360 camera module.
15A
36
Heated steering wheel module.
Rear-view mirror.
Rear heated seats.
Power distribution box run-start fuses.
20A
37
Rear window switches and motors.
30A Circuit breaker.
38
CHANGING A FUSE
Fuses WARNING
You must replace a failed fuse with
one that has the specified amperage
rating. If you use a fuse with a higher
amperage rating, you may cause severe
wire damage and may start a fire. A fuse may fail if electrical components in
the vehicle are not properly working. A
broken wire inside the fuse indicates a
failed fuse. Check the appropriate fuses
before replacing any electrical
components.
306
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing FusesE142430

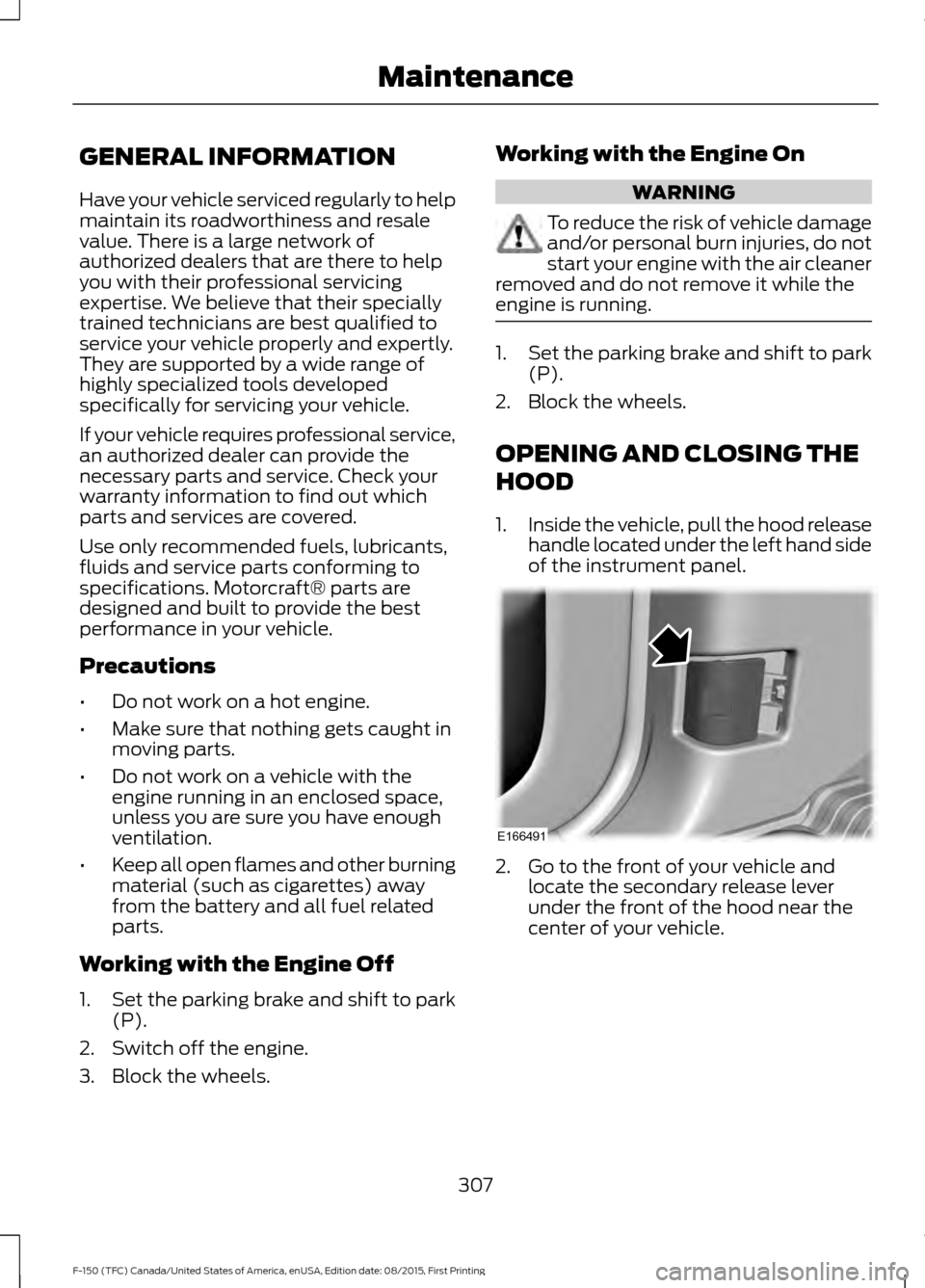

GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.
If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.
Precautions
•
Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.
• Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts.
Working with the Engine Off
1. Set the parking brake and shift to park
(P).
2. Switch off the engine.
3. Block the wheels. Working with the Engine On WARNING
To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner
removed and do not remove it while the
engine is running. 1.
Set the parking brake and shift to park
(P).
2. Block the wheels.
OPENING AND CLOSING THE
HOOD
1. Inside the vehicle, pull the hood release
handle located under the left hand side
of the instrument panel. 2. Go to the front of your vehicle and
locate the secondary release lever
under the front of the hood near the
center of your vehicle.
307
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing MaintenanceE166491

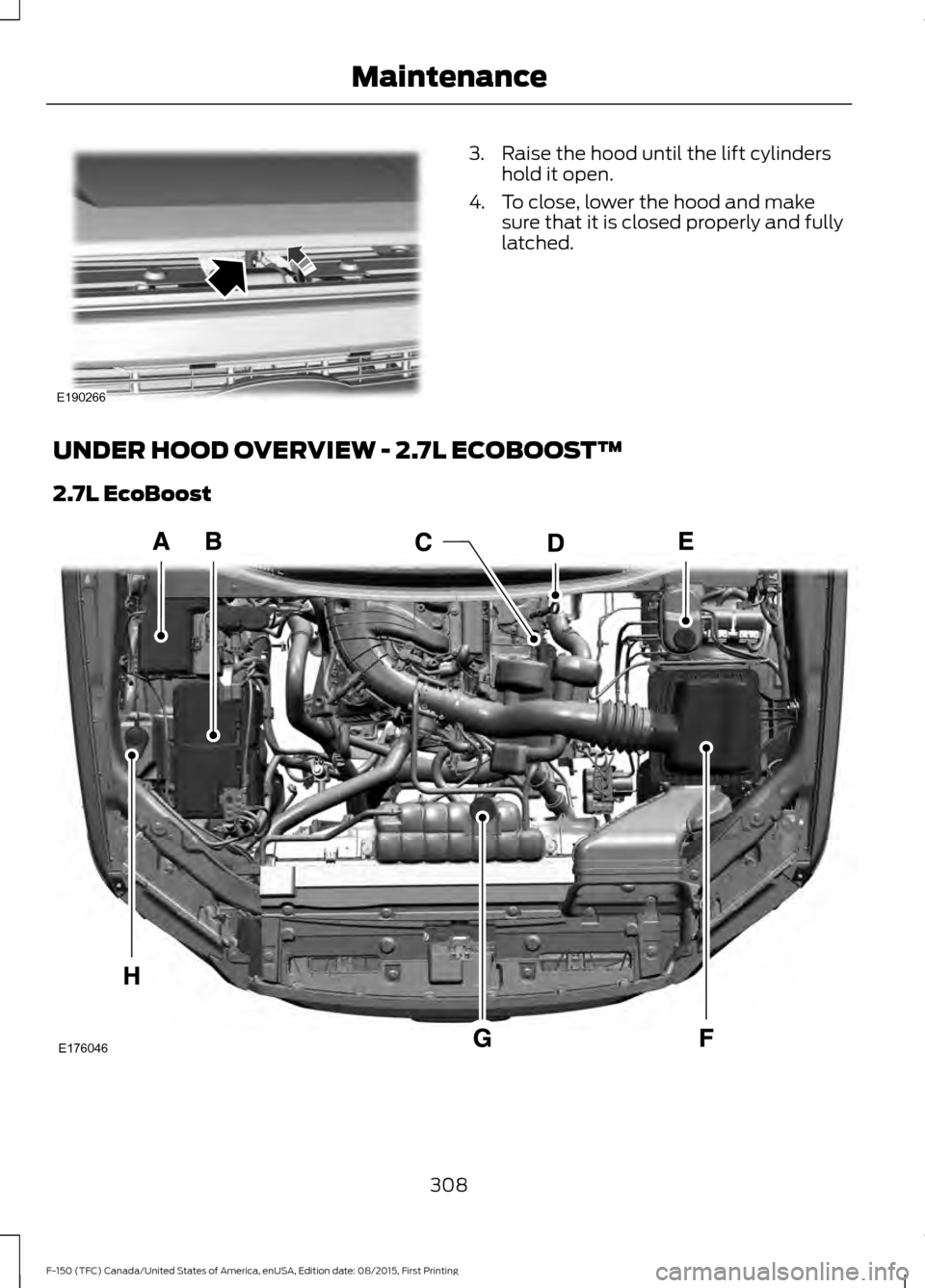

3. Raise the hood until the lift cylinders
hold it open.
4. To close, lower the hood and make sure that it is closed properly and fully
latched.
UNDER HOOD OVERVIEW - 2.7L ECOBOOST™
2.7L EcoBoost 308
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing MaintenanceE190266 E176046

Power distribution box. See Fuses (page 298).
A.
Battery. See
Changing the 12V Battery (page 318).
B.
Engine oil filler cap. See
Engine Oil Check (page 312).
C.
Engine oil dipstick. See
Engine Oil Dipstick (page 312).
D.
Brake fluid reservoir. See
Brake Fluid Check (page 318).
E.
Air filter assembly. See
Changing the Engine Air Filter (page 329).
F.
Engine coolant reservoir. See
Engine Coolant Check (page 313).
G.
Windshield washer fluid reservoir. See
Washer Fluid Check (page 318).
H.
UNDER HOOD OVERVIEW - 3.5L ECOBOOST™ Windshield washer fluid reservoir. See
Washer Fluid Check (page 318).
A.
Battery. See
Changing the 12V Battery (page 318).
B.
Engine oil filler cap. See
Engine Oil Check (page 312).
C.
309
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing MaintenanceA
A
BDEFC
GHE166496
