2016 FORD F150 remote start

For additional cabin air filter information,
or to replace the filter, see an authorized
dealer.
REMOTE START (If Equipped)
The remote start feature allows you to
pre-condition the interior of your vehicle.
The climate control system works to
achieve comfort according to your previous
settings.
Note: You cannot adjust the system during
remote start operation.
Turn the ignition on to return the system
to its previous settings. You can now make
adjustments normally, but you need to turn
certain vehicle-dependent features back
on, such as:
• Heated seats.
• Cooled seats.
• Heated steering wheel.
• Heated mirrors.
• Heated rear window.
You can adjust the default remote start
settings using the information display
controls. See
Information Displays
(page 108).
Automatic Settings
In hot weather, the system is set to
72°F
(22°C). The cooled seats are set to high
(if available, and selected to AUTO in the
information display).
In moderate weather, the system either
heats or cools (based on previous
settings). The rear defroster, heated
mirrors and heated seats do not
automatically turn on.
In cold weather, the system is set to
72°F
(22°C). The heated seats are set to high
(if available, and selected to AUTO in the
information display). The rear defroster
and heated mirrors automatically turn on.
146
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Climate Control

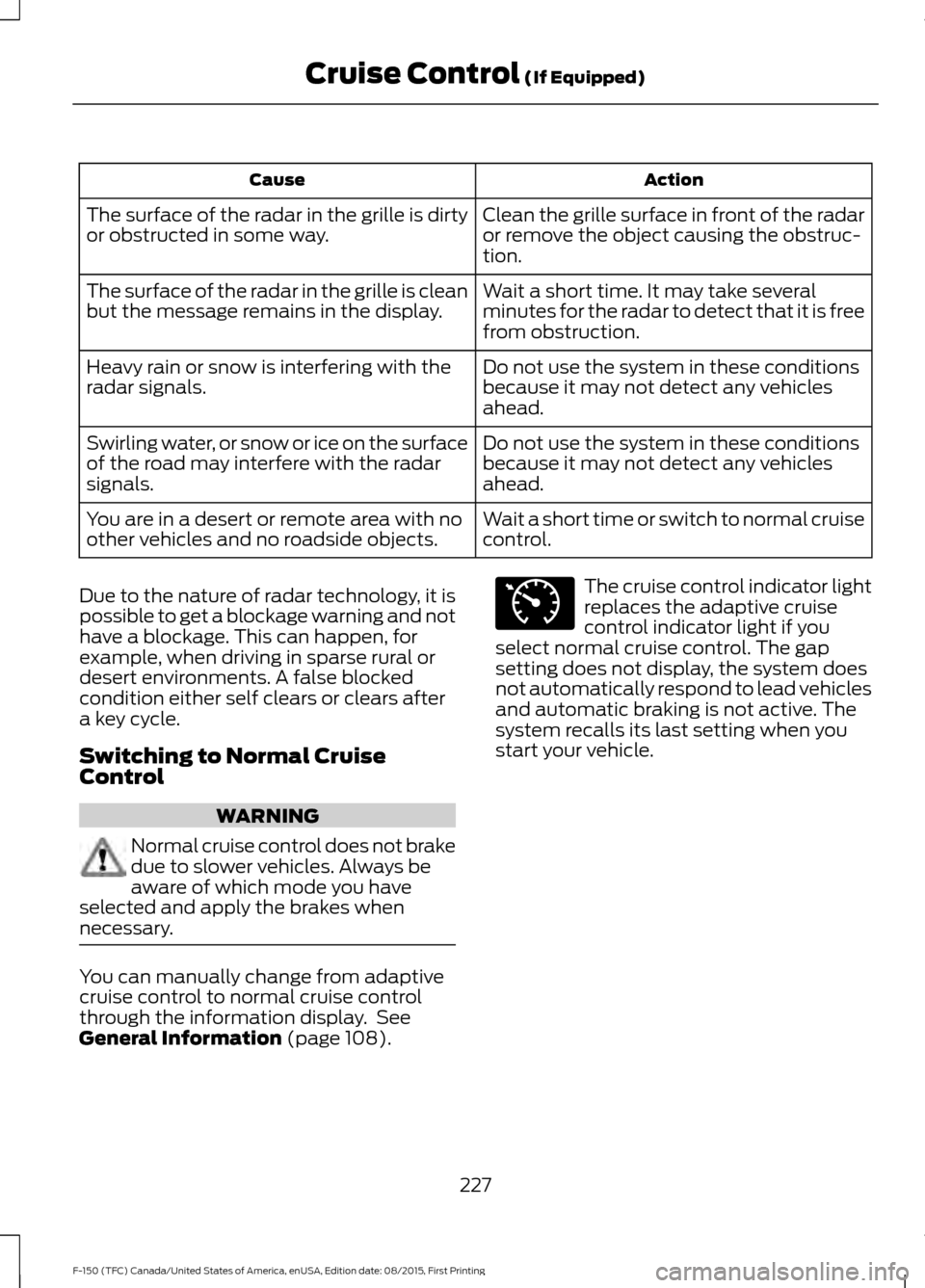

Action
Cause
Clean the grille surface in front of the radar
or remove the object causing the obstruc-
tion.
The surface of the radar in the grille is dirty
or obstructed in some way.
Wait a short time. It may take several
minutes for the radar to detect that it is free
from obstruction.
The surface of the radar in the grille is clean
but the message remains in the display.
Do not use the system in these conditions
because it may not detect any vehicles
ahead.
Heavy rain or snow is interfering with the
radar signals.
Do not use the system in these conditions
because it may not detect any vehicles
ahead.
Swirling water, or snow or ice on the surface
of the road may interfere with the radar
signals.
Wait a short time or switch to normal cruise
control.
You are in a desert or remote area with no
other vehicles and no roadside objects.
Due to the nature of radar technology, it is
possible to get a blockage warning and not
have a blockage. This can happen, for
example, when driving in sparse rural or
desert environments. A false blocked
condition either self clears or clears after
a key cycle.
Switching to Normal Cruise
Control WARNING
Normal cruise control does not brake
due to slower vehicles. Always be
aware of which mode you have
selected and apply the brakes when
necessary. You can manually change from adaptive
cruise control to normal cruise control
through the information display. See
General Information (page 108). The cruise control indicator light
replaces the adaptive cruise
control indicator light if you
select normal cruise control. The gap
setting does not display, the system does
not automatically respond to lead vehicles
and automatic braking is not active. The
system recalls its last setting when you
start your vehicle.
227
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Cruise Control
(If Equipped)E71340

•

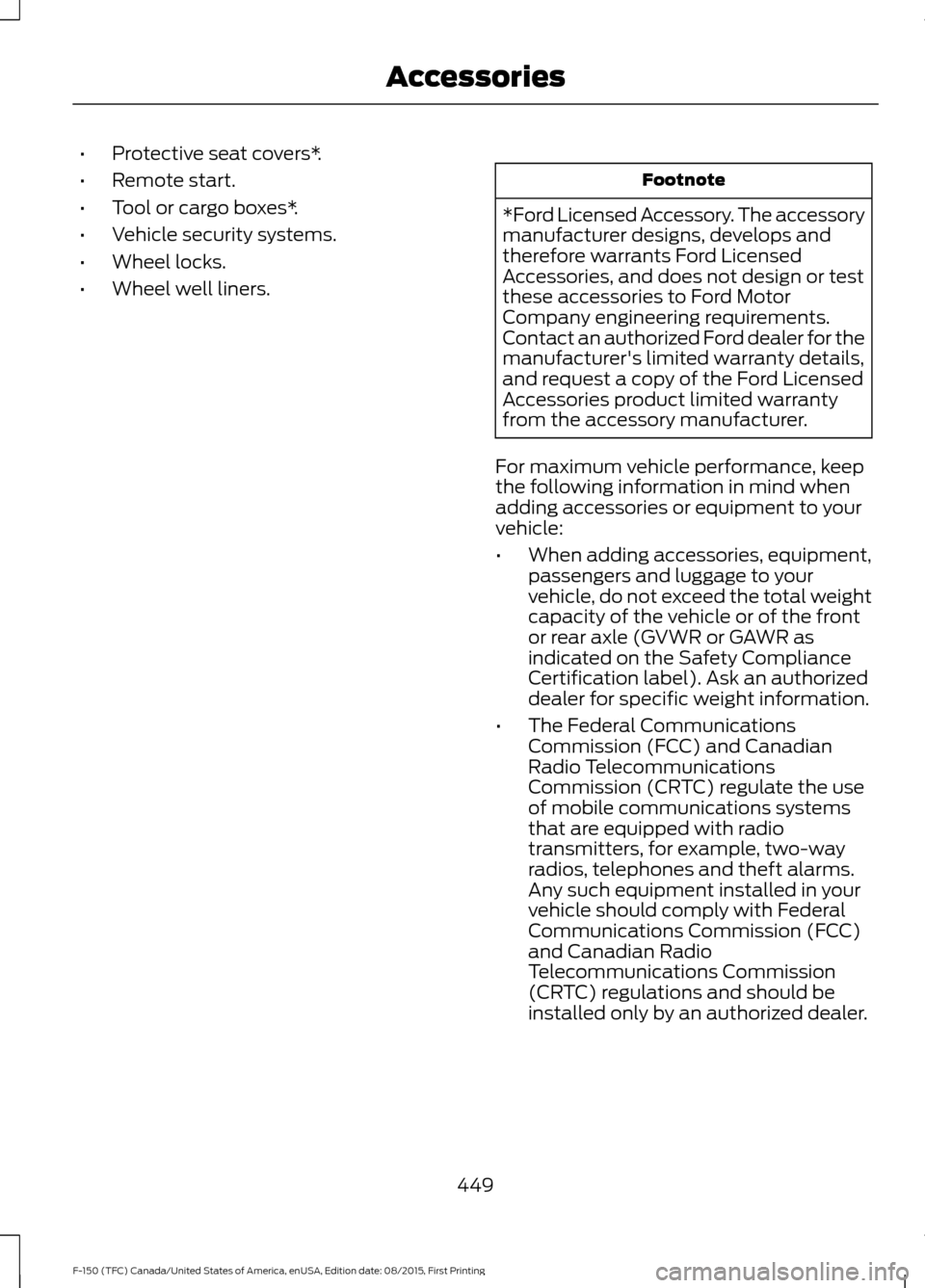

Protective seat covers*.
• Remote start.
• Tool or cargo boxes*.
• Vehicle security systems.
• Wheel locks.
• Wheel well liners. Footnote
*Ford Licensed Accessory. The accessory
manufacturer designs, develops and
therefore warrants Ford Licensed
Accessories, and does not design or test
these accessories to Ford Motor
Company engineering requirements.
Contact an authorized Ford dealer for the
manufacturer's limited warranty details,
and request a copy of the Ford Licensed
Accessories product limited warranty
from the accessory manufacturer.
For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
• When adding accessories, equipment,
passengers and luggage to your
vehicle, do not exceed the total weight
capacity of the vehicle or of the front
or rear axle (GVWR or GAWR as
indicated on the Safety Compliance
Certification label). Ask an authorized
dealer for specific weight information.
• The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the use
of mobile communications systems
that are equipped with radio
transmitters, for example, two-way
radios, telephones and theft alarms.
Any such equipment installed in your
vehicle should comply with Federal
Communications Commission (FCC)
and Canadian Radio
Telecommunications Commission
(CRTC) regulations and should be
installed only by an authorized dealer.
449
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Accessories

Information Messages................................124
4WD........................................................................\
. 137
Active Park............................................................. 125
Adaptive Cruise Control................................... 125
AdvanceTrac and Traction Control..............126
Airbag...................................................................... 126
Alarm and Security............................................ 126
Battery and Charging System......................... 127
Blind Spot Information and Cross Traffic Alert System..................................................... 127
Collision Warning System............................... 128
Doors and Locks.................................................. 128
Driver Alert............................................................. 128
Drivetrain................................................................ 129
Engine..................................................................... 129
Fuel........................................................................\
.. 129
Keys and Intelligent Access............................ 130
Lane Keeping System......................................... 131
Maintenance.......................................................... 131
MyKey...................................................................... 132
Off Road................................................................. 132
Park Aid................................................................... 133
Park Brake.............................................................. 133
Power Steering.................................................... 134
Pro Trailer Backup Assist................................. 134
Remote Start........................................................ 135
Seats....................................................................... 136
Starting System ................................................. 136
Tire Pressure Monitoring System.................. 136
Trailer....................................................................... 137Installing Child Restraints............................16
Child Seats............................................................... 16
Combining Safety Belt and LATCH Lower Anchors for Attaching Child Safety
Seats.................................................................... 25
Front Seat Tether Strap Attachment (Regular Cab)................................................... 26
Rear Seat Tether Strap Attachment (Crew Cab and Super Cab)....................................... 27
Use of Inboard Lower Anchors from the Outboard Seating Positions (Center
Seating Use) ..................................................... 24
Using Inflatable Safety Belts (Rear Seat Outboard Positions)........................................ 21
Using Lap and Shoulder Belts (Except Front Center Position of Super Cab and Crew
Cab)....................................................................... 17
Using Lap and Shoulder Belts (Front Center Position of Super Cab and Crew
Cab)....................................................................... 19
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 23
Using Tether Straps............................................. 25
Instrument Cluster......................................100
Instrument Lighting Dimmer
.....................85
Interior Lamps.................................................89
Front Interior Lamps........................................... 89
Rear Interior Lamps.............................................. 91
Interior Mirror
....................................................97
Auto-Dimming Mirror.......................................... 97
Introduction.........................................................7
J
Jump Starting the Vehicle........................288 Connecting the Jumper Cables.................... 288
Jump Starting..................................................... 289
Preparing Your Vehicle.................................... 288
Removing the Jumper Cables....................... 289
K
Keyless Entry
...................................................64
SECURICODE™ KEYLESS ENTRY
KEYPAD.............................................................. 64
Keyless Starting
............................................166
Ignition Modes...................................................... 167
Keys and Remote Controls..........................51
496
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Index

Power Running Boards.................................76
Power Seats...................................................150
Multi-Contour Front Seats With Active
Motion ................................................................ 151
Power Lumbar...................................................... 151
Power Steering Fluid Check.....................318
Power Windows
..............................................92
Accessory Delay.................................................... 93
Bounce-Back......................................................... 92
One-Touch Up or Down..................................... 92
Window Lock......................................................... 93
Protecting the Environment........................14
Pro Trailer Backup Assist™......................253 Principle of Operation...................................... 253
Setting Up Pro Trailer Backup Assist.........254
Troubleshooting................................................. 258
Using Pro Trailer Backup Assist.................... 256
R
Rear Axle
.........................................................196
Rear Seat Armrest........................................157
Rear Seats.......................................................154
Folding Up the Rear Seat Cushion ..............154
Returning the Seat to the Seating
Position.............................................................. 154
Rear View Camera
........................................214
Using the Rear View Camera System.........215
Rear View Camera See: Rear View Camera.................................... 214
Recommended Towing Weights...........262 Calculating the Maximum Loaded Trailer
Weight for Your Vehicle.............................. 269
Refueling...........................................................177 Easy Fuel ™ Capless Fuel System.................177
Remote Control
...............................................51
Car Finder................................................................ 55
Integrated Keyhead Transmitters ................... 51
Intelligent Access Key......................................... 52
Memory Feature................................................... 54
Remote Start ........................................................ 55
Replacing the Battery......................................... 52
Sounding a Panic Alarm.................................... 55
Remote Start
.................................................146
Automatic Settings............................................ 146
Removing the Tailgate.................................68
Repairing Minor Paint Damage...............335 Replacement Parts
Recommendation.........................................11
Collision Repairs..................................................... 11
Scheduled Maintenance and Mechanical Repairs................................................................... 11
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control............................................................56
Reporting Safety Defects (Canada Only).............................................................296
Reporting Safety Defects (U.S. Only).............................................................296
Roadside Assistance..................................286 Vehicles Sold in Canada: Getting Roadside
Assistance....................................................... 286
Vehicles Sold in Canada: Roadside Assistance Program Coverage.................287
Vehicles Sold in Canada: Using Roadside Assistance....................................................... 287
Vehicles Sold in the United States: Getting Roadside Assistance................................... 286
Vehicles Sold in the United States: Using Roadside Assistance................................... 286
Roadside Emergencies
.............................286
Running-In See: Breaking-In.................................................. 281
Running Out of Fuel.....................................176 Refilling With a Portable Fuel
Container........................................................... 176
S
Safety Canopy ™
............................................48
Safety Precautions.......................................174
Satellite Radio.............................................406 Satellite Radio Electronic Serial Number
(ESN)................................................................ 408
Satellite Radio Reception Factors..............407
SIRIUS® Satellite Radio Service.................. 407
Troubleshooting................................................ 408
Scheduled Maintenance Record
...........462
Scheduled Maintenance...........................453
Seatbelt Height Adjustment......................38
Seatbelt Reminder........................................39 Belt-Minder™........................................................ 39
Seatbelts...........................................................33 Principle of Operation......................................... 33
498
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Index

Seatbelt Warning Lamp and Indicator
Chime..............................................................39
Conditions of operation..................................... 39
Seats..................................................................147
Security
...............................................................72
Side Airbags......................................................47
Sitting in the Correct Position..................147
Sliding Windows
.............................................97
Power Sliding Back Window............................ 97
Snow Chains See: Using Snow Chains................................. 355
Snowplowing................................................283 Engine Temperature while Plowing............285
Installing the Snowplow................................. 283
Operating the Vehicle with the Snowplow Attached.......................................................... 284
Outside Air Temperature While Plowing............................................................. 285
Snowplowing with your Airbag Equipped Vehicle.............................................................. 284
Snowplow Mode................................................ 284
Transmission Operation while Plowing............................................................. 285
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
Special Instructions.............................................. 12
Special Operating Conditions Scheduled Maintenance..............................................459
Exceptions............................................................. 461
Speed Control See: Cruise Control........................................... 220
Spot Lamps.....................................................88 Cargo and Trailer Hookup Lamps.................. 89
Stability Control
...........................................204
Principle of Operation..................................... 204
Starter Switch See: Ignition Switch........................................... 166
Starting a Gasoline Engine........................167 Automatic Engine Shutdown........................ 169
Failure to Start..................................................... 168
Guarding Against Exhaust Fumes................170
Important Ventilating Information...............170
Stopping the Engine When Your Vehicle is Moving............................................................... 169
Stopping the Engine When Your Vehicle is Stationary......................................................... 169
Vehicles with an Ignition Key.......................... 167
Vehicles with Keyless Start............................ 168Starting and Stopping the Engine.........166
General Information.......................................... 166
Steering............................................................237 Electric Power Steering.................................... 237
Steering Wheel................................................78
Storage Compartments
.............................164
Sunroof See: Moonroof...................................................... 98
Sun Visors
..........................................................97
Illuminated Vanity Mirror................................... 98
Supplementary Restraints System.........43 Principle of Operation........................................ 43
Symbols Glossary
.............................................7
SYNC™ Applications and Services
........................................................426
911 Assist............................................................... 426
SYNC Mobile Apps............................................ 428
SYNC™............................................................410 General Information.......................................... 410
SYNC™ Troubleshooting
.........................440
T
Tailgate Lock....................................................67 Manual Tailgate Lock ......................................... 67
Remote Control Tailgate Lock......................... 67
Tailgate Step
....................................................69
Closing the Step................................................... 69
Opening the Step................................................. 69
Tailgate...............................................................67
Technical Specifications See: Capacities and Specifications............370
Terrain Response
.........................................207
Principle of Operation...................................... 207
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................293
Tire Care
.........................................................340
Glossary of Tire Terminology.......................... 341
Information About Uniform Tire Quality Grading............................................................. 340
Information Contained on the Tire Sidewall............................................................ 342
Temperature A B C............................................. 341
Traction AA A B C.............................................. 340
Treadwear............................................................ 340
499
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Index

Tire Pressure Monitoring System..........356
Changing Tires With a Tire Pressure
Monitoring System........................................ 357
Understanding Your Tire Pressure Monitoring System ....................................... 357
Tires See: Wheels and Tires..................................... 338
Towing a Trailer.............................................252
Load Placement................................................. 252
Towing Points................................................276
Towing the Vehicle on Four Wheels..........................................................278
Emergency Towing............................................ 278
Recreational Towing......................................... 278
Towing..............................................................252
Traction Control...........................................203 Principle of Operation...................................... 203
Trailer Sway Control
...................................262
Transfer Case Fluid Check.........................317
Transmission Code Designation
.............373
Transmission..................................................182
Transmission See: Transmission.............................................. 182
Transporting the Vehicle............................277
Type Approvals
............................................488
RF Certification Logos for Tire Pressure
Monitoring Sensor(s)................................. 488
U
Under Hood Overview - 2.7L EcoBoost™................................................308
2.7L EcoBoost..................................................... 308
Under Hood Overview - 3.5L Ecoboost™.................................................309
Under Hood Overview - 3.5L....................310
Under Hood Overview - 5.0L.....................311
Unique Driving Characteristics.................172
Universal Garage Door Opener...............158 HomeLink Wireless Control System...........158
USB Port.........................................................409 Using Adaptive Cruise Control.................221
Blocked Sensor................................................... 226
Changing the Set Speed................................. 224
Detection Issues................................................. 225
Disengaging the System................................. 224
Following a Vehicle............................................ 222
Hilly Condition Usage....................................... 225
Low Speed Automatic Cancellation...........225
Overriding the System..................................... 224
Resuming the Set Speed................................ 224
Setting a Speed.................................................. 222
Setting the Gap Distance................................ 223
Switching the System Off............................... 225
Switching the System On............................... 222
Switching to Normal Cruise Control...........227
System Not Available....................................... 226
Using Cruise Control...................................220 Switching Cruise Control Off.......................... 221
Switching Cruise Control On and Off.........220
Using Four-Wheel Drive
............................188
4WD Indicator Lights........................................ 188
Driving Off-Road With Truck and Utility Vehicles.............................................................. 191
How Your Vehicle Differs From Other Vehicles.............................................................. 191
Using the 2-Speed Automatic 4WD System.............................................................. 189
Using the Electronic Shift on the Fly 4WD system............................................................... 188
Using Hill Descent Control.......................207 Hill descent modes........................................... 207
Using MyKey With Remote Start Systems..........................................................60
Using Power Running Boards....................76 Automatic Power Deploy.................................. 76
Automatic Power Stow...................................... 76
Bounce-back.......................................................... 77
Enabling and Disabling...................................... 76
Manual Power Deploy......................................... 76
Using Snow Chains
.....................................355
Using Stability Control..............................205 AdvanceTrac ™ with Roll Stability Control ™
(RSC™)............................................................ 205
500
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Index
