HANDS-FREE POWER LIFTGATE*
To open your liftgate hands-free while you are at the liftgate:
Move your foot under and away from the rear bumper, using a
single kicking motion. Do not move your foot sideways or the
sensors may not detect the motion. The liftgate then power
opens or closes.
NOTE Your intelligent access transmitter must be within
3 feet (1 meter) behind the liftgate for the “hands-free” open
feature to work. The liftgate does not power open or close under
specific conditions. Refer to the Locks chapter in your Owner’s
Manual for more information.
SET AND CHANGE
THE LIFTGATE OPEN HEIGHT
*
1. Open the liftgate and then press the control
button on the liftgate when it reaches your desired height.
2. Press and hold the control button until you hear a tone,
indicating that the programming is complete. The next time
you open your liftgate, it opens to the newly set height.
3. To change the height again, repeat the above steps.

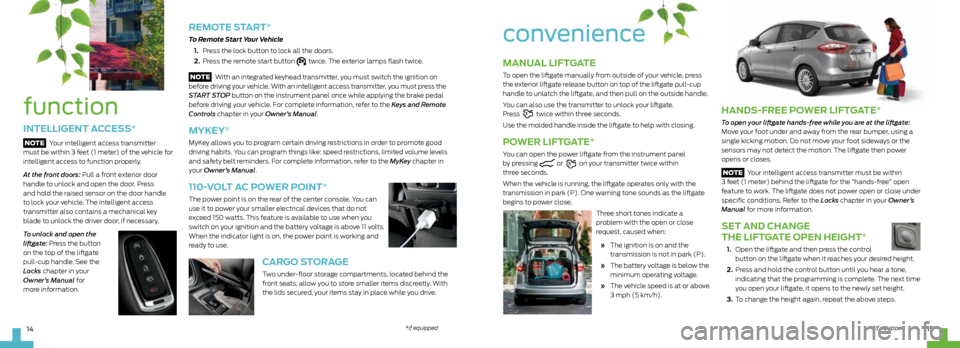

MANUAL LIFTGATE
To open the liftgate manually from outside of your vehicle, press
the exterior liftgate release button on top of the liftgate pull-cup
handle to unlatch the liftgate, and then pull on the outside handle.
You can also use the transmitter to unlock your liftgate.
Press
twice within three seconds.
Use the molded handle inside the liftgate to help with closing.
POWER LIFTGATE*
You can open the power liftgate from the instrument panel
by pressing or on your transmitter twice within
three seconds.
When the vehicle is running, the liftgate operates only with the
transmission in park (P). One warning tone sounds as the liftgate
begins to power close.
Three short tones indicate a
problem with the open or close
request, caused when:
» The ignition is on and the
transmission is not in park (P).
» The battery voltage is below the
minimum operating voltage.
» The vehicle speed is at or above
3 mph (5 km/h).
convenience
*if equipped
function
INTELLIGENT ACCESS*
NOTE Your intelligent access transmitter
must be within 3 feet (1 meter) of the vehicle for
intelligent access to function properly.
At the front doors: Pull a front exterior door
handle to unlock and open the door. Press
and hold the raised sensor on the door handle
to lock your vehicle. The intelligent access
transmitter also contains a mechanical key
blade to unlock the driver door, if necessary.
To unlock and open the
liftgate: Press the button
on the top of the liftgate
pull-cup handle. See the
Locks chapter in your
Owner’s Manual for
more information.
REMOTE START*
To Remote Start Your Vehicle
1. Press the lock button to lock all the doors.
2. Press the remote start button
twice. The exterior lamps flash twice.
NOTE With an integrated keyhead transmitter, you must switch the ignition on
before driving your vehicle. With an intelligent access transmitter, you must press the
START STOP button on the instrument panel once while applying the brake pedal
before driving your vehicle. For complete information, refer to the Keys and Remote
Controls chapter in your Owner’s Manual.
MYKEY®
MyKey allows you to program certain driving restrictions in order to promote good
driving habits. You can program things like: speed restrictions, limited volume levels
and safety belt reminders. For complete information, refer to the MyKey chapter in
your Owner’s Manual.
110-VOLT AC POWER POINT*
The power point is on the rear of the center console. You can
use it to power your smaller electrical devices that do not
exceed 150 watts. This feature is available to use when you
switch on your ignition and the battery voltage is above 11 volts.
When the indicator light is on, the power point is working and
ready to use.
CARGO STORAGE
Two under-floor storage compartments, located behind the
front seats, allow you to store smaller items discreetly. With
the lids secured, your items stay in place while you drive.
*if equipped

19
18
essential
information
TEMPORARY MOBILITY KIT
The kit is under the front passenger seat.
It consists of an air compressor to reinflate
the tire and a sealing compound in a
canister that seals most punctures caused
by nails or similar objects. See the Wheels
and Tires section of your Owner’s Manual
for more details.
FUEL TANK CAPACITY/
FUEL INFO
C-MAX Hybrid has a 13.5 gallon (51.1L)
fuel tank capacity in addition to its high-
voltage battery system. Use only “Regular”
UNLEADED fuel with an octane rating of 87
or higher, with no more than 15% ethanol.
Do not use ethanol
E20 - E85(E85), diesel,
fuel-methanol, leaded fuel or any other
fuel because it could damage or impair the
emission control system.
EASY FUEL® SYSTEM
Place the vehicle in park (P) and switch the
ignition off. Open the fuel door, slowly insert
the fuel filler nozzle into the fuel system
and begin fueling. Wait 5-10 seconds from
the time the fuel filler nozzle shuts off until
you remove it from your vehicle to allow
residual fuel to drain into the tank.
NOTE When refilling with a portable
container, only use the funnel that comes
with your vehicle. Do not use aftermarket
funnels as they do not work with the Easy
Fuel
system and may cause damage. You
can purchase extra funnels from your
authorized dealer.
ROADSIDE ASSISTANCE
Your new Ford vehicle comes with
the assurance and support of 24-hour
emergency roadside assistance. To receive
roadside assistance in the United States,
call 1-800-241-3673. In Canada,
call 1-800-665-2006.
TOWING YOUR VEHICLE
Towing your vehicle behind another vehicle
(such as an RV) may be limited. Refer to
Towing the Vehicle on Four Wheels in the
Towing chapter of the Owner’s Manual.
TIRE PRESSURE
MONITORING SYSTEM
Your vehicle shows a low tire pressure
warning light in your instrument
cluster when one or more of your tires
are significantly under-inflated. If this
happens, stop and check your tires as
soon as possible. Inflate them to the
proper pressure. Refer to the Inflating
Your Tires section in the Wheels and
Tires chapter of your Owner’s Manual
for more information.
ACTIVE PARK ASSIST*
Can detect an available parallel parking space and
automatically steer the vehicle into that space (hands-free)
while you control the accelerator, gearshift and brakes. The
system visually and audibly instructs you to park the vehicle.
» To start active park assist, press
located on the
instrument panel below the audio system.
» To stop the parking procedure, grab the steering wheel or
press the control again. For complete information, refer to
the Parking Aids chapter of your Owner’s Manual.
parking aids
FRONT* AND REAR*
PARKING AIDS
Sound an audible warning tone
if there is an obstacle near your
vehicle’s front or rear bumpers.
As you move closer to the
obstacle, the warning tone rate
increases in frequency. See the
Parking Aids chapter in your
Owner’s Manual for complete
information on your vehicle’s
sensing systems.
REAR VIEW
CAMERA
*
Provides a video image of the
area behind the vehicle. The
display automatically appears
in the touchscreen when the
vehicle is in reverse (R) and
uses colored guides to alert you
of your proximity to objects.
NOTE Visibility aids do not replace the need to watch where the vehicle is moving.
Refer to your Owner’s Manual for safety information, more details and limitations.
