271)Mount the spare wheel with the valve
stem (J) facing outboard. If you cannot see
the valve stem (J), you have installed the
wheel backwards. Operating the vehicle
with the spare wheel installed backwards
can cause vehicle damage and result in an
accident.
272)Be sure to open the release valve
slowly. If it is opened quickly, the vehicle will
drop abruptly and the jack may come out
of position, causing a serious accident.
273)Never use your foot or a pipe
extension for extra force in the wheel nut
wrench. If you do so, you will tighten the
nut too much.
274)The tyre pressure should be
periodically checked and maintained at the
specified pressure while the tyre is stowed.
275)After changing the tyre and driving the
vehicle about 1,000 km, retighten the
wheel nuts to make sure that they have not
come loose.
276)If the steering wheel vibrates when
driving after changing the tyre, we
recommend you to have the tyres checked
for balance.
277)Do not mix one type of tyre with
another or use a different size from the one
listed. This would cause early wear and
poor handling.
278)The spare wheel should always be
securely in position. If a flat tyre is
changed, put the flat tyre in the spare
wheel mounting position with the wheel
outer surface upward, and use the wheel
nut wrench to secure it firmly.279)Never tamper with the inflation valve.
Never introduce tools of any kind between
rim and tyre. Check tyre and spare wheel
pressure regularly, referring to the values
shown in the "Technical specifications"
section.
280)The moving components of the jack
(screw and joints) can also cause injuries:
do not touch them. If you come into
contact with lubricating grease, clean
yourself thoroughly.
IMPORTANT
132)Avoid using different size tyres from
the one listed and the combined use of
different types of tyres, as this can affect
driving safety.
133)Even if a wheel has the same rim size
and offset as the specified type of wheel,
its shape may prevent it from being fitted
correctly. Consult an authorised Fiat
Dealership before using wheels that you
have.
134)When installing or removing the spare
wheel, please observe the followings. If you
do not follow them, it could result in break
the spare wheel carrier. Do not use the
power tool. Use the wheel nut wrench
stowed on the vehicle. Do not apply a force
of 400 N or more at the end of the wheel
nut wrench.
135)Never apply oil to either the wheel
bolts or the nuts or they will tighten too
much.
136)If the release valve is loosened too
much (2 or more turns) in the anticlockwise
direction, the jack’s oil will leak and the jack
cannot be used.137)Close the release valve slowly when
lowering the vehicle, or the valve may be
damaged.
200
IN CASE OF EMERGENCY

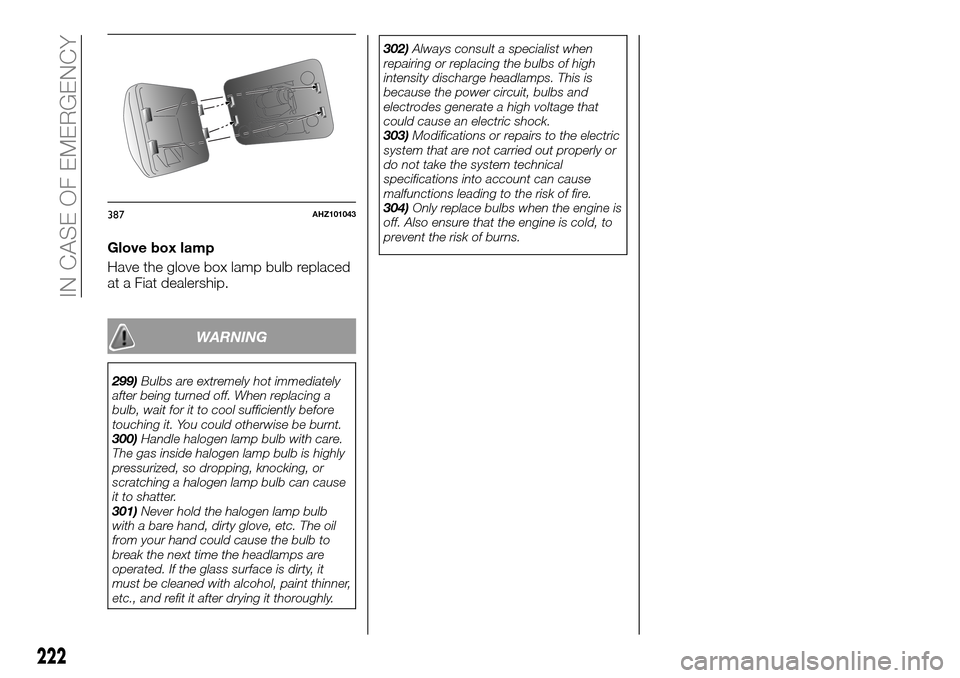

Glove box lamp
Have the glove box lamp bulb replaced
at a Fiat dealership.
WARNING
299)Bulbs are extremely hot immediately
after being turned off. When replacing a
bulb, wait for it to cool sufficiently before
touching it. You could otherwise be burnt.
300)Handle halogen lamp bulb with care.
The gas inside halogen lamp bulb is highly
pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
301)Never hold the halogen lamp bulb
with a bare hand, dirty glove, etc. The oil
from your hand could cause the bulb to
break the next time the headlamps are
operated. If the glass surface is dirty, it
must be cleaned with alcohol, paint thinner,
etc., and refit it after drying it thoroughly.302)Always consult a specialist when
repairing or replacing the bulbs of high
intensity discharge headlamps. This is
because the power circuit, bulbs and
electrodes generate a high voltage that
could cause an electric shock.
303)Modifications or repairs to the electric
system that are not carried out properly or
do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
304)Only replace bulbs when the engine is
off. Also ensure that the engine is cold, to
prevent the risk of burns.
387AHZ101043
222
IN CASE OF EMERGENCY

The engine oil used has a significant
effect on the engine’s performance,
service life and startability. Be sure to
use oil of the recommended quality and
appropriate viscosity. All engines
consume a certain amount of oil during
normal operation. Therefore, it is
important to check the oil level at
regular intervals or before starting a
long trip.
1. Park the car on a horizontal surface.
2. Switch off the engine.
3.Wait a few minutes.
4. Remove the dipstick and wipe it with
a clean cloth.
5. Reinsert the dipstick as far as it
goes.
6. Remove the dipstick and read the oil
level, which should always be within the
range indicated.
7. If the oil level is below the specified
limit, remove the cap located on the
cylinder head cover and add enough oilto raise the level to within the specified
range. Do not overfill to avoid engine
damage. Be sure to use the specified
engine oil and do not mix various types
of oil.
8. After adding oil, close the cap
securely.
9. Confirm the oil level by repeating
step 4 to 6.
NOTE Check or refill the oil according
to the following manner.
When the oil level is checked in step
6 above, check it on a low side of the
dipstick because it is different in
appearance of oil level in the two sides
of the dipstick.
On vehicles without diesel particulate
filter (DPF), the oil level should be within
the range (A) to (B) on the dipstick.
On vehicles with DPF, the oil level
should be within the range (A) to (C) (oil
replacement indication mark) on the
dipstick. If the oil level is beyond the oil
replacement indication mark (C),
replace the oil as soon as possible.
Then, the oil should be refilled to the
maximum level (B).
On vehicle with DPF, the engine oil
will be increased due to a few of the
fuel gets mixed in the engine oil when
the DPF regenerates to burn away the
PM (particulate matter). However, it
does not indicate a malfunction.
The engine oil will deteriorate rapidly ifthe vehicle is subjected to severe
conditions, requiring earlier oil
replacement. Please refer to the
maintenance schedule.
Selection of engine oil —
Petrol-powered and Diesel-
powered vehicles
Refer to “Refill capacities” under
Technical Specifications.
WARNING
315)If the engine oil is being topped up,
wait for the engine to cool down before
loosening the filler cap, particularly for
vehicles with aluminium cap (where
provided). WARNING: risk of burns!
394AHA102654
246
SERVICING AND MAINTENANCE

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle is
made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.VEHICLE LABELING..........266
ENGINE SPECIFICATIONS......268
VEHICLE DIMENSIONS........271
VEHICLE PERFORMANCE......279
VEHICLE WEIGHTS..........281
ELECTRICAL SYSTEM.........289
TYRES AND WHEELS.........291
REFILL CAPACITIES..........292
FLUIDS AND LUBRICANTS......300
265

VEHICLE LABELING
Vehicle Identification Number (VIN)
The vehicle identification number is
stamped as shown in the illustration.
Vehicle Information code plate
The vehicle information code plate is
located as shown in the illustration.The plate shows model code, engine
model, transmission model and body
colour code, etc.
Please use this number when ordering
replacement parts.
1. Model code
2. Engine model code
3. Transmission model code
4. Final gear ratio
5. Body colour code
6. Interior code
7. Option code
Engine model/number
Engine model and engine number are
stamped on the engine cylinder block
as shown in the illustrations.
412AHA101413
413AHA101400
1
246735
414AA0117333
415AHA101439
416AHA101442
266
TECHNICAL SPECIFICATIONS

ENGINE SPECIFICATIONS
Engine specifications
344)
Item Petrol-powered vehicles
Engine models 4G64
n. of cylinders 4 in line
Total displacement 2,351 cc
Bore 86.5 mm
Stroke 100.0 mm
Camshaft Single overhead
Mixture preparation Electronic injection
Maximum output (EEC net) 97 kW/5,250 r/min
Maximum torque (EEC net) 202 Nm/4,000 r/min
268
TECHNICAL SPECIFICATIONS

ItemDiesel-powered vehicles
4D56
Without intercoolerWith intercooler
Not for vehicles with 15 inch tyreWith intercooler
Vehicles with 15 inch tyre
Engine models 4D56
No. of cylinders 4 in line
Total displacement 2,477 cc
Bore91.1 mm
Stroke95.0 mm
Camshaft Double overhead
Mixture preparation Electronic direct injection
Maximum output (EEC net) 81 kW/4,000 r/min100 kW/4,000 r/min
131 kW/4,000 r/min
(1)94 kW/4,000 r/min
Maximum torque (EEC net)200 Nm/1,500
–3,500 r/min324 Nm/2,000 r/min
400 Nm/2,000 r/min
(1)240 Nm/1,500 – 3,500 r/min
(1) Vehicles with high power engine
344)
WARNING
344)Modifications or repairs to the fuel supply system that are not carried out properly or do not take the system’s technical specifications
into account may cause malfunctions leading to a risk of fire.
