Buzzer Item Cause Note / Solution
BlinksOuter buzzer
sounds
approximately
3 secondsOperation
mode OFF
reminder
systemWhen the operation mode is in
any mode other than OFF with all
the doors are closed, if you try to
lock by using the driver’s or front
passenger’s door lock/unlock
switch.Refer to “Operation mode OFF reminder system”.
Buzzer Item Cause Note / Solution
Illuminates No soundsImmobilizer
systemThere is a fault in the electronic
immobilizer (Anti-theft starting
system).Put the operation mode in OFF and then start the
engine again. If the warning is not cancelled,
contact a Fiat Dealership
BlinksInner buzzer
soundsSteering wheel
lockSteering wheel does not unlock.the procedure of reference page. Refer to “Steering
wheel lock”.
Illuminates No soundsSteering wheel
lockSteering wheel lock is abnormal. Refer to “Steering wheel lock”.
WARNING
1)When carrying a key on flights, do not
press any switches on the key while on the
plane. If a switch is pressed on the plane,
the key emits electromagnetic waves,
which could adversely affect the plane’s
flight operation. When carrying a key in a
bag, be careful that no switches on the key
can be easily pressed by mistake.2)Don’t make any alterations or additions
to the immobilizer system; alterations or
additions could cause failure of the
immobilizer.
3)When the key case is opened, be careful
to keep water, dust, etc. out. Also, do not
touch the internal components.4)People with implantable cardiac
pacemakers or implantable cardiovascular-
defibrillators should not go near the exterior
transmitters (A) or the interior transmitters
(B). The radio waves used by the keyless
operation system could adversely affect
implantable cardiac pacemakers or
implantable cardiovascular-defibrillators.
22
GETTING TO KNOW YOUR VEHICLE

ACC power auto-cutout function
After about 30 minutes has elapsed
with the operation mode in ACC, the
function automatically cuts out the
power for the audio system and other
electric devices that can be operated
with that position. (only that driver’s
door has closed and the selector lever
in the “P” (PARK) position).
When you open driver’s door or the
engine switch operate again, the power
is supplied again.
NOTE When ACC power supply
automatic stop, the steering wheel
can’t lock and you can’t lock and
unlock the doors by the keyless entry
key and keyless operation key.
NOTE It is possible to modify functions
as follows:
The time until the power cuts out can
be changed to about 60 minutes.
The ACC power auto-cutout function
can be deactivated. For details, we
recommend you to consult a Fiat
Dealership.
Operation mode OFF reminder
system
When the operation mode is in any
mode other than OFF, if you close all
the doors then try to lock the doors by
pressing the driver’s or front
passenger’s door lock/unlock switch, a
warning lamp will blink and the outer
buzzer will sounds and you cannot lock
the doors.
Operation mode ON reminder
system
If the driver’s door is opened with the
engine stopped and the operation
mode in any mode other than OFF, the
operation mode ON reminder inner
buzzer sounds intermittently to remind
you to put the operation mode in OFF.
WARNING
6)Do not remove the ignition key from the
ignition switch while driving. The steering
wheel will be locked, causing loss of
control.
7)If the ignition device has been tampered
with (e.g. an attempted theft), have it
checked over by a Fiat Dealership before
driving again.
8)Always remove the key when you leave
your vehicle to prevent someone from
accidentally operating the controls.
Remember to engage the handbrake.
Engage first gear if the vehicle is parked
uphill or reverse gear if the vehicle is
parked downhill. Never leave children
unattended in the vehicle.
9)Never extract the key while the vehicle is
moving. The steering wheel will lock as
soon as it is turned. This also applies to
cases in which the vehicle is towed.
10)Under no circumstances should
aftermarket operations be carried out
involving steering system or steering
column modifications (e.g. installation of
anti-theft device). This could negatively
affect performance and safety, invalidate
the warranty, cause serious safety
problems and also result in vehicle
non-compliance with type-approval
requirements.
23AHA103505
25

IMPORTANT
1)If the engine is stopped while driving, the
brake servomechanism will cease to
function and braking efficiency will
deteriorate. Also, the power steering
system will not function and it will require
greater manual effort to operate the
steering.
2)Do not leave the key in the “ON” position
for a long time when the engine is not
running, doing so will cause the battery to
be discharged.
3)Do not turn the key to the “START”
position while the engine is running. Doing
so could damage the starter motor.
4)The indicator lamp (A) will flash orange
when there is a problem or malfunction in
the keyless operation system. Never drive if
the indicator lamp on the engine switch is
flashing orange. Immediately contact your
Fiat Dealership.
5)If the engine switch operation is not
smooth and feels like it is sticking, do not
operate the switch. Immediately contact
your Fiat Dealership.
6)When the engine is not running, put the
operation mode in OFF. Leaving the
operation mode in ON or ACC for a long
time when the engine is not running may
cause the battery to be discharged, making
it impossible to start the engine, lock and
unlock the steering wheel.7)When the battery is disconnected, the
current operation mode is memorized. After
reconnecting the battery, the memorized
mode is selected automatically. Before
disconnecting the battery for repair or
replacement, make sure to put the
operation mode in OFF. Be careful if you
are not sure which operation mode the
vehicle is in when the battery is run down.
8)The operation mode cannot be changed
from OFF to ACC or ON if the keyless
operation key is not detected to be in the
vehicle. Refer to “Keyless operation system:
Operating range for starting the engine and
changing the operation mode”.
9)When there is the keyless operation key
in the vehicle and the operation mode isn’t
change, the keyless operation key may
have worn out.
DOORS
11) 12) 13)
NOTE To prevent the key from being
locked inside the vehicle, neither the
lock knob on the driver’s door nor the
key can be used to lock the driver’s
door when it is open.
To lock or unlock with the key
A — Lock
B — Unlock
NOTE On vehicles with central door
locks, when locking or unlocking with
the key, all doors will be locked or
unlocked. Refer to “Central door locks”.
NOTE If the vehicle is equipped with
the keyless operation system, the
driver’s door can be locked or unlocked
with the emergency key. Refer to
“Emergency key”.
BA
24AHA105453
26
GETTING TO KNOW YOUR VEHICLE

To lock or unlock from inside the
vehicle
A — Lock
B — Unlock
NOTE The driver’s door can be opened
without using the lock knob by pulling
on the inside door handle. On vehicles
with central door locks, all other doors
are unlocked at the same time.To lock without using the key
Set the inside lock knob (1) to the
locked position, and close the door (2).
NOTE The driver’s door cannot be
locked using the inside lock knob while
the driver’s door is opened.
Ignition key reminder
Except for vehicles equipped with the
keyless operation system
If the ignition switch is turned off and
the driver’s door is opened with the key
in the ignition switch, the key reminder
buzzer will sound intermittently to
remind you to remove the key.
“Forgotten-key-prevention”
mechanism
If the key is in the ignition switch or the
operation mode is other than OFF,
when you push the lock knob forward
with the driver’s door open, the lock
knob will automatically return to the
unlocked position.To open or close the rear door
(Club cab)
You can open or close the rear door
while the front door is opened.
1. Open the front door wide.
2. Pull the door handle (A) of the rear
door.
3. Open the rear door.
4. When closing these doors, close the
front door after closing the rear door.
14) 15) 16) 17) 18) 19)
25AHA105466
2
1
26AHA105479
A
27AHA104036
27

CHILD PROTECTION
REAR DOORS (Double
Cab)
A — Lock
B — Unlock
Child protection helps prevent doors
from being opened accidentally,
especially when small children are in the
rear seat.
A lever is provided on each rear door. If
the lever is set to the locked position,
the rear door cannot be opened using
the inside handle.
To open the rear door while the child
protection is in use, pull the outside
door handle. If the lever is set to the
“Unlock” position, the child protection
mechanism does not function.
20) 21) 22)
REAR GATE
To open
Lift up the handle and lower the rear
gate.
To close
Raise the rear gate and close with
enough force to latch the assembly
securely into position.
23) 24) 25) 26) 27) 28)
To swing down
29) 30)
The rear gate can be swung down in
two stages except some models. To
lower it to the second stage, proceed
as follows:
1 — Swing open the rear gate to the
first position. Then, lift it up to the
position shown in the illustration while
holding the link or wire (1).
31AHA101862
32AHA101875
33AHA101888
34AHA112918
29
2 — Undo the link or wire (1) on one
side while aligning the hole in the link or
wire with the hook (2).

3 — Undo the link or wire on the other
side in the same manner, and have the
rear gate swing down slowly.
WARNING
11)Make sure the doors are closed:
driving with doors not completely closed is
dangerous.
12)NEVER leave children unattended
inside the car, let alone leave the car with
the doors unlocked in a place that children
can access easily. Children may seriously,
or even fatally, injure themselves. Also
ensure that children do not inadvertently
operate
13)Be careful not to lock the doors while
the key is inside the vehicle.
14)When opening the rear door, confirm
that the occupant of the front seat has
taken off the seat belt before opening the
rear door. If you open the rear door with
the front seat belt being worn, the
occupant of the front seat may be
tightened with the locked seat belt and
could result in serious injury.
15)When closing the rear door, make sure
not being trapped your hands or your
fingers in the doors.
16)Before driving, make sure that the rear
door is securely closed. If a door is ajar, the
door ajar warning lamp will illuminates. If a
door is not completely closed, the rear
door could open while driving and this
could cause an accident such as
occupants being thrown from the vehicle.
17)When opening or closing the rear door,
please observe the followings. If you do not
follow them, it could result in damage to
your vehicle. Do not open or close the rear
door and the front door at the same time.18)Do not open or close the rear door
when the front door is not completely
opened.
19)Do not close the rear door after closing
the front door.
20)When driving with a child in the rear
seat, please use the child protection to
prevent accidental door opening which
may cause an accident.
21)If the child lock was engaged and the
previously described locking procedure
carried out, operating the internal opening
handle will not open the door: in this case,
to open the door, the outside handle must
be used. The door central locking/
unlocking button is not disabled by the
engagement of the emergency lock.
22)Always use this device when carrying
children. After engaging the child lock on
both rear doors, check for effective
engagement by trying to open a door with
the internal handle.
23)Do not stand behind the exhaust pipe
when loading and unloading luggage. Heat
from the exhaust could lead to burns.
24)Pay attention not to catch your fingers
in the rear gate.
25)Do not weight the rear gate.
26)Before driving, make sure that the rear
gate is securely closed. If the rear gate
opens while driving the vehicle, objects
stored in the cargo area could fall out onto
the road.
1
2
35AHA112921
36AHA112934
30
GETTING TO KNOW YOUR VEHICLE

27)Once the dead lock system is engaged
it is impossible to open the doors from
inside the vehicle. Therefore, before
engaging the system check that there is no
one left inside. If the remote control battery
is flat, the system can be disengaged only
by inserting the key metal insert in either of
the door locks as described previously: in
this case the device remains active only for
the rear doors.
28)This spring loaded system has
activation forces that were designed for
optimum comfort. Accidental knocks or a
strong gust of wind may release the
springs and close the doors
spontaneously.
29)On vehicles with the rear bumper,
never swing down the rear gate because
the rear gate could be damaged.
30)Never close the rear gate with the link
or wire left unhooked.SEATS
SEAT ADJUSTMENT
Adjust the driver’s seat so that you are
comfortable and that you can reach the
pedals, steering wheel, switches etc.
while retaining a clear field of vision.
31) 32) 33) 34) 35) 36) 37) 38) 39) 40) 41) 42)
10)
FRONT SEATS
Manual type
1—
To adjust forward or backward: Lift
the handle and adjust the seat to the
desired position, and release the handle.
2 — To recline the seatback: Pull the
lever up and then lean backward to the
desired position, and release the lever.
3 — To adjust seat cushion height
(driver’s side only): Turn the dial and
adjust the seat cushion height to the
desired position.Power type
1 — To adjust forward or backward:
Operate the switch as indicated by the
arrows and adjust the seat to the
desired position.
2 — To recline the seatback: Operate
the switch as indicated by the arrows
and adjust the seatback angle to the
desired position.
3 — To adjust seat height: Operate the
switch as indicated by the arrows and
adjust the seat height to the desired
position. If the entire switch is operated,
then the entire seat moves.
4 — To adjust seat cushion angle:
Operate the switch as indicated by the
arrows and adjust the seat cushion
angle to the desired position.
NOTE To prevent the battery from
running down, operate the switch with
the engine running.
312
37AHA105626
3
4
1
2
38AHA105639
31

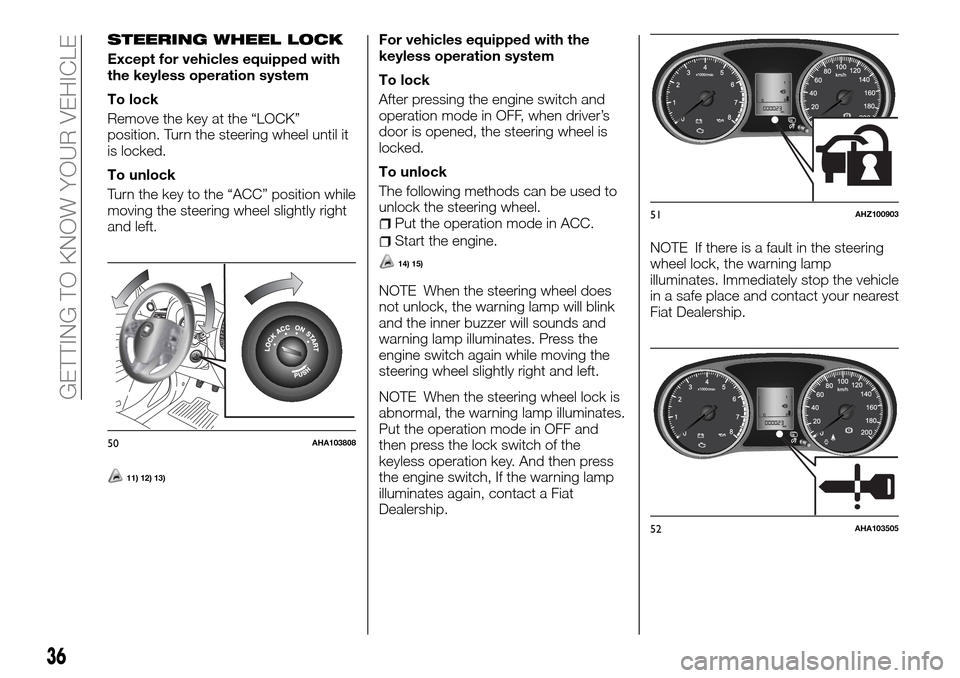

STEERING WHEEL LOCK
Except for vehicles equipped with
the keyless operation system
To lock
Remove the key at the “LOCK”
position. Turn the steering wheel until it
is locked.
To unlock
Turn the key to the “ACC” position while
moving the steering wheel slightly right
and left.
11) 12) 13)
For vehicles equipped with the
keyless operation system
To lock
After pressing the engine switch and
operation mode in OFF, when driver’s
door is opened, the steering wheel is
locked.
To unlock
The following methods can be used to
unlock the steering wheel.
Put the operation mode in ACC.
Start the engine.
14) 15)
NOTE When the steering wheel does
not unlock, the warning lamp will blink
and the inner buzzer will sounds and
warning lamp illuminates. Press the
engine switch again while moving the
steering wheel slightly right and left.
NOTE When the steering wheel lock is
abnormal, the warning lamp illuminates.
Put the operation mode in OFF and
then press the lock switch of the
keyless operation key. And then press
the engine switch, If the warning lamp
illuminates again, contact a Fiat
Dealership.NOTE If there is a fault in the steering
wheel lock, the warning lamp
illuminates. Immediately stop the vehicle
in a safe place and contact your nearest
Fiat Dealership.
50AHA103808
51AHZ100903
52AHA103505
36
GETTING TO KNOW YOUR VEHICLE
