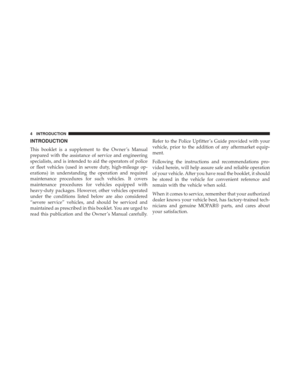

2016 DODGE DURANGO Special Service Supplement Manual

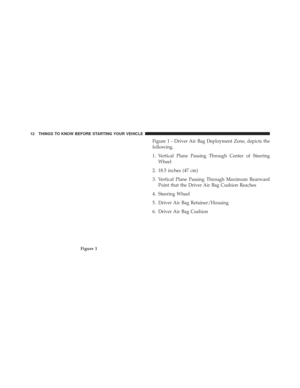

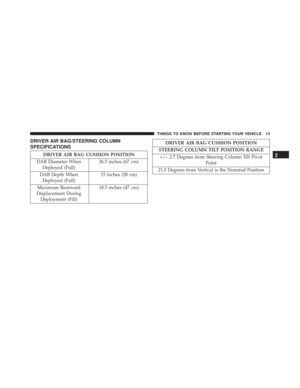

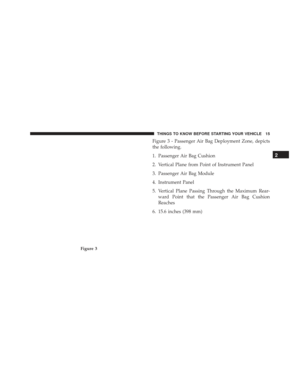

Figure 3 - Passenger Air Bag Deployment Zone, depicts
the following.
1. Passenger Air Bag Cushion
2. Vertical Plane from Point of Instrument Panel
3. Passenger Air Bag Module
4. Instrument Panel
5. Vertical Plane Passing Through the Maximum Rear-ward Point that the Passenger Air Bag Cushion
Reaches
6. 15.6 inches (398 mm)
Figure 3
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

Figure 4 - Passenger Air Bag Lateral Deployment Zone,
depicts the following.
1. 23 inches (77 mm)
2. Passenger Air Bag Cushion Deployment Zone
3. 20 inches (515 mm)
4. Reference Point
Figure 4
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Figure 5
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

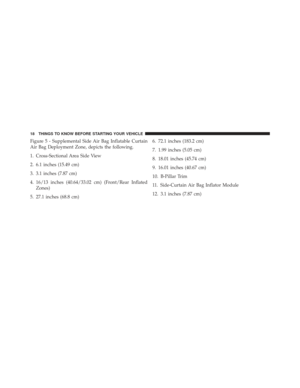

Figure 5 - Supplemental Side Air Bag Inflatable Curtain
Air Bag Deployment Zone, depicts the following.
1. Cross-Sectional Area Side View
2. 6.1 inches (15.49 cm)
3. 3.1 inches (7.87 cm)
4. 16/13 inches (40.64/33.02 cm) (Front/Rear InflatedZones)
5. 27.1 inches (68.8 cm) 6. 72.1 inches (183.2 cm)
7. 1.99 inches (5.05 cm)
8. 18.01 inches (45.74 cm)
9. 16.01 inches (40.67 cm)
10. B-Pillar Trim
11. Side-Curtain Air Bag Inflator Module
12. 3.1 inches (7.87 cm)
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Figure 6
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

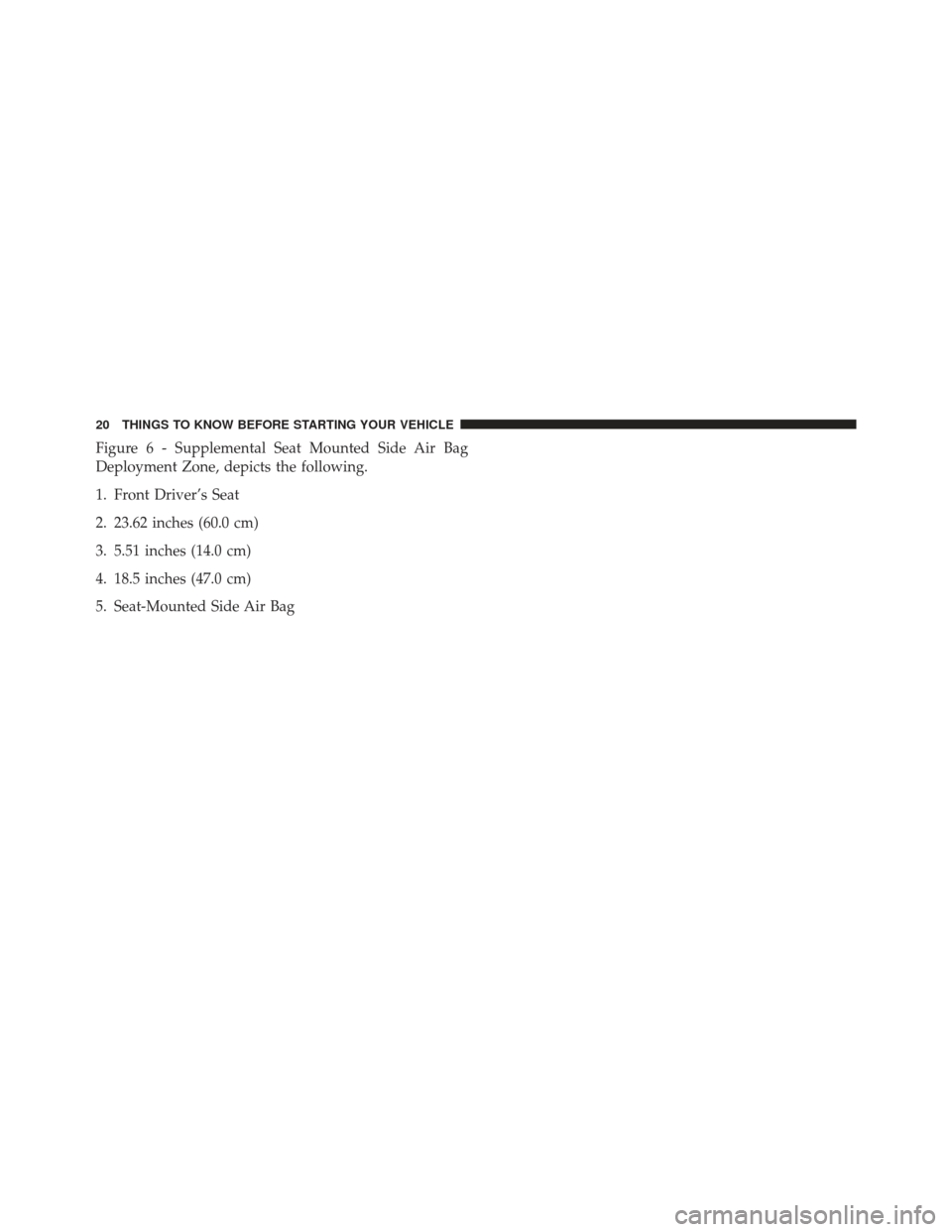

Figure 6 - Supplemental Seat Mounted Side Air Bag
Deployment Zone, depicts the following.
1. Front Driver’s Seat
2. 23.62 inches (60.0 cm)
3. 5.51 inches (14.0 cm)
4. 18.5 inches (47.0 cm)
5. Seat-Mounted Side Air Bag
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

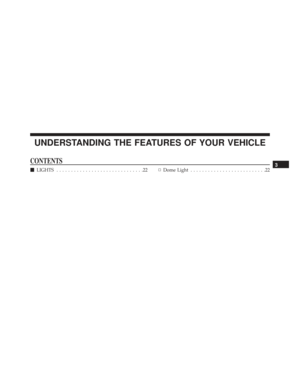

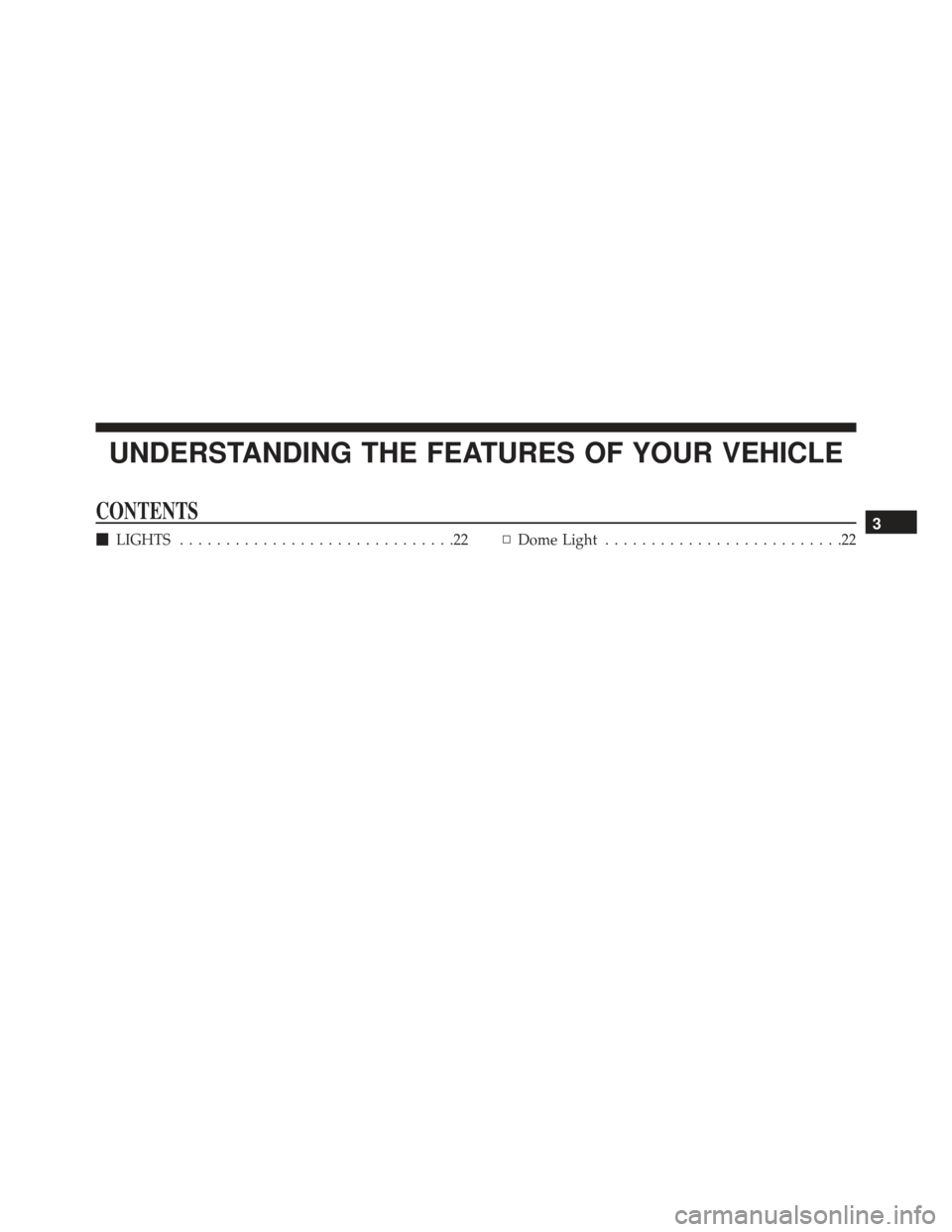

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
LIGHTS ..............................22 ▫Dome Light ..........................223

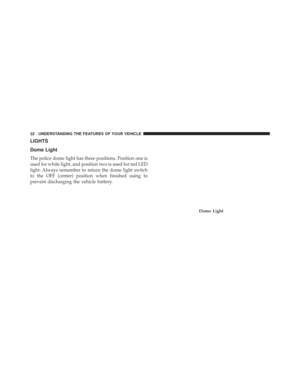

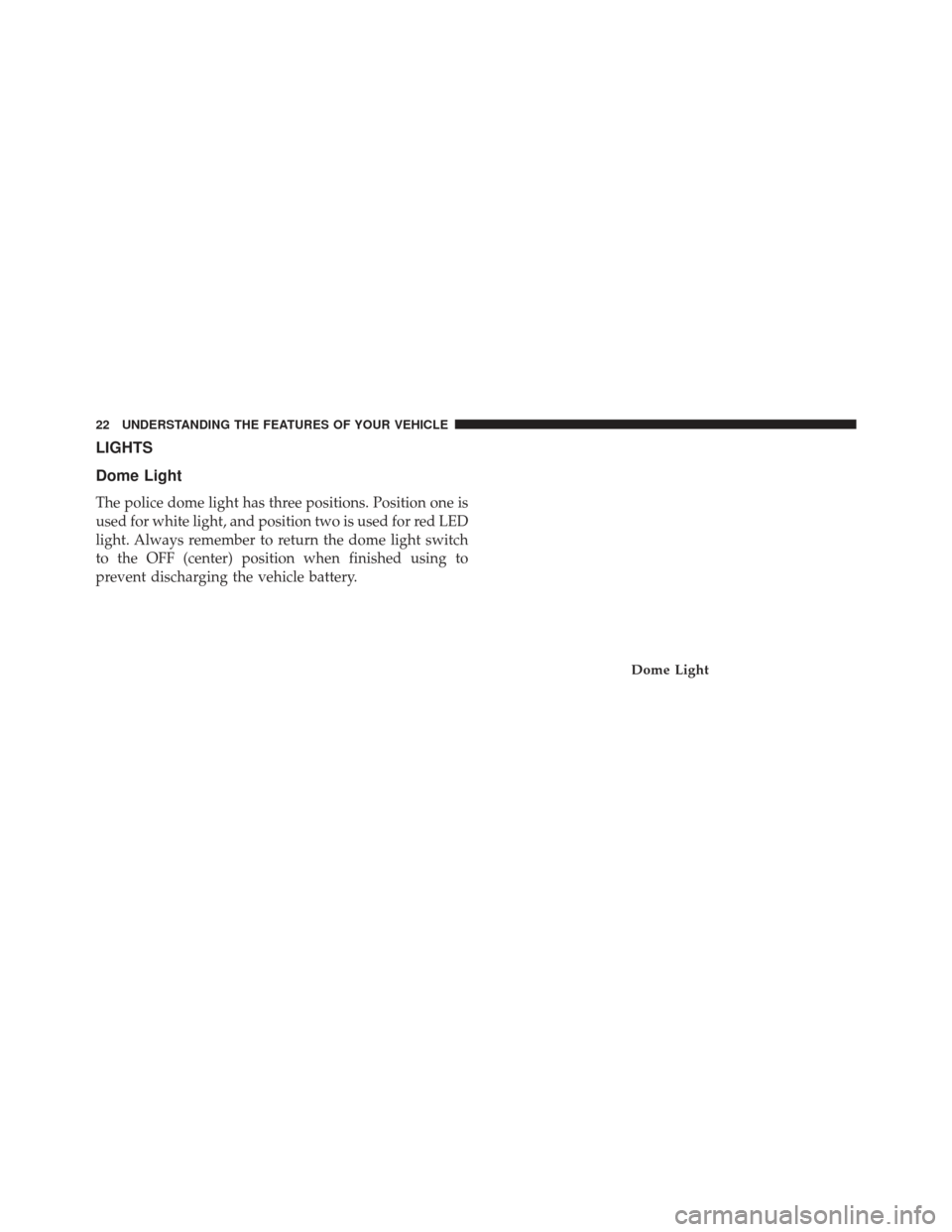

LIGHTS
Dome Light
The police dome light has three positions. Position one is
used for white light, and position two is used for red LED
light. Always remember to return the dome light switch
to the OFF (center) position when finished using to
prevent discharging the vehicle battery.
Dome Light
22 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
